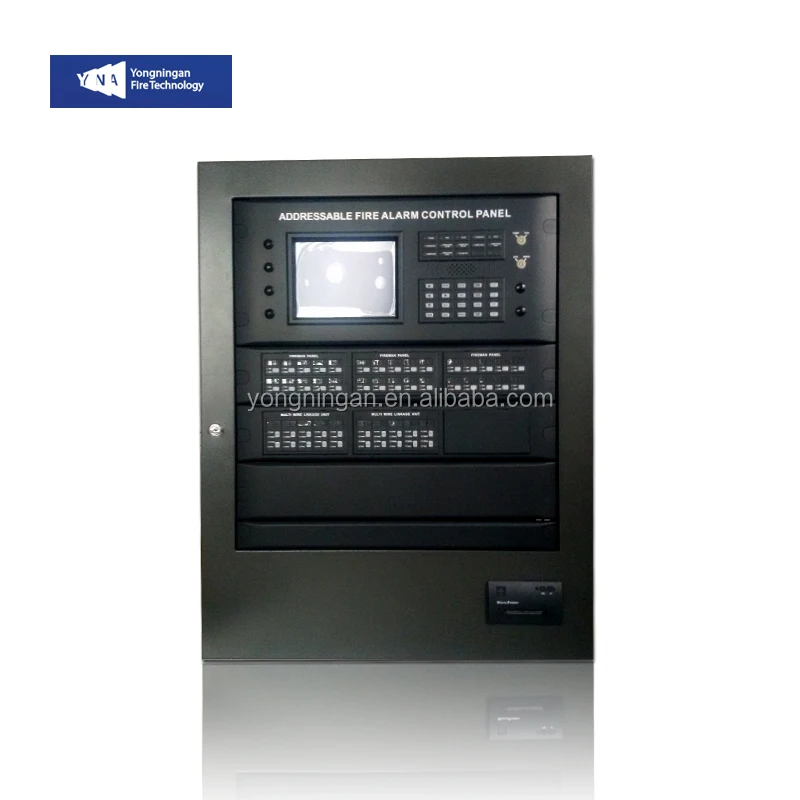

JB QBL 9000E 2 Loops Short Circuit Isolate Addressable Fire Alarm Control Panel

Ⅰ, Introduction:

  The addressable fire alarm control panel is a dual wire analog bus system, it can replace the conventional fire alarm control system to save 50% or more cables.

Each detector, module, manual call point, horn, strobe ,hydrant has its own independent address, the fireman or the guard can find the exact fire alarm address instead of a wide area in conventional system.

  The YNA-FAP9000 series addressable fire alarm control panel is an advanced, perfect and reliable system, it has been used in many countries.

2-wire intelligent fire alarm control panel is compatible with listed intelligent detector,intelligent module , intelligent call point, intelligent horn/strobe etc.

Ⅱ,Character:

  1.    32-bit MCU

  2.    2-wire communication between detector/module

  3.    Each detector sensitivity adjustable

  4.    Field-programmable with PS/2 standard PC keypad and mouse

  5.    7.4' LCD back-lit display

  6.    Windows menu and interface

  7.    Chinese or English interface and panel display

  8.    CF card duplicate or reset system setup file and history file to facilitate maintenance

  9.    Communicate with PC via USB

  10.Single point start/stop of module (Menu operation)

  11.Single point test of detector/module

  12.Zone, building or floor display

  13.CRT visually display the location of fire and trouble

  14.Eleven users each with a password and selectable access levels

  15.Field software upgrade

  16.20 YNA-FAP9000peer-to-peer, long-distance optical fiber transmission network via CAN communication transform module

  17.Flexible collocation by modularized combination

Ⅲ,Standards that apply

   GB 4717-93 "General Technical Conditions for Fire Alarm Control Units"GB 16806-1997"General Technical Conditions of control for Fire Protection Equipment"

   CE certification

IV ,Capacity

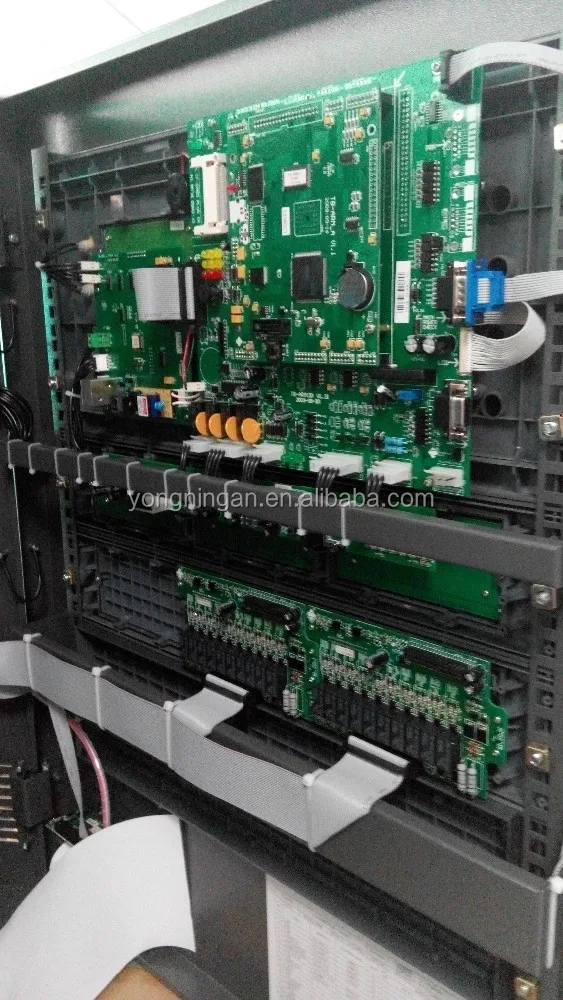

  1. Each I/O-board has two loops, with 324 alarm/control points of each loop (Max. control points-99), the capacity of each I/O-board :2×324=648(points).

  2. Each AW-AFP2100 can connect maximum 3 I/O-boards, the capacity of each YNA-FAP9000:3×648=1944(points).

  3. Peer-to-peer with max. 20 YNA-FAP9000 , system capacity:20 ×1944=38880(points).

  4. Multi-line integrated control/monitoring capacity: Each YNA-FAP9000 can have maximum 25920 points.

  5. Busintegrated control capacity:Each YNA-FAP9000 can have maximum25920 points.

  6. Maximum simultaneous alarm of each host:

   Fire alarm:500,

   Trouble:500,

    Feedback:500

V,Operating environment

  1. Temperature:-10℃~+55℃.

  2.Relative humidity:≤95%(40 ℃,non-condensing).

  3. AC power:220VAC,50Hz,3A.

  4.DC power:24VDC,7.0Ah

  Shenzhen Yongningan Fire Technology Co.,Ltd. is a fire alarm solution complete system provider with full range of fire alarm products series involved.

  Yongningan has a complete technical R&D platform,A research team made up of technical elites of the industry provides a guarantee for the continuous improvement and innovations of the products and technologies of Yongningan Fire Technology.
  We are making great efforts to develop an overseas market and our products have been sold to more than forty countries and regions including Japan, the EU, South Asia, Africa, etc.
  With a vision of "Create a safe home", Yongningan makes unremitting efforts to create a safe, environmentally friendly, intelligent and comfortable living environment with its technologies and experience accumulated during its long-term engagement in the multiple professional fields of the weak current of buildings.

1.Addressable fire alarm system full plan design:Yes

2.Addressable fire alarm control panel technical support: Yes

3.Addressable fire alarm control panel after sale service: Yes

4.Addressable fire alarm control panel OEM/ODM: Yes

5.Addressable fire alarm control panel warranty: 1 year

1.MOQ: 1 pcs

2.Delievry time :generally 5 to10 days .Mass product will be more.

3.Payment terms :T/T L/C
