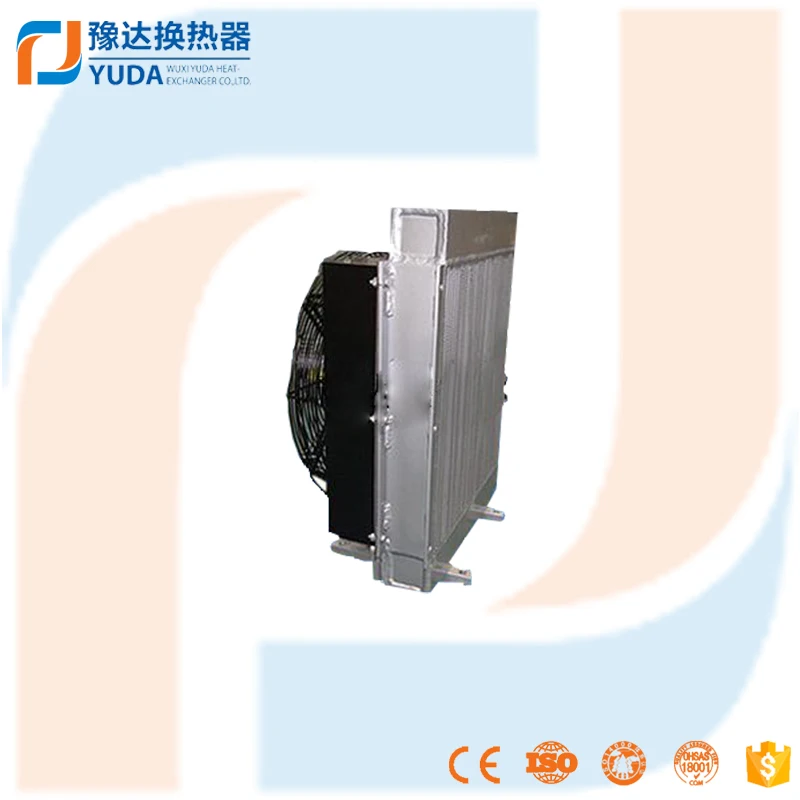

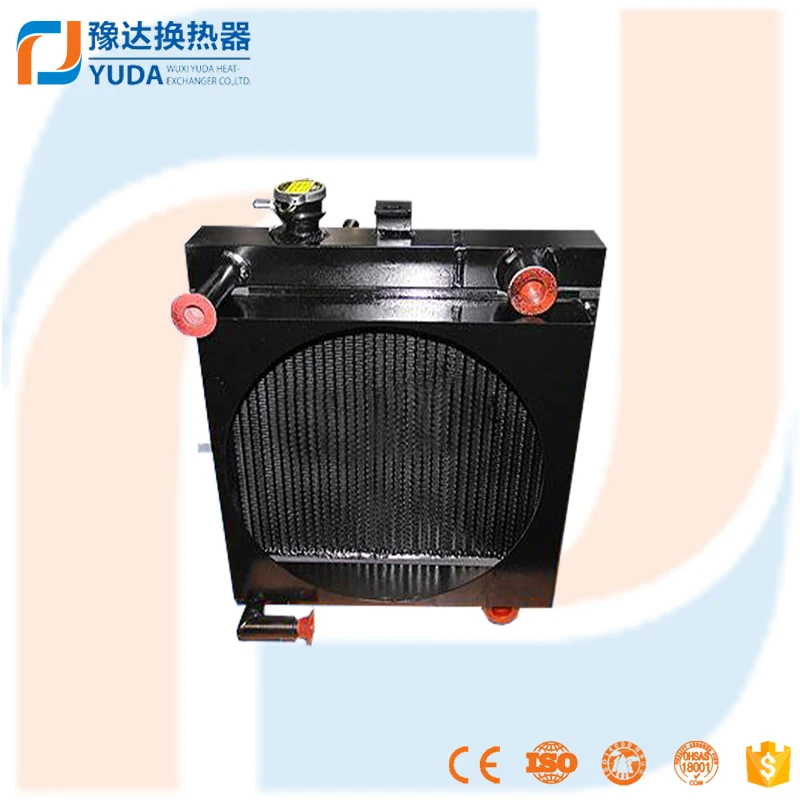

aluminium plate fin exchanger industrial hydraulic oil cooler with fan, motor and pump
Product Description
Feature
1.Aluminium plate fin heat exchanger for engineering machinery lubricating oil system
2.The combination of water and glycol and liquid with 50% preservative
3.hydraulic oil cooler with high efficiency cooling system Cooling range 2-34 kW
4.Radiator can assembled with 12V/24V DC, 220V/380V AV and hydraulic motor. motor lifetimes up to 16,000 hours . pump is according to your requirements.
5.Aluminium oil cooler with the maximum pressure 26 bar whose working principle is the heat of liquid is taken away by cooling fan for this type :Hydraulic pressure 16 bar dynamic
Company Information
Details of manufacture :
Fins are the basic compollernts of plate-fin heat exchanger, on which the heat transfer depends .there are many types of fins.
such as :straight fin, perforated fin .offset fin ,louvered fin and corrugated fin which can meets various requirements

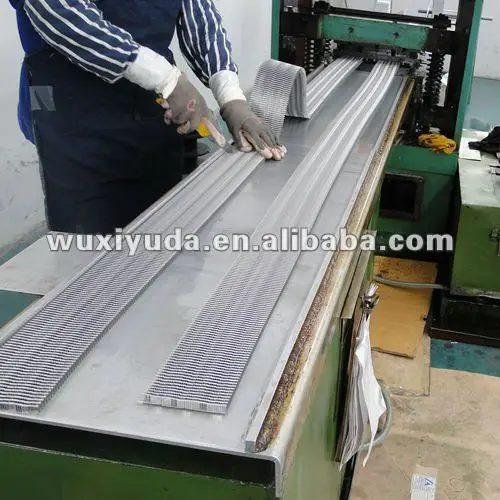

Stamp fins : we have 15 set fin punching machine
Assemble fins
Putting core to Vacuum braze furnace
Vacuum brazingfurnace
1) Total: 3 sets
2) Annual Brazing capacity: 2,000 tons
3) Maximum size: 1400 (H) *3500mm(L)
Welding and argon weling
Pressure and oil/ water leak test
Painting & spraying

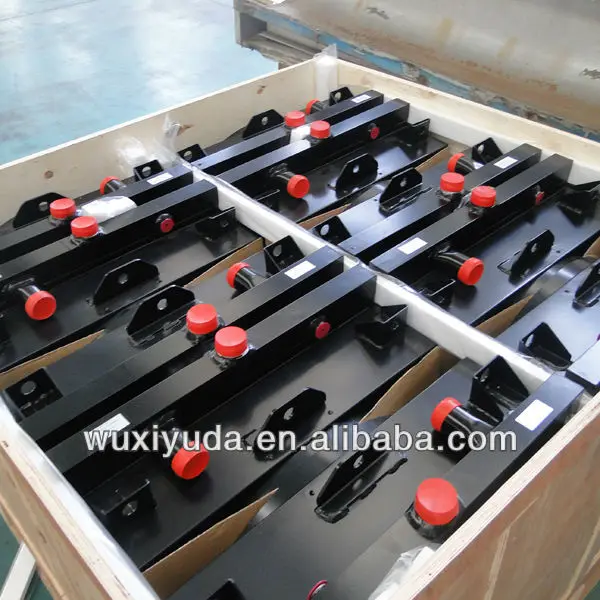

Packaging & Shipping
Plywooden packing make the cooolers more stable nd safe when on sea
Our Services
We can design the cooler accodring to your technical data or we can choose type for you based on your requirements
Media
air
oil
Heat transfer capacity
Flow
Inter temp
Outer temp
Work pressure
Pressure drop
FAQ
Application
These coolers are designed specifically for mobile hydraulic applications where high performance and efficiency are required and physical size must be minimised to allow easy installation.
Typical applications include mobile cranes, concrete mixers and pump trucks, road paving machines &transmission cooling.
These coolers use a combination of high performance cooling elements and high capacity, long life DC electric powered fans to give long trouble free operation in arduous mobile hydraulic applications.
The compact design allows the coolers to fit most equipment and provide the highest cooling performance in heat dissipation whilst minimising space required.
