Polyester Yarn Twisting Machine

Share on (60390618714):


Price:

Quantity:


Product Overview

Description





Product Description

Product Description




Product Application

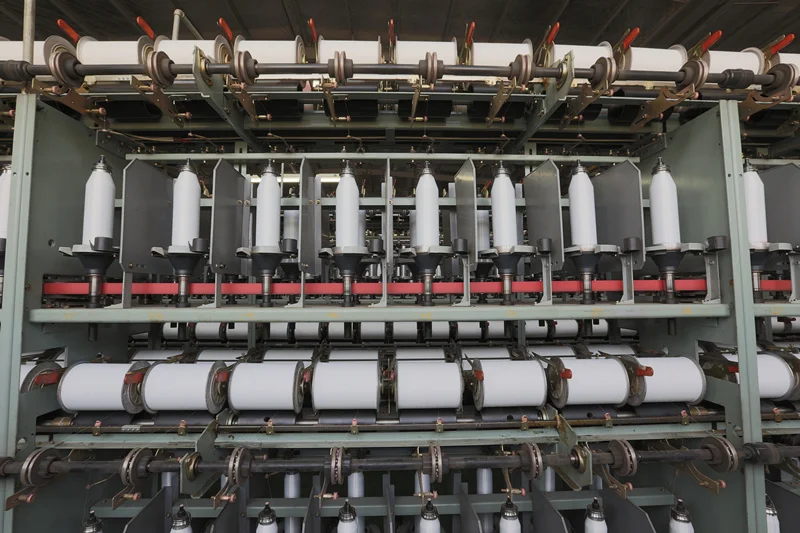

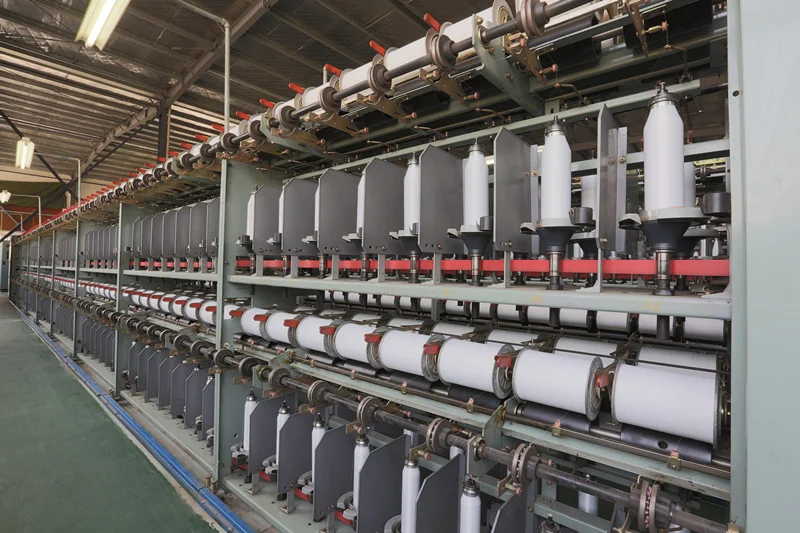

HW310G high speed chemical fiber two for one twisting machine is a Hi-Tech product in our company. It features high spindle speed, wide twisting range and low energy consumption, etc. It may twist 20D ultra fine chemical fiber yarns, which meets developing requirements of textile industry.































































































Machin form


Two Sides, Two Layers, Low Machine Body


Spindle Number


256 Spindles (Standard)


Spindle Type


Φ90 Conical Spindle


Spindle Distance


255mm


Usual Rotating Speed


8000-13000r/min


Twist Range


339 ~ 3898T/M


Twist Direction


S or Z way


Unwinding Bobbin Speciation


Φ100×Φ42×L240~290mm


Winding Capacity


(Raw Yarn) 750g-1200g, (Manufactured yarn) 500g-750g


Winding Method


Edged Bobbin Parallel Winding


Spindle Transmission Method


Tangential Belt transmits in cycles


Spindle Fixing Method


Magnetic Force


Starting Method


Y-Slow starting


Tensioner


Elastic Tensioner and Cushion Tensioner are put in use together


Winding-Up Tension


Overfeed Rate-Regulating and Tensioner Device


Winding Angle


standard 3°42' blinks (9.0 time/single traverse) 2°51' blinks (11.7 time/single traverse) 6°42' blinks (5.0 time/single traverse)


Applicable Range


25D-500D chemical fiber yarns


Transmission Motor


2 x 7.5KW (3 Phase Asynchronous Motor)


Outside Dimension


16410x750x1950mm (LxWxH)


Packing


Nude cargo. We separate the whole machine (1 set) into sections and put each section one by one in a 20GP container for shipping.


Price


FOB SHANGHAI



























Our Service

Our Service














Pre-Sales Service




* Inquiry and consulting support.


* Sample testing support.


* View our Factory.






After-Sales Service




* Training how to instal the machine, training how to use the machine.


* Engineers available to service machinery overseas.










Certifications

Certifications


























FAQ

FAQ



1. Are you the manufacturer or the trading company?
We are the experienced manufacturer of textile machines, especially for the two-for-one twisting machines, doubling winder machines, yarn covering machines and etc. We have got the self-support imports and exports right.

2. What is your advantage compared with other textile manufacturers?
We are expert at making yarn machines for almost 20 years and we have a professional technical team who can provide special customer requirements. Our machines have been exported to a lot of countries such as Vietnam, South Korea, Uzbekistan, the Philippines, Tunisia, Morocco and so on.

3. What kind of service can you offer?
Design with your requirements by professional team.
ISO 9001:2008 certificates and letters patent.
Engineers go overseas for training.


4. How to check my order at last?
We warmly welcome you to visit our company in Wuxi, which is close to Shanghai, for checking your machines. If you don’t come here, we can also take photos and videos for your confirmation.







Packing & Delivery

Packing & Delivery

























Packaging



Size



16410 (L) * 750 (W) * 1950mm (H)



Weight



About 3 T









Packaging Details



We mostly use the nude cargo with waterproof plastic bags. We will separate the whole machine into sections after adjustment, and then put each section one by one into a 20GP container for shipping.







Our Company

Our Company









About Wuxi Huawen.




Our company was established in 1997 and has got a lot of experience in the yarn machinery field.


We are firstly famous for the design and manufacturer of spindles, and then we are known for the manufacturer of two for one twisters, doubling winder machines and other kind of yarn machinery. We've got high reputation in this field and have already sold a lot of our machines to many countries.








Related Products

Related Products







HW303 High speed computer based spooler




This machine is used to reel raw yarns in different shapes into bi-conical bobbin yarn with definite specifications for two-for-one twisting machines. It is indispensable pre-job supporting equipment for two-for-one twisting machines.
