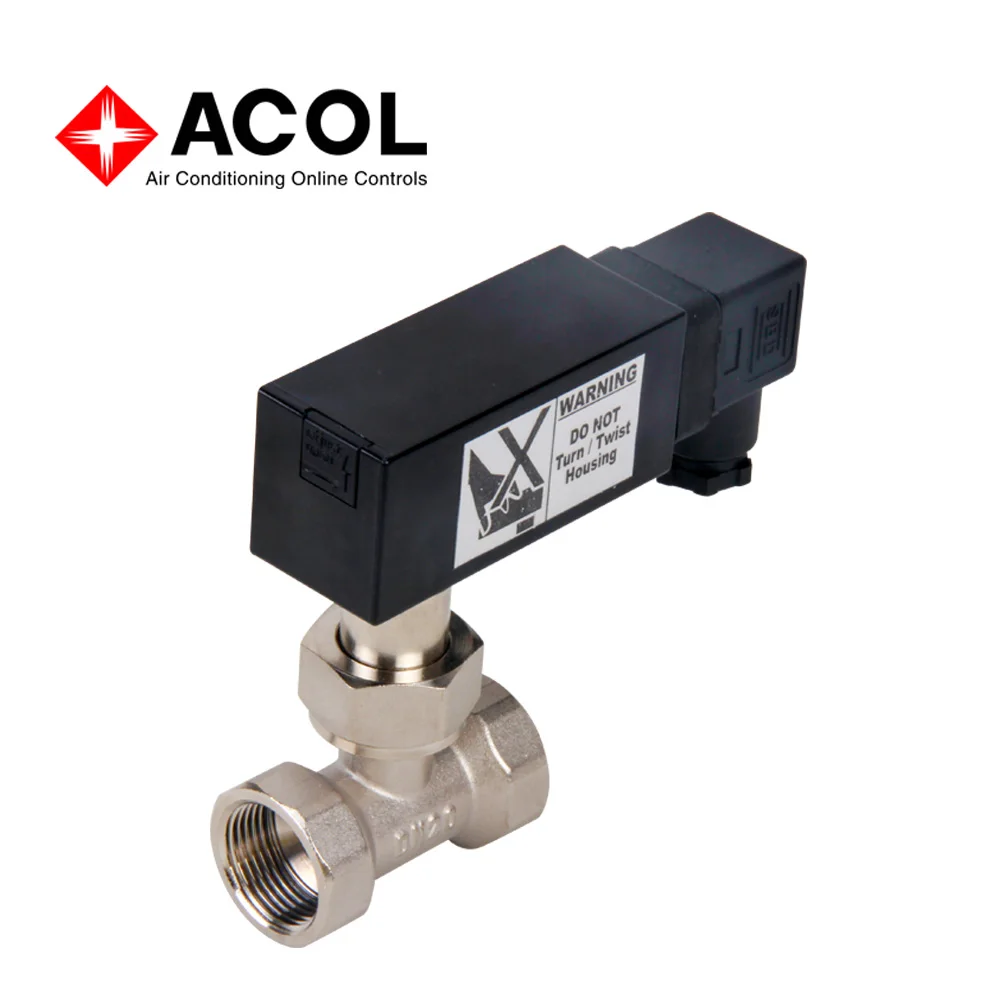

ACOL brass paddle air conditioner oil flow switch for chiller
| T Sizes: | DN15,DN20,DN25,DN32,DN40,DN50 |
| Material: | Body: nickel plated brass;Paddle: stainless steel;Seal: NBR;Electrical shell: ABS |
| Usage: | industrial automation/mechanical equipment/air compressing industry/ refrigeration and air-conditioner /engineer |
| Mode of connection: | with 1.2m wire ; with DIN43650 |
| Model No.: | WFS22XXXBA |
| Parameters Table | |||||||||
| Diameter | Model No. | Range of flow rate L/M (water) | Maximum flow rate L/M (water) | A mm | B mm | C mm | |||
| A | B | C | D | ||||||
| DN15 | WFS22015BA | 3.3(2.8)~4.4(3.7) | 5.3(4.5)~7.2(6.1) | 6.0(5.1)~8.1(6.9) | 8.4(7.1)~11.3(9.6) | 20 | 28 | G1/2 | 50 |
| DN20 | WFS22020BA | 5.8(4.9)~7.8(6.7) | 9.4(8.0)~12.8(10.8) | 10.6(9.1)~14.4(12.2) | 14.9(12.6)~20.1(17.1) | 40 | 28 | G3/4 | 58 |
| DN25 | WFS22025BA | 9.1(7.7)~12.3(10.4) | 14.7(12.5)~19.9(16.9) | 16.6(14.1)~22.5(19.1) | 23.2(19.8)~31.4(26.7) | 60 | 36 | G1 | 58 |
| DN32 | WFS22032BA | 14.8(12.6)~20.1(17.1) | 24.1(20.5)~32.7(27.8) | 27.3(23.2)~36.9(31.4) | 38.1(32.4)~51.5(43.8) | 80 | 34 | G1-1/4 | 72 |
| DN40 | WFS22040BA | 23.2(19.7)~31.4(26.7) | 37.7(32.1)~51.0(43.4) | 42.6(36.2)~57.6(49.0) | 59.5(50.6)~80.5(68.4) | 100 | 39 | G1-1/2 | 72 |
| DN50 | WFS22050BA | 36.2(30.8)~49.0(41.7) | 59.0(50.1)~79.8(67.8) | 66.6(56.6)~90.0(76.5) | 93.0(79.0)~125.8(106.9) | 150 | 44 | G2 | 72 |
| Note: The parameter table of flow range, outside brackets is action flow rate, inside brackets is reset flow rate. | |||||||||
