Insulating Electrical Tape Reel Automatic Cutting Machine

Product Overview

Description

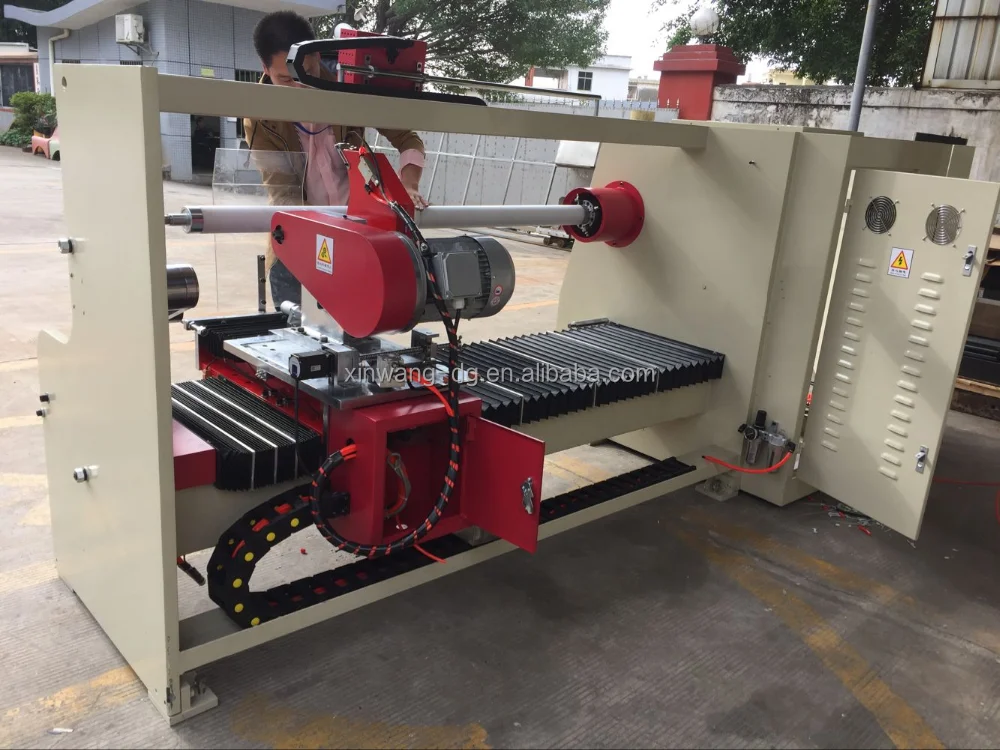

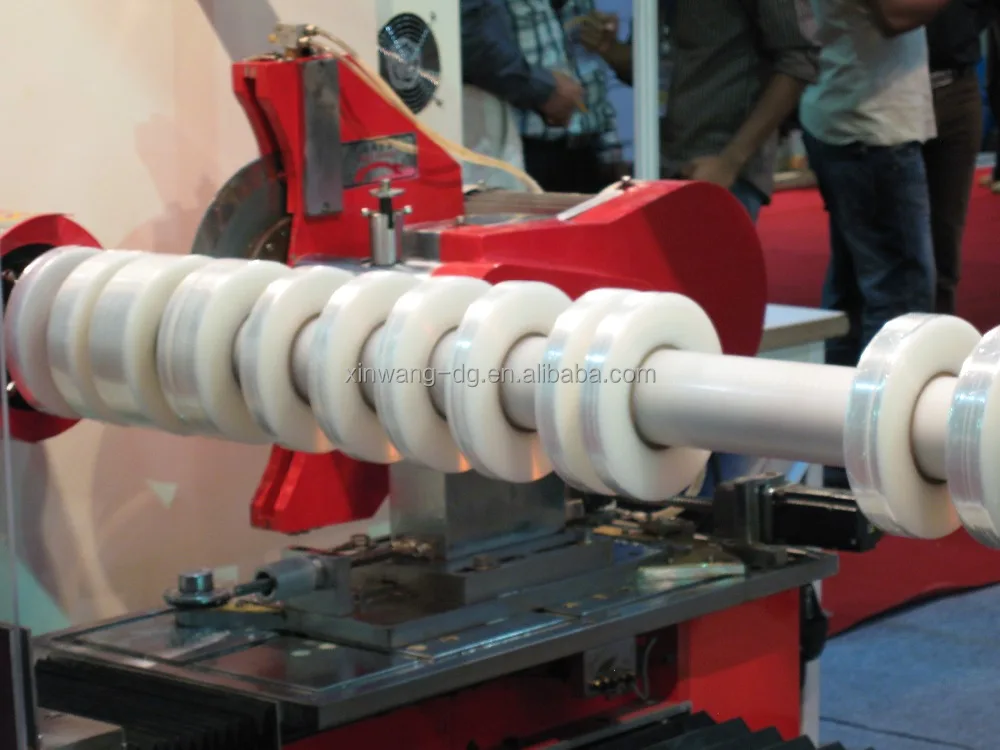

Insulating Tape Reel Automatic Cutting Machine



Suitable for different material of insulating tapes

1. Application:



OPP adhesive tape/PVC tape/Electrical tape/Mask tape/Double-size tape /kraft tape/Cloth tape,etc.,Every machine motion is programmable by PLC.Operation is easy and flexibility .It can cut 10 various kinds of width on one roll.

2. Features:

1. Main driving part: AC motor with frequency converter is employed. The acceleration and the deceleration are fast and steady.



2. Central control unit: programmable central control is used and various sizes can be set on the same shaft for automatic transfer and cutting.



3. Operating panel: all functions are operated on the  LCD touch panel.



4. Motor control system: the central control system is PLC programmable controller. Various sizes can be set on the same shaft, and the cutting width is adjusted automatically.

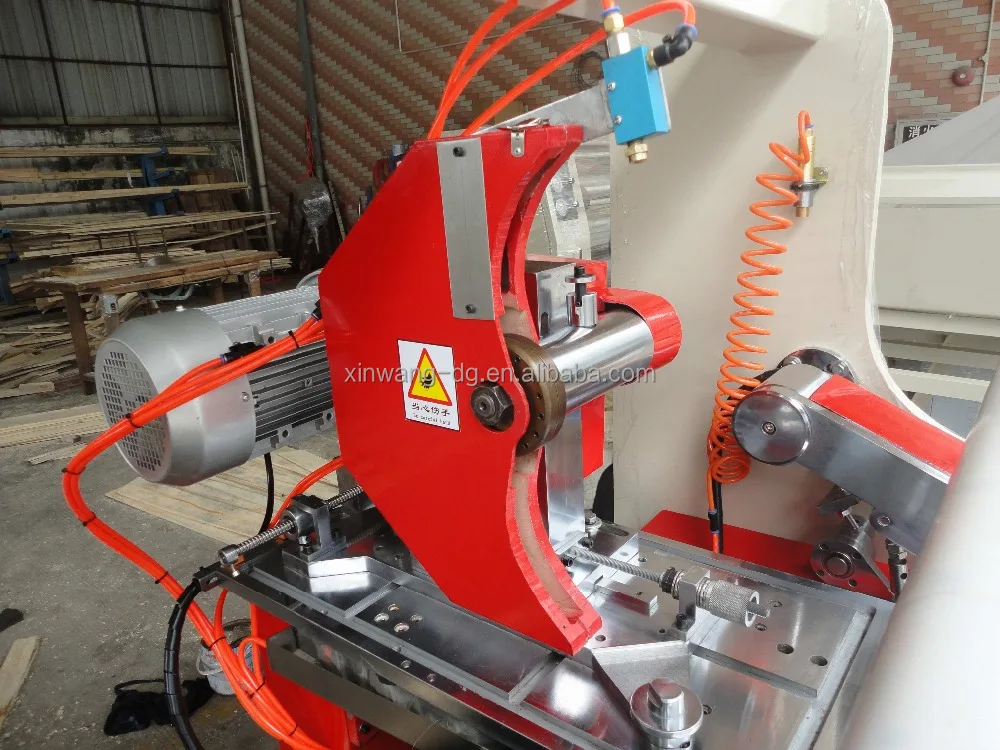

5. Cutting positioning system: cutting positioning is controlled by servo motor. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.



6. Blade feeding positioning system: blade feeding is controlled by servo motor, and the cutting speed is adjustable in three stages. The efficiency is improved and the best quality is guaranteed.



7. Auto angle adjustment of circular blade:servo motor is used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°). The cutting angle is changed directly when the cutting surface is not smooth, so the efficiency is improved.



8. Quick shaft change system: three kinds of shafts are available and quick change of shafts is applied for different materials.







3. Technical Parameters:



Model	XW-703D-1	XW-703D-2	XW-703D-3
Material	BOPP ADHESIVE TAPE .ETC
Voltage(V/Hz)	3Phase  380V 50HZ
Effective work width	1300mm/ 1600mm
Max.cutting diameter	Φ300mm
Inner diameter of core	Φ76mm~Φ77mm
Min.slitting width	0.5mm (please confirm)
Feeding way	Liquid pressure cut feeding	Variable-Frequency cut feeding	Servo cut feeding





automatic cutting machine for double sides tape masking tape

















• 12 months warranty (except for spare parts)
• 24 hours online service
• Providing free quick-wear parts
• Engineers available to service overseas if necessary
• Product certificated by CE, ISO9001





Dongguan Xinwang Package Machine Co. ltd, as one of leading company in the package machine field, has been built in 1998. Main products include coating machines, BOPP adhesive tape slitting machines, rewinding machines,auto cutting machines for masking tape ,double sides tape, PVC tape, foam tape etc ,lamination machine, paper tube /paper core making line etc.These machines are suitable various kinds of tapes, film and paper etc..
In 2000, Xinwang has been authenticated ISO9001:2000 by International Quality System Management Verification Center and owned the independent import and export ability.
Technology department is the lead team in the company which play an import role for developing the market; Most of engineer staff have over 10 years experience in the package machine field. Their experience and innovationability guarantee company stable development.
Over the 12 years, Xinwang has hold the large domestic market and products sell well over 40 countries, including Italy, America, Brazil, Australia, Vietnam, Pakistan, Malaysia, Iran, Syria, Libya etc. Welcome visit us and look forward to a future communication.

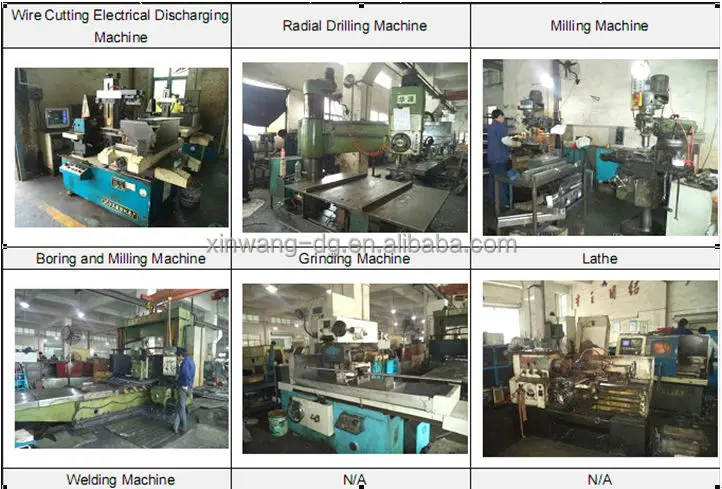

Production Flow :

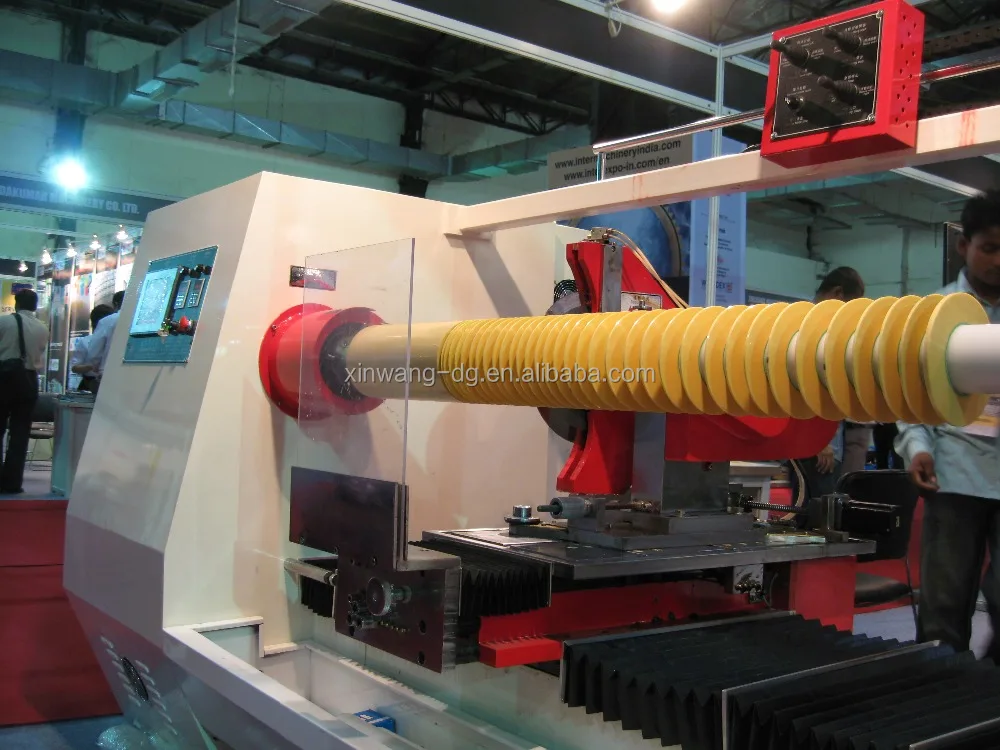

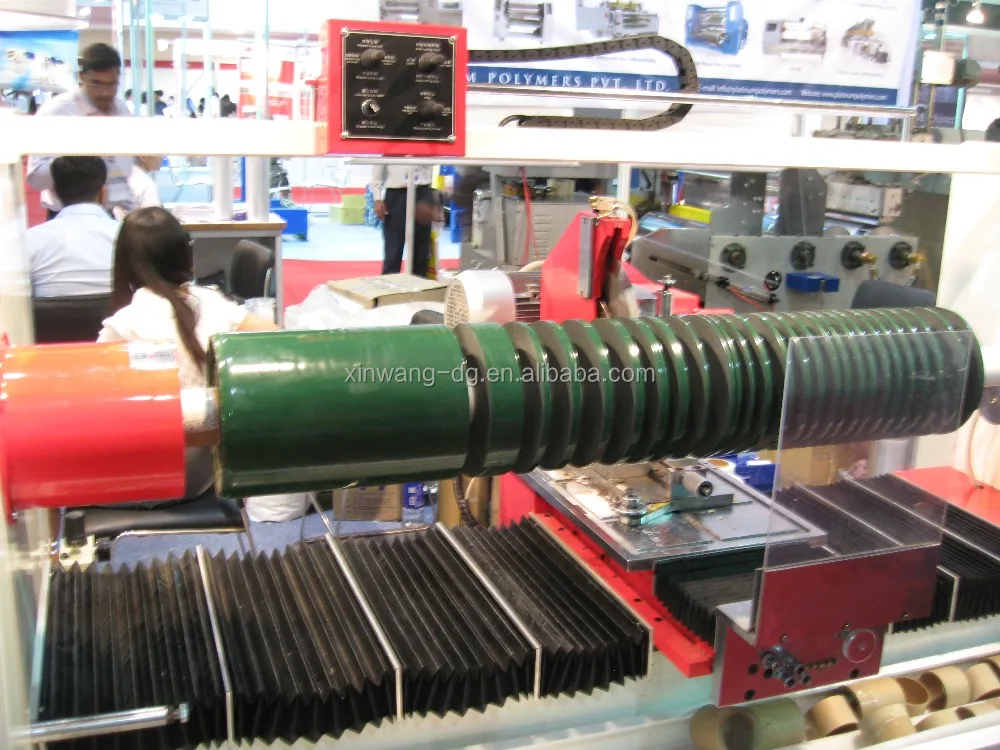

Our Exhibitions:







Contact Us:

Please feel free to contact us,we will reply within 24h!
