10m long Water transfer printing PVC Belt Drying Equipment Hydrographic Base Paint Drying Clear Coat Drying Line Machine
- Category: >>>
- Supplier: Dongguan Ivip Industry Co. Ltd.
Share on (60390919948):
Product Overview
Description
Description

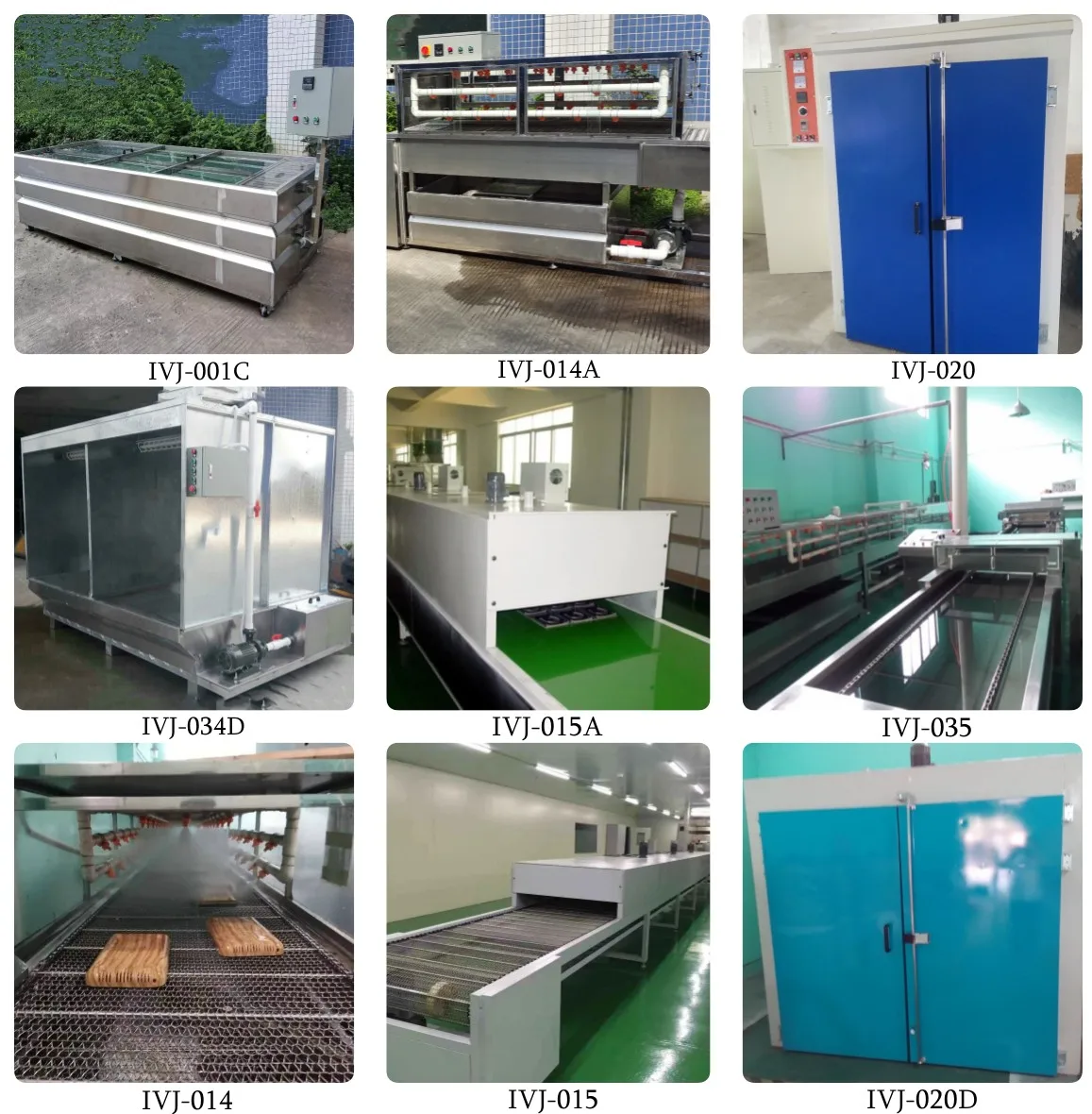

Machine Types:

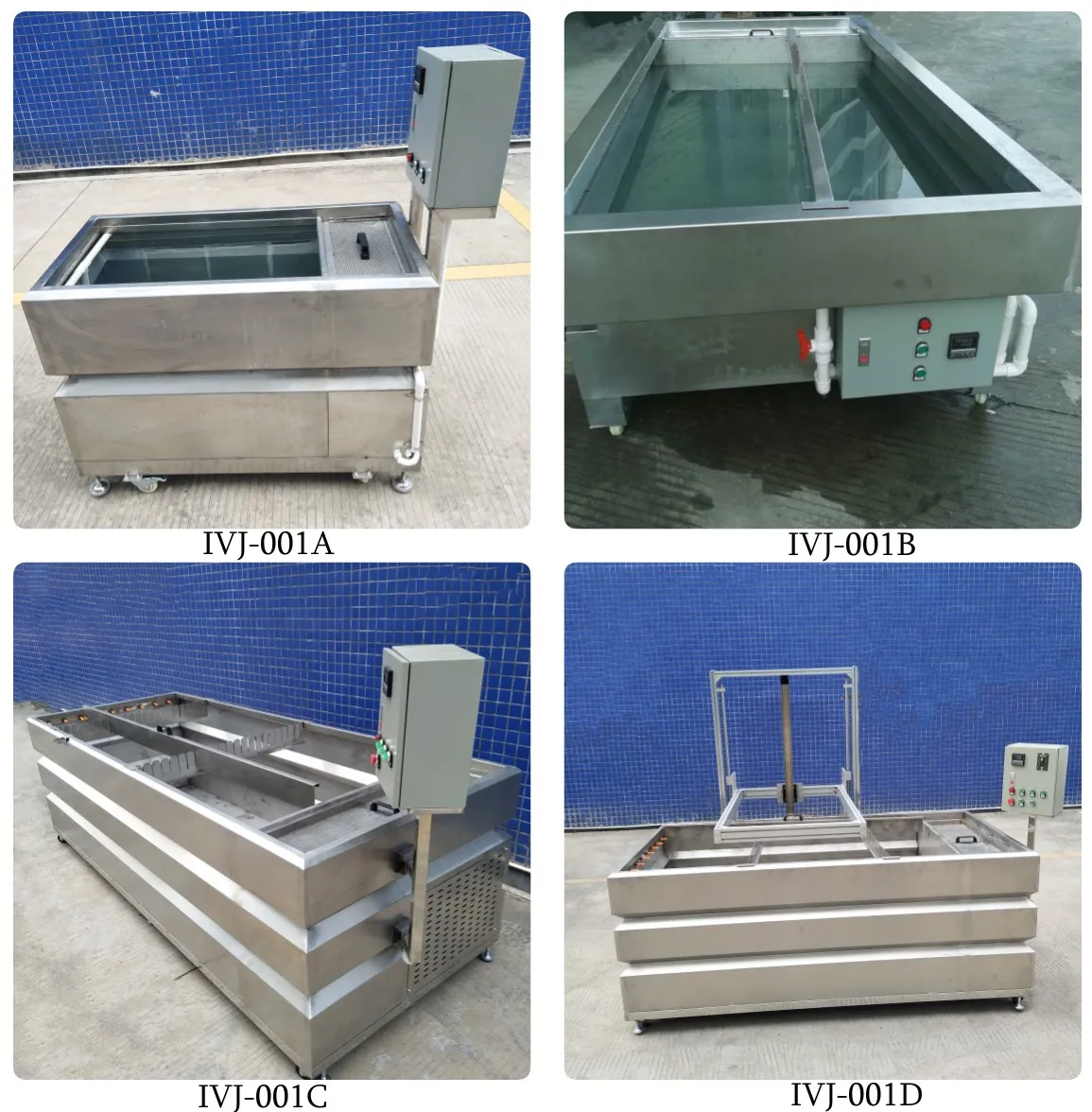

Manual and Automatic Water transfer printing tank, Spray Booth, Washing conveyor, Oven, Drying water line, Drying chemical line, Spray gun, Automatic Spray Cabinet and other hydrographic machine.

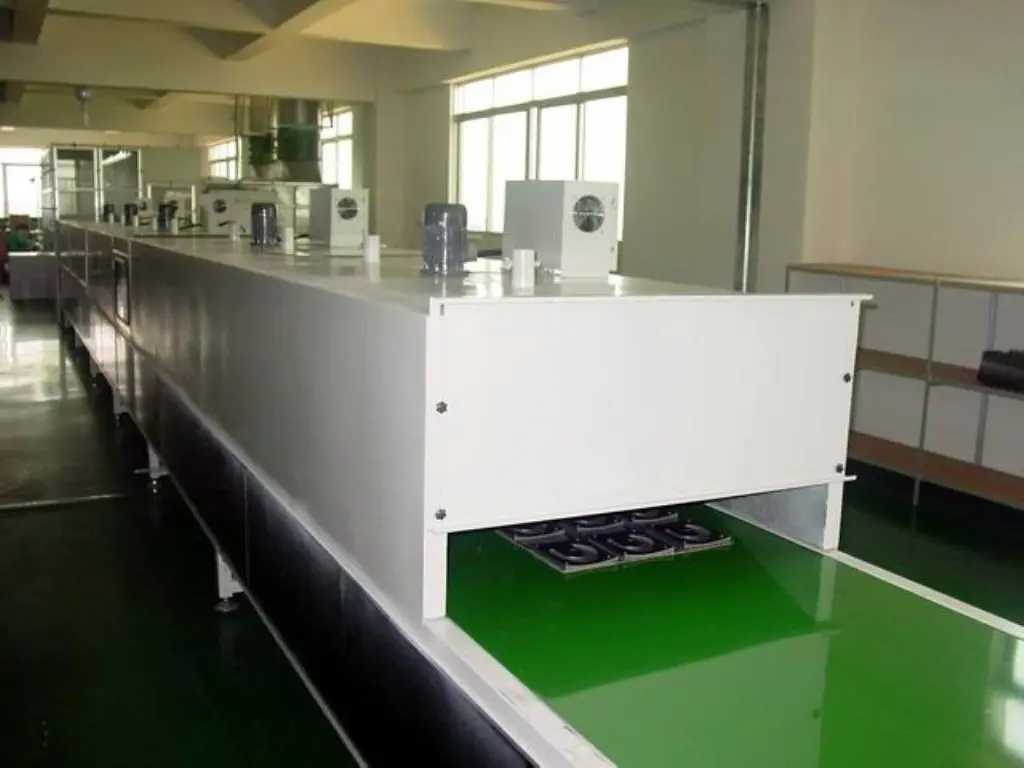

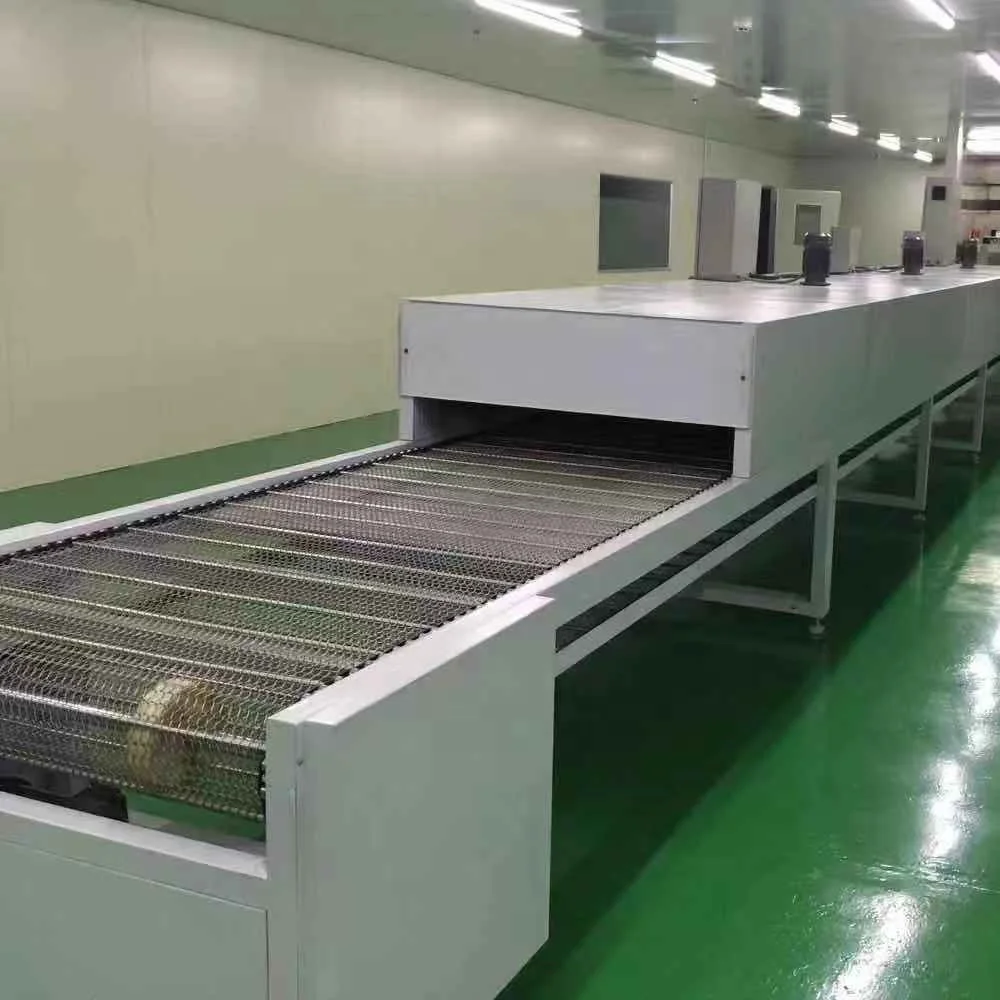

Tunnel type drying machine
1 Outer size: 10m (L) * 1.2m (W) * 1.35m (H).
2 Machine Body size: 10m (L) * 1.1m (W) * 0.75m (H).
3 Oven cover size: 2m (L) * 1.2m (W) * 0.55m (H), 5sets.
Height of Oven cover entrance: 0.3m.
4. Heating Power: 24KW, 220V/240V/380V, 3-phase 4 wire, 50Hz.
5. Tape speed: 1 ~ 5M/MIN (adjustable).
6. Temperature: RT to 80 °C, adjustable.
Heat preservation: High efficiency 100KG rock wool, thickness 50MM.
7. Machine body: T-1.5-50*100mm iron square tube.
8. Machine feet(Holder): T-1.5-50*50mm iron square tube.
9. The tray (pallet) : SUS-201-1.2 stainless steel plate bending by oil pressure.
10. Oven cover outer bladder : T 1.2mm cold rolled steel sheet.
11. Oven cover inner bladder: SUS-201-1.0 stainless steel sheet bending by oil pressure.
12. Conveyor:: 5 centimeter -201 stainless steel network chain, 1.5mm diameter stainless steel mesh belt.
13. Adjustable level feet cup.
14. Electrical parts: 2HP converter , 1 set of 2HP rotation motor
15. 1 set of 1:80 reducer.
16. 4 sets of 550W motor equipped with 9 inch wind cage.
17. 4 pieces of digital temperature indicating Controller.
18. 24pcs Infrared quartz heating tube
19. Platinum thermocouple

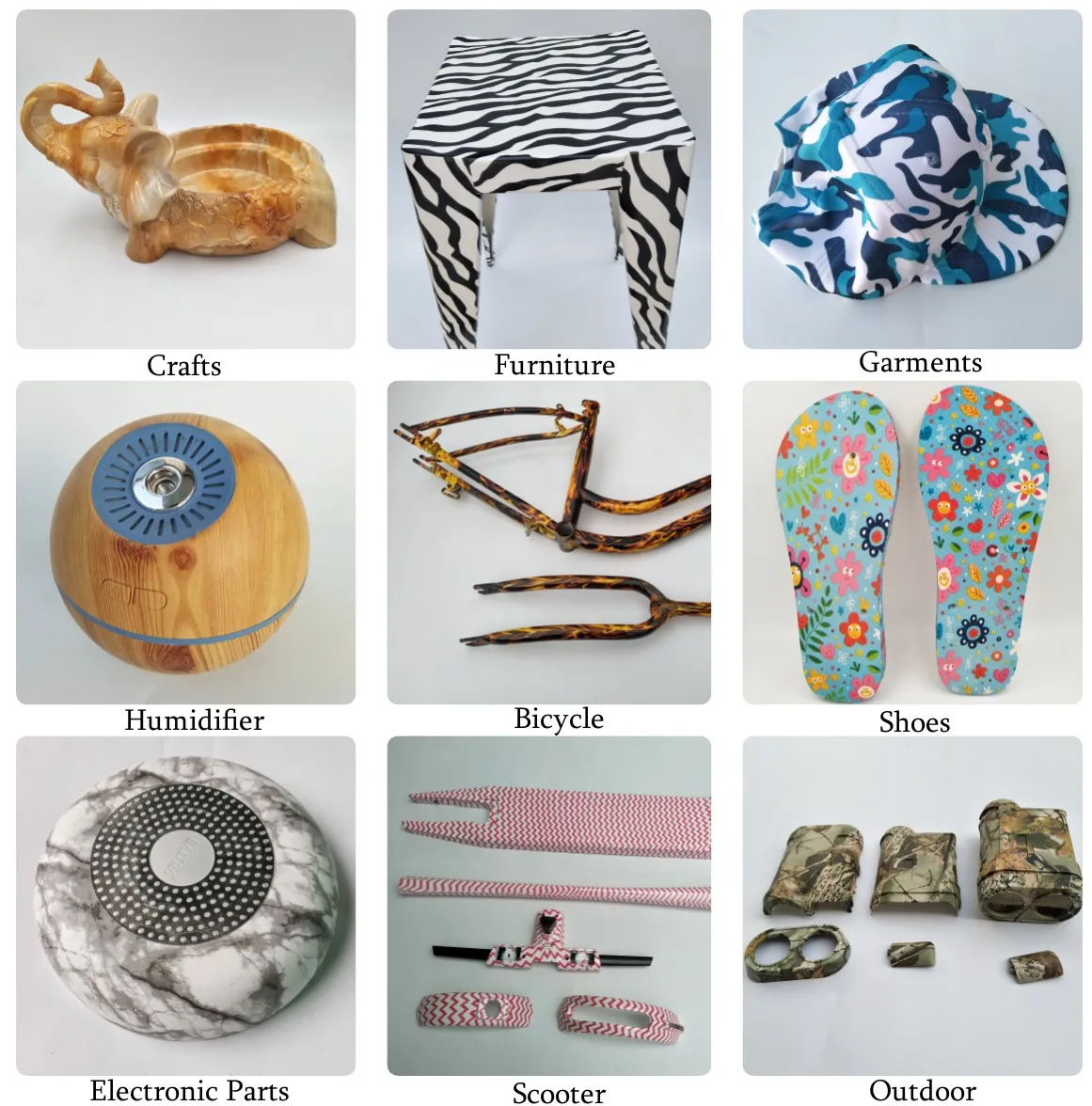

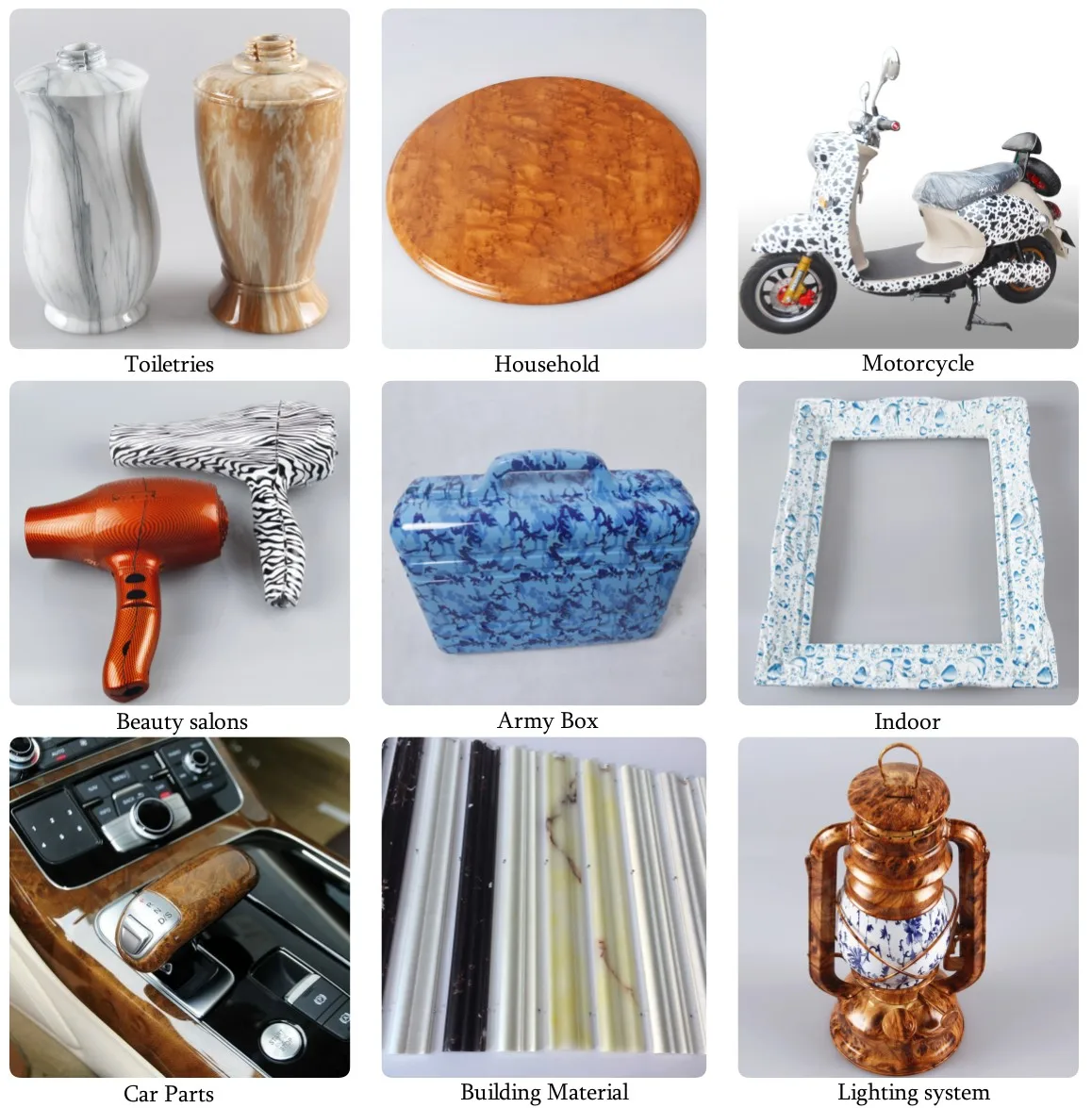

Water Transfer Printing Application
Car wheel, Electronics, Toy, Phone, Mouse, Clock, keyboard, Hair dryer, Table, Ashtray, Helmet, Pen, Bottle, Lighting, Air cleaner, Glasses, Wall, Ceiling, Shoe, Cosmetic, Kitchen, Packing, Door, Floor, Window, Handle, Furniture, Remote controller, Metal, Wood, Marble, ABS, PC, PP, PVC, PU, PE, TPU, EVA, PET, PBT, TPR, PPS, Kevlar fiber, Poly, Resin, Nylon, Silicone, Cement, Stone, Plastic, Glass.

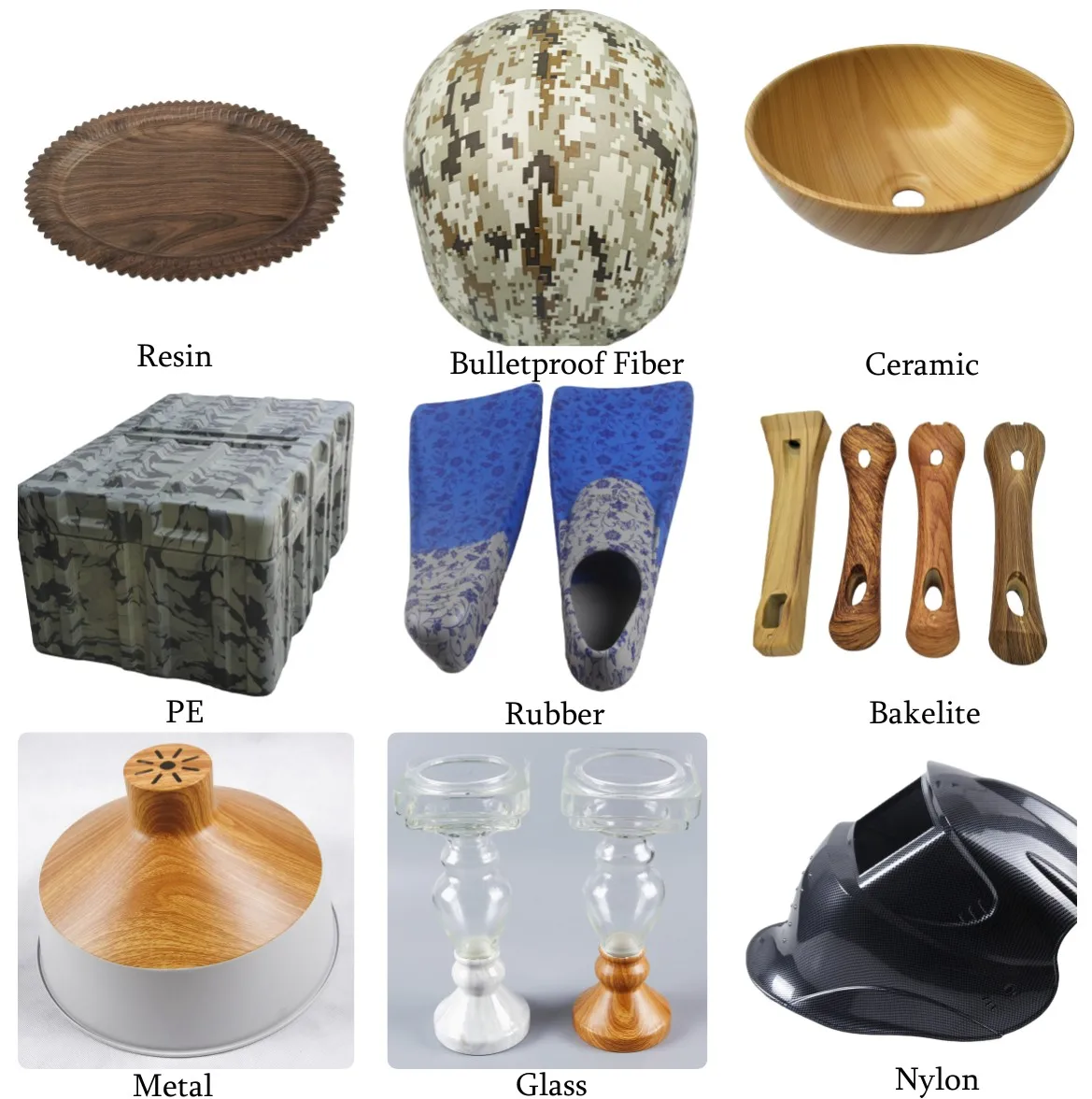

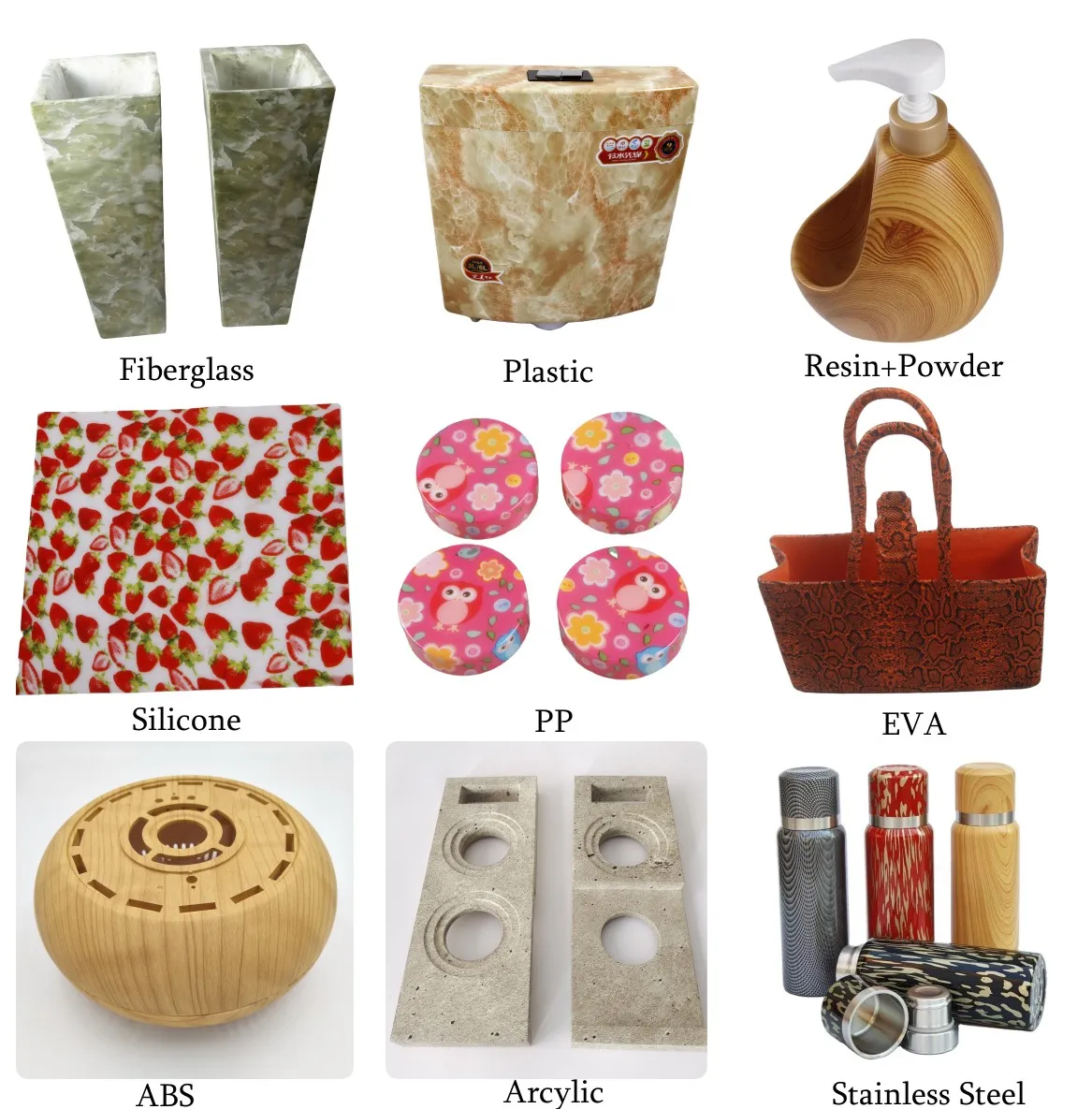

Hydrographic Film Used Material
1. Metal (Brass, Iron, Aluminum, Copper, Alloy, Stainless steel, etc)
2. Plastic (ABS, PU, PP, TPR, PS, PVC, PC, EVA, PE, TPU, PET, PBT).
3. Wood, Silicone, Glass, Stone, Bamboo, Resin, Poly, Nylon, Ceramic.
4. Kevlar fiber, Cement, Rubber, Marble, Acrylic, Soft Material.
5. All irregular, flat surface products that can be hydro printing transfer.
2. Plastic (ABS, PU, PP, TPR, PS, PVC, PC, EVA, PE, TPU, PET, PBT).
3. Wood, Silicone, Glass, Stone, Bamboo, Resin, Poly, Nylon, Ceramic.
4. Kevlar fiber, Cement, Rubber, Marble, Acrylic, Soft Material.
5. All irregular, flat surface products that can be hydro printing transfer.
When you do water transfer printing , you need all components as below.
1. Machine: printing tank, activator-spray device, washing conveyor, drying line, oven, spray booth.
2. Accessories: Spray gun, air compressor, water, drainage system, aerated room, tube, fixture tool.
3. Material: Water transfer film, activator, base paint, clear coat & other chemical agent.
4. Technology: After-sales service, video, picture, training or learn by yourself.

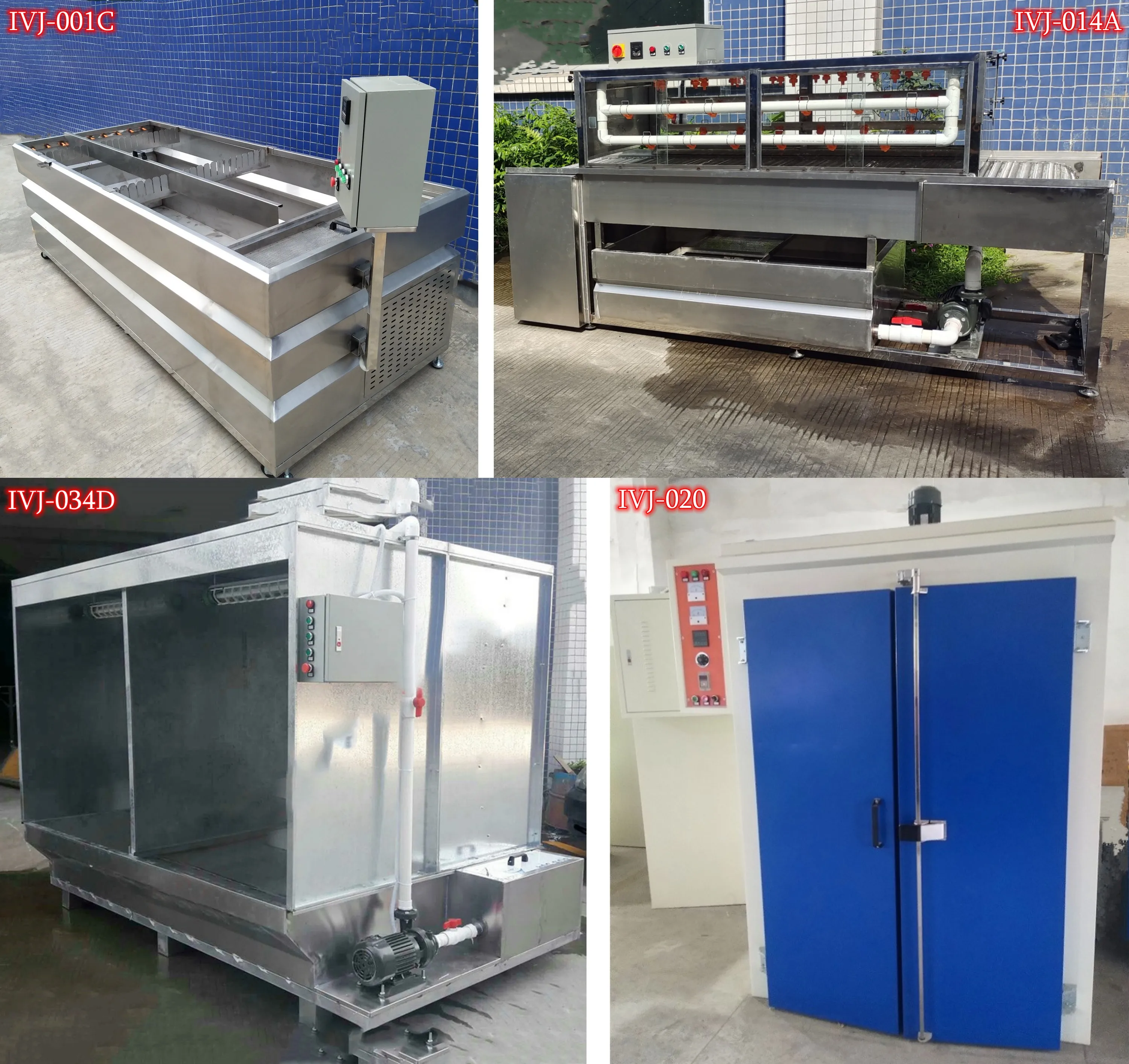

Small Investment machine for your selection as below.
Select A :

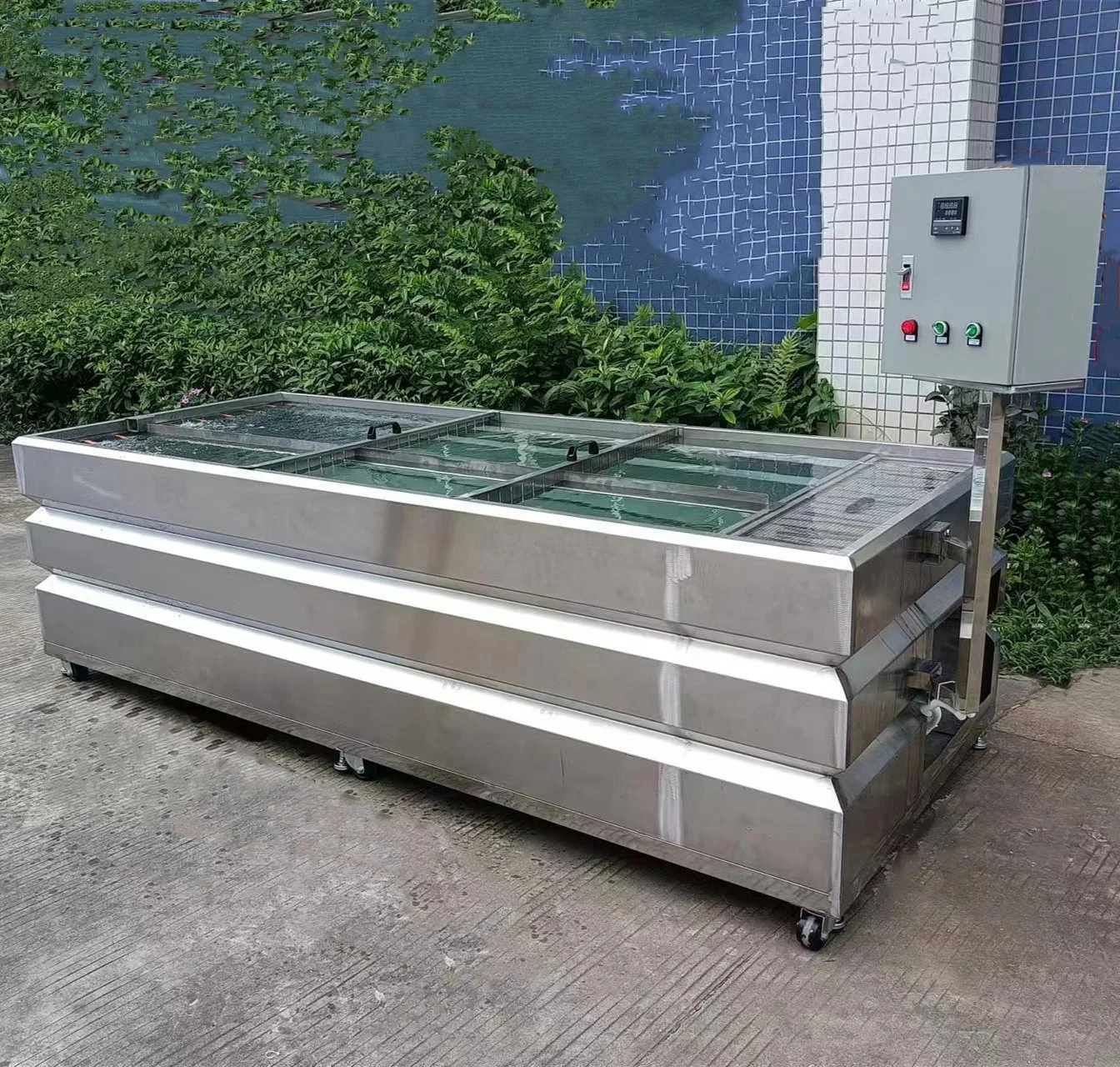

1. Small water transfer printing tank machine 1PCS

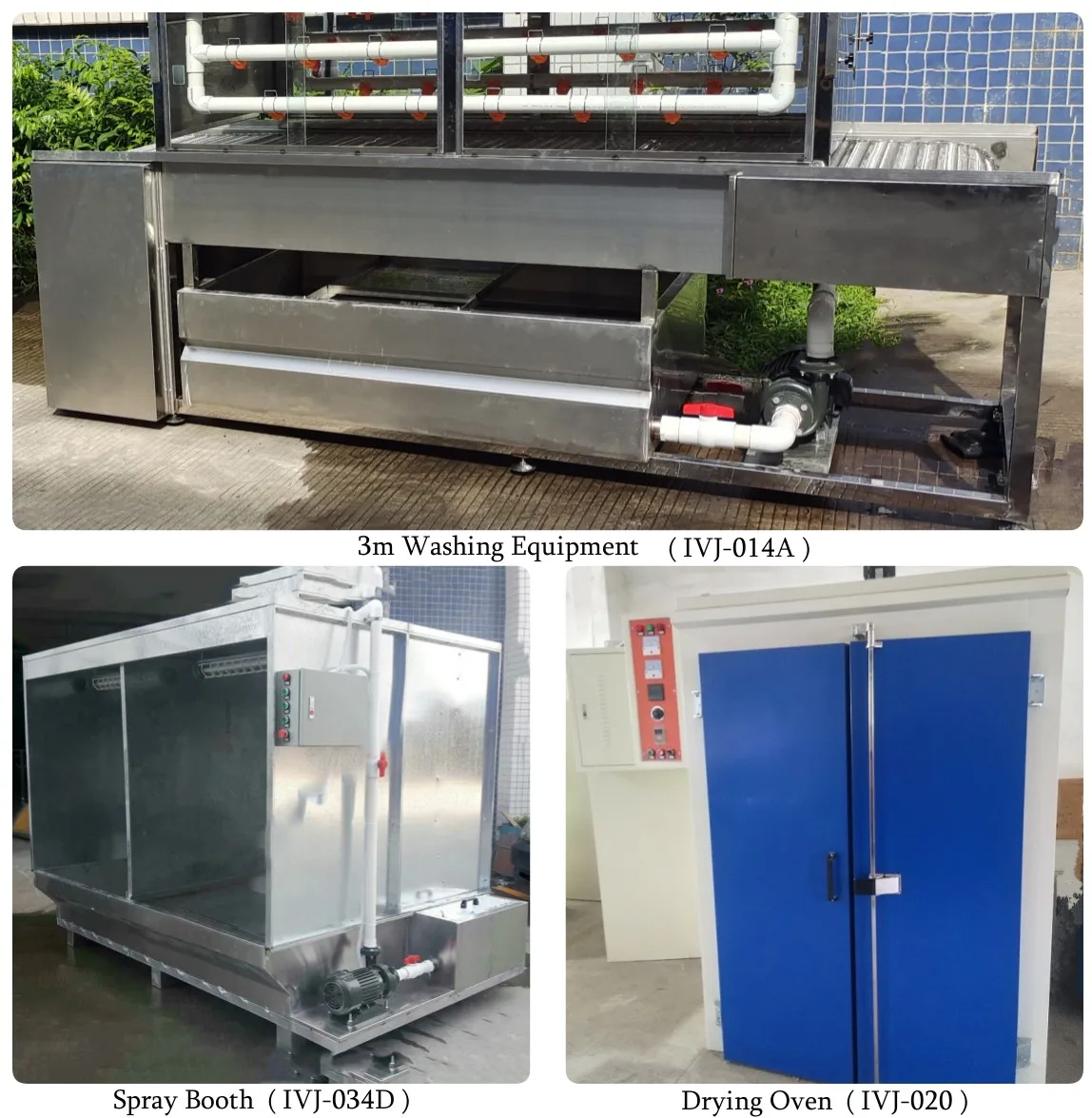

2. 3m Automatic Washing machine, Drying Oven, Manual Spray Booth, each 1PCS .
Large Quantity Production machine investment for your selection as below.

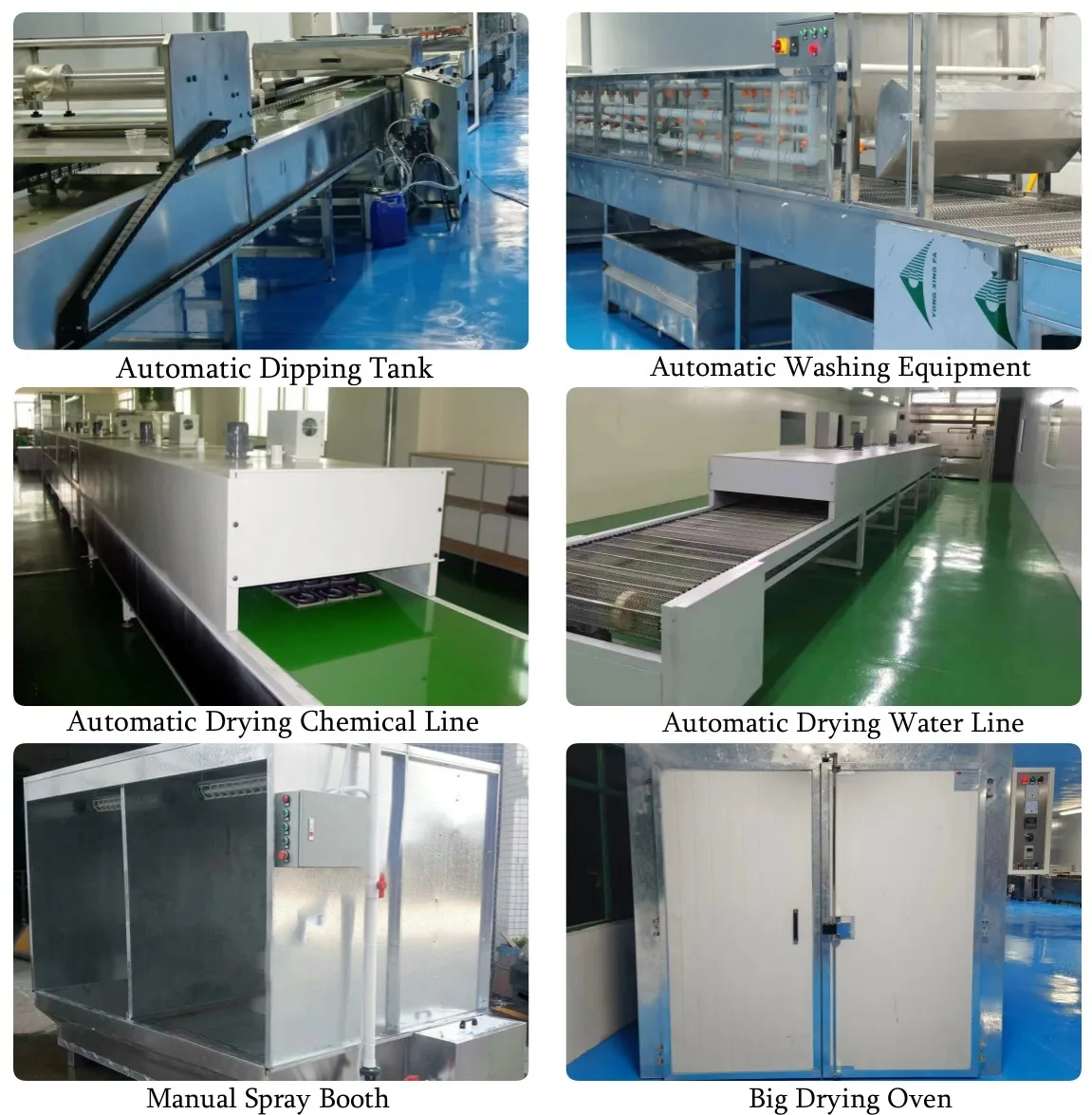

Select B :

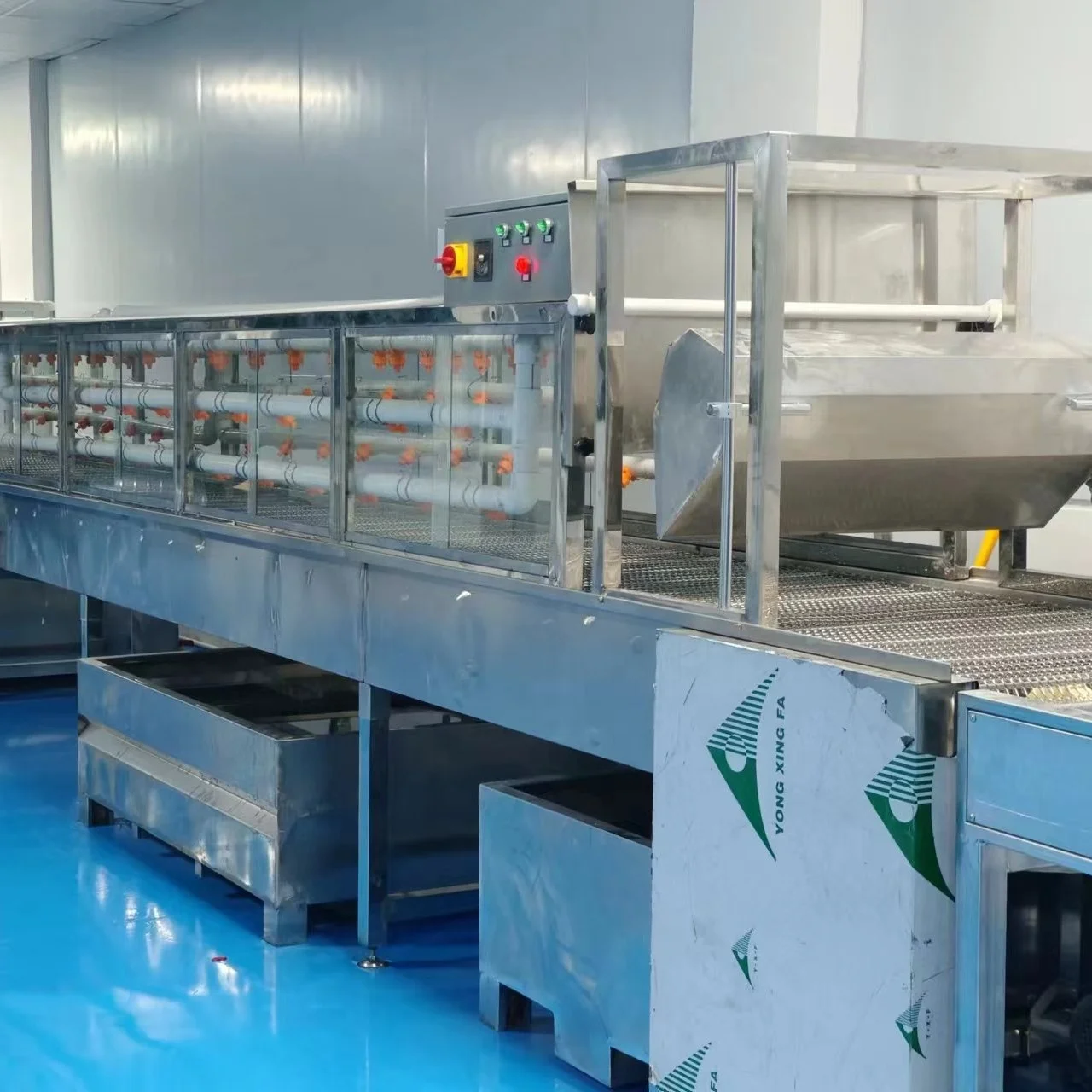

Automatic Dipping Tank 1PCS, Automatic Washing Machine 1PCS
Automatic Drying Chemical Line 1PCS, Automatic Drying Water Line 1PCS
Manual Spray Booth 2PCS , Big Drying Oven 1PCS

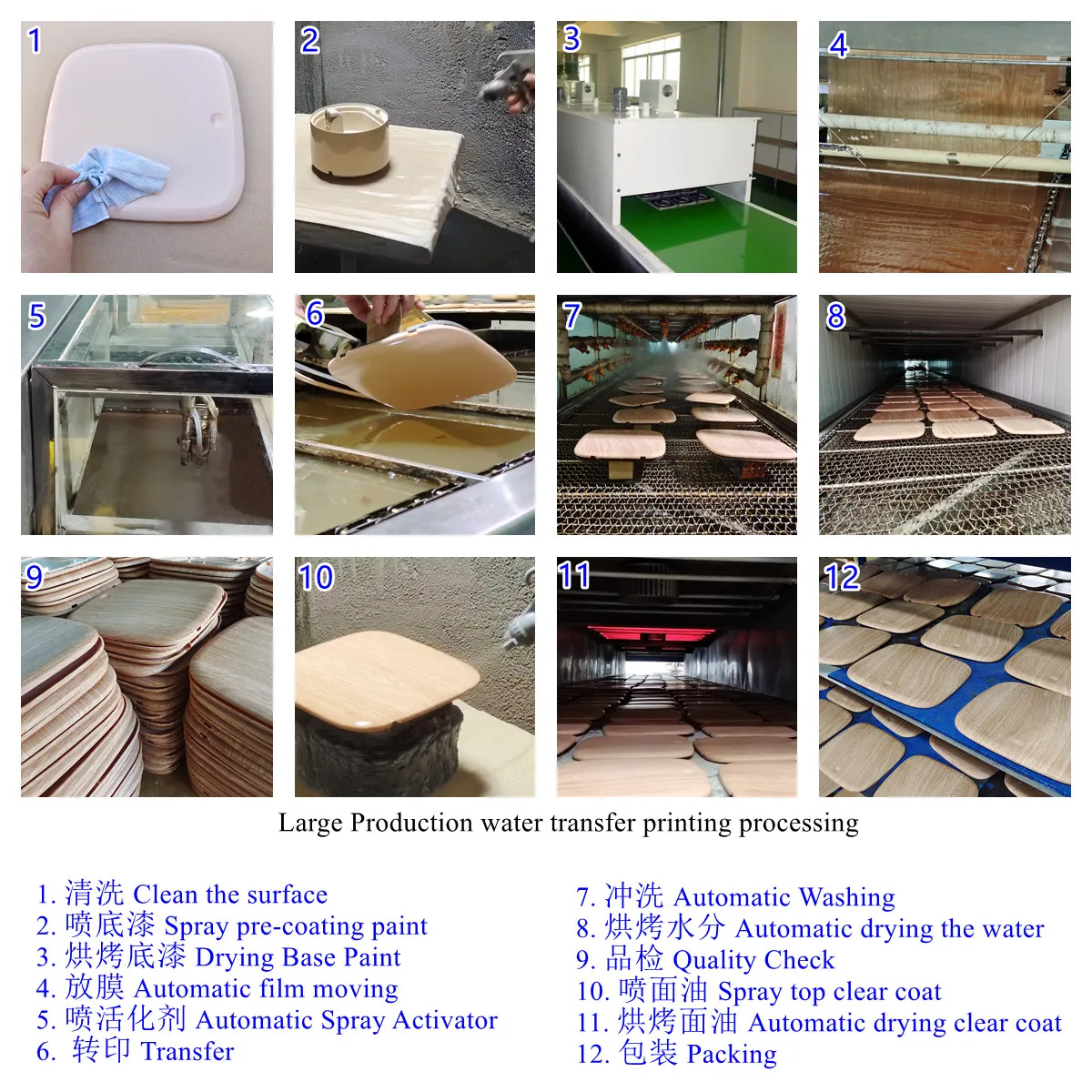

Water Transfer Printing Processing Step:

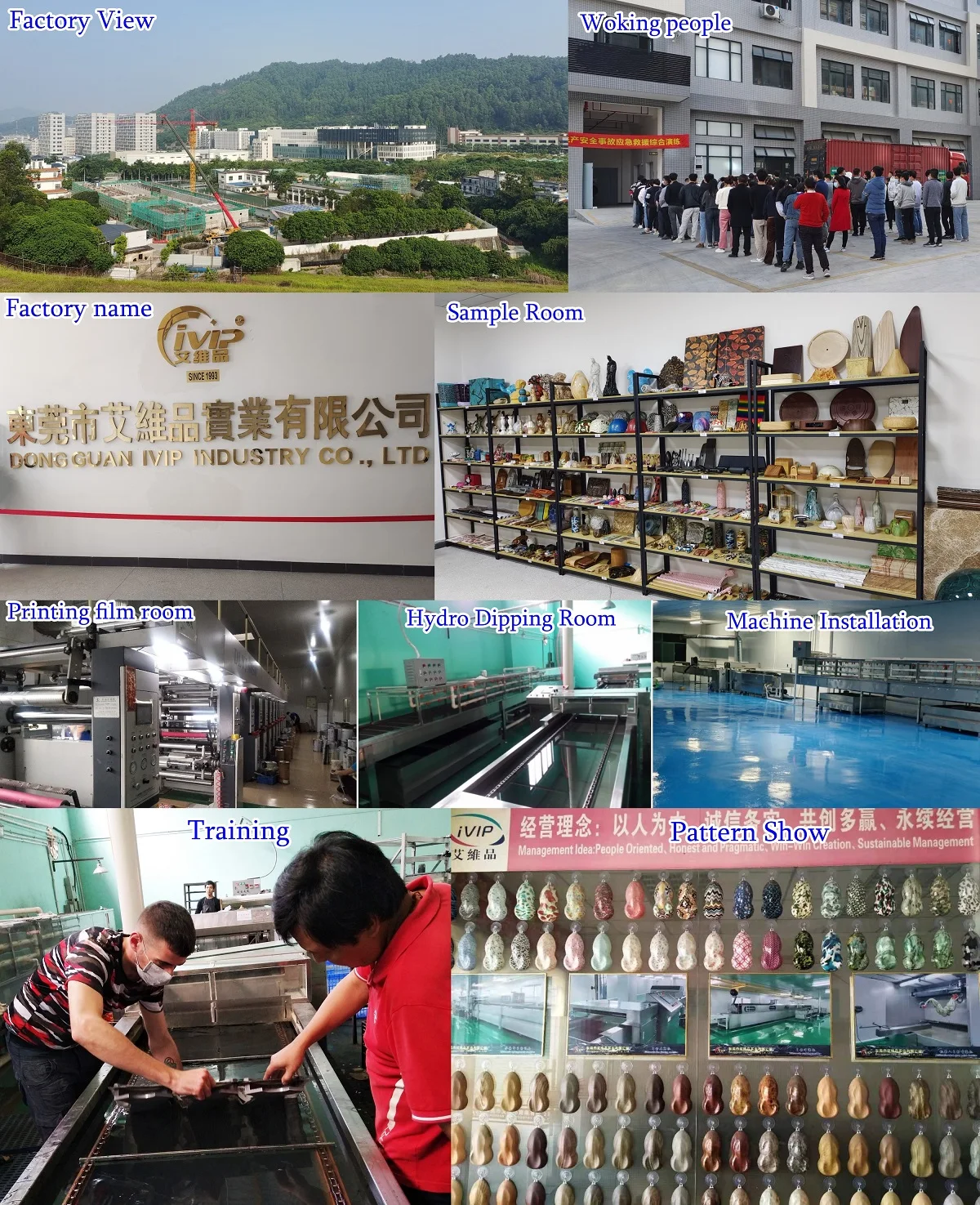

Company Introduction
DongGuan IVIP Industry Co. Ltd, a professional manufacturer on research, production, sales of various water transfer printing film pattern, Hydrographic Material (activator, base paint, clear coat and other Chemical agent), output of the whole plant equipment (Automatic WTP tank, washing Conveyor, Spray Booth, Drying line, oven), and have More than 20-year operation experience of water transfer printing processing, and support technology training. We are the overall scheme of water transfer printing professional supplier in China.
Water transfer film we produce and sell is adopted by advanced production technique, fully automated production equipment, excellent engineering team. All products can be tailored according to our client’s demand. Our film has stable quality, clear pattern, high strength, rich level sense, strong weather ability, and good adhesion. Our printing film can be transferred in all kinds of curved product surface with a short production cycle.
We have thousands of patterns to be chosen by our clients on marble, wood grain, camouflage, Carbon fiber, Flower , Animal , Skull, Flame, cartoon and other designs. Water transfer printing film greatly enhance the added value of the products and application effect, which is non-toxic, environmentally safe standard and can be through light, abrasion, aging resistance, high and low temperature test.
Our factory is the supplier of Top 500 global companies, which have passed ISO9001:2015 international quality management system certification.
We solemnly promise that you will share our VIP service of pre-sale, sale, after sale if choosing our IVIP company.

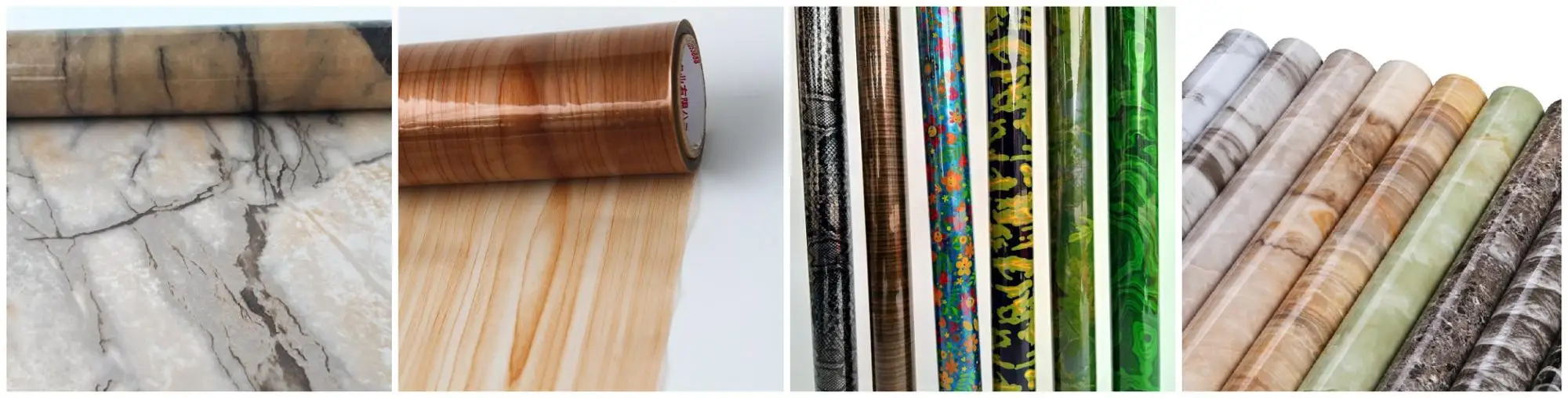

Water Transfer Printing Film
We have Marble, Wood, Camouflage, Animal, Flower, Carbon, Flame, and other design for your choice.
Film Size: 30/50/60/100/120cm width, 250m Long per roll
Material: PVA
Thickness: 30-35 micron
Production MOQ: 250sqm
Sample MOQ: 10sqm
Packing: 250sqm/roll, 1roll/CTN, 1CTN, N.W 11KG. G.W 12KG, CTN size 106*16*15CM
We also make client's own design.
New Film -Making needs:
Original Design Film

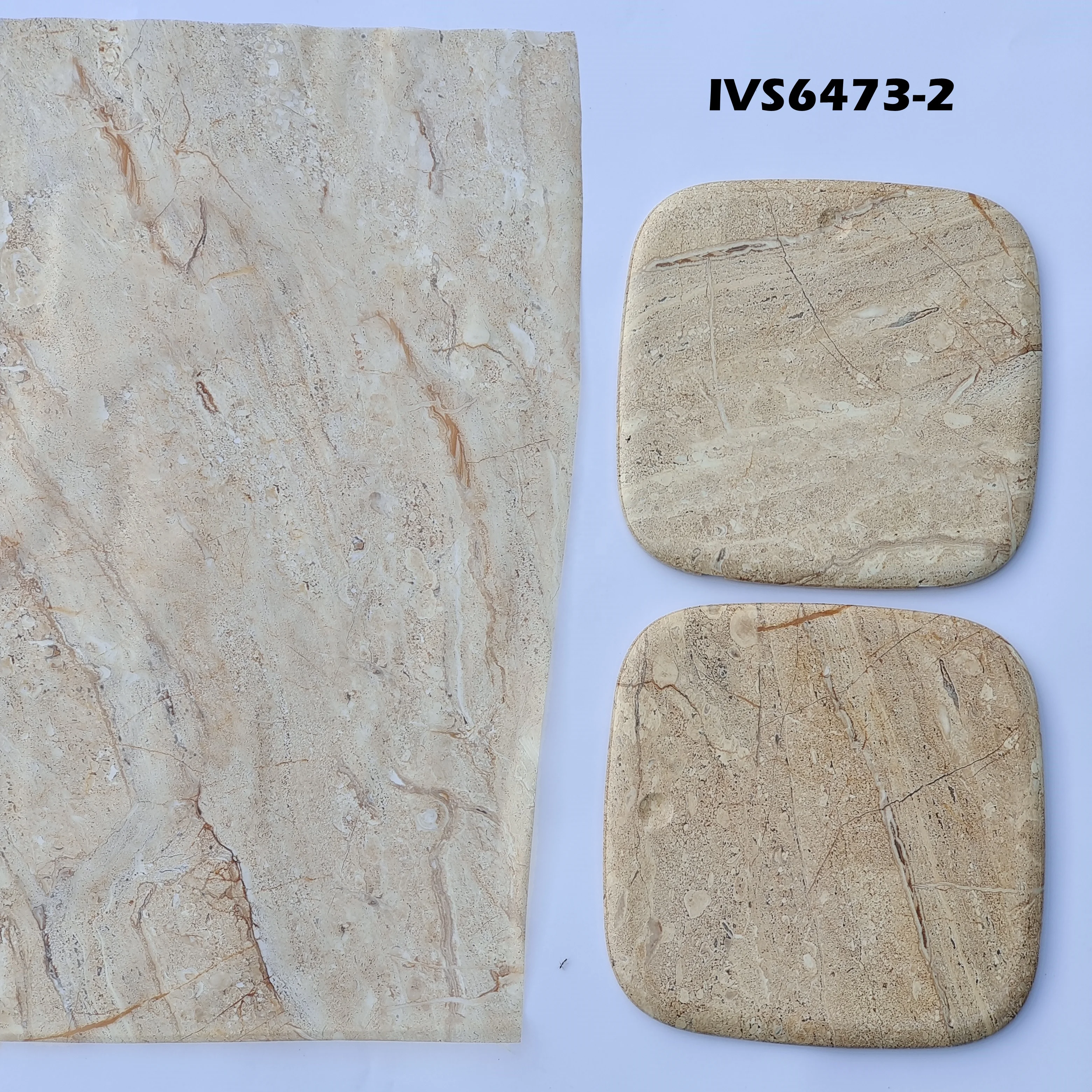

sample WTP sample
Packing & Shipping
1. Non-Core parts no wood case, Electric parts and other important body by wood case
2. Dipping tank, Oven, Spray Booth advised by wood case
3. No Wood case, but may damage the surface if you save wood case cost
4. Film and Machine shipped together by wood case
