FCD 015 Single Plate Electromagnetic Clutch

Product Overview

Description



                                                 24V industrial electromagnetic clutch



Electromagnetic brake operation principle:



This clutch product is designed by professional engineers with many years of experiences,



and production using CNC boring and finishing machines,and be proved good in all using.



We use the finest materials available for magnetic components to yield high friction indexes,



as well as premium nonasbestos linings to improve response time and extend working life.





 Electromagnetic brake  Product Features:

1. With non-asbestos lining, makes the product not easy to wear out and lasts long.

2. Start, stop, high-frequency operation, positioning.



3. Super thin designed doesn't occupy much space, input side at the fly wheel and output sleeve at the transmission shaft easy for installation



Electromagnetic brake  Data:

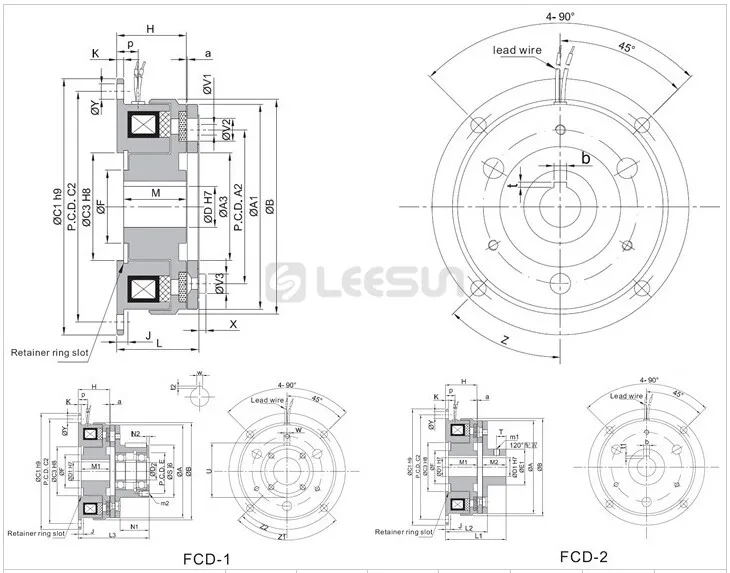

Electromagnetic clutch Specification:



Performance parameter



Model	FCD-006	FCD-015	FCD-025	FCD-050	FCD-100	FCD-200	FCD-400
Static Torque[kgf-m(N-m)	0.6(6)	1.5(15)	2.5(25)	5(50)	10(100)	20(200)	40(400)
Dynamic Torque [kgf-m](N-m)	0.5(5)	1.0(10)	2.0(20)	4.0(40)	8(80)	16(160)	32(320)
Power [DC24 V] (W) at 20°C	11	15	20	25	35	45	60
Weight	0.46	0.83	1.5	2.76	5.1	9.3	17
Maximum speed (r/min)	1800
