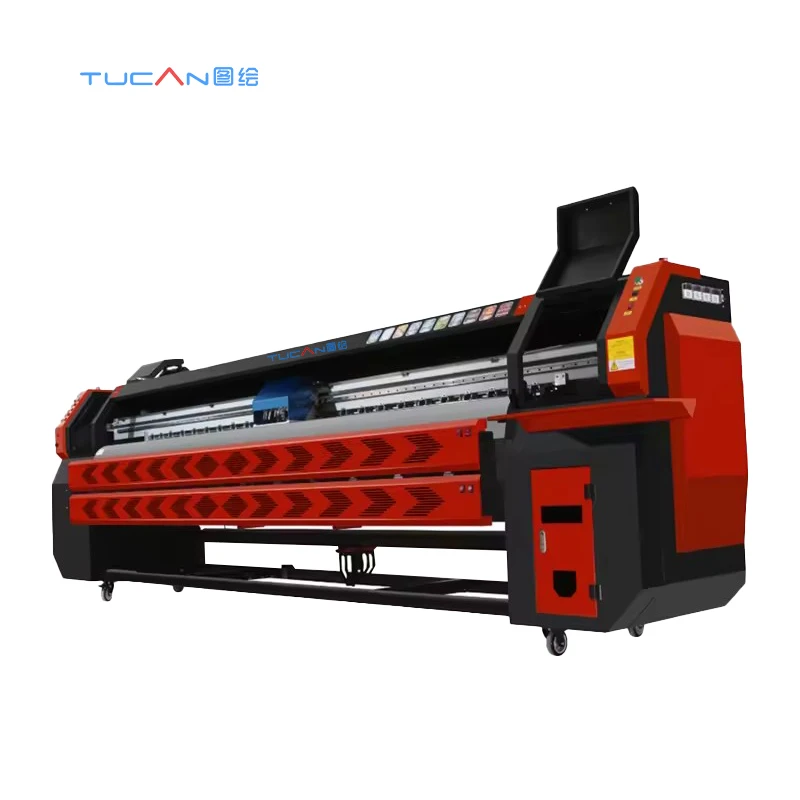

3.2m KM512/KM1024 Print head T8 solvent printer Used for vinyl flexible polyester backlight film window film etc

Product Overview

Description

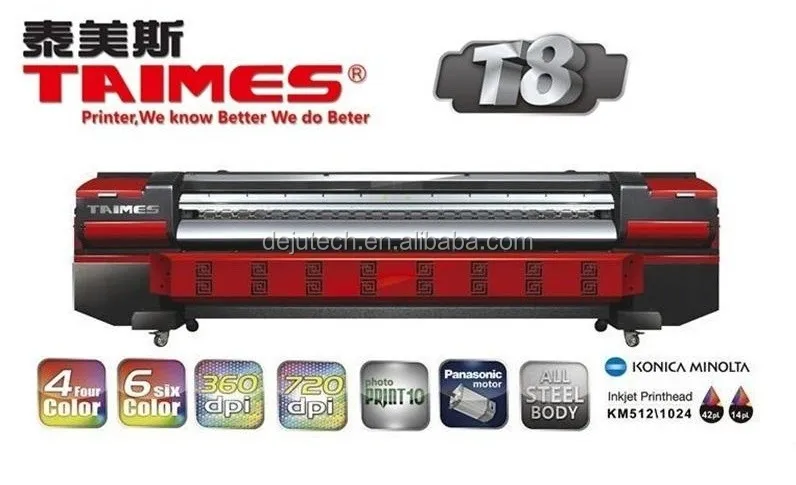

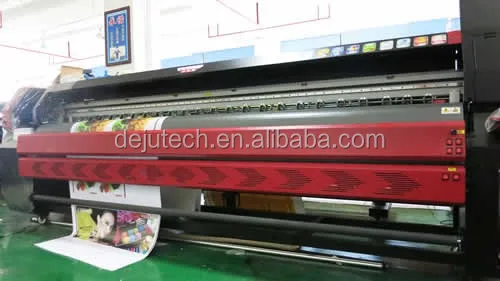

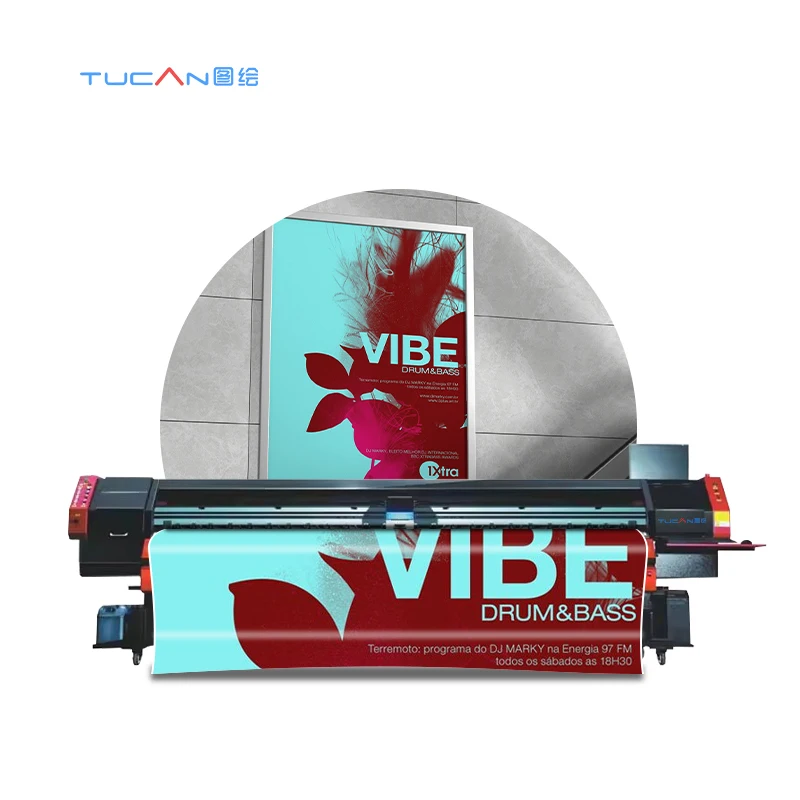

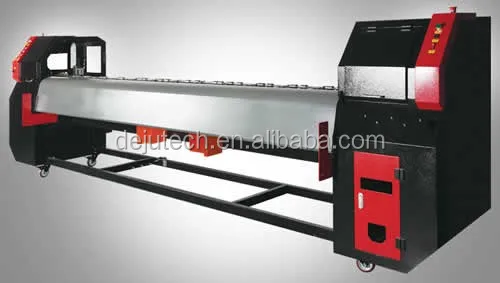

3.2m KM512/KM1024 Taimes T8 solvent printer



Product description:

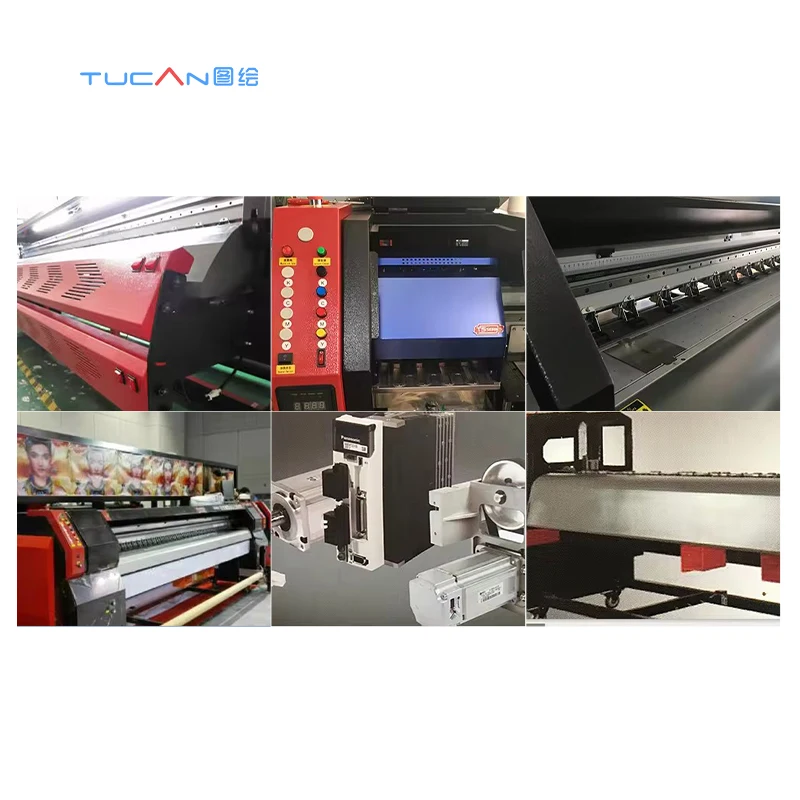

The advantage of excellent machine frame work
Specially designed left and right steel side boards for T8S, thickness 8mm, weight 27kgs, bending resist rate is up to 235MPa. It enables machine body bear for maximum 2 tons weight, so as to effectively resist vibration when the carriage is moving fastly, make sure each ink dot drops accurately.

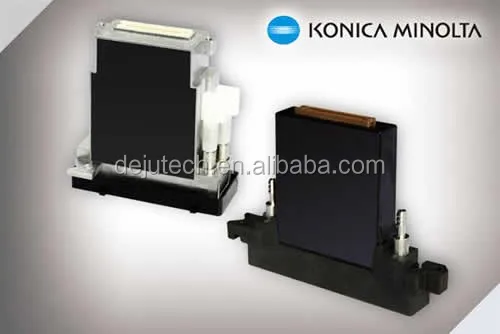

1.Konica Minolta KM1024-42PL/14PL(KM1024LNB/KM1024MNB) printheads, more options TAIMES T8S printer is applied with Konica Minolta KM1024 super wide printhead, 8 heads cover over 144mm printing width, completely promotes gorgeous colors and hurricane speed.

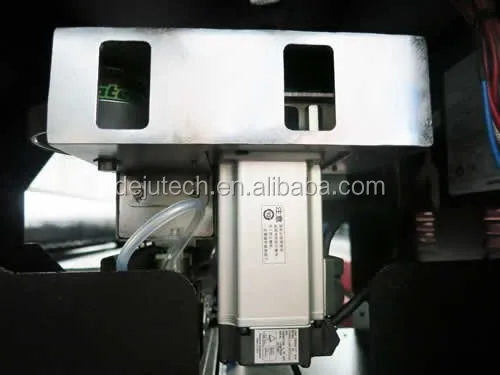

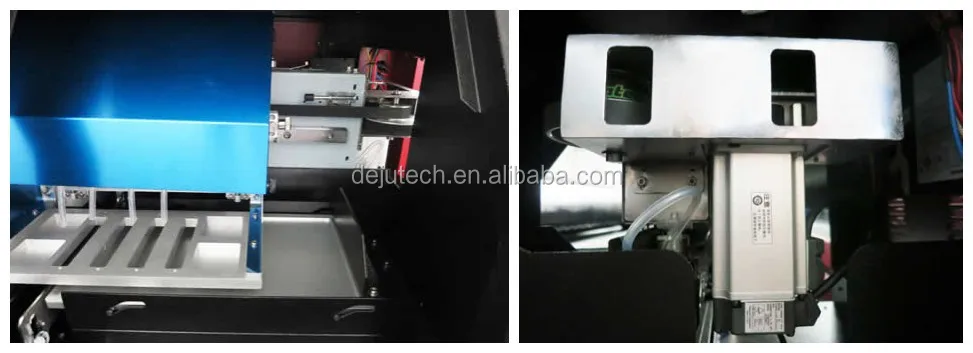

2.Imported 400W Panasonic AC servo motor system.

3. Ultra wide imported Italian megadyne belts with the width 22.23 mm.

4.2000W segmented infrared drying system.

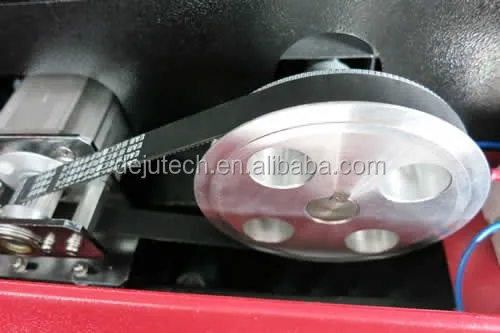

5.Aluminum step large synchronous wheel, much higher resolution and makes high quality.

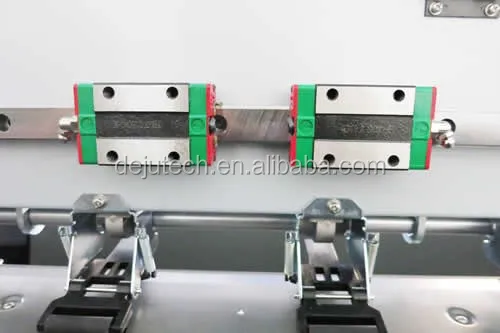

6.Taiwan double slider make the carriage move steady.

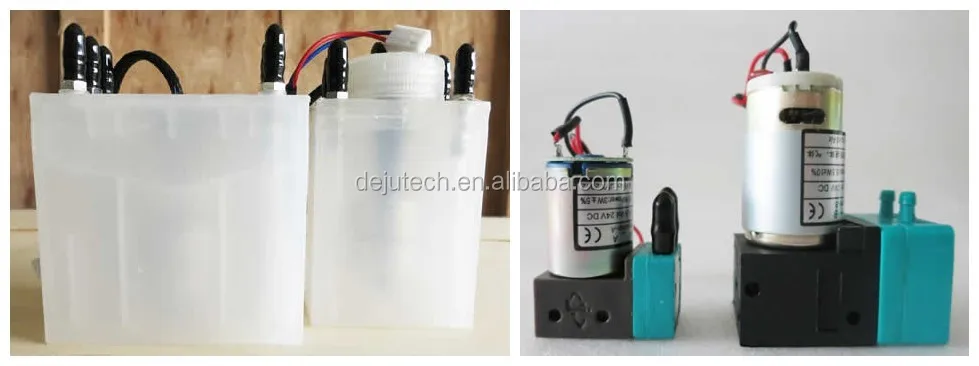

7.T8S series machine upgraded to a new large ink bottle and high-power ink pump: store more ink, printing more smoothly; More rapid refill ink, longer life.

8.The new T8S adopts sliding moisturizing shelf,effectively protects printheads, practical and convenient.

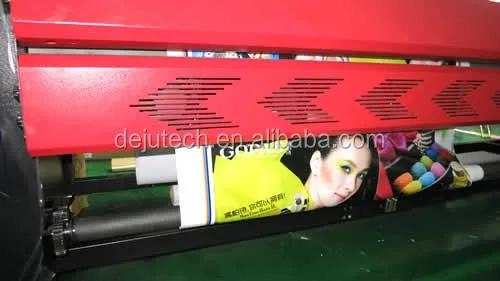

9.Professional take up system improve work efficiency .

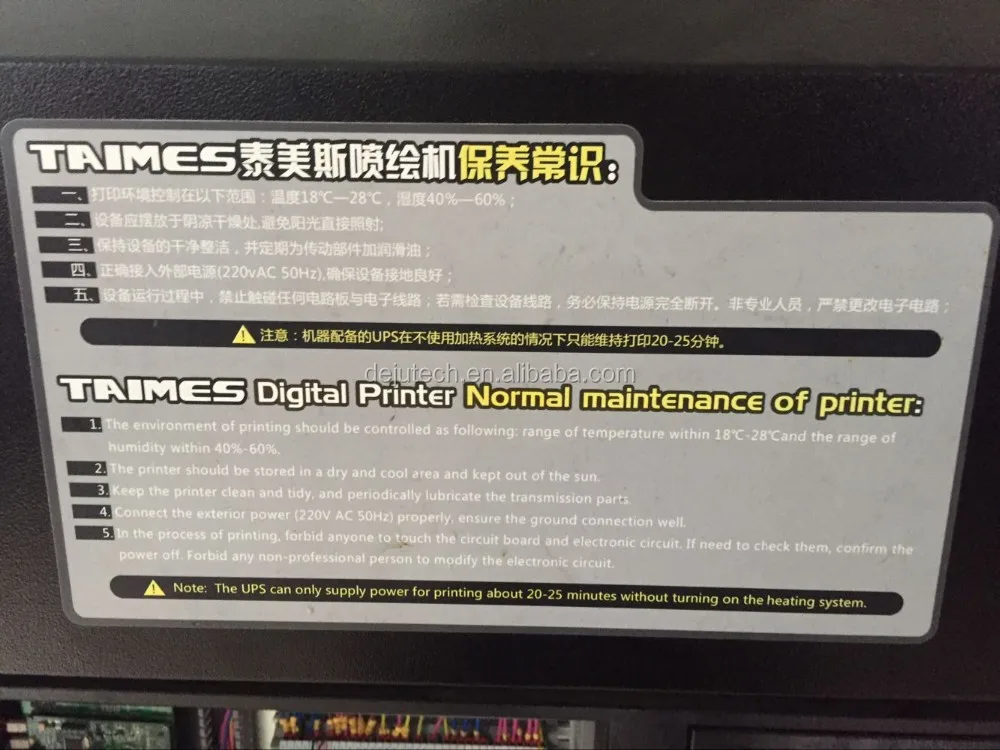

10.Maintenance tips.



Specifications:



Product Name		TAIMES T8 SOLVENT PRINTER
Maximum Print Width		3200mm (10.5ft)
Printing Resolution		360DPI (Physical)		720DPI (Physical)
Product Model			T8-KM1024/42PL-8H		T8-KM1024/14PL-8H
Output (sqm/h)		Print Mode	Output Speed (sqm/h)	Print Mode	Output Speed (sqm/h)
		180x720dpi 2pass	160	720x720dpi 2pass	91.2
				360x1080dpi 3pass	68
		240x720dpi 2pass	120	720x1440dpi 4pass	45.2
		240x1080dpi 3pass	80	720x1080dpi 6pass	30.8
				720x1440dpi 8pass	22.8
Ink	Type	TAIMES K42 Low Solvent Ink		TAIMES K14 Eco Solvent Ink
	Color	4 Colors( C , M , Y , K ) / 6 Colors(C , M, Y, K, LC, LM)
	Capacity	5L Per Main Tank of Each Color
	Ink Supply System	Low Ink Detector, Auto or Manual Ink Supply System
Media	Width	3300mm (10.8ft)
	Type	Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
Auto Media Feeding System		Equipped (Max. Media Weight 120kg )
Auto Cleaning System		Positive Pressure Cleaning Anti-clogged Flash Function & Capping System
Pre-heating & Drying System		Equipped (Drying System Optional)
Clamp		Equipped
Print Interface		USB2.0
Printhead Height		2 to 4 mm Above Media Adjustable
RIP Software		PhotoPRINT 10.5 or Maintop V5.30
Input Power		AC 220V ,50Hz ,4500W
Operation Environment		Temperature: 20~28℃ Humidity: 40%~60%
Machine Dimension		L4,850 x W1010 x H1,340 mm; Net Weight: 680Kgs (1,499lbs)
Package Dimension		L5230 x W1040 x H1480mm; Gross Weight: 900Kgs (1,984lbs); Two units in one 20 feet container





Applications:

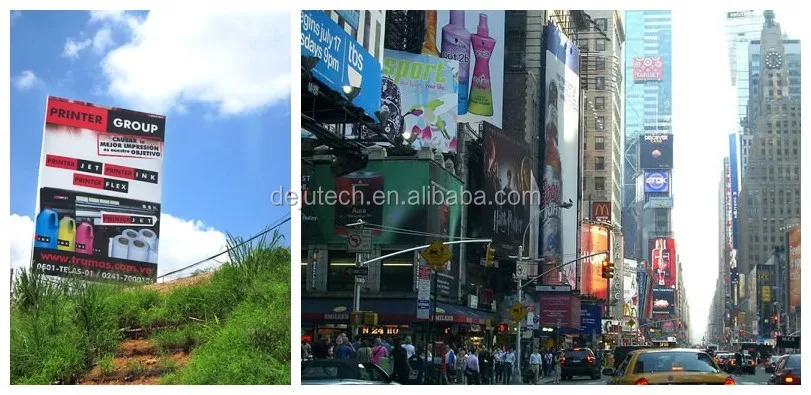

Flex banner printing

Vinyl sticker printing

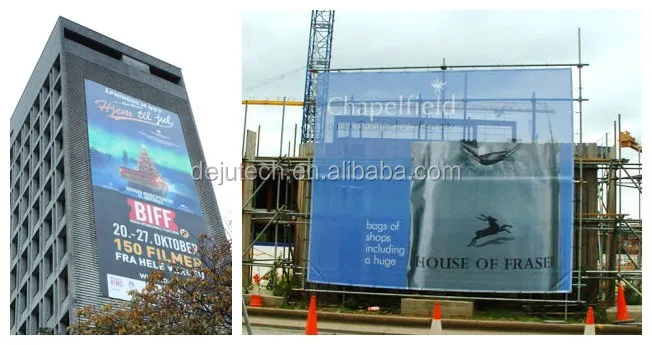

Mesh printing
