plastic shredder/hard disk shredder/mobile tire shredder

Product Overview

Description

 plastic shredder/hard disk shredder/mobile tire shredder

Zhengzhou Zhengyang machinery equipment Co. Ltd. is a professional large-scale manufacturer of farm machines, recycling machines, energy machines and other machines. We are a factory integrating development, production and sale together. We have already exported machines to American, Canada, Australia, Croatia and 20 other countries and regions. We have attained ISO9001 management certification and many other certifications.

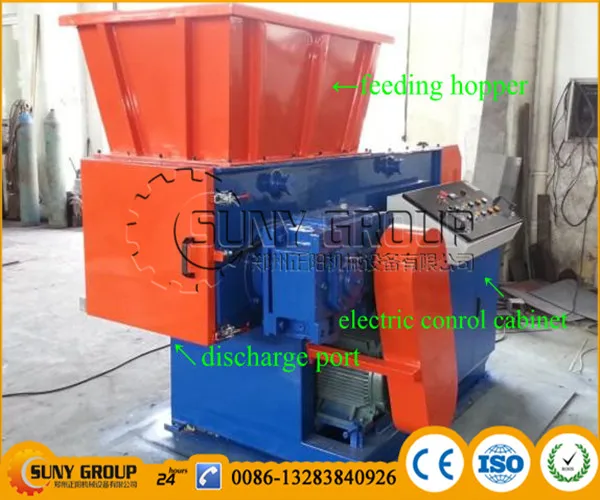

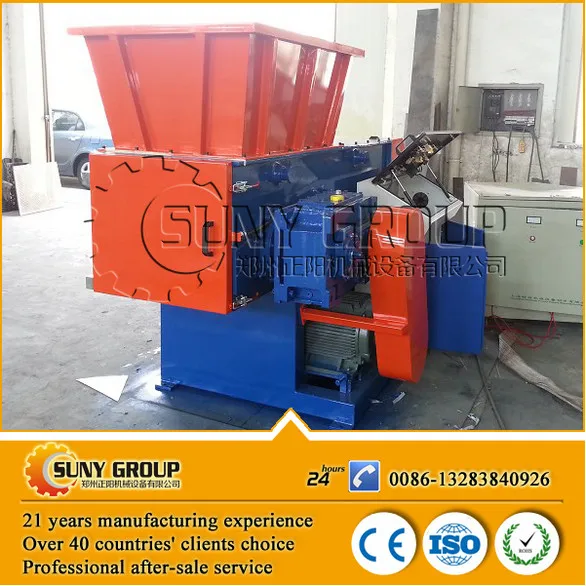

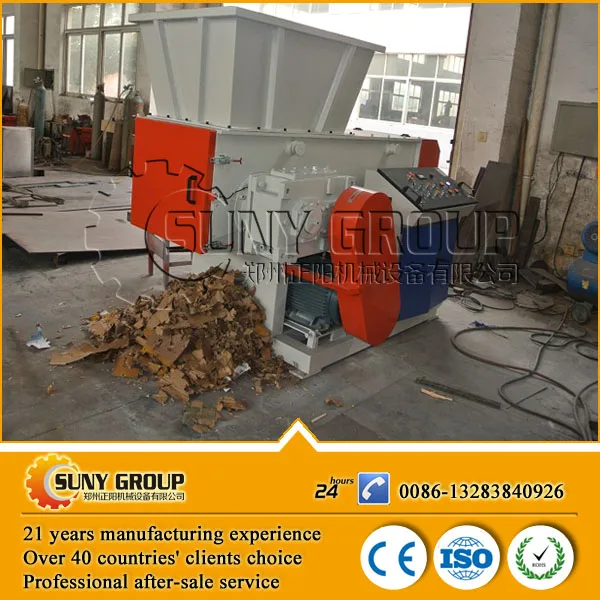

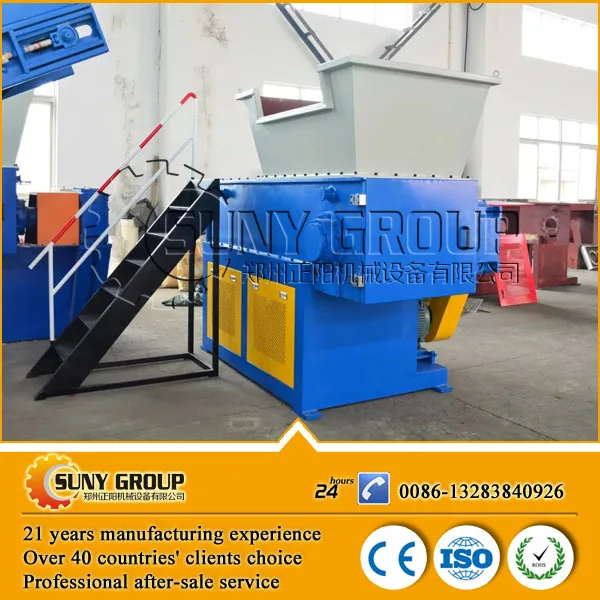

Pictures of plastic shredder/hard disk shredder/mobile tire shredder:









Introductions of plastic shredder/hard disk shredder/mobile tire shredder:

Single shaft shredder adopts the advanced technology. It is mainly used to shredder and recycle all kinds of plastic, rubber, fiber, paper, wood, electrical components, cable and other material, such as drainage opening material, film rolling material, PET bottles, cardboard, Circuit board, wood, plastic barrels and so on.

There are any models of this machine and you can choose model according to your raw material and capacity you required. If you want to shredder high intensity instruction material such as ABS, or PC, please contact us for further information.



Features of plastic shredder/hard disk shredder/mobile tire shredder:

1. Single shaft shredder is strong and durable. It is mainly used to shredder and recycle all kinds of solid material and refractory material, plastic containers , barrels and so on. Shredder particles can be as small as 20mm according to different needs.
We can also supply feeding hopper with different specification. This machine will be low noisy and energy saving.
2. Knife material: Cr12MoV( Japanese brand SKD-Ⅱ, American brand D2), the moving knife adopts ‘ V ‘ installation method, making it cut more uniformly, reducing consumption and noise. There are 4 cutting blades on each moving knife. It can be rotated 90° for further use after wear and tear; There are 2 cutting blades on each fixed knife. It can be rotated 180°for further use after wear and tear. The knifes on rotor can be disassembled, it is more easy to clean and maintain.
3. The main shalf is driven by gear reducer so that it is has stable operation, low noise and large torque.The reducer is a very important part of the shredder machine. Although the shredder is a machine with low rotating speed and large torque, the reducer is still important because of its high kinetic energy so that the rotating speed can be controlled effectively.
4. PLC progamm conrol system, automatic forward and reverse running and stop, it can run full automaticlly and make it more safely and reliablely running.
5. We can supply different rollers according to different material. Choosing the right rollers can improve machine performance and production efficiency. We can supply the following three rollers: High performance roller, hard material roller and film roller.
6. We have designed three different knives holders according to the material, such as welded knife holders, assembled knife holders and CNC cutting knife holders.



Main structures of plastic shredder/hard disk shredder/mobile tire shredder:

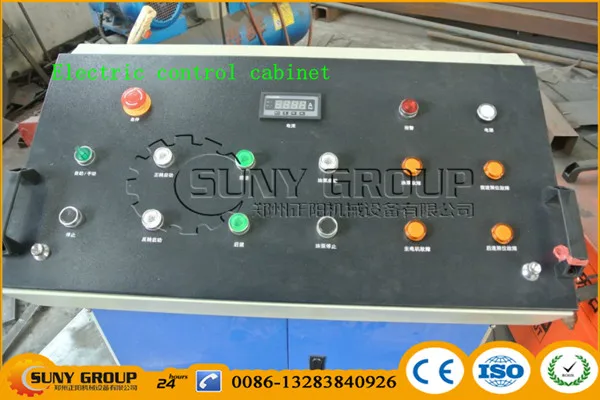

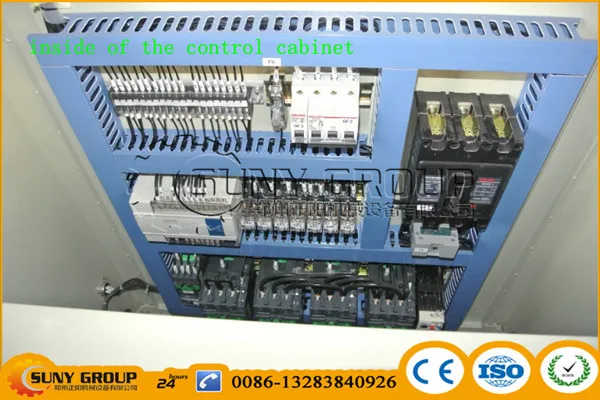

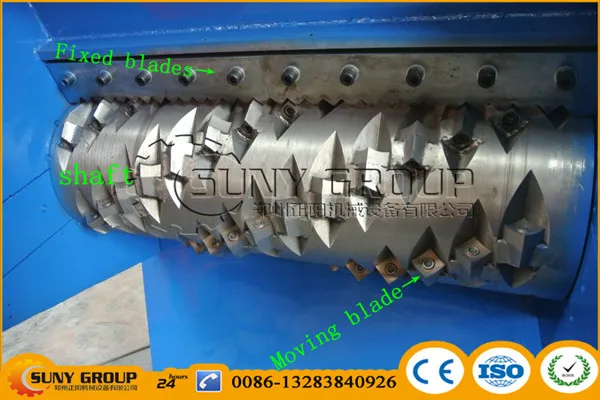

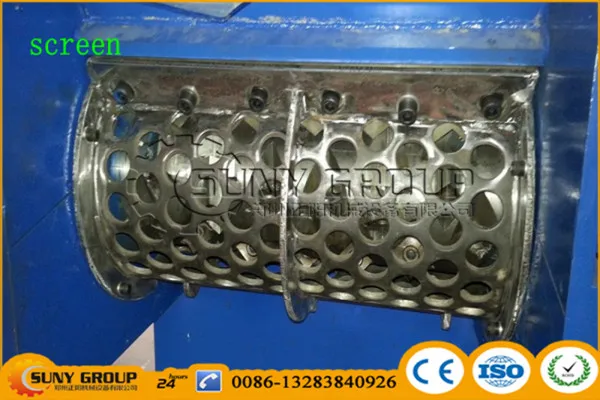

1. Shaft, moving blades, fixed blades, reducer, motors, feeding hopper, discharge port, electric control cabinet, control panel, screen, roller, knives holder, ect.
2. After shreddering, the dimension of most large plastic or other material will reduce 30%, some material dimenison after shreddering can up to 50%.
(We have arranged many videos. Please contact us freely if you need.)



Technical Parameters of plastic shredder/hard disk shredder/mobile tire shredder:

Model	ZY-SS600	ZY-SS700	ZY-SS800	ZY-SS1000	ZY-SS1200	ZZ-SS1500S
Main motor power	20-30kw	30-37kw	45-55kw	55kw	75kw	90-132kw  or 55kw+55kw
Moving-blades(pcs)	26+4	34+4	43+4	49+4	64+2	90+4
Fixed-blades(pcs)	4	4	4	4	4	6
Material of blades	Cr12MoV/ SKDII/DS2	Cr12MoV/ SKDII/DS2	Cr12MoV/ SKDII/DS2	Cr12MoV/ SKDII/DS2	Cr12MoV/ SKDII/DS2	Cr12MoV/ SKDII/DS2
Roller diameter(mm)	240	260	400	400	500	500
Main shaft speed(r/min)	45-90	45-90	45-90	55-80	55-75	55-75
Cutting Chamber	600*600	700*600	810*800	1000*1000	1200*1100	1500*1200
Hydraulic motor power(kw)	2.2	2.2	3	4	5.5	7.5
Cylinder strock(mm)	600	600	800	1000	1100	1200
Dimension(mm)	1780*1400 *1800	1780*1540 *1850	2400*1600 *2000	3000*2000 *2200	3500*2300 *2200	3600*3000 *2400
Height of  discharge port(mm)	600	600	700	800	800	800
Weight(kg)	About 2000	About 2300	About 3500	About 4500	About 6500	About 7500



Loading pictures of plastic shredder/hard disk shredder/mobile tire shredder:
