Product Overview

Description

air condition jet air diffuser /jet air  grille/ jet air vent hvac





Features _______________________
hvac aluminum ball jet air diffuser round jet diffusers

Construction:

• Frame & nozzel: High quality extruded aluminum alloy(A6063) sheet.

Description:

• The frame & nozzel core are high quality extruded aluminum sheet construction with advantages of corrosion resistance and rigidity.


• This type of jet air diffuser is specially designed to use in the application where the high airflow  capacity and long throw supply system is required. Airflow can be easily adjusted from a jet to a diffused pattern and the orientation of the airflow can be adjusted by moving the inner core.


• The discharge nozzel with spherical outlet mounted to a housing, The mounted circular flange is removable for easy installation and maintenance.

Surface Finish:

• Powder coated color finish as per RAL color


• standard color: RAL9016

Material thickness:

• 1.3mm

.

.

.

.

.

.



Standard Size _______________________

hvac aluminum ball jet air diffuser round jet diffusers

	ItemCode	NeckΦA(mm)	FaceΦC(mm)	ΦD	H1	H2
	JD-B-100	98	149	48	76	22
	JD-B-125	122	172	61	95	24
	JD-B-150	147	200	75	110	23
	JD-B-160	157	210	80	110	23
	JD-B-200	197	266	105	138	25
	JD-B-250	247	310	128	175	27
	JD-B-315	312	384	174	200	30
	JD-B-350	347	433	185	210	30
	JD-B-400	397	495	210	227	31
	JD-B-500	497	618	256	220	32
	JD-B-630	627	779	323	280	43



.

All other sizes available upon request

.



Applications __________________

hvac aluminum ball jet air diffuser round jet diffusers

Ventilation / Air-condition system

These lay-in diffusers are ideal for residential and commercial reverse cycle air conditioning supply air applications.

.

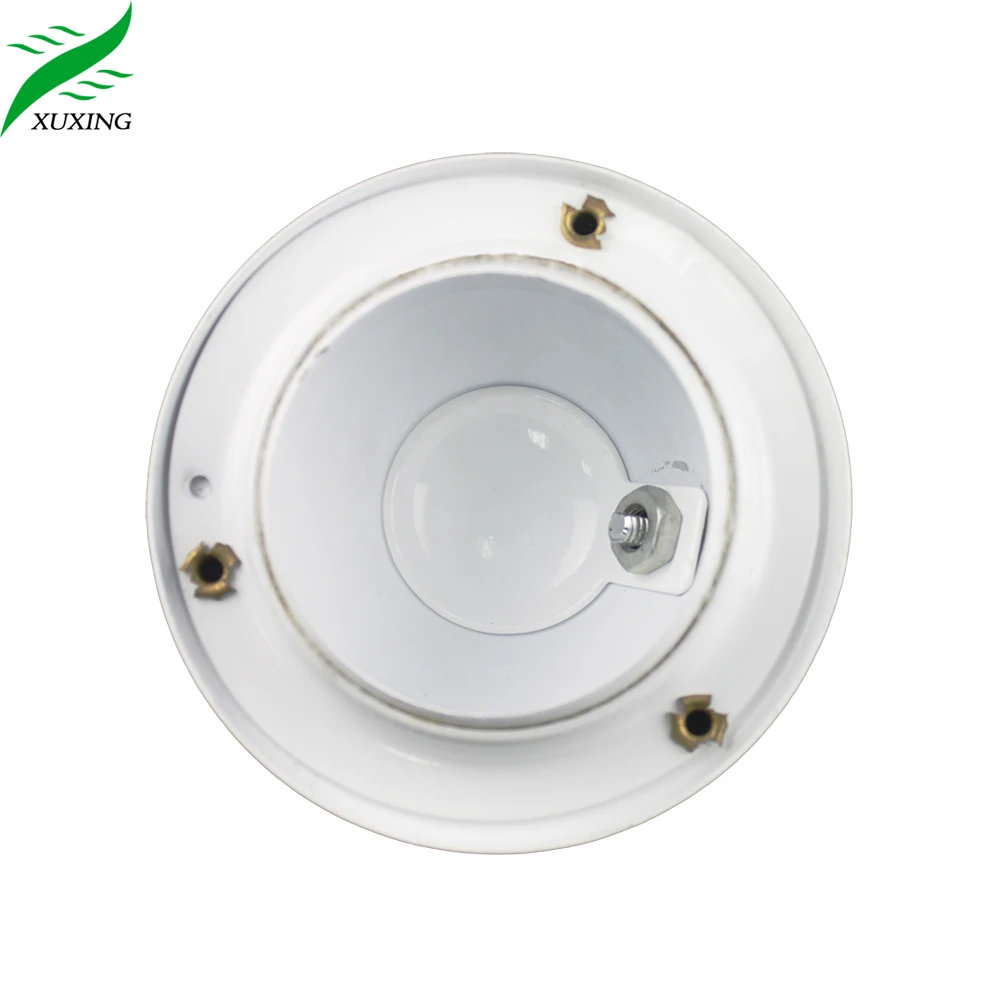

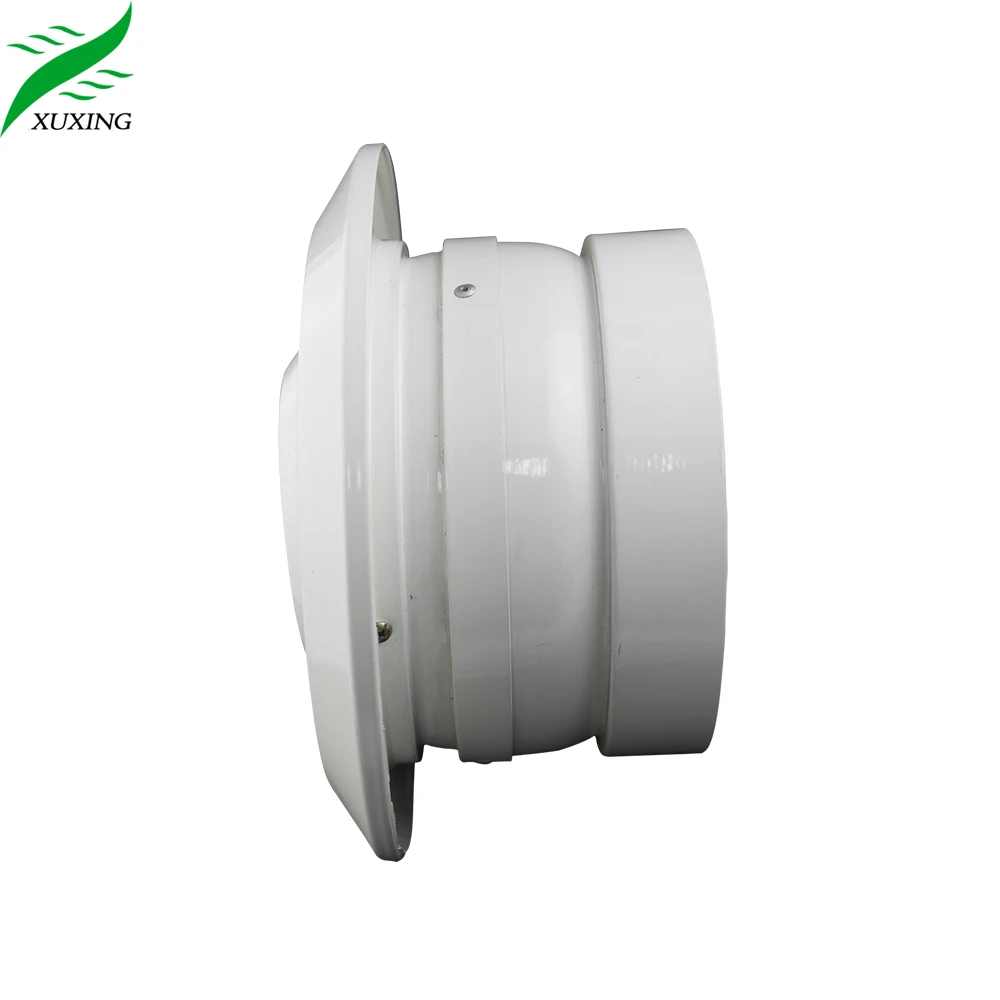

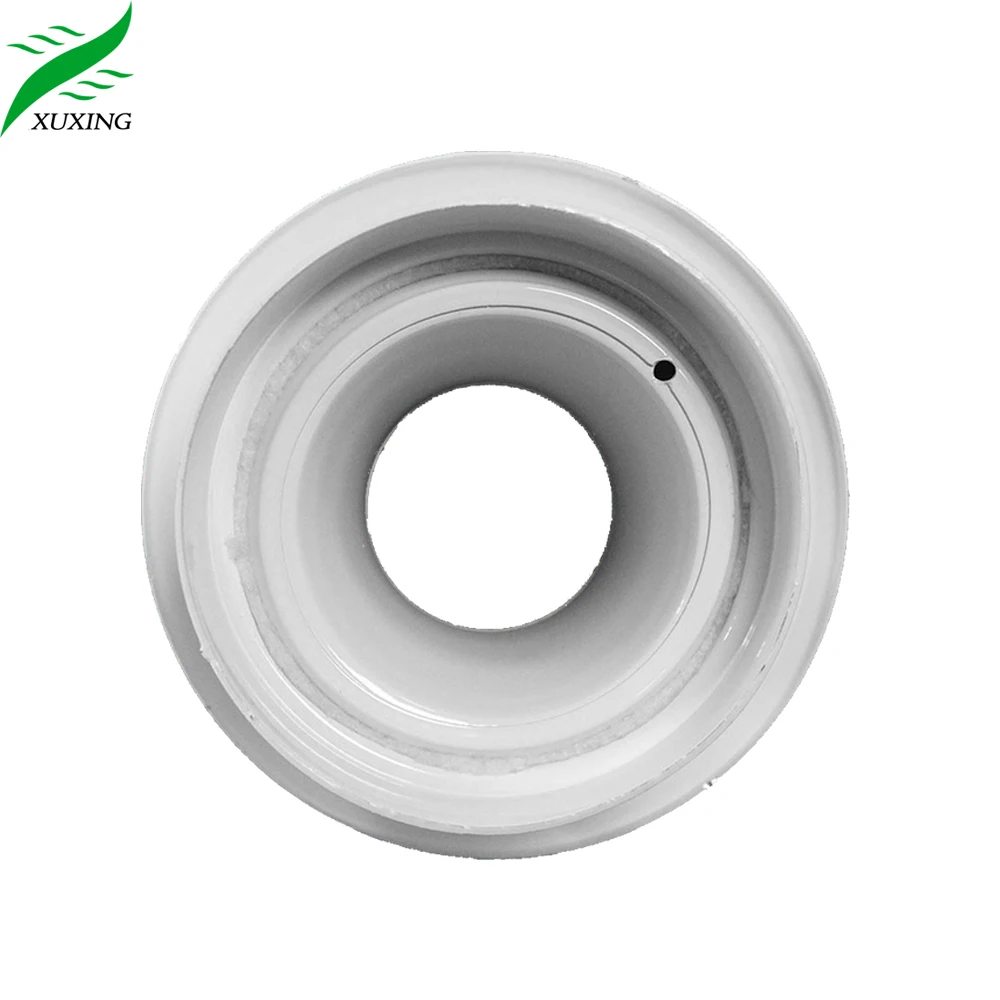

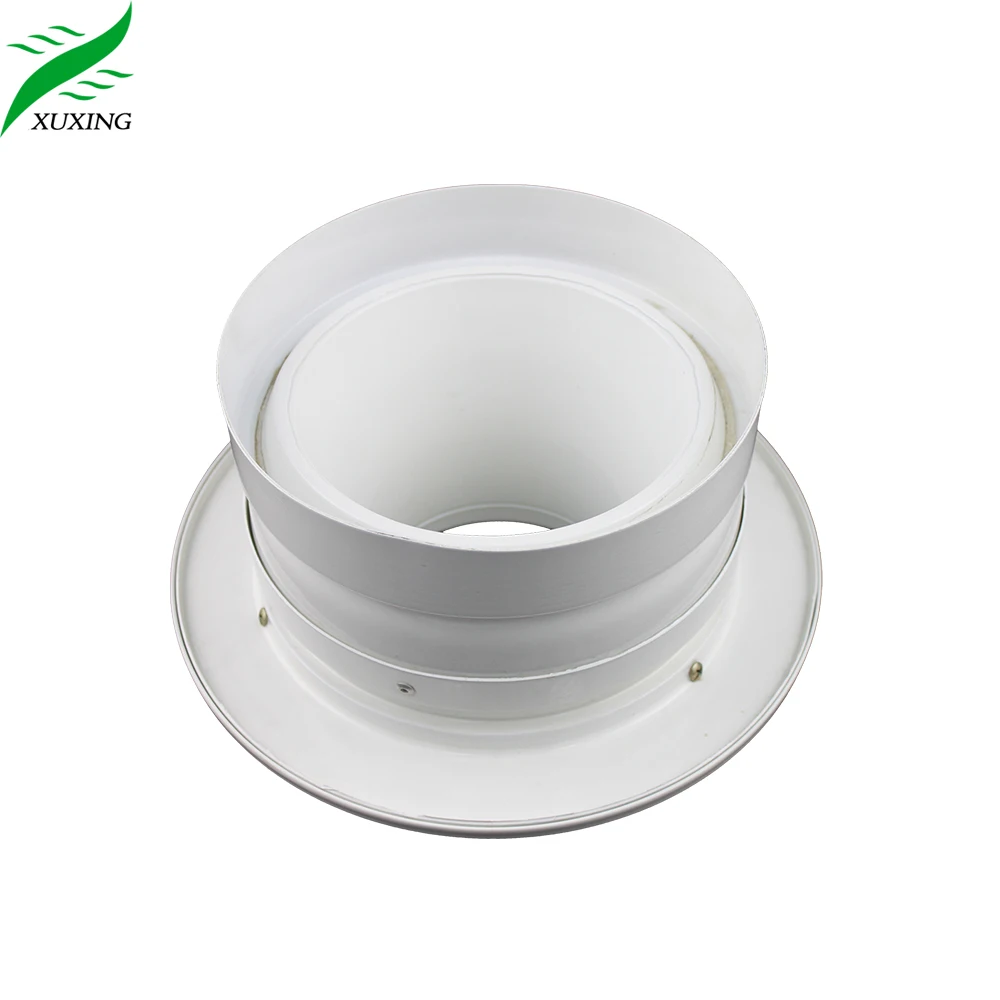

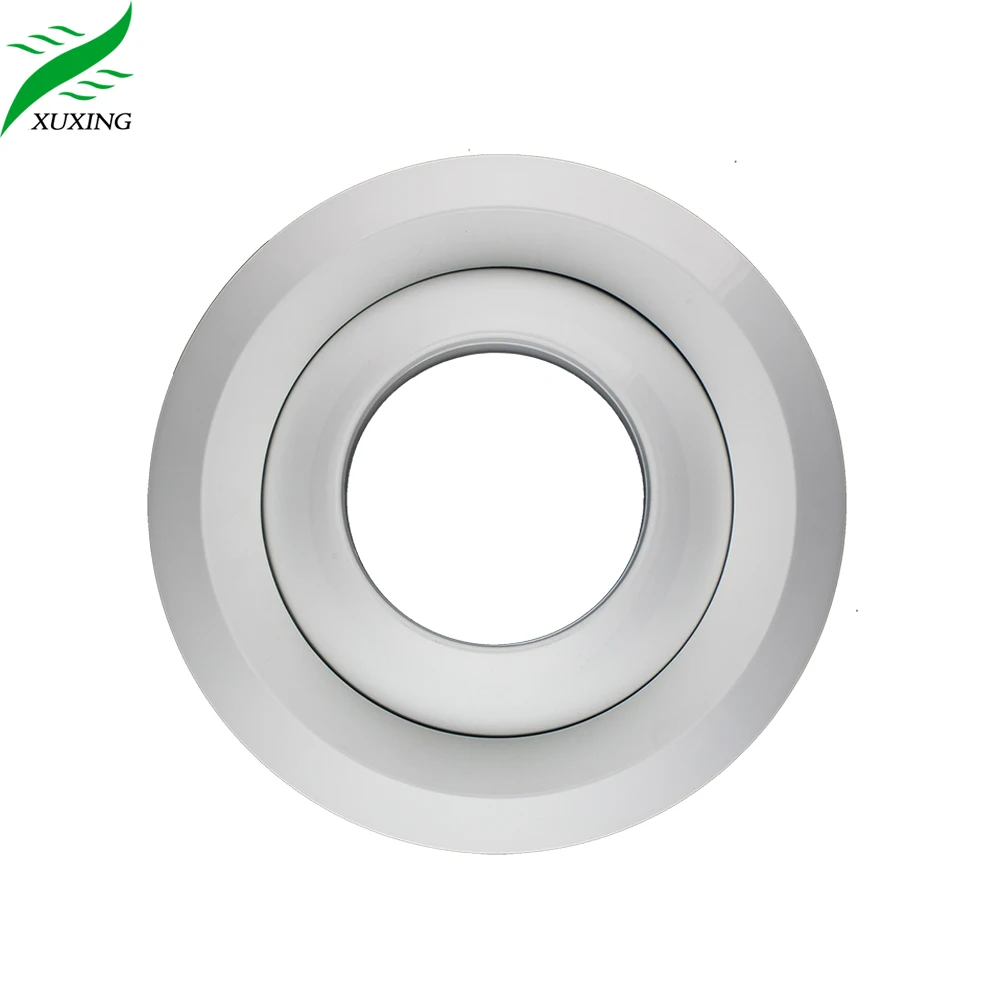

Detailed pictures __________________

. hvac aluminum ball jet air diffuser round jet diffusers

.



Other diffuser / grilles __________________

.

More items, please click below picture

.





hvac aluminum ball jet air diffuser round jet diffusers

Full container	plastic corner protected + PVC bag + strong carton (pallet for option)
LCL	plastic corner protected + PVC bag + special strong carton + pallet
By air / courier	plastic corner protected + PVC bag + carboard inserted in carton + special strong carton



We care about all the details in the product process.

As aluminum has the soft character to cause the easy deformation, we focus on the safe packing in different transportation way.
