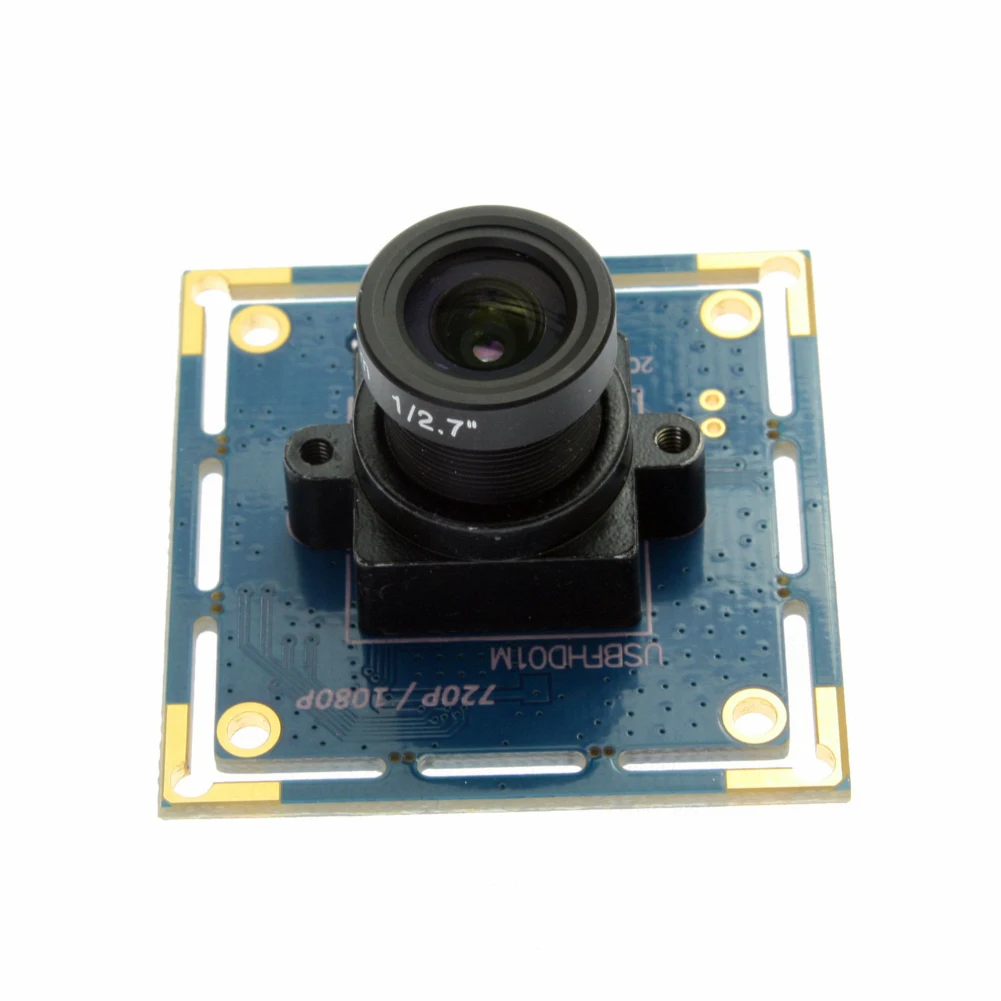

ELP High Frame 120FPS 2MP 1080P OV2710 MJPEG YUY2 mini USB CMOS Camera Module with M12 Adjustable Lens for Machine Visions
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (60391555103):
Product Overview
Description
ELP High Frame 120FPS 2MP 1080P OV2710 MJPEG YUY2 mini USB CMOS Camera Module with M12 Adjustable Lens for Machine Visions
The HD 1080P USB CMOS board camera module(model: ELP-USBFHD01M serials) is ideal for many applications like security systems, portable video system, video phones, industria machine monitoring and toys. It use high quality image sensors made by OmniVision
Features
*1080P HD high resolution USB Camera
*Can used as Endoscope Camera with high speed
*All kinds of resolution optional
*CMOS OV2710 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 120fps in 640*480 resolution, 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

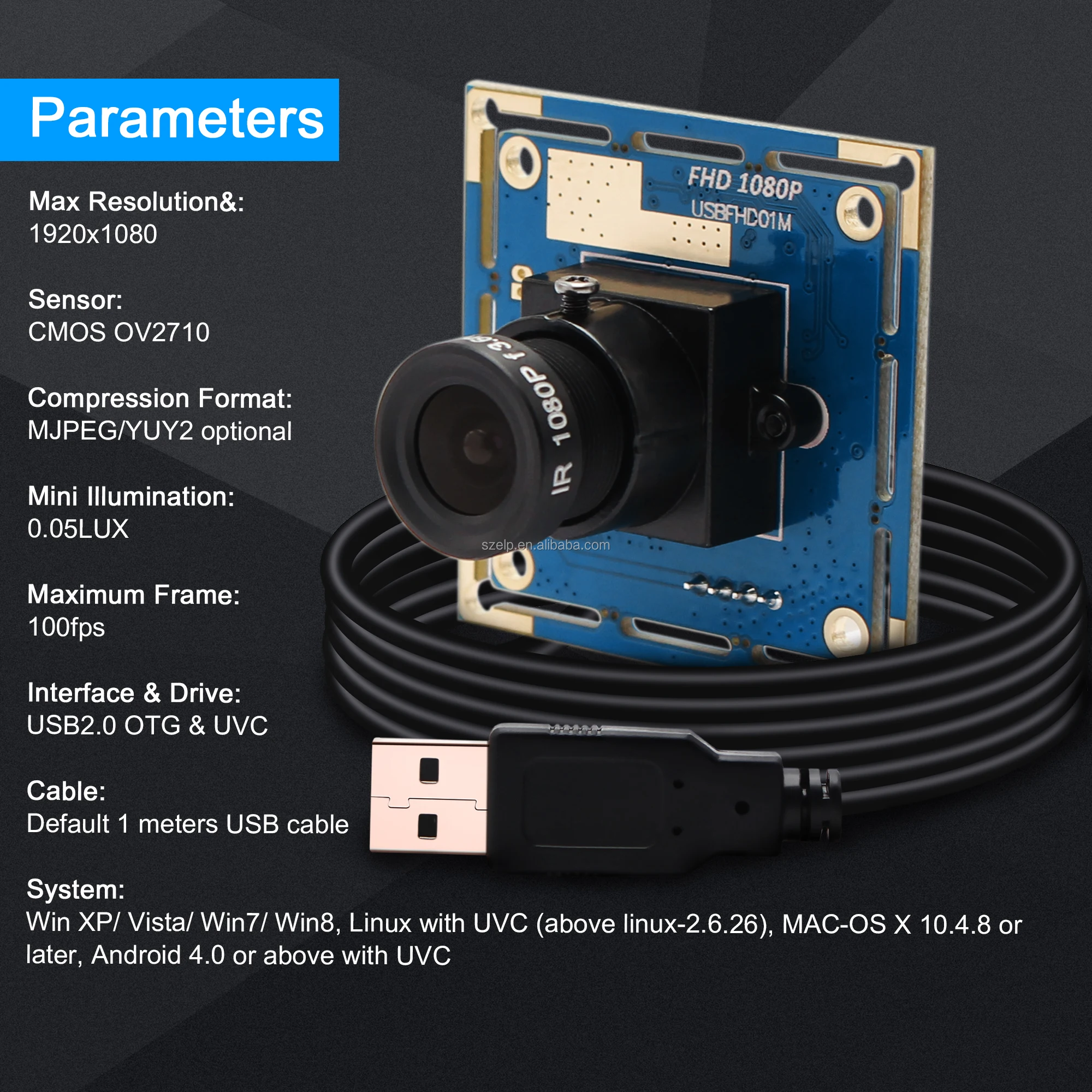

Specifications
Optional models | ELP-USBFHD01M-L21(2.1mm lens) ELP-USBFHD01M-L28(2.8mm lens) ELP-USBFHD01M-L36(3.6mm lens) ELP-USBFHD01M-L60(6mm lens) ELP-USBFHD01M-L80(8mm lens) ELP-USBFHD01M-L12(12mm lens) |
Sensor | 1/3" CMOS OV2710 |
Lens size | 200W, 2.0megapixel, 1920(H)x1080(V)pixels |
Max. Resolution | 1920X1080 |
Picture format | MJPEG |
USB Protocal | USB2.0 HS/FS, USB1.1 FS |
Support free driver | USB Video Class(UVC)1.1 |
Auto exposure AEC | Support |
Auto white blance AEB | Support |
Frame rate | 1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps |

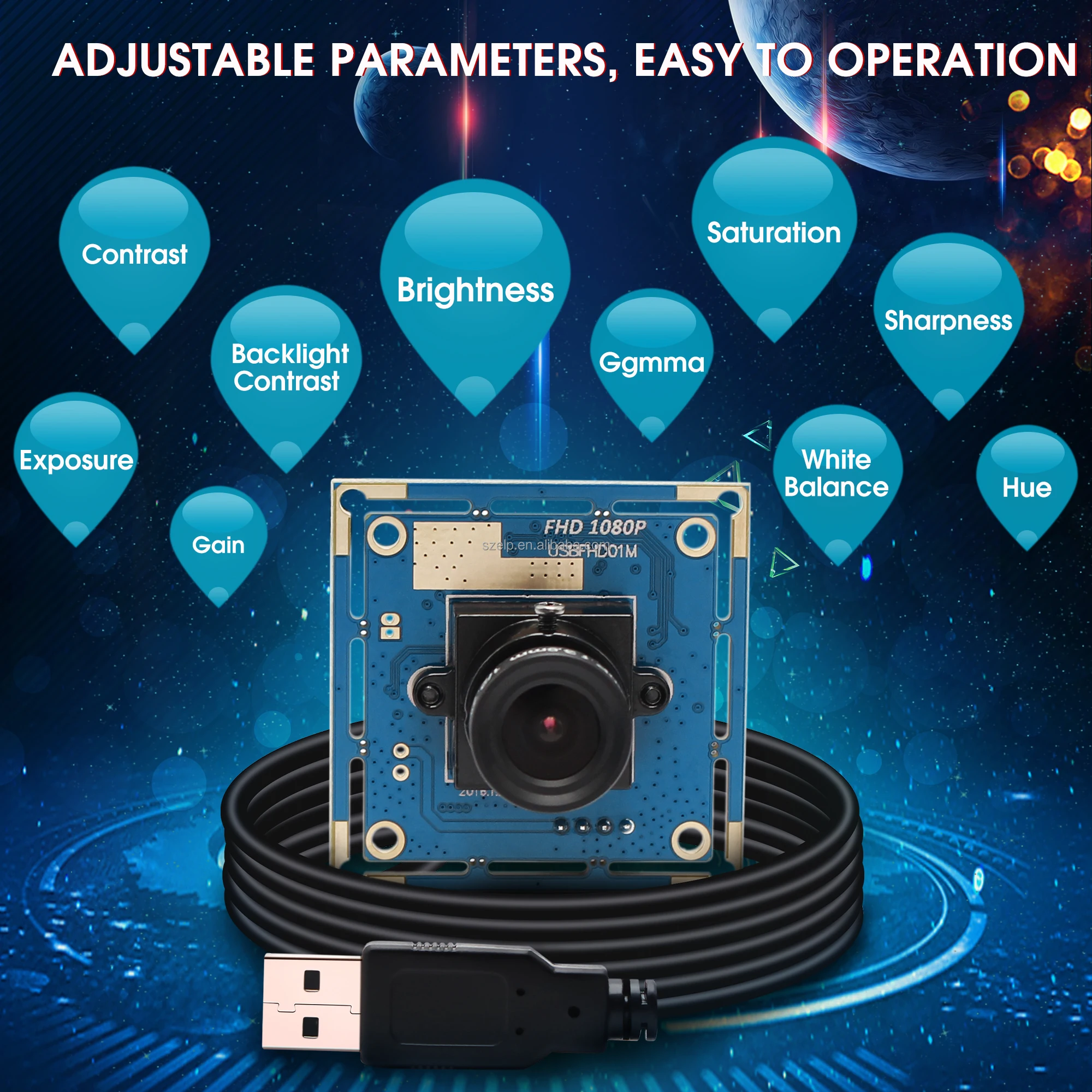

Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
Night vision | optional, can choose IR board |
view angle | 30-150 degree optional |
voltage | DC 5V |
current | 150mA |
work temperature | DEGREES(-20~70) |

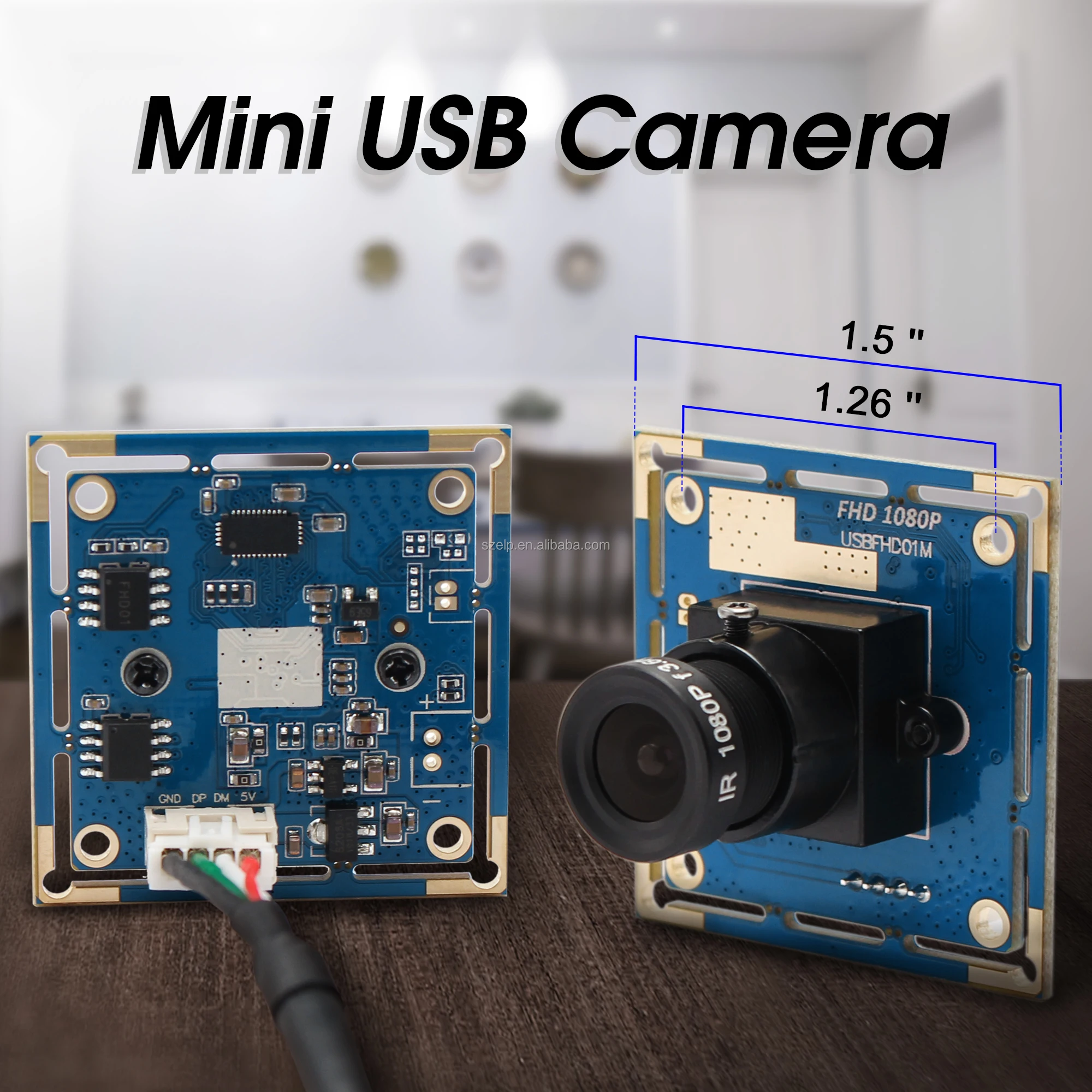

Size | 32x32mm/38*38 |
Support OS | WinXP/Vista/WIN7/WIN8/Win10 |

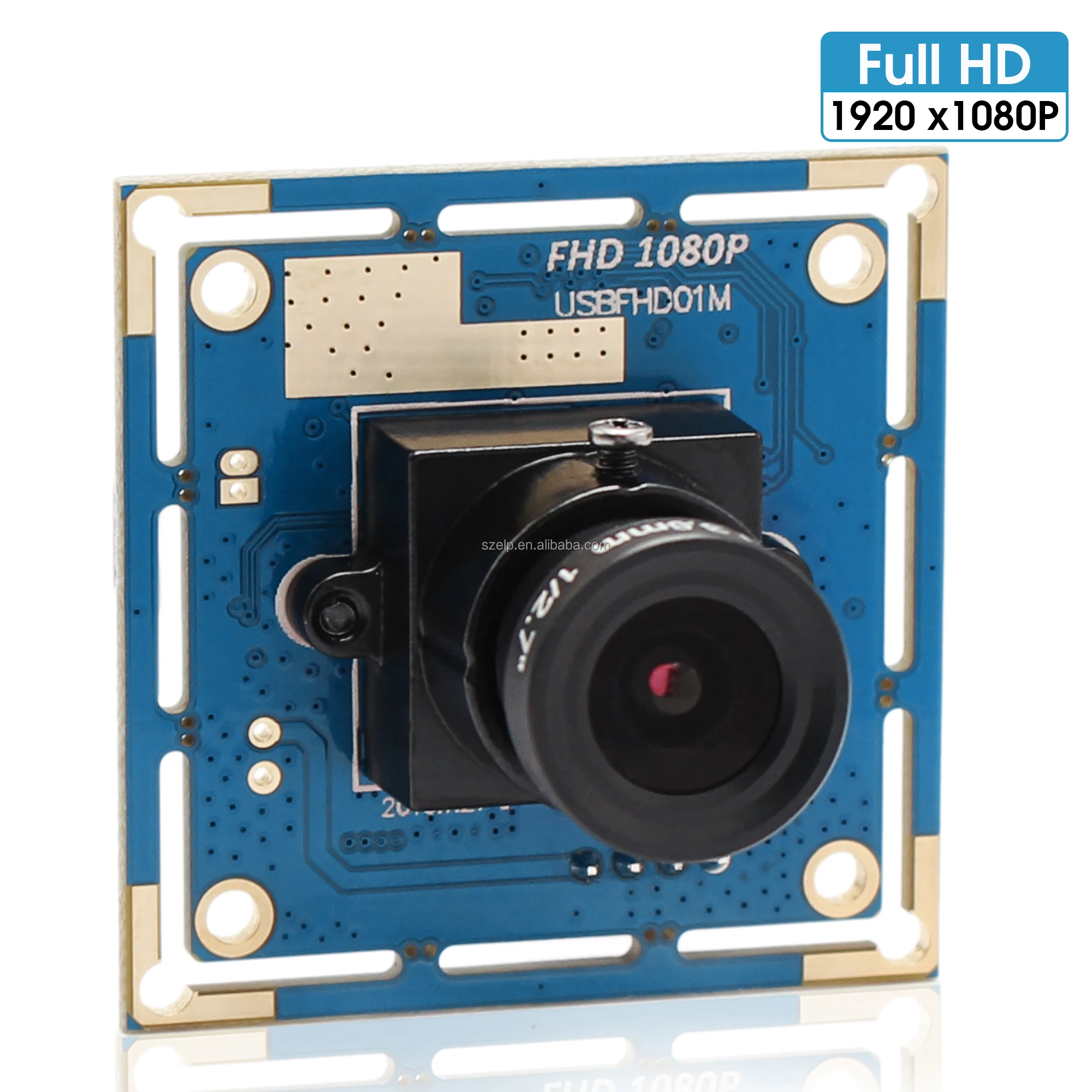

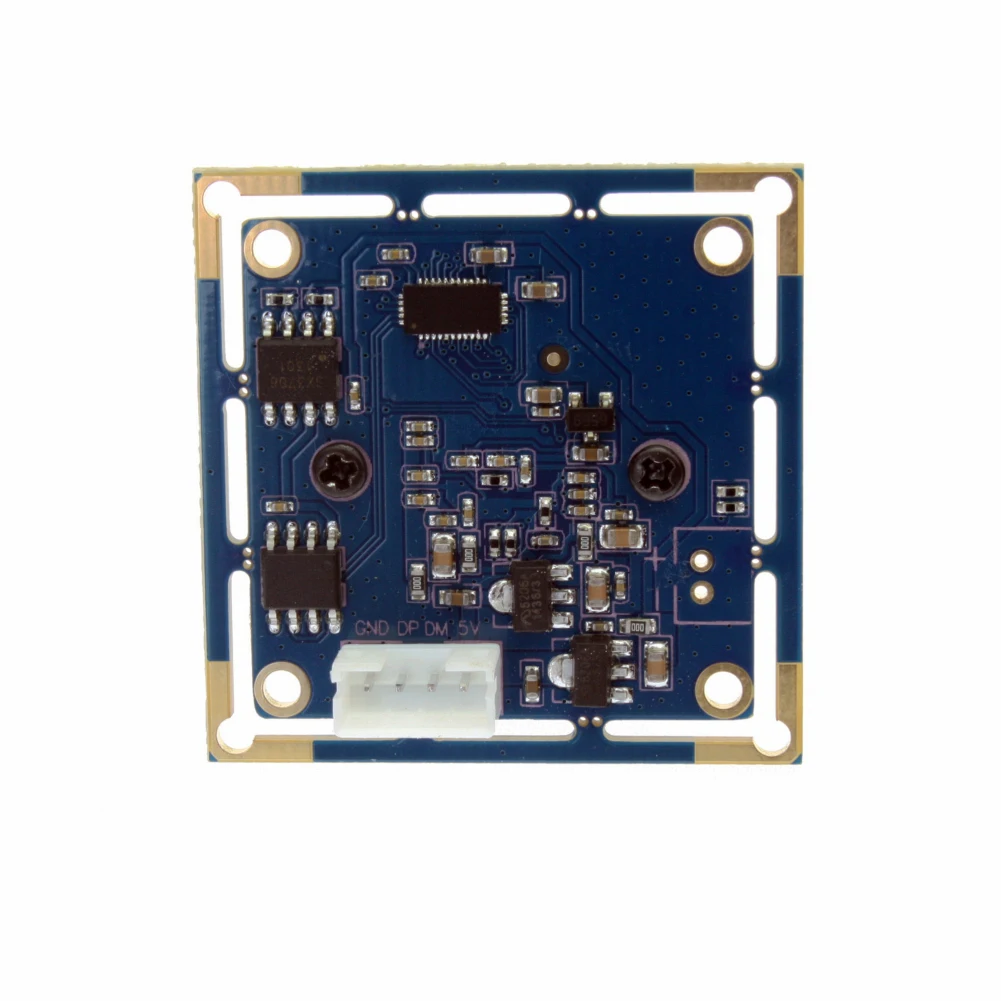

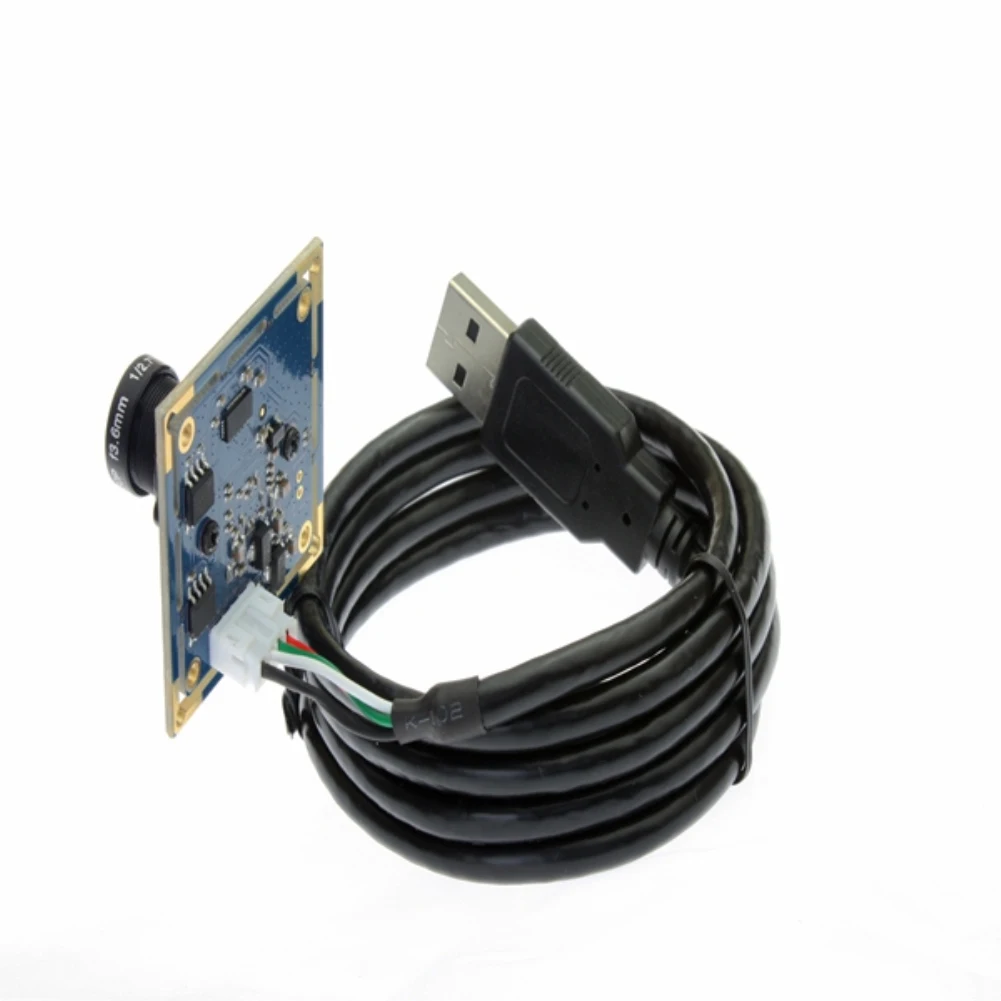

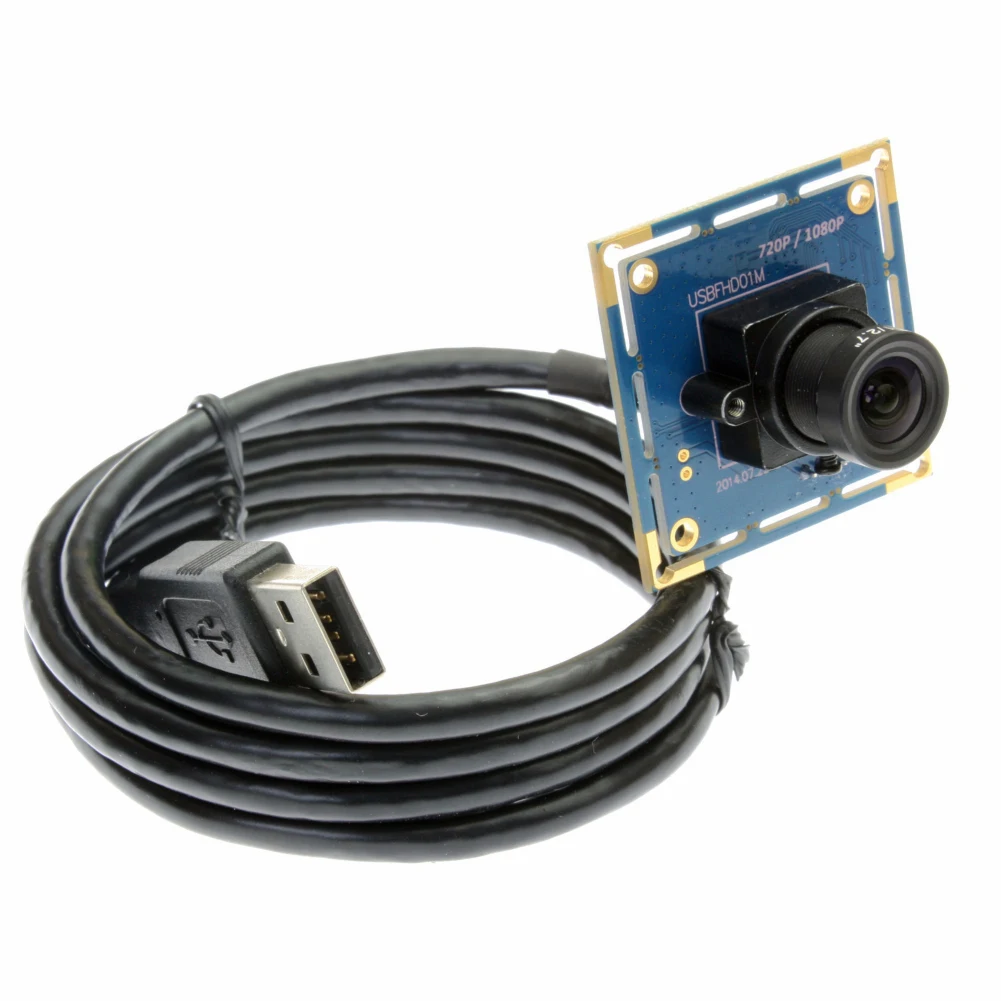

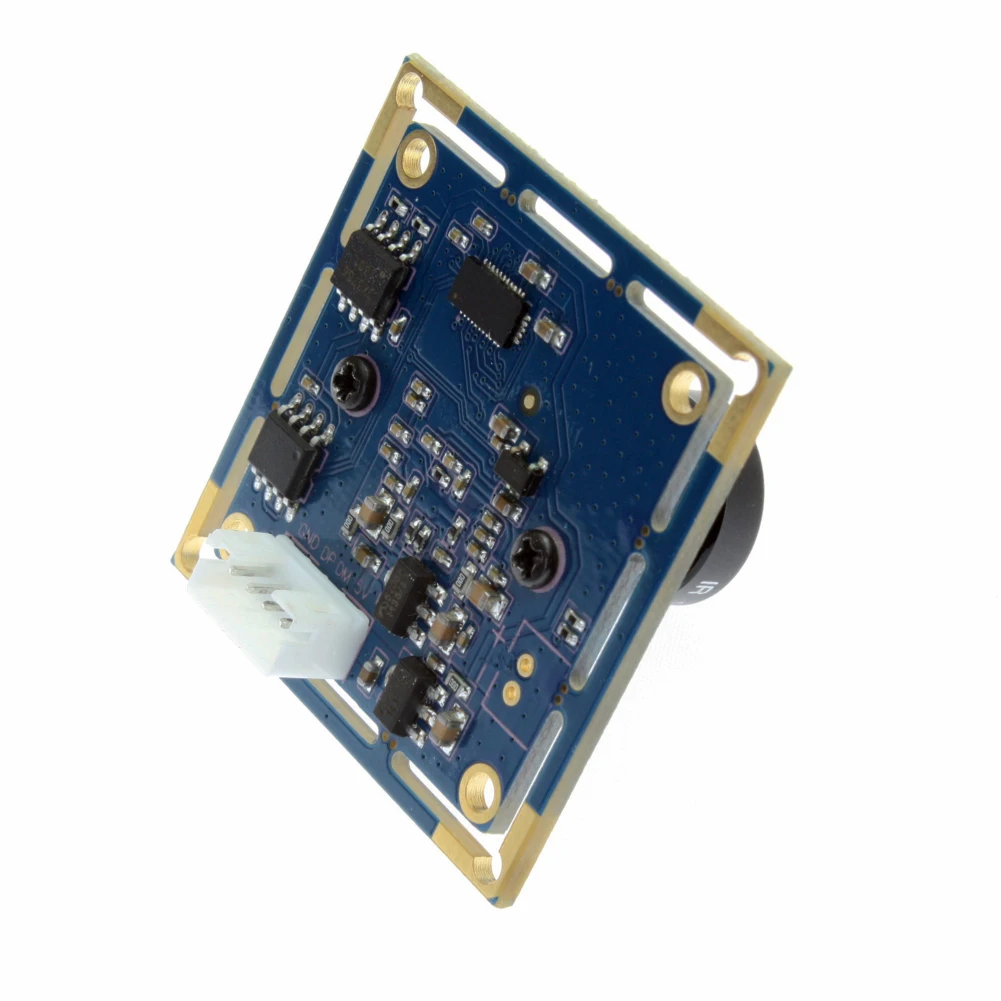

Product Display
Applications
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Sample picture:
CMOS sensor for high quality image and low power consumption
Related Products
Our USB Camera includes VGA 640X480,1MP,1.3MP,2MP,3MP,5MP and 8MP resolution.
Some features are showed as below. Just click and check !
Company Information
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 12 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
