Centrifugal pump water pump WP1216 for flooded suction, irrigation, fire, marine

Product Overview

Description







Company Profiles:

     Veritas Tech, registered in Texas, USA, set up its operational center in Ningbo Free Trade Zone (in Beilun Seaport, the second largest seaport in China) in year 2002.

    Veritas Tech is the largest manufacturer for water truck parts in China, it designs and manufactures a full range of water truck parts, such as water pump  water pump, valves, spray heads, hose reel, control systems, water cannons, water tank and other fittings.Veritas Tech is ISO9001:2008 certificated.

Prodcut Descripition:



                                                                     water pump

Part#	WP-CW (Clockwise Direction)
Part#	WP-CCW (Counter-Clockwise Direction)
Rotate Speed	1450rpm-3000rpm
Flow Rate	<3000l/min-800gl/min
Head	<50m/175feet
Pressure	<0.5Mpa/75psi
Inlet/Outlet Connection Type	Victaulic Type Grooved Suction and Discharge (clamping system)
Inlet	4.00 inches
Outlet	3.00 inches
Outlet Angle	Adjustable
Max. Operating Temp	60"C
Impeller Diameter	230mm (9 inches)
Shaft Diameter	31.7mm (1-1/4 inches)
Applications	Flooded Suction, Irrigation, Fire, Marine
Dimension(Length*Width*Height)	493mm*450mm*360mm
Net Weight/Gross Weight	19kg/33kg

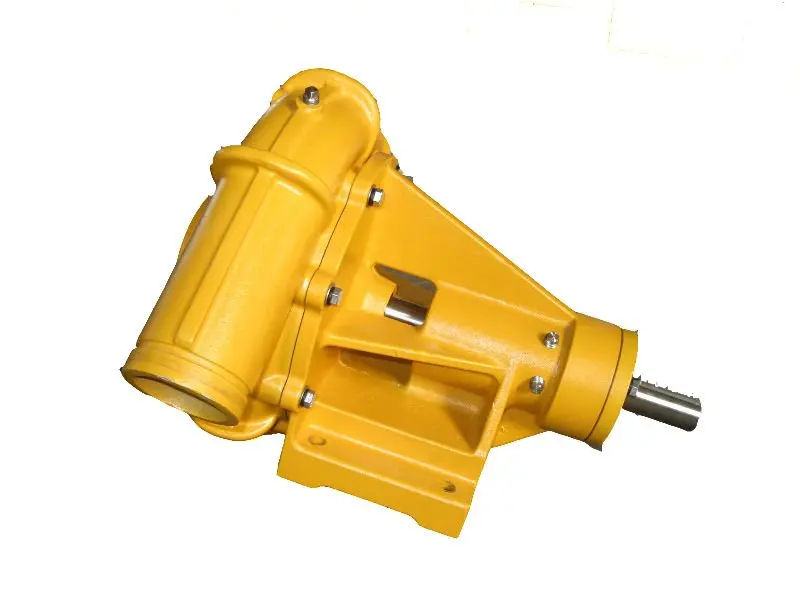

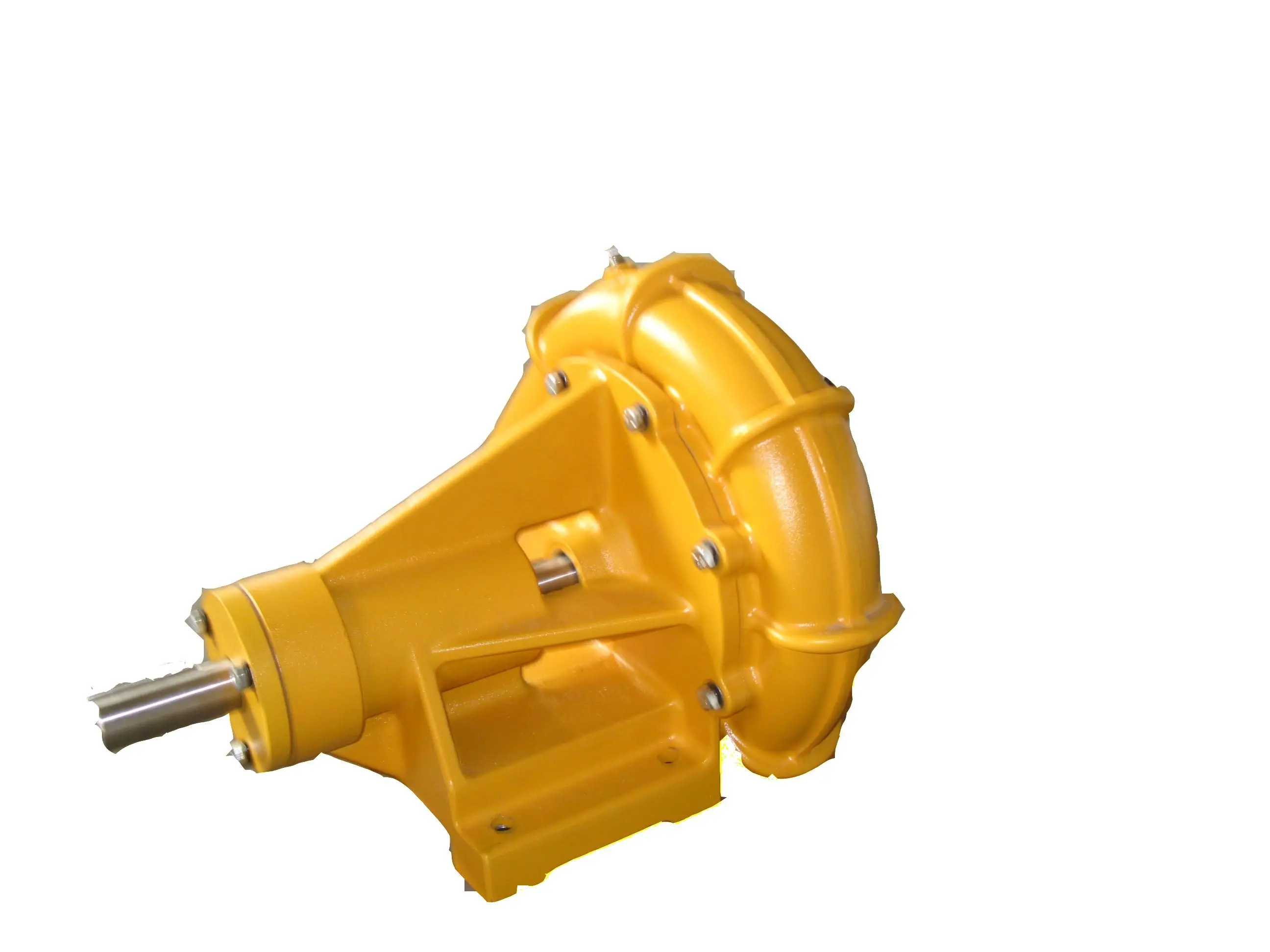

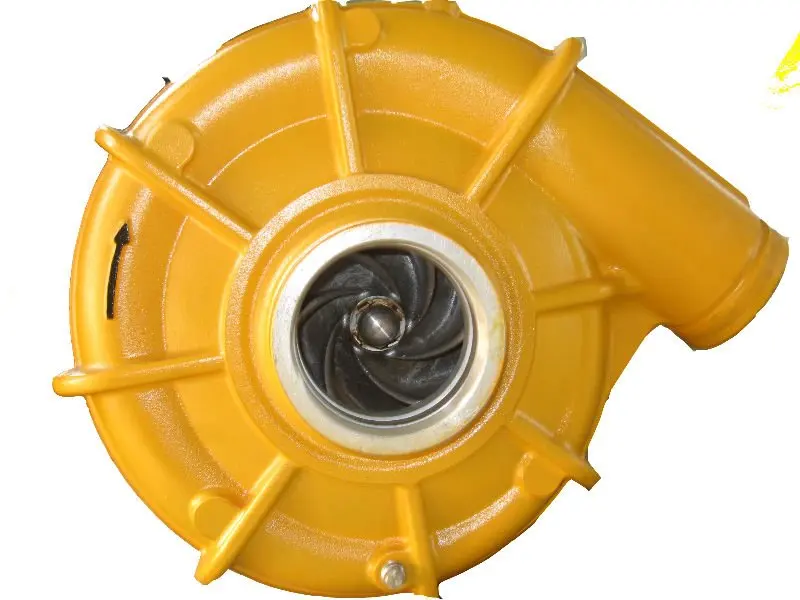

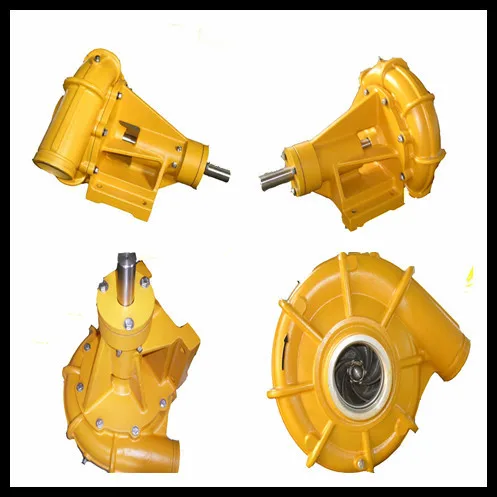

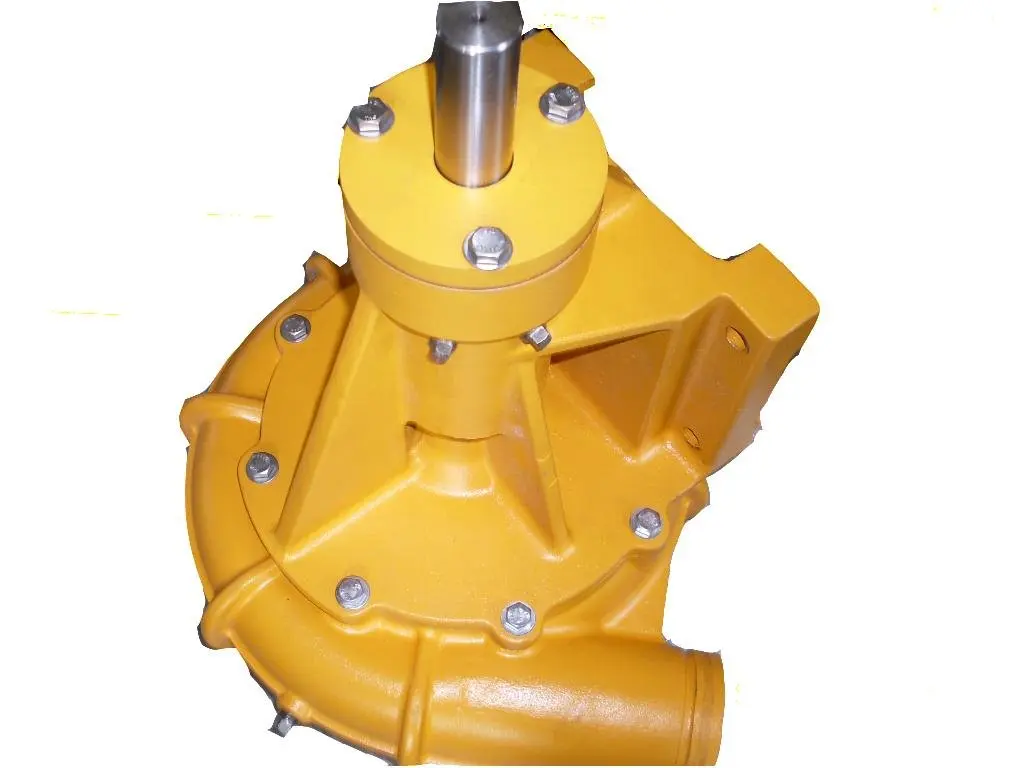

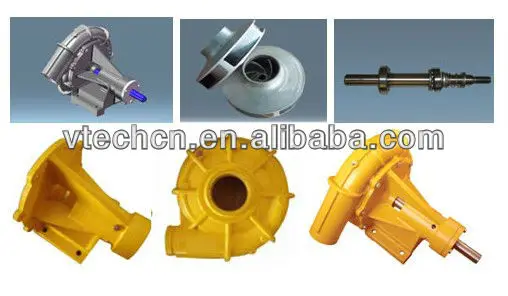

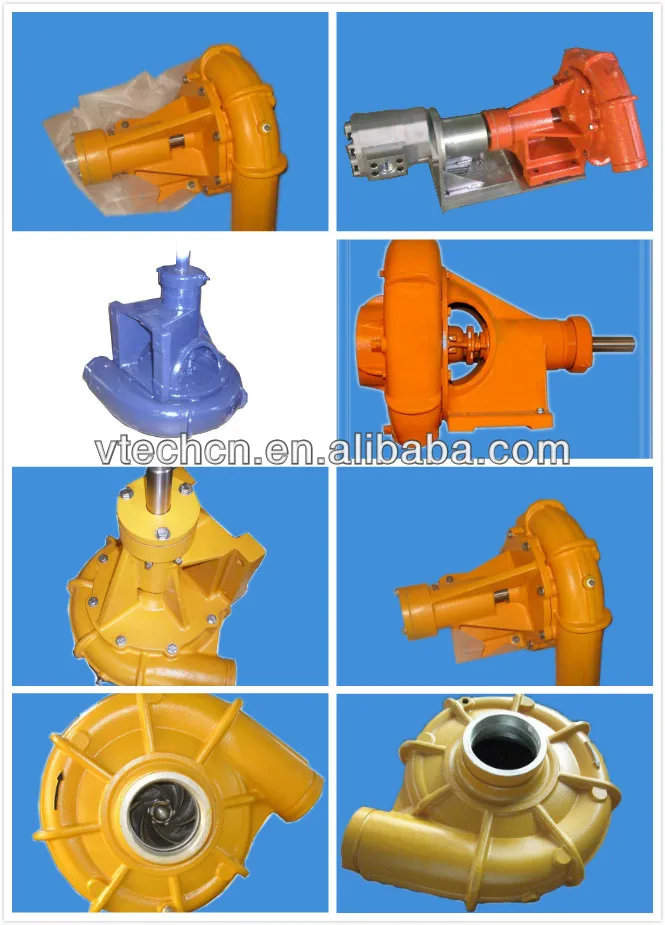

Images :
