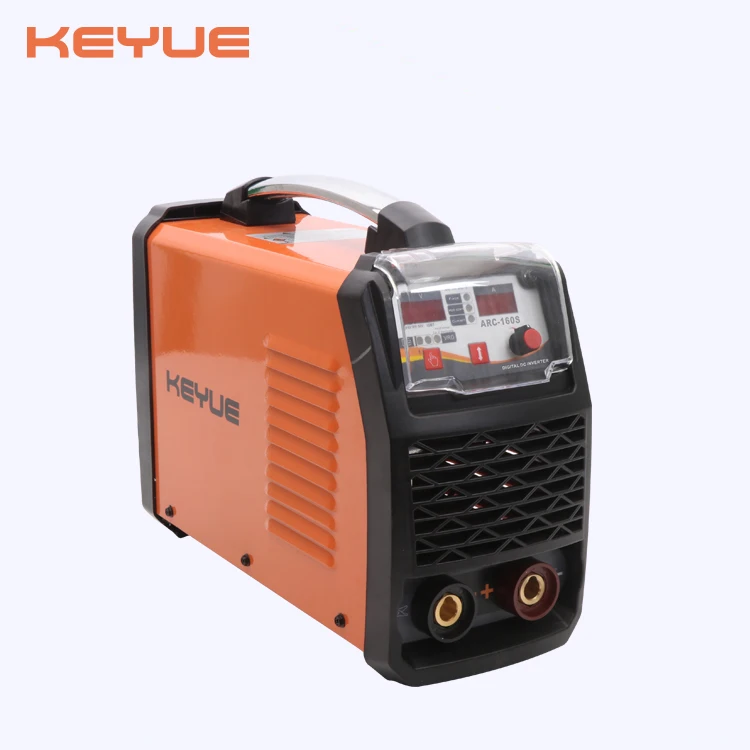

1 phase 110V/220V dual voltage 160A anti stick/arc force/hot start portable DIY SMAW IGBT DC Inverter arc welder ARC 160
- Category: >>>
- Supplier: Keyue Welding Equipment Co. Ltd.
Share on (60391756485):
Product Overview
Description
Product description
Product feature
- Dual voltage 110V/220V Inverter Welding machine
- Electrode: 3.2 mm-6.0mm acid or basic type
- Function: Anti-stick, hot start, adjustable arc force, EMC and VRD
- Material: carbon steel and stainless steel
- Portable: 4.3KGS only
| Model | ARC-160S |
| Input voltage(V) | 1PH AC110V or AC220V±15% |
| Input power(KVA) | 3.4KVA 110V |
| 6KVA 220V | |
| Input current (A) | 31A 110V |
| 27A 220V | |
| Output current(A) | 20-100A 110V |
| 20-160A 220V | |
| No-load voltage (V) | 56±5 110V |
| 56±5 220V | |
| Duty Cycle% (40℃ 10min) | 100/160A 40% |
| 63/101A 100% | |
| Efficiency (%) | 70 |
| Protection grade | IP21 |
| Insulation grade | F |
| Net weight (KG) | 4.3 |
| Gross weight (KG) | 7.1 |
| Dimension of machine (mm) | 410*162*305 |
| Dimension of package (mm) | 480*240*408 |
Performance
Material | Sheet thickness (mm) | Stick diameter (mm) | Current range(A) | Model |
Carbon steel Stainless steel Low alloy steel
| 1.5-5 | 2.2.5/3.25/3.2 | 20-140 | ARC-140 |
1.5-10 | 2.5/3.2/4.0 | 20-160 | ARC-160 | |
1.5-10 | 2.5/3.2/4.0 | 20-200 | ARC-200 | |
1.5-15 | 2.5/3.2/4.0/5.0 | 20-250 | ARC-250 | |
2-20 | 2.5/3.2/4.0/5.0 | 20-400 | ARC-400 | |
≥16.0 | 5.0/6.0/8.0 | 20-600 | ARC-630 |
