12PSB BFB diesel fuel pump calibration machine with a free nozzle tester
- Category: >>>
- Supplier: Taian North Test Equipment Factory
Share on (60392256557):
Product Overview
Description
12PSB-BFB diesel fuel pump calibration machine with a free nozzle tester
Introduction
12PSB-BFB diesel fuel pump calibration machine with a free nozzle tester
It's our best seller model, which used to test mechanical pumps, like inline pumps, distributor pumps.
Feature
12PSB-BFB diesel fuel pump calibration machine with a free nozzle tester
>>> Threesystem languages: Chinese, English and Russian (other languages can choose as customer's requirements).
>>> Main engine frequency conversion, manual and automatic two operating modes.
>>> Automatic mode can process multi- gears speed preset.
>>> Automatic oil measuring and counting system.
>>> Has short-circuit protection feature
>>> Two sets of air supply adjustment knobs on both sides,easy operation
>>> Automatic oil measuring plate (optional install).
Function
12PSB-BFB diesel fuel pump calibration machine with a free nozzle tester
>>> Test each cylinder's oil supply quantity under different rotate speed.
>>> Check each cylinder's injection timing under static state.
>>> Check the performance of mechanical governor.
>>> Test the electromagnetic valve of distributor pump.
>>> Test the tightness of injection pump.
>>> Measure the pump body internal pressure and oil return pressure of distributor pump.
>>> Check the performance of pressure equalizer, pneumatic governor.
>>> Equipped with DC.1 2V/24V power supply, used for magnetic valve's driving and testing.
Technical Parameters
| Rated output power | 7.5, 11, 15, 18.5, 22, 30KW |
| Voltage | 380V or 220V |

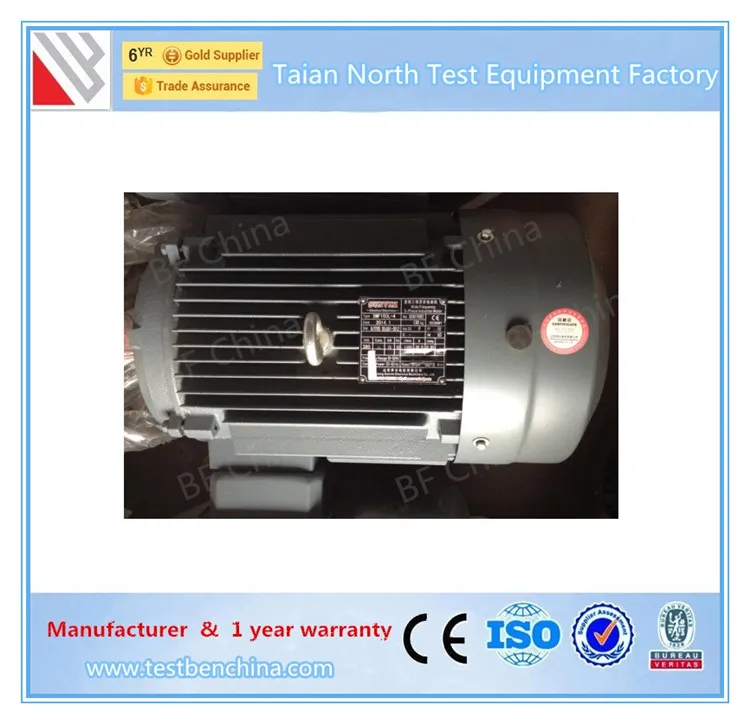

| Motor | Ultra-low noise pump |
| Oil supply capacity | 10L/min 20L/min |
| Testing oil high pressure | 0-3.5MPa |
| Testing oil low pressure | 0-0.35MPa |
| Air pressure range | 0-0.15Mpa |
| DC power | 12V or 24V |
| Shaft center height | 125mm |
| Operating floor height | 830mm |
| Oil tank capacity | 50L |
| Size | 2200mm x 1080mm x 1800mm |
| Weight | 910kg |
Packaging & delivery
Warranty
1 year warranty
Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairmen, user only need to pay the delivery cost. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
After-sale Service
Professional engineer and application specialists will respond to your requests efficiently |
|
Online via SKYPE,WHATSAPP,VIBER,WECHAT,QQ,EMAIL,PHONE or FAX, | |
Follow up the case, record the entire process. Solution will be provide with 24 hours | |
If the problem is complaint , it will be reported to QC department | |
QC will find defect from which department , who is in charge to identify responsibility | |
Collecting and record customer respond ,suggestion, requirement, Make quality trace periodically and take customers' feedback into account during routine practices |
FAQ
Company Information
Taian North Test Equipment Factory is appointed by the country as the professional manufacturer of oil injection pump test bench. It gets the technique support from Tianjin university, Tianjin University of technology, Shandong University of science and technology, With more than 10 years export experience, and get high reputation from our customers.
