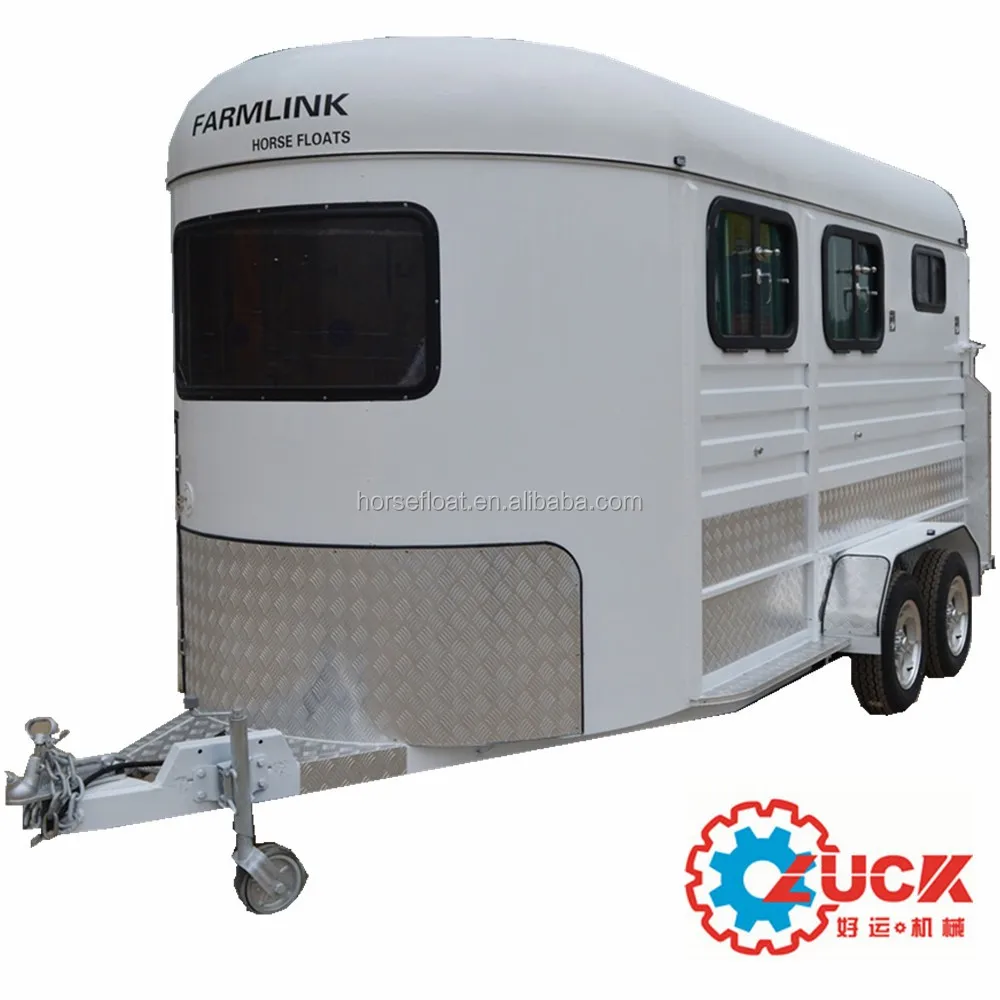

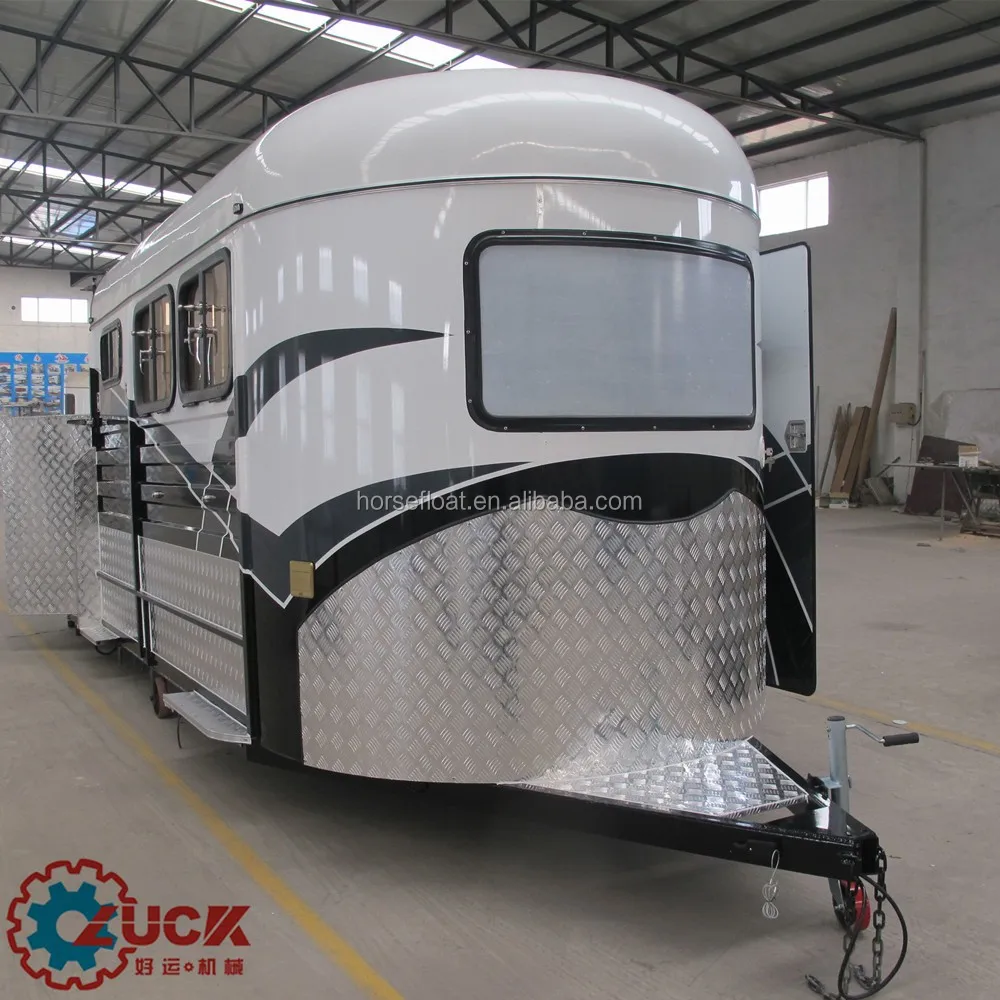

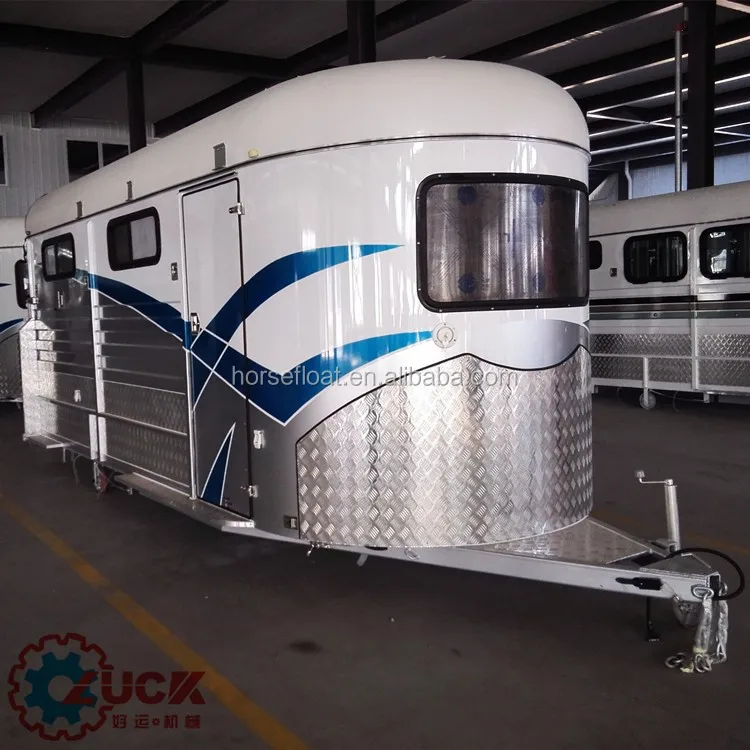

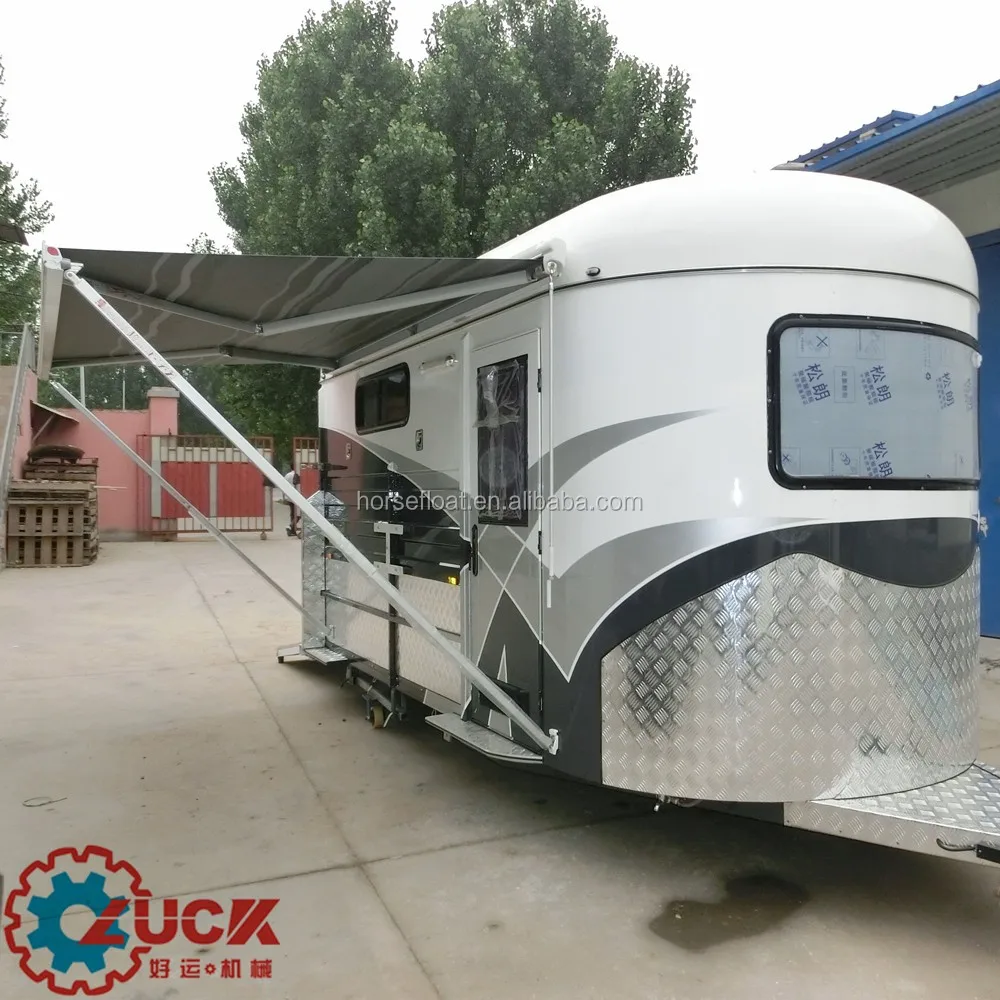

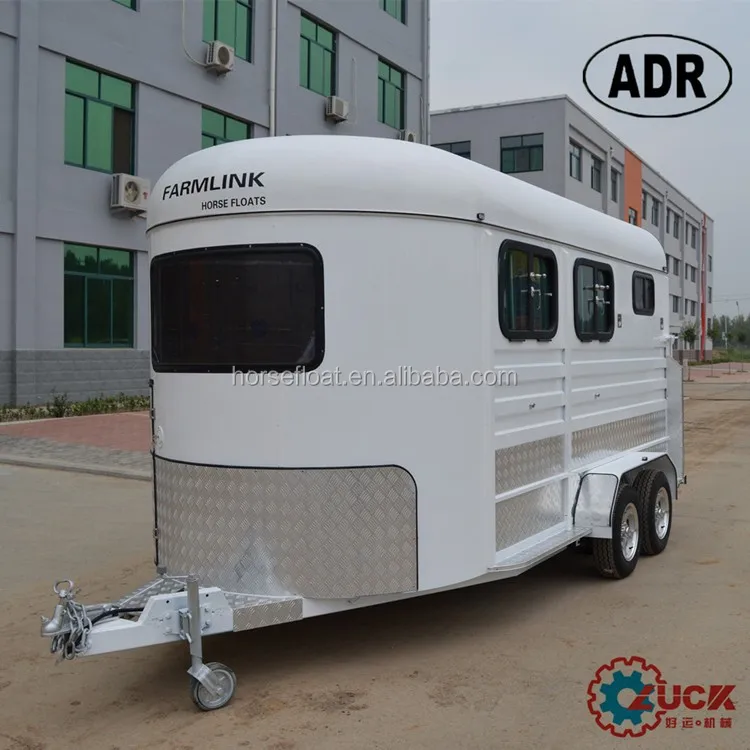

2HAL D trailer used for horse angle load deluxe version
- Category: >>>
- Supplier: Henan Lucky Machinery Co. Ltd.
Share on (60392290193):
Product Overview
Description
Product Description
2HAL-D 2 horse trailer used for horse spec.
| MODEL:2HAL- D | |
| 1.TRAILER MATERIALS | |
| 1 CHASSIS MATERIAL double hot dip galvanized RHS(3.5mm-4.0mm) | |
| 2 FRAME MATERIAL double hot dip galvanized RHS(2.5mm) | |
| 3 BODY PANEL galvanized (1.2mm) | |
| 4 ROOF special molded FRP 4120*1980 | |
| 5 NUTS & BOLTS stainless steel | |
| 2.WHEELS & TYRES | |
| 1 WHEEL RIM 15' aluminium alloy rims | |
| 2.2 TYRES 195R15 | |
| 2.3 SPARE WHEEL one | |
| 3.AXLES & SUSPENSIONS | |
| 3.1 AXLES two special trailer axles | |
| 3.2 LEAF SPRINGS roll rocker tandem spring suspension 9 plates | |
| 3.3 BRAKE SYSTEM dual axle electric brake | |
| 4.WINDOWS & DOORS | |
| 4.1 FRONT WINDOW 1220*610 | |
| 4.2 SIDE WINDOWS 2 pop-up rectangle windows,2 sliding rectangular windows | |
| 4.3 VENTS double sash casement vent | |
| 4.4 SIZE OF SIDE DOOR 1755*615 | |
| 4.5 REAR UPPER DOOR 2020*1065 | |
| 4.6 RAMP DOOR 2020*1210 | |
| 4.7 REAR UPPER & RAMP DOOR STRUT high-intensity anti-rust strut | |
| 4.8 HINGES FOR REAR UPPER DOOR special 6mm diameter copper hinges | |
| 5.DRAWBAR | |
| 5.1 DRAWBAR CHECKER PLATE 1.2mm aluminium | |
| 5.2 DRAWBAR SAFETY CHAIN two | |
| 5.3 BRACING WHEEL one | |
| 6.LIGHTS & RETRO REFLECTORS | |
| 6.1 TRAILER PLUGS square 7 wick plug | |
| 6.2 SIDE LAMPS 6 | |
| 6.3 REAR LAMPS LED group | |
| 6.4 REAR LAMPS STAND aluminium | |
| 6.5 RETRO REFLECTORS 8 | |
| 7.MUDGUARD | |
| 7.1 MUDGUARD TYPE compact mudguard | |
| 7.2 MUDGUARD CHECKER PLATE 1.2mm aluminium in the front of mudguard | |
| 7.3 PEDAL & ALUMINIUM STEP 1.2mm aluminium decoration board | |
| 8.INTERIOR & EXTERIOR | |
| 8.1A KITCHEN with a cupboard and all appliance from yourself | |
| 8.2 HORSE PROTECTION FRAME full padded | |
| 8.3 HORSE RING four | |
| 8.4 RUBBER MATTING FOR RAMP DOOR 10mm rubber matting | |
| 8.5 RUBBER MATTING FOR FLOOR 10mm rubber matting | |
| 8.6 RUBBER MATTING FOR INNER SIDE PANEL 6mm rubber matting | |
| 8.7 WOOD BOARD FOR FLOOR & RAMP DOOR 18mm hardwood plywood | |
| 8.8 RUG RACK side | |
| 8.9 WATER TANK one | |
| 8.10 SADDLE RACK in saddle box | |
| 8.11 SADDLE BOX 1200mm height for 2 saddles | |
| 8.12 PAINTING single | |
| 9.DIMENSIONS | |
| 9.1 OVERALL DIMENSIONS ( L x W x H: mm ) 4970*2230*2590 | |
| 9.2 BODY DIMENSIONS ( L x W x H: mm ) 4120*1980*2230 | |
| 9.3 INNER DIMENSIONS ( L x W x H: mm ) 4095*1930*2155 |
Packaging & Shipping

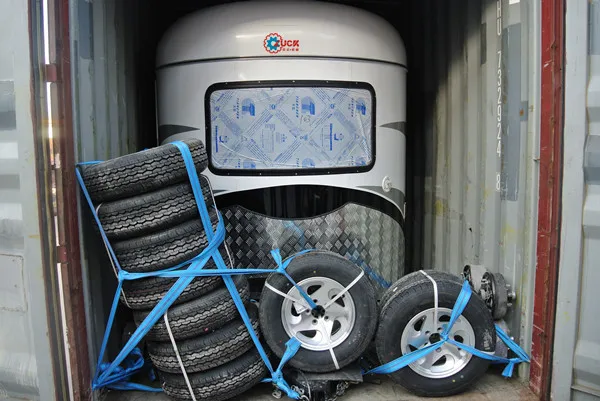

2pcs/40HC container, fixed by special belts.
Our Services
*L/T: 20-45days based on different model
*Payment terms: 30% TT down payment, balance TT before delivery or L/C
*Departure port: Qingdao or as requested
*Help customer to proceed the import if needed (We have cooperation with Australia logistic company)
Company Information
| We are a professional manfacturer of horse trailer / horse float which is located in Shandong and with more than 10 years experiences. Our products are in line with ADR, oversea market mainly forcuses on Austrialia, New Zealand, also to Middle East (Saudi, Arabia, Yemen, UAE etc), southeast countries (Singapore, Malaysia, Thailand, Brunei, etc.), Southeast countries (Chile, Argentina, Brazil). |
Factory is ISO aprpoved, Area 20000 sq.m; Professional Engineer-5 people; Professional Processing Worker-50 people.QA -3 people; Sales Team-13 people; Yearly Output Capacity-300Units. |
Advantage: Engineering team leaded by Mr. Ma ; Skilled worker ; Strictly quality control ; Bulk purchase to keep price competitive; Good credit |
You may heard lot complain for China horse trailer/ horse float, mainly forcus on rust, wood floor rot, bad painting. Choose us, we will explain to you how we do to ensure the quality, we will not let you down! |

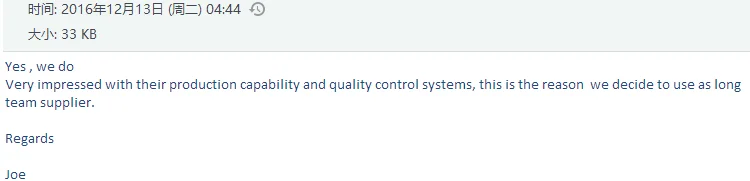

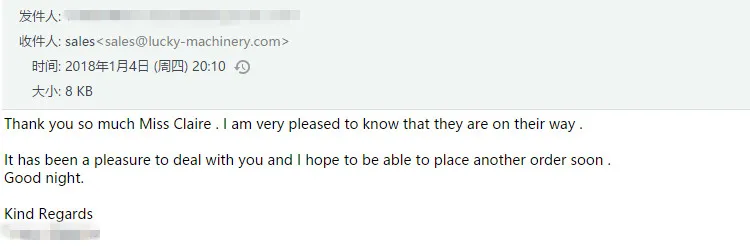

Buyer Feedback
