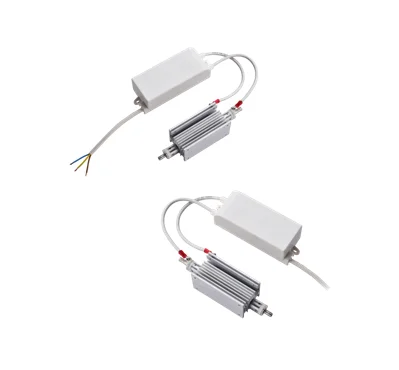

2g 3g 5g 6g ozone generator unit ozone modules pro air water purification medical ozone aquapure module
- Category: >>>
- Supplier: Aquapure (shenzhen) Ozone Technology Co. Ltd.
Share on (60392615396):
Product Overview
Description
2g 3g 5g 6g ozone generator unit ozone modules pro air water purification medical ozone aquapure moduleation
Product Description
Brief Introduction:

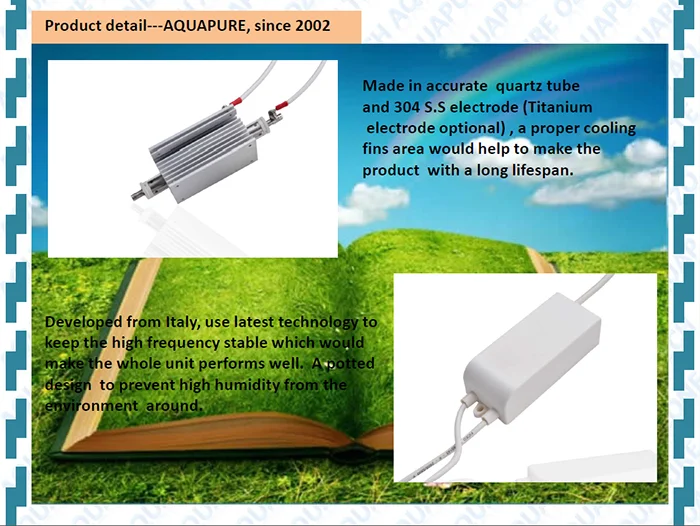

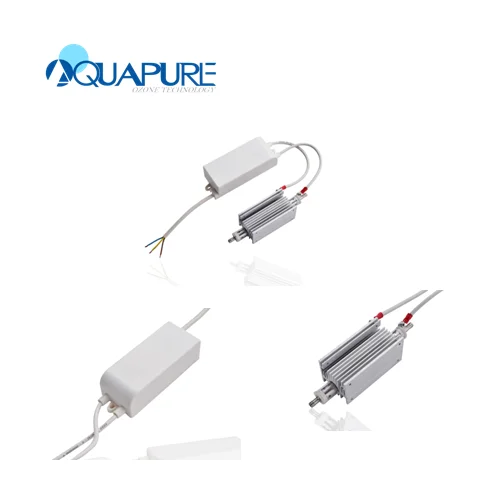

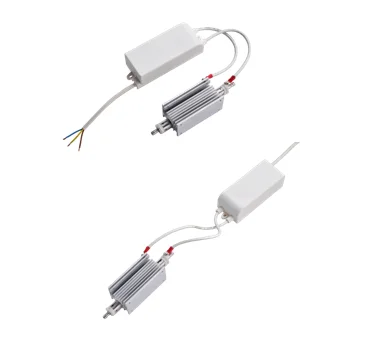

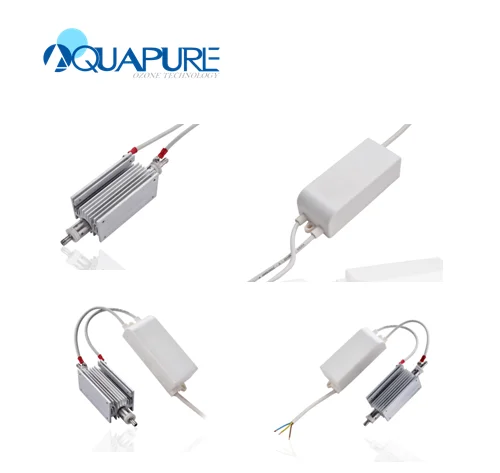

Aquapure ozone module was developed from German office which use the latest corona discharge technology. With a high performance, we use accurate quartz tube and 304/316L/Titanium Stainless steel electrode for the generator part, we sure a stable unit will help you win more business.
1. Ozone output: 2000mg/h with dry air, 1500mg/h with normal air
2. Ozone generator: Quartz Tube and 304 Stainless Steel Electrode
3. High ozone concentration: > 3.0 mg/L at 10 L/min gas flow
4. Light weight: only 0.75 Kgs
5. Technology: German corona discharge
6. Low power consumption: 35W

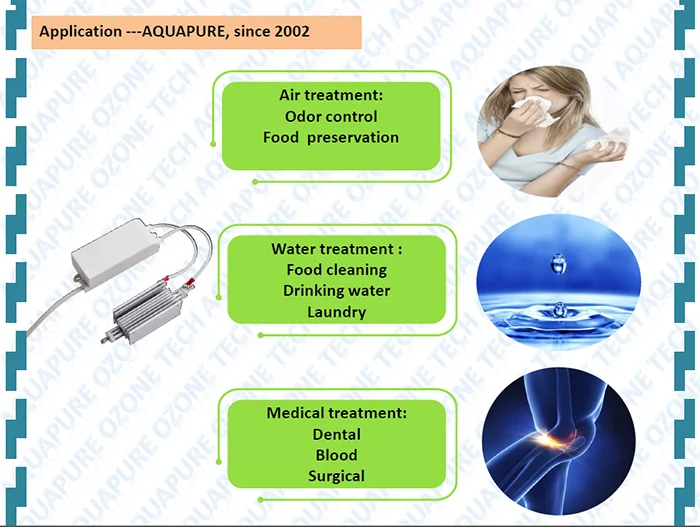

7. Able to be used as (a)Water application; (b)Air application ; (c) Medical application

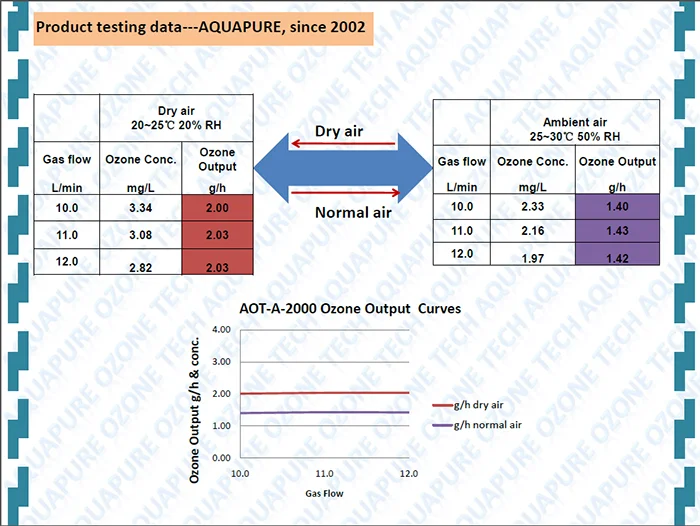

AOT-A-2000 Specification | |
Ozone Output | 2.0 g/h at 10L/min dry air; 1.0g/h at 10L/min normal air |
Ozone Concentration | > 3.0 mg/L at 10L/min gas flow |
Gas source | Ambient air/dry air/oxygen |
Gas Flow | 10 L/min recommended |
Material | 304 Stainless steel electrode & quartz tube |
Continuous working | 24 h/day work with cooling system |
Ozone generating method | German corona discharge |
Input voltage | 220 VAC (110V AC optional) |
Power input | 35 W |
Operating temperature | -10 ℃ ~ +60 ℃ |
Storage temperature | -20 ℃ ~ +70 ℃ |
Size Electronic L x W x H (mm) | 113 x 48.3 x 31.2 mm potted |
Size Generator L x W x H (mm) | 148 x 40 x 40 mm |
Product Weight | 0.75 kgs /pc |
Able to be used | water treatment /air treatment /medical treatment |
Application
Functions and Features:
1. Stable performance and compact size
2. Easy installation with reasonable design
3. Fan cooling mode & with a big cooling fins area
4. Quartz tube can be easily cleaned, should it become contaminated.
5. High ozone concentration with dry air source
- 100% check ozone concentration
- 100% burn-in test
- 100% 304 stainless steel and ozone compatible material
- Suitable for water treatment/air treatment/medical treatment
- 1g/h-2g/h ozone output available
Company Information
Why choose AQUAPURE:
Select material:
In order to produce high performance Ozone product with competitive price, We select material supplier in person.
Attention to detail:
To ensure the constant quality of products, AQUAPURE is strict in testing system to make sure ozone products are in good system.
Quality guarantee:
Committed to the standradization of the ozone market , AQUAPURE make strict control of every step from assembling to packing.
Product Category
FAQ
1. who are we?
We are based in Guangdong, China, start from 2015,sell to North America(40.00%),Southern Europe(30.00%),Eastern Asia(15.00%),South America(10.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Medical ozone generator,Medical Ozone Therapy,Ozone water purifier,Portable ozone generator,Ozone Generator
4. why should you buy from us not from other suppliers?
AQUAPURE's core technology is from Germany and was invested by German since 2002. We are a professional ozone generator and plasma generator manufacturer specializing in the R&D, design, manufacture and processing of ozone/anion products.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,German,Italian
Contact Information
Contact person: Cherry Zhou
Email: info(at)aquapureasia.com
Tel.: 0086-755-26605963
Cell/whatsapp: 0086-18664924389
Wechat: mimanquitanto
Website:www.aquapureozone.com
