Socket Gate Valve for PVC Tube size from 63mm to 315mm,ductile iron body,PN10 PN16 China original factory competitive price

Product Overview

Description

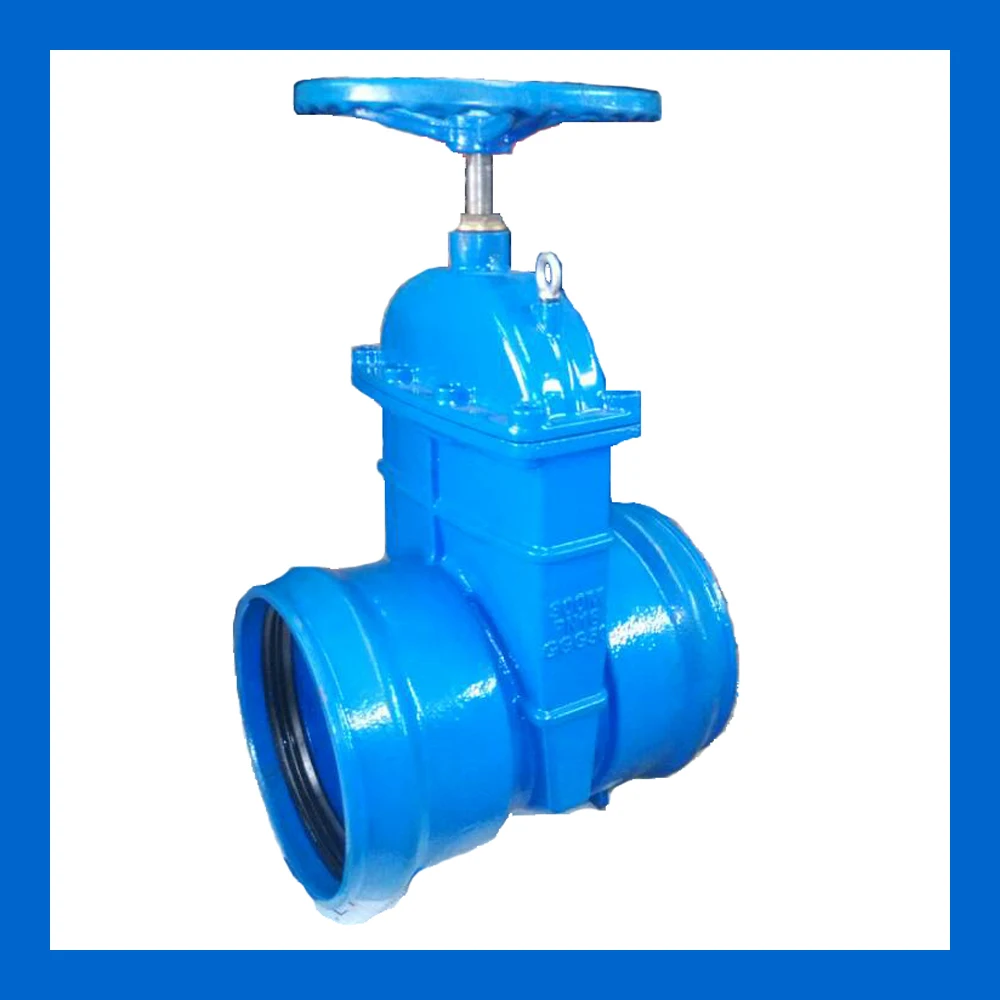

Ductile iron socket gate valve for 63mm-315mm PVC tube

Double socket gate valves for pvc pipes





Ductile iron resilient seated socket gate valve(gate valve with socket ends)

Gate valve body materials:ductile iron

Connect type:socketed

Pressure:PN16

Size:63mm,75mm,90mm,110mm,160mm,200mm,225mm,250mm,315mm

Seal:resilient seat

Coating:blue epoxy powder outside and inside of the gate valve



Application:

Resilient seated socket end gate valves are suitable for PVC pipeline for drinking water and waste water ,which can be installed under or above ground.easily installed.

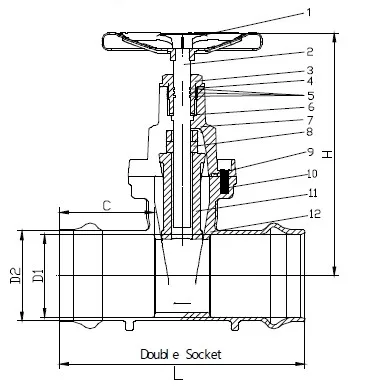

Drawing





Dimensions and Weight

Our factory manufacture ductile iron industrial valve for waters for many years.and have exported to UK,Germany,France,Italy,Spain,Morocco,Egypt,SKA,UAE,Russia,Peru,Brazil,Chile etc. many markets,countries and Region.



Quanzhou Zhixin Valve Manufacturing CO.,Ltd, is a pressessional manufacturer of ductile iron industrial valves for water in Luncang,Nan'an,Fujian,China.

Our valve series are:

1)Resilient seated,flanged/socketted/threaded,Non Rising Stem/Rising Stem gate valve according to DIN3352 F4,F5,BS5163,AWWA C509,C515,JIS 10k

2)Flexbible disk Check valve BS5153,DIN3202 F6,Ball Check Valve DIN3202 F6,Butterfly type check valve

3)Double Flanged double eccentric butterfly valve EN593 IS5752 S13 and S14,

4)Single orifice and double orifice air valve,

5)Y strainer DIN3202 F1,ANSI,JIS,BS.

6)Foot Valve
