Robot Arm Gunite Machine

Concrete Spraying System, Shotcrete Machine:

Tunnel application concrete spray system with robotic arm shotcrete machine application

This Customization Robot Arm Gunite Machine are suitable for bigger fracture surface, project which need big output, and tunnel construction which need high efficiency shotcrete.

Customization Robot Arm Gunite Machine, Concrete Spraying System applied in railway tunnel, Road slope protection etc.

Concrete Spraying System SKC20 Technical Parameters:

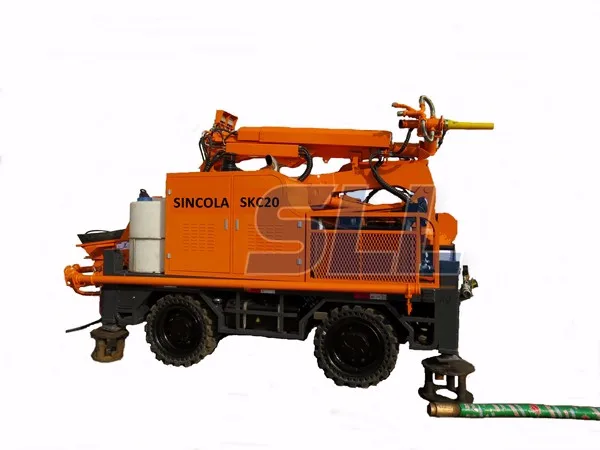

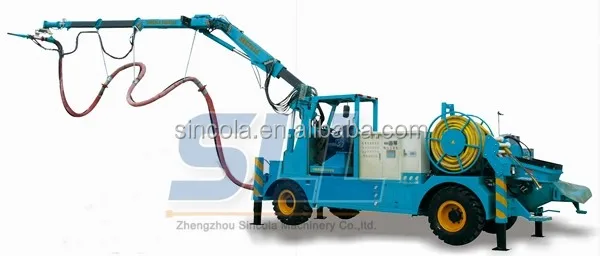

Customization Robot Arm Gunite Machine Picture

Robot Shotcrete Machine SKC20 Features:
1. Spraying System of Customization Robot Arm Gunite Machine:
Intelligent spraying control, high accuracy, wide spray area, minimum spray rejection.

2. Working range:
a. long-reach spray boom allows to work at long distance and great height.
b. 3-PRS spray head gives full spherical spray area without blind spot.
c. Full hydraulic intelligent spray boom guarantees no interference when all boom sections working at the same.

3. Chassis:
a. Rigid chassis, internal combustion – hydrostatic transmission, 4-wheel drive, 4-wheel steering with swiveling driver’s cab.
b.hydraulic supporting leg hold the vehicle steady at all times, absorb forces when material blending, pumping and spraying.

4. Concrete delivery system:
a.Advanced undamped hydraulic system with 1200mm stroke length offers high and steady pumping pressure, also reduce power consuming and parts wearing.
b.Pumping capacity range from 0 to 60 cubic meters. It can be adjusted as per customer requirements to satisfy complicated working conditions. (Recommend capacity range is 4 to 28 cubic meters)

5. Setting Accelerator Adding system:
a. Reliable frequency convert technology complied with PLC and computer control offer a setting control of adding rate depending on concrete out put.
b. Auto-adjusting frequency control offers motor speed change and auto dosing according to concrete delivery amount.

6. Complete machine:
Minimum height and rotation radius, suitable for space limited work sites

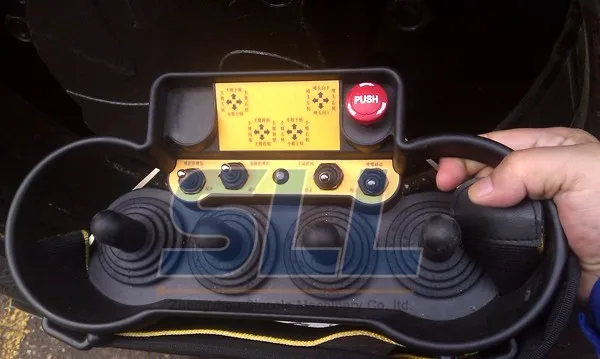

Remote Control of Concere Spraying System

FAQ:
1. Full Automatic one set concrete spraying machine for mine, your machine, is it suitable for the project?
Yes, Our concrete spraying system, It is a whole unit of pumping,spraying.
With robot telescope arm, you just control the machine, it will automaticlly working for the project.

2. How much is Customization Robot Arm Gunite Machine price?
It's cheaper than other in the market. The detail price, you can contact me by email,I'll send you according your requirement.

3. I need the machine for tunnel construction spraying concrete, is it suitable for the project?
Of course, our the robot shotcrete machine, is a professional for mines,tunnels,etc.

4. Do you have larger capacity concrete spraying machine?
Yes, we have machine of out put capacity: 5m3/h, 7m3/h,  9m3/h (by manua); 15m3/h,  20m3/h,  25m3/h,  30m3/h,  35m3/h (automatic arm). Please email me about your requirment,i'll offer you as soon as possible.

5. Can you offer the  machine operation training?

Yes, we can send technicist to training if you need.

6. The Customization Robot Arm Gunite Machine, can it be transport by container?
Yes, we had ever export machines to international market , the shipping is no problem.

Any questions or requirment of the concrete spraying system, please contact me with thanks.
