FPD442M FPD442Z Complete Freewheel Clutch Unit One Way Bearing Factory FPD 442 Z
- Category: Other Ball Bearings >>>
- Supplier: Changzhou Suma Precision Machinery Co. Ltd.
Share on (60392844738):
Product Overview
Description

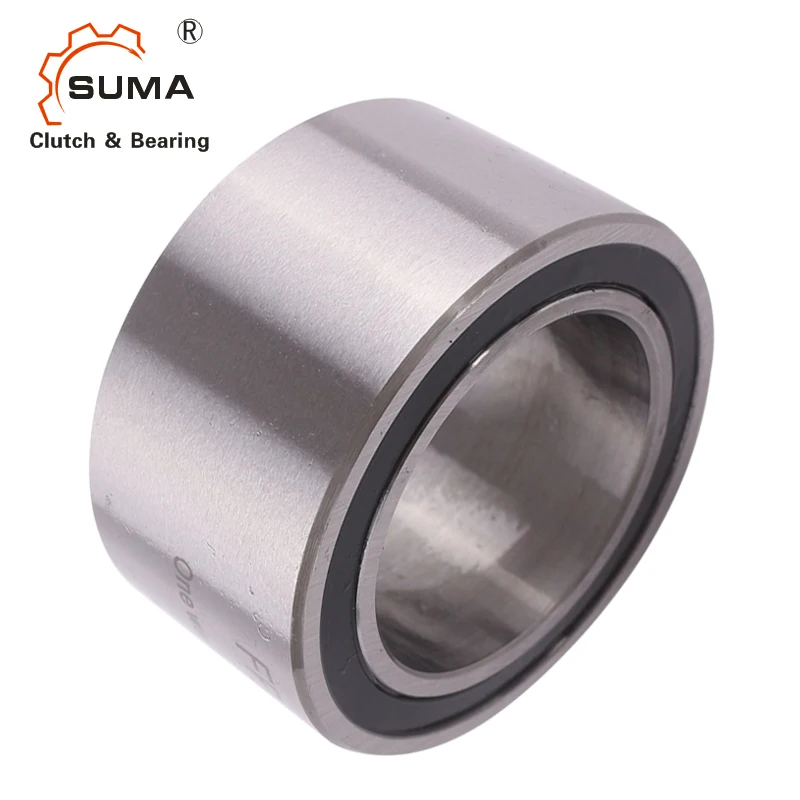

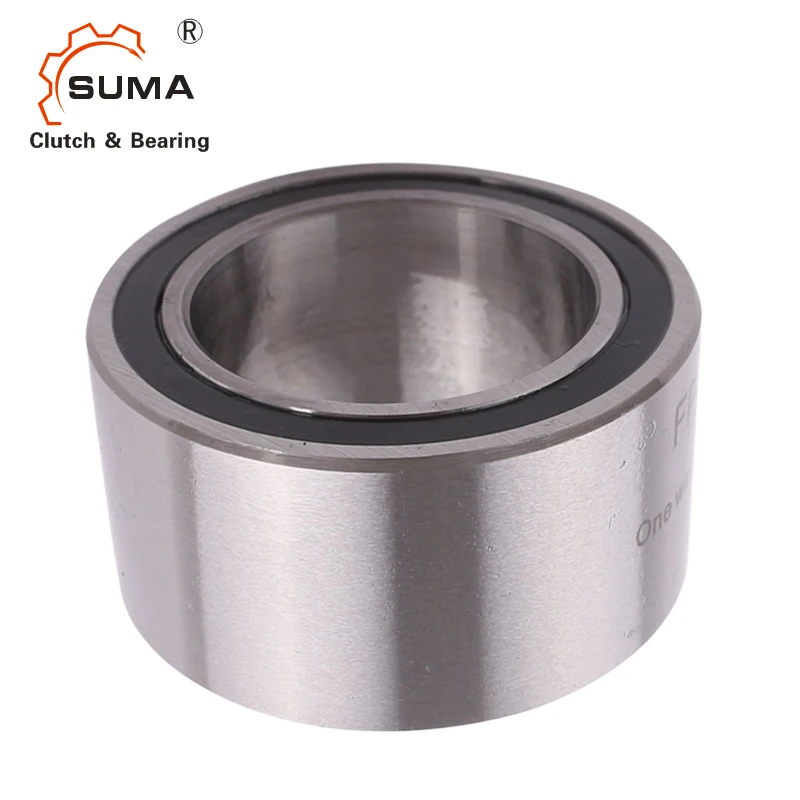

Complete Freewheel Clutch Unit One Way Bearing Factory FPD442M FPD442Z
Product Description
Features of FPD Complete Freewheel Clutch Unit
Characteristics
Width:34 mm
Operating temperature:max. 100° C
Lubrication
Operative lifetime oil lubrication
Installation
Installation tolerances
Shaft h5; hub H6
Catalogue of FPD Complete Freewheel Clutch Unit for your choice
| Model | d | D | W | Tnom | nmax | Cdyn. | Cstat. | Weight | Item no. |
| [mm] | [mm] | [mm] | [Nm] | [rpm] | [N] | [N] | [kg] | ||
| FPD 427 M | 15 | 31 | 34 | 94 | 2,000 | 7,679 | 6,397 | 0.09 | 306516 |
| FPD 427 Z | 15 | 31 | 34 | 84 | 2,000 | 7,679 | 6,397 | 0.09 | 306517 |
| FPD 432 M | 20 | 36 | 34 | 133 | 1,800 | 8,104 | 7,241 | 0.12 | 306518 |
| FPD 432 Z | 20 | 36 | 34 | 121 | 1,800 | 8,104 | 7,241 | 0.12 | 306519 |
| FPD 437 M | 25 | 41 | 34 | 176 | 1,700 | 9,201 | 8,142 | 0.15 | 306520 |
| FPD 437 Z | 25 | 41 | 34 | 160 | 1,700 | 9,201 | 8,142 | 0.15 | 306521 |
| FPD 442 M | 30 | 46 | 34 | 223 | 1,500 | 10,247 | 10,708 | 0.18 | 300696 |
| FPD 442 Z | 30 | 46 | 34 | 208 | 1,500 | 10,247 | 10,708 | 0.18 | 300697 |
| FPD 448 M | 35 | 53 | 34 | 286 | 1,300 | 11,642 | 13,440 | 0.23 | 306524 |
| FPD 448 Z | 35 | 53 | 34 | 262 | 1,300 | 11,642 | 13,440 | 0.23 | 306525 |
| FPD 453 M | 40 | 58 | 34 | 343 | 1,200 | 11,417 | 13,577 | 0.26 | 300702 |
| FPD 453 Z | 40 | 58 | 34 | 314 | 1,200 | 11,417 | 13,577 | 0.26 | 300700 |
| FPD 463 M | 50 | 68 | 34 | 461 | 1,100 | 13,070 | 17,063 | 0.34 | 306534 |
| FPD 463 Z | 50 | 68 | 34 | 428 | 1,100 | 13,070 | 17,063 | 0.34 | 306535 |
| FPD 473 M | 60 | 78 | 34 | 588 | 1000 | 14128 | 19896 | 0.41 | 306536 |
| FPD 473 Z | 60 | 78 | 34 | 543 | 1000 | 14128 | 19896 | 0.41 | 306537 |

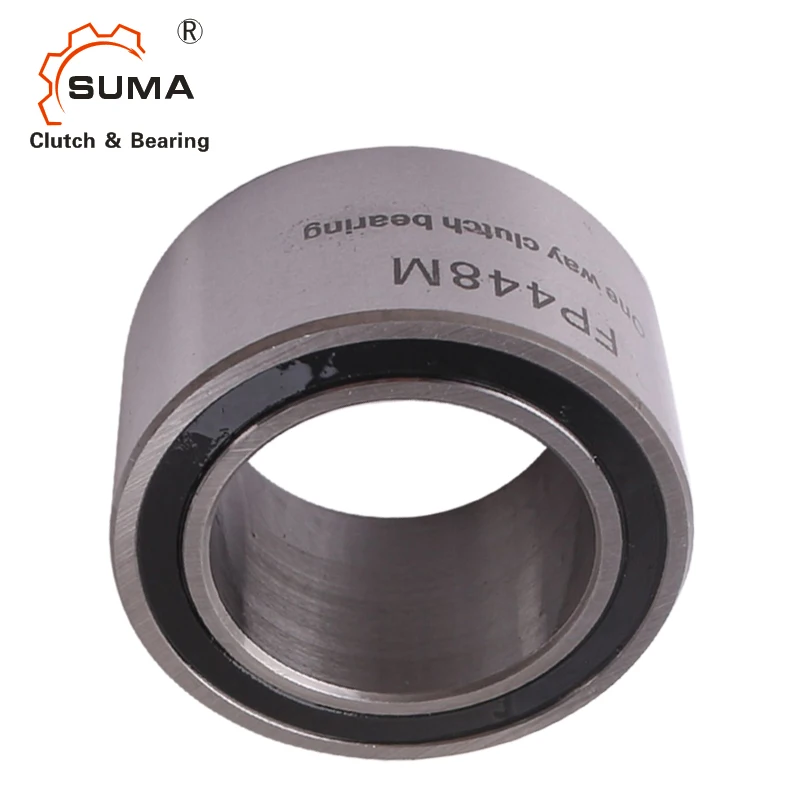

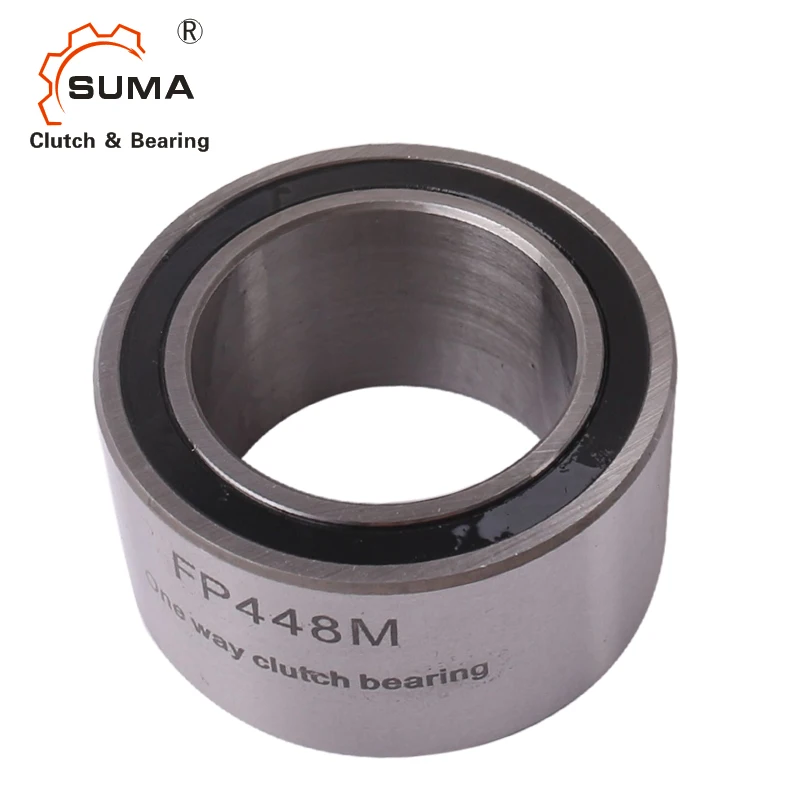

Detailed Images
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Certifications
Clients Visit
FAQ
Q: How do you pack the goods?
- Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
- Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
