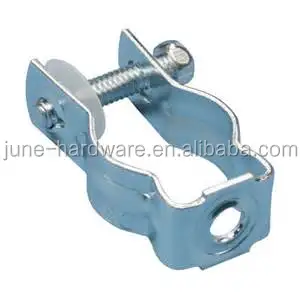

Steel clevis pipe clamp
- Category: >>>
- Supplier: Ningbo June Pipe Fitting Co. Ltd.
Share on (60393368606):
Product Overview
Description

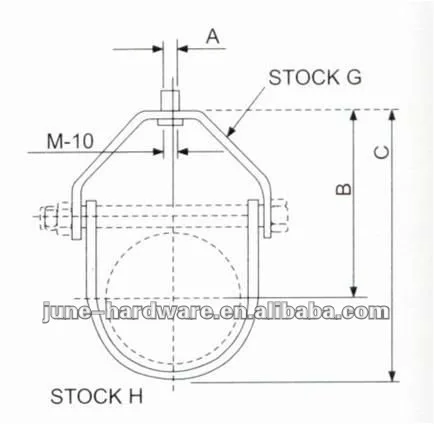

| Code | Size | Pipe | A | B | C | Bolt | G | H |
| 037001 | 1/2" | 20-25 | 3/8" | 44 | 55 | 1/4" | 3x25 | 3x25 |
| 037002 | 3/4" | 26-30 | 3/8" | 54 | 68 | 1/4" | 3x25 | 3x25 |
| 037003 | 1" | 32-36 | 3/8" | 58 | 75 | 1/4" | 3x25 | 3x25 |
| 037004 | 1-1/4" | 38-43 | 3/8" | 80 | 100 | 1/4" | 3x25 | 3x25 |
| 037005 | 1-1/2" | 47-51 | 3/8" | 81 | 106 | 1/4" | 3x25 | 3x25 |
| 037006 | 2" | 60-64 | 3/8" | 86 | 117 | 1/4" | 3x25 | 3x25 |
| 037007 | 2-1/2" | 75-80 | 1/2" | 106 | 144 | 5/16" | 3x30 | 3x30 |
| 037008 | 3" | 87-92 | 1/2" | 127 | 172 | 5/16" | 3x30 | 3x30 |
| 037009 | 4" | 113-118 | 5/8" | 141 | 199 | 3/8" | 4x30 | 3x30 |
| 037010 | 5" | 138-142 | 5/8" | 159 | 229 | 1/2" | 4x30 | 3x30 |
| 037011 | 6" | 159-166 | 3/4" | 174 | 257 | 1/2" | 4x38 | 3x38 |
| 037012 | 8" | 207-219 | 7/8" | 212 | 320 | 5/8" | 4x45 | 4x45 |
