XXG 3505 portable x ray flaw detector with dandong directional ceramic x ray tube
- Category: >>>
- Supplier: Dandong Flaw Detector Equipment Co. Ltd.
Share on (60393396514):
Product Overview
Description

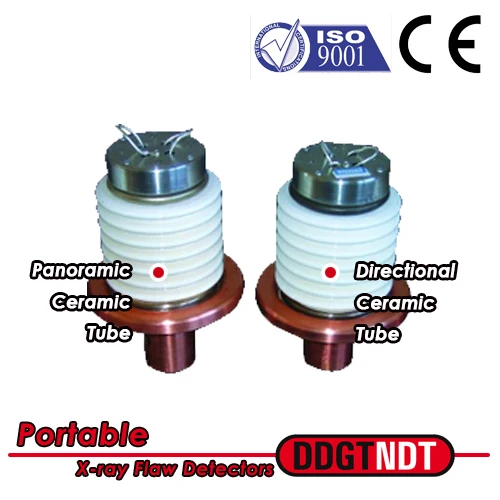

XXG-3505 portable x-ray flaw detector with dandong directional ceramic x ray tube
Product Description
Related Products
Radiation Coverage

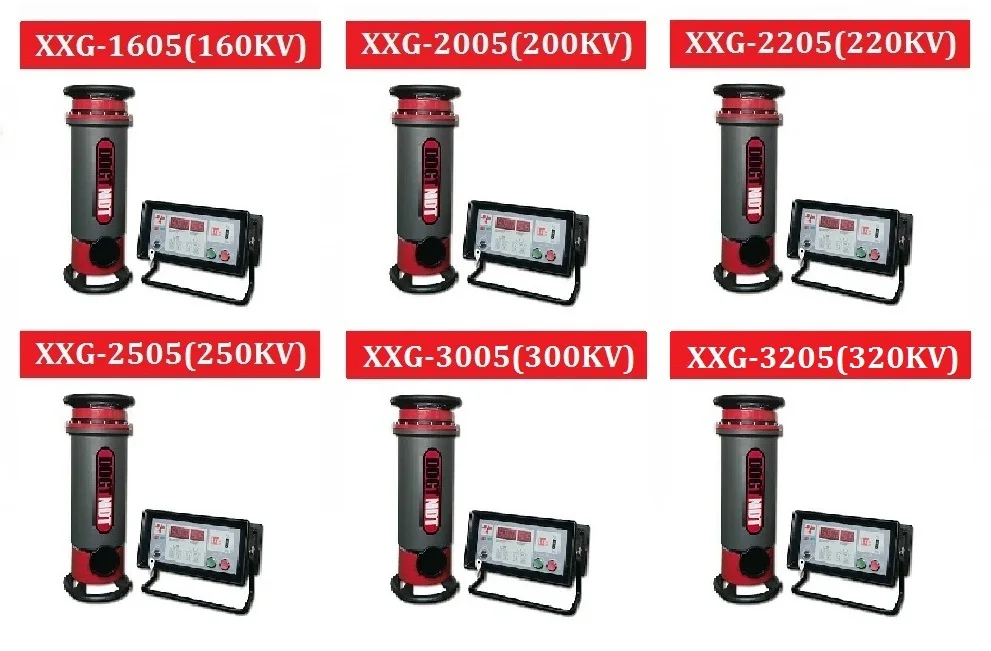

XXG Series

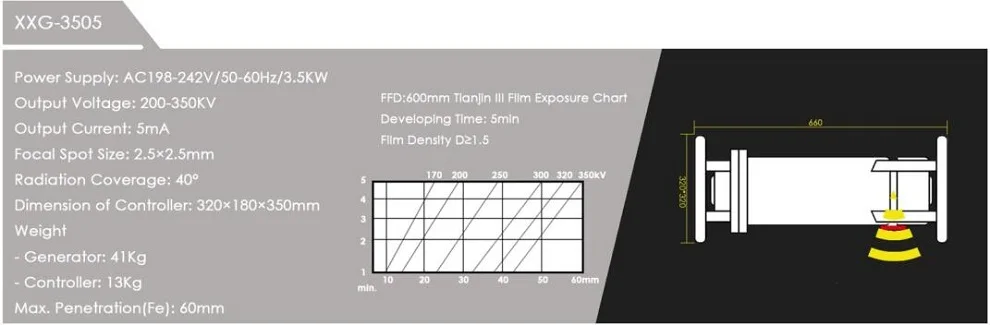

| Model | XXG-1005 | XXG-1605 | XXG-2005 | XXG-2205 | XXG-2505 | XXG-3005 | XXG-3205 | XXG-3505 |
| Power supply | AC 198-242V/50-60HZ/2.5KW | AC 198-242V/50-60HZ/3.5KW | ||||||
| Output voltage | 30-100KV | 80-160KV | 100-200KV | 120-220KV | 150-250KV | 170-300KV | 180-320KV | 180-350KV |
| Max. Penetration (A3) | 7mm | 18mm | 29mm | 33mm | 39mm | 50mm | 55mm | 60mm |
| Focus size (mm) | 0.8*0.8 | 0.8*0.8 | 1.5*1.5 | 1.5*1.5 | 2.0*2.0 | 2.5*2.5 | 2.5*2.5 | 2.5*2.5 |
| Generator size (mm) | 40° | 40° | 40° | 40° | 40° | 40° | 40° | 40° |
| Ray radiation angle | 210*210*530 | 210*210*550 | 270*270*580 | 270*270*580 | 270*270*610 | 320*320*625 | 320*320*655 | 320*320*660 |
Generator weight (kg) | 14 | 15 | 20 | 21 | 25 | 34 | 40 | 41 |
| Controller size (mm) | 320*180*380 | |||||||
| Controller weight (mm) | 13 | |||||||
Packing
| No. | Item | Parameter | Qty. |
| 1 | X-ray Generator | XXG-3505 | 1 |
| 2 | Controller | DGT-KX-V | 1 |
| 3 | Connecting Cable | 25m | 1 |
| 4 | Power Cable | 10m | 1 |
| 5 | Earth Wire | 5m | 1 |
| 6 | Fuse | 2A/5A | 10 |
| 7 | Fuse | 20A | 20 |
| 8 | Film Bag | 80*360mm | 5 |
| 9 | Lead Marker | 390V | 1 |
| 10 | Varistor | 4 | |
| 11 | H.V. On Button | 1 | |
| 12 | H.V. Off Button | 1 | |
| 13 | Fuse Seat | 2 | |
| 14 | Accessory Bag | 1 |
Cable&Accessories
Optional Accessories
Payment and Shipping
Company Information
Our company was founded in 1988, which is one of the well known companies specialized in Non-dectructive testing (NDT) equipments. After 20 years' development, we have accumulated abundant technical force and established a wealth of design and practical experience. We are a manufacturer and trading company. Our main products are industrial X-ray machines. We have portable X-ray machines and stationary X-ray machines.
Our portable X-ray machines have the specifications from 100kV, 120kV, 160kV, 200kV, 220kV, 250kV, 300kV, 320kV to 350kV. Our portable machines have smaller size and lighter weight, and are more convenient for users to operate.
Our stationary X-ray machines have the specifications from 100kV, 160kV, 225kV, 300kV, 320kV, 350kV, 400kV, 420kV to 450kV. Our stationary machines have stronger penetrating power and also are more suitable for the online non-destructive testing. Our products are finely developed and manufactured by adopting high technologies of many countries and manufacturers. They can be widely used in many fields such as mechanism, electron, petroleum, chemical industry, electric power, bridges, boats and ships, vehicles. aviation, heating power, boilers, pressure vessels and war industries. Our sales network covers the whole world and we maintain good business relationship with more than 200 customers. We will serve the first-class technology, first-class products and first-class service for you.
Certificate
FAQ
1. The warranty period?
12 months.
2. If you could repair by yourself?
We could provide the free spare parts and guide for you.
3. If you couldn't repair by yourself?
We will send the free generator and controller to you directly.
4. The delivery term?
Air Cargo
5. The delivery time?
After payment, the testing needs 2 days. After deliverying, you will get it within 7 days.
