Wine Filtering Equipment/Water Filtering Equipment
- Category: >>>
- Supplier: Hangzhou Kangqiang Water Treatment Equipment Co. Ltd.
Share on (60393404037):
Product Overview
Description

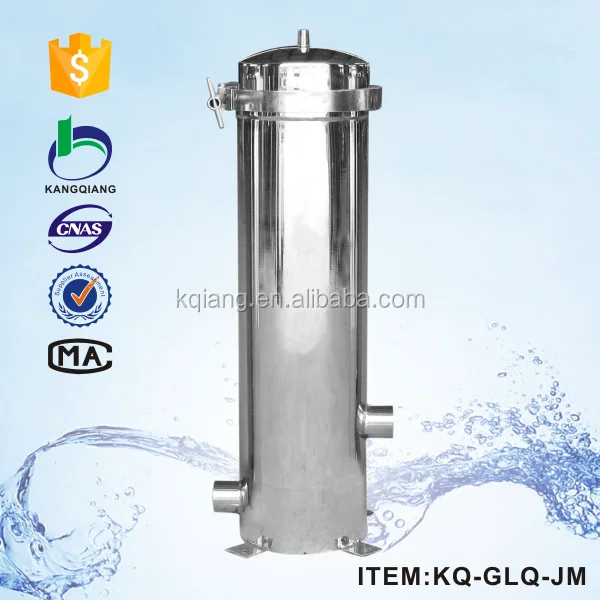

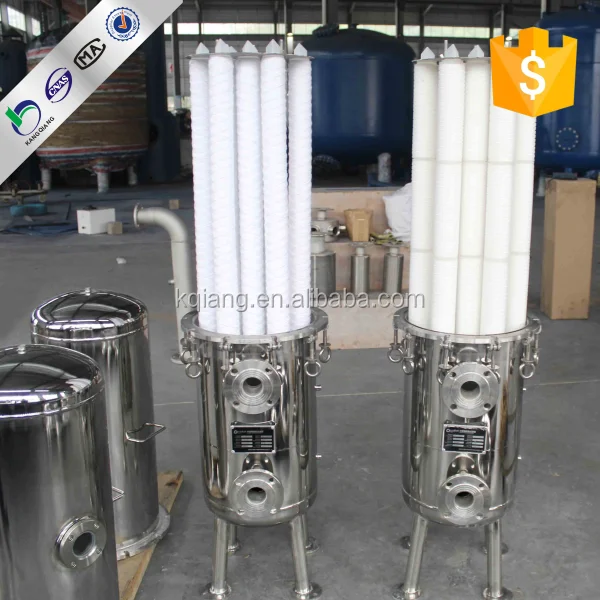

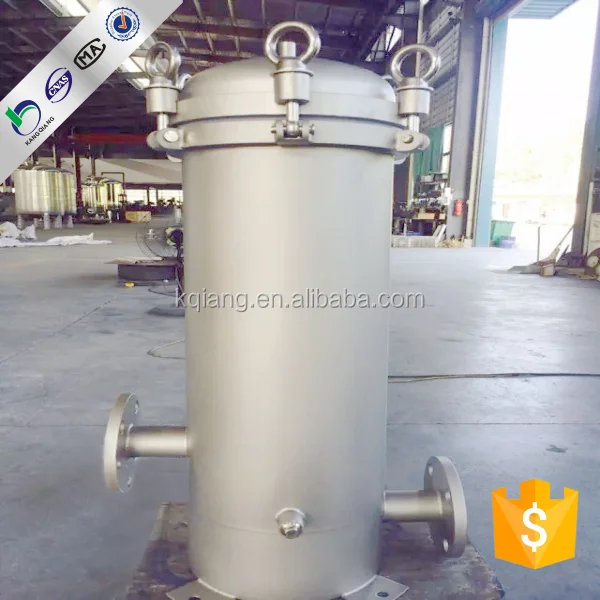

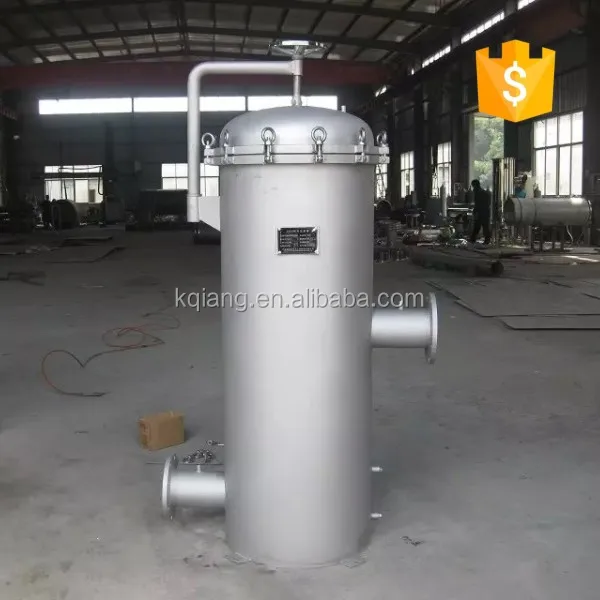

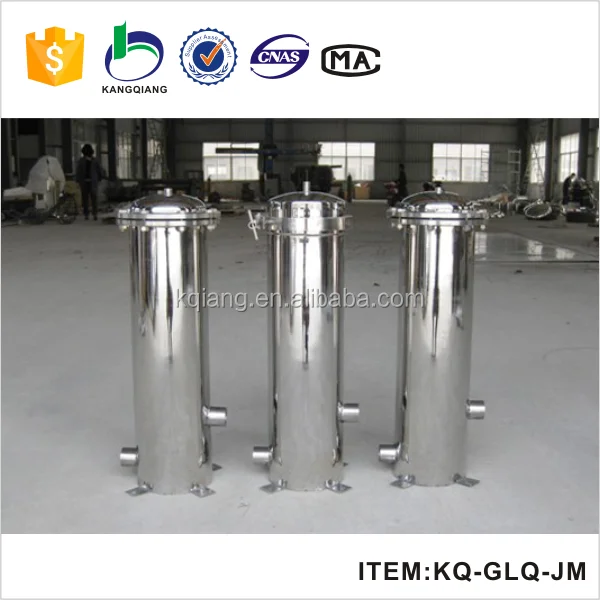

Picture of Wine Filtering Equipment/Water Filtering Equipment
More information of Wine Filtering Equipment/Water Filtering Equipment
| Wine Filtering Equipment/Water Filtering Equipment | ||||||||
| Item | Cartridge NO.(pcs) | Cartridge length | A/B (mm) | D (mm) | C (mm) | H (mm) | Inlet/outlet a1/a2 | Pressure gage b1 |
| KQ-WSJ1-10“ | 1 | 10" | 100 | ∅108 | 320 | 530 | DN20 | DN32 |
| KQ-WSJ1-20” | 1 | 20" | 100 | ∅108 | 570 | 780 | DN20 | DN32 |
| KQ-WSJ3-10“ | 3 | 10" | 100 | ∅167 | 320 | 580 | DN25 | DN32 |
| KQ-WSJ3-20” | 3 | 20" | 100 | ∅167 | 570 | 83 | DN25 | DN32 |
| KQ-WSJ5-10“ | 5 | 10" | 120 | ∅219 | 320 | 630 | DN25 | DN32 |
| KQ-WSJ5-20” | 5 | 20" | 120 | ∅219 | 570 | 880 | DN32 | DN32 |
| KQ-WSJ5-30“ | 5 | 30" | 120 | ∅219 | 820 | 1130 | DN32 | DN32 |
| KQ-WSJ5-40” | 5 | 40" | 120 | ∅219 | 1070 | 1380 | DN32 | DN32 |
| KQ-WSJ7-20” | 7 | 20" | 120 | ∅250 | 570 | 920 | DN40 | DN32 |
| KQ-WSJ7-30“ | 7 | 30" | 120 | ∅250 | 820 | 1170 | DN40 | DN32 |
| KQ-WSJ7-40” | 7 | 40" | 120 | ∅250 | 1070 | 1420 | DN40 | DN32 |
Technical Parameters of cartridge filter housing
- Seal type: O-rings or flat gasket
- Sealing material: nitrile rubber(chemitum), silicone, fluorine rubber
- Filter interface: the threaded, clamp(hoop), flange
- Filtration accuracy: 1μm - 100 μm
- Body material: SS304/SS 316L
Working Principle of cartridge filter housing
- Precision filter, also known as the security filter/cartridge filter. Generally, it is setted before the pressure vessel, to remove the turbidity particles of 1 degree above, to meet the requirements of further processes for water; Sometimes it also is setted at the end of the whole water treatment system to avoiding the small particles (such as a broken resin) into the water.
Application of cartridge filter housing
- Food industry:fine filter of space water, mineral water,beverages, liquor clarification and filtration process;
- Pharmaceutical industry: sterile water, oral, infusion and injection water treatment;
- Chemical industry: organic solvents, esters, alcohols, acids, alkalis and other chemicals, oils purification
- Oil industry: oil field water injection preparation and so on ;
- Environmental protection, electroplating wastewater, printing waste, pharmaceutical waste and other industrial wastewater treatment;
- Seawater, brackish water desalination water treatment, hotels, apartments water treatment ;
- Precision filter is often used as security filter for electrodialysis, ion exchange, security filters reverse osmosis devices.
More Products
Our Certifications
Company show
Our Company Profile
Hangzhou Kangqiang water treatment equipment Co.,Ltd, was established in 2009. Company covers an area of 20000 m2, registered capital of 10 million RMB. Currently has over 80 people, including 10 specialist and technicians and 2 senior engieneers
We specialize in manufacturing a seriies of accessories for water treatment preprocessing filters (sand filter,cartridge filter, bag filter, etc.), industrial/household water purification(water softener/whole house water filter, etc.), RO and UF systems, etc.
Our products are popular throughout the country, and have been exported to Southeast Asia,the Middle East and Europe, widely used in phamaceutical, medical, beverage, food, bilological, chemical, electronic, electric, textile,coating and other industries
Our fabrication facilities
Our Company at the Exhibition
FAQ:
1.Are you a factory or trading company?
Yes, we are a manufacture with designing, manufacturing, marketing and exporting.
2.What products does your company offer by yourself?
We are specialized in making stainless steel and carbon stell filter, such as sand filter housing, cartridge filter, bag filter, stainless steel membrane housing, water softener housing, UV sterilizer, basket filter, water storage tank etc.
3.How do you usually pack the exported goods?
We usually use bubble bag, carton box, or wooden case.
4.Which machine should I choose?
It depends on your raw water quality and your requirements for permeate water.
5.What’s your warranty?
Our warranty is 1 year. But normally, our machine can work 5 years before repair.
Contact Us!
Thanks for your visit and feel free if any requirements!
