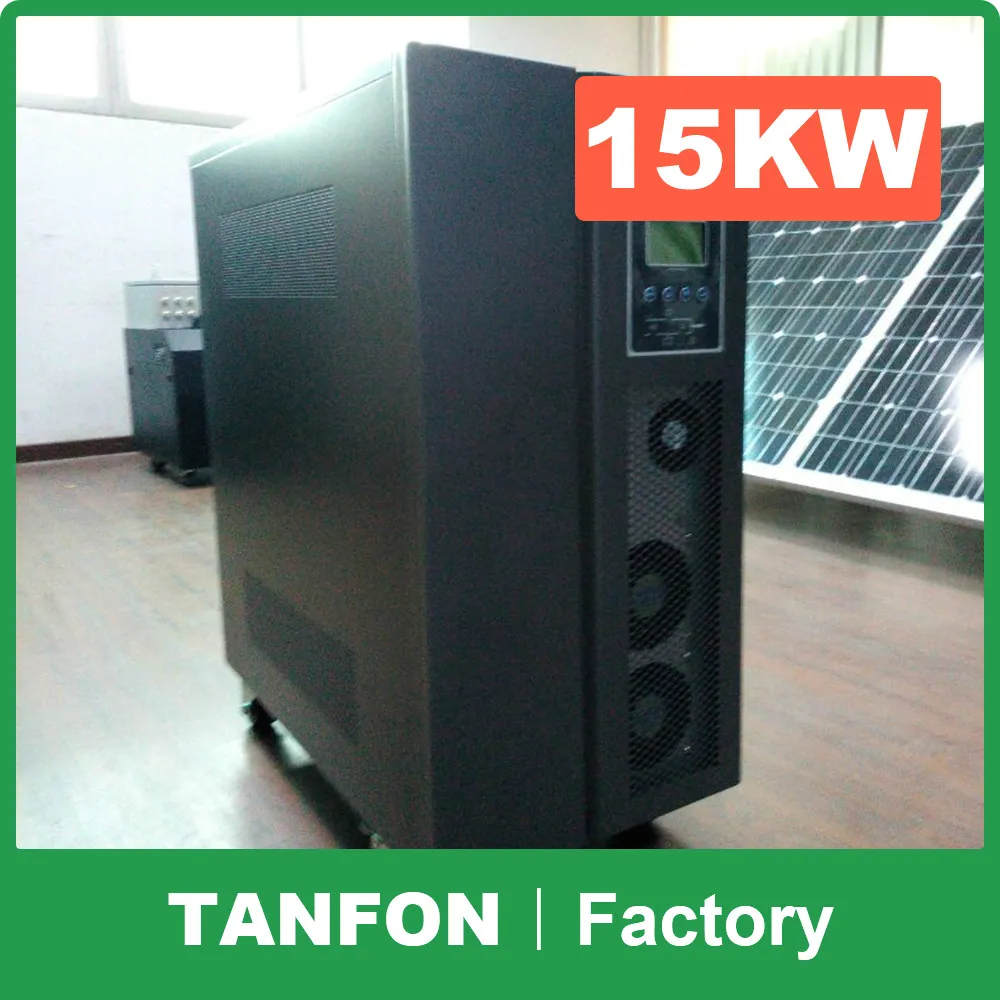

IGBT mode three phase inverter 10kw 20kw/three phase inverter for wind turbine/3 phase solar dc ac inverter

Product Overview

Description



IGBT mode three phase inverter 10kw 20kw/three phase inverter for wind turbine/3 phase solar dc ac inverter

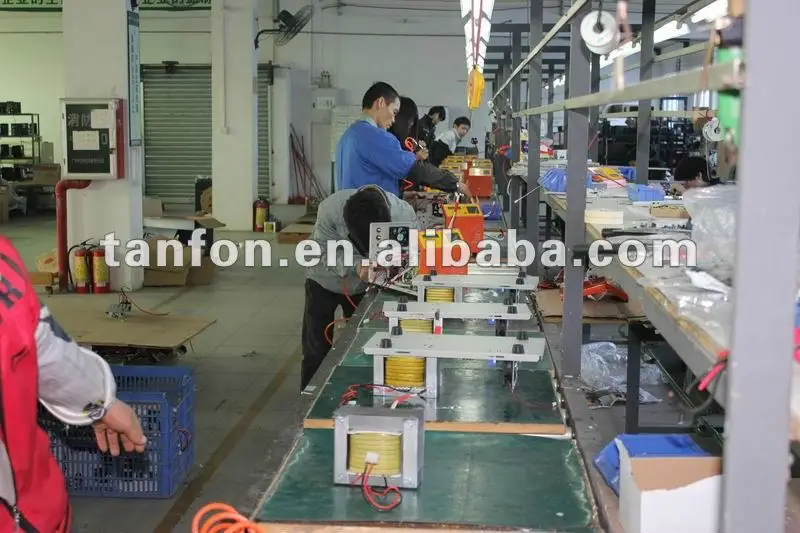

Foshan Tanfon Energy Technology Co., LTD is a professional manufacturer of solar/wind systems inverter (on grid and off grid), solar hybrid control inverter, home UPS inverter (single phase and three phase), controller, battery ect.





Tanfon three phase inverter feature



Capacity: 1KW--100KW

1) Super wide input voltage: 285V-475V

2) Completely controlled by CPU, LCD automatic page turning display

3) Protection against output short-circuits; against overload, and when you throw off its load, it will turn on the unit automatically.

4) Working for single phase and three phases.

110V/220V single phase; 240v/380v/415V/440V option.

5) With charger built-in, its charging current is 10A----156A.

6) Different DC voltage: 24V, 48V, 96V, 384V for optional

7) Make it with 3 pcs PCB box, it is more stable design.

8) This kind inverter can take pump or lift, and other industrial use

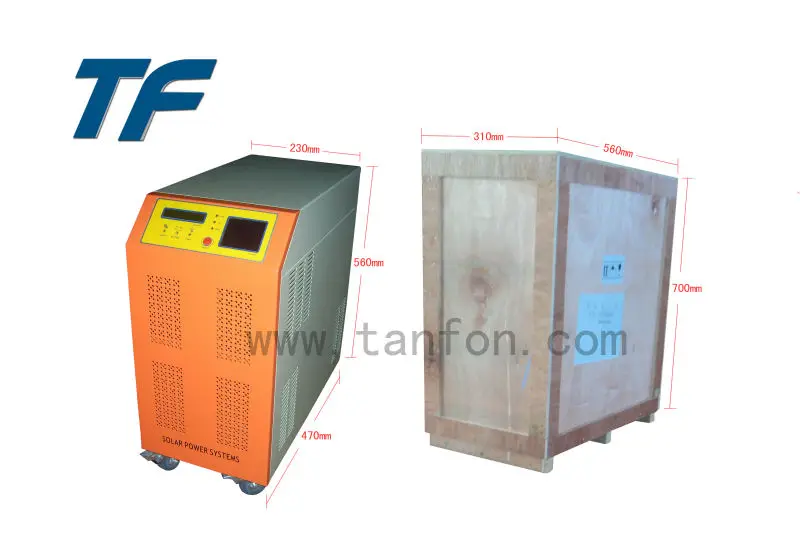

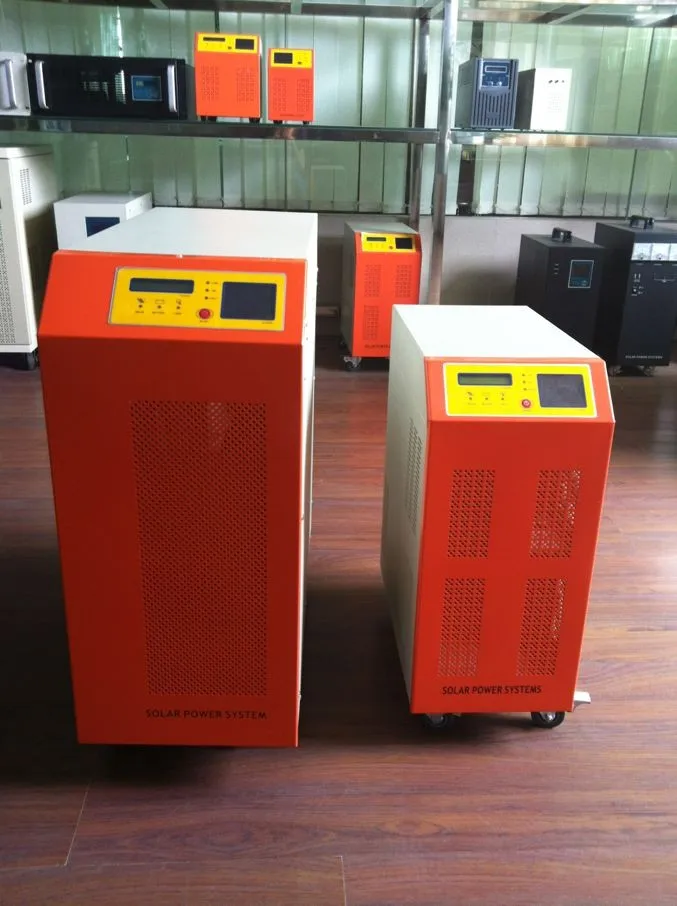

Single phase ( two phase) solar inverter as below







Model		SC6000		SC7000	SC8000	SC10000
Rated power(KW)		6KW		7KW	8KW	10KW
Rated DC voltage(V)		96V
Line input	Input voltage(V)	165-275V, 90-127V
	Charge current(A)	30A-100A
Inverter output	Output voltage(V)	220VAC±5%
	Output frequency	50Hz/60Hz±1%
	Wave form	Pure Sine Wave, THD<4%(Full Load)
Solar input	Maximum voltage((V)	168V
	Rated power(KWp)	6kw		7kw	8kw		10kw
Solar controller	Charge current(A)	60A		80A	80A		100A
	MPPT range(V)	96v(96-136)
	Charging efficiency	90%-95%, Peak on 97%
Others	Over charge protective voltage of battery(V)	96V(114)
	Over charge recover voltage of battery(V)	96V(109.6)
	Voltage drop between solar module and battery(V)	≤0.5V
	Voltage drop between loads and battery	≤0.25V
	Start speed of cooling fan	Have
	Environment Humidity	0-90% Maximum,non-condensable
	Protective Functions	Protection against anti-charge at night; Battery over charge/over discharge protection; Joint-reversed of solar modules
	Control method	MPPT
Size :D*W*H(mm)		450*230*570
N.W&GW(kg)		64/72	68/84		70/86			73/88

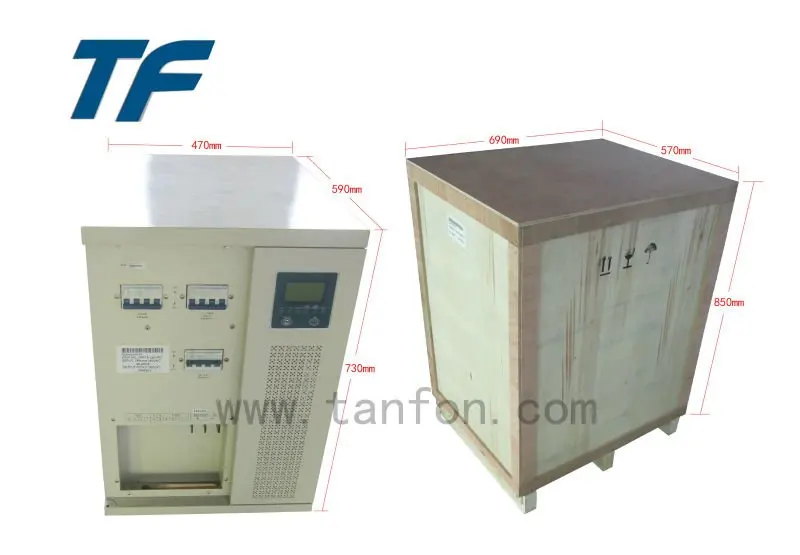

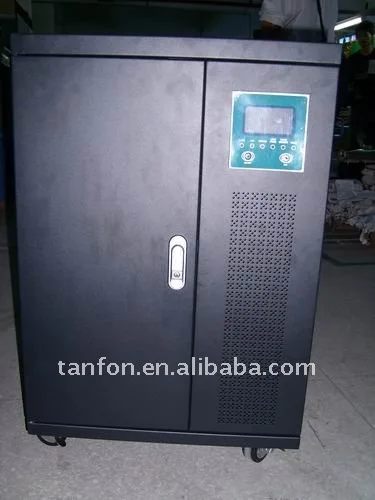

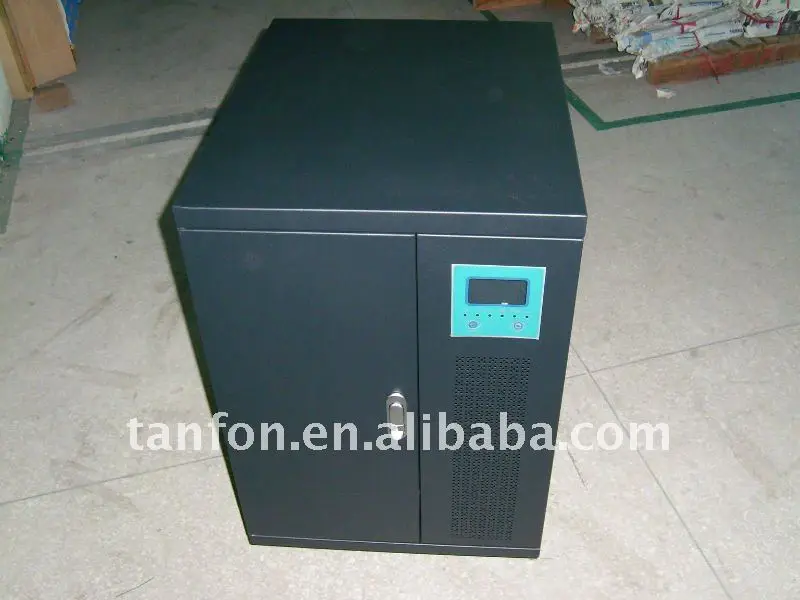

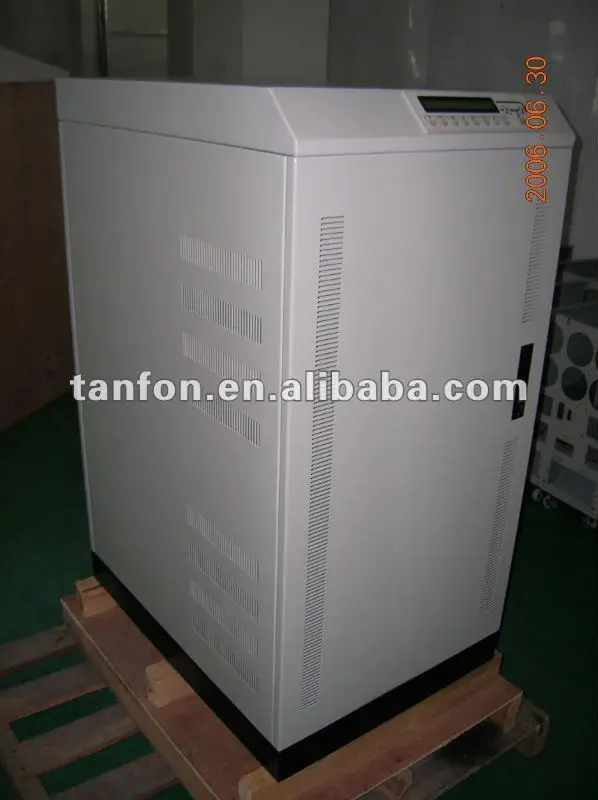

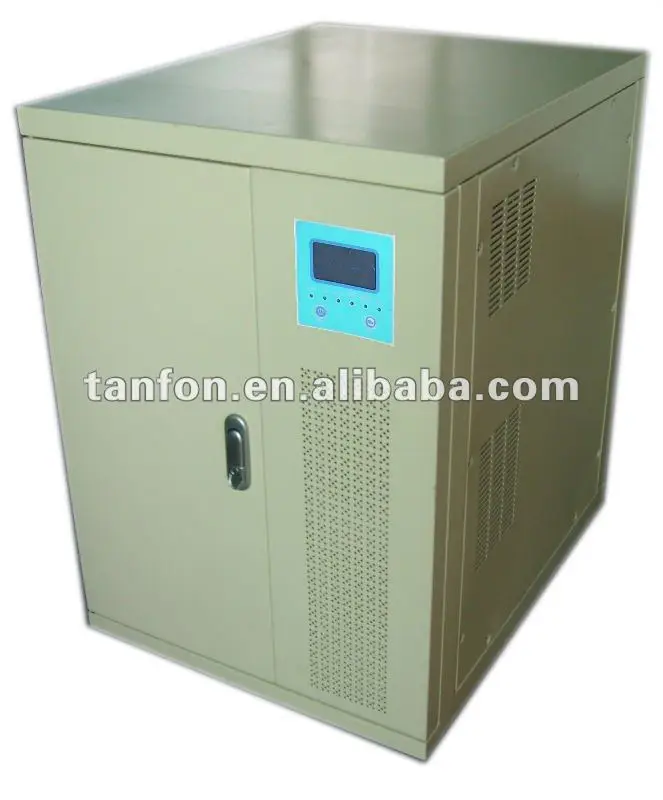

Three phase inverter ( 3 phase solar inverter ) as below







1KW - 100KW Three phase inverter specification











































We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours .
