Автомобильная машина для заклепок тормозной накладки

Product Overview

Description

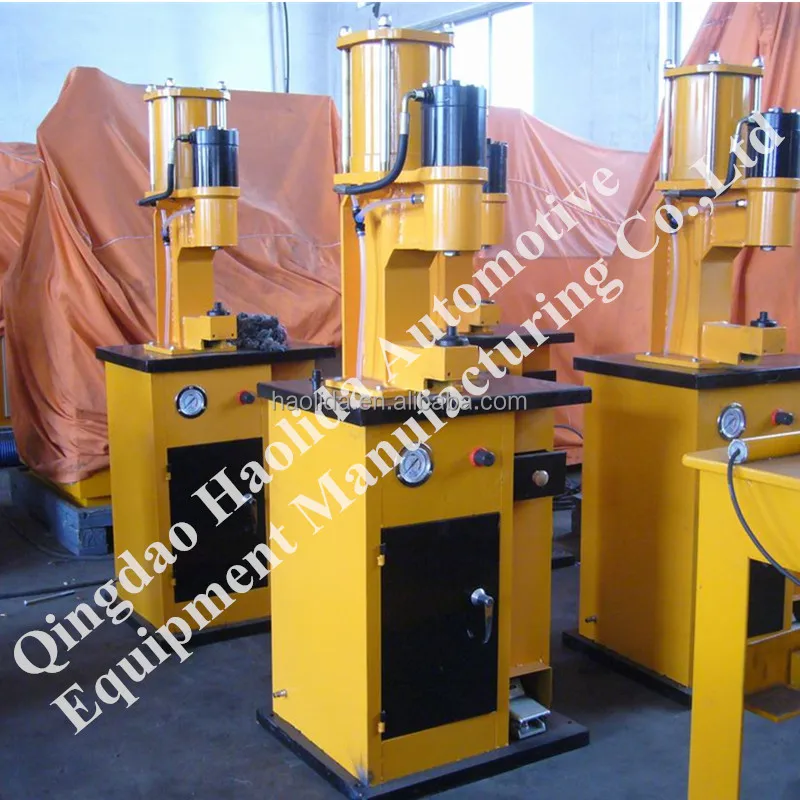

QY-6 Model  Automobile Brake Lining Rivet Machine



General introduction

1.It uses compressed air as power source (air pressure is adjustable)

2.It is used for riveting rivets of all kinds of brake shoes\\brake disc\\brake drum\\brake lining \\ brake pad and other auto parts



Advantages:

1. It uses compressed air as its power source and makes the riveting by hydraulic pressure, it is safe to operate.

2. It features novel structure, easy operation, stable center alignment and adjustable riveting force etc.

3. It is suitable for heavy duty truck brake lingings,etc

4. Pressure can be adjusted according to size and material of the rivets

5. Pedal room is big

6. With cabinet for accessories

7. Good discount based on order quantity



Technical parameter:



Model no	QY-6
Material	Metal plate
Painting	High quality paint
Color	Blue&black
Max rivet force	60KN(6T)
Working air pressure	0.5-0.9Mpa(Adjsutable)
Suitable rivet diameter	3-10mm
Stroke of the riveter	40mm
Bracket adjustable height	20mm
Accessories:
Riveters: 6pcs, used for working on Φ3, Φ4,Φ5,Φ6,Φ8,Φ10rivets Puncher: 2pcs, used to remove old rivets 3mm-10mm
Others you may want to know:
MOQ	1set
Warranty period	12 months
Payment term	T/T 100% in advance
Delivery time	7 days after receiving downpayment
HS code	8463900090
Packing sizes	Export plywood case N.W: 107KG G.W: 127KG Size: 640*570*1540mm=0.56CBM
20’’ container	50pcs/90pcs



Why Choose us:

1. 32 years’ design,development and produce experience

2. Professional R&D team

3. Strict QC

4. A good pre-sale and after-sale service

5. Can design and make according to customer’s requests

Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment.

Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers’ request.
