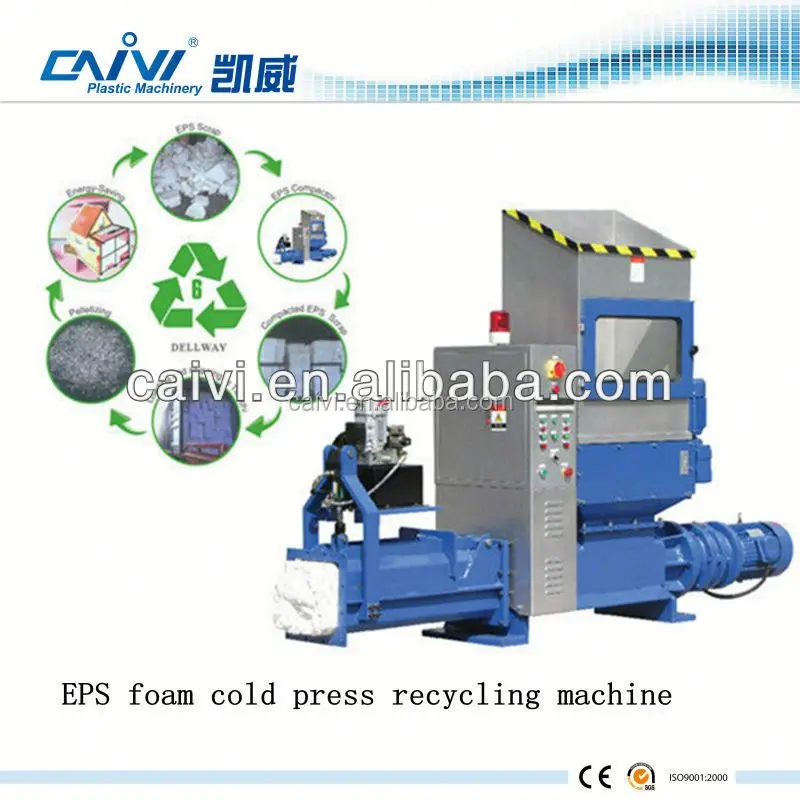

50 80kgh EPS foam cold press recycling machine

Product Overview

Description

50-80kg/h EPS recycling machine

Machine Description:

1.Save costs for transport and landfill

2.Save space and handling by dealing with the EPS in a quick and efficient manner

3.Generate income from sales of the compacted EPS blocks.

4.Save power consumption as no heat is added to the process

5.HEAVY DUTY pre-crusher available for thick and dense EPS from electronics and other packaging



Working Principle:

The twin shaft crushing blades are two parallel blade shafts with different rotation direction. Each blade shaft has 18 blades and is driven by the gear box to crush material that will be conveyed to the barrel through the screen. The material will be sent by the high speed rotary screw to the heating barrel. Then they will be melted under high temperature and extruded to expected shapes.



Technical parameters:



Model	ESP200	ESP250	ESP370
Motor power	4KW	7.5KW	13.7KW
power	380V/50HZ	380V/50HZ	380V/50HZ
Compression ratio	40:1	40:1	40:1
Feeding rate	10-20m3/h	15-25m3/h	25-35m3/h
Size of feeding hole	400*600mm	665*430mm	960*585mm
Size of discharge	200*200mm	250*250mm	370*370mm
noise	<76db	<76db	<76db
capacity	23-35kg/h	50-80kg/h	120-150kg/h
Compression density	250-300kg/m3	280-350kg/m3	280-350kg/m3



Production in detai

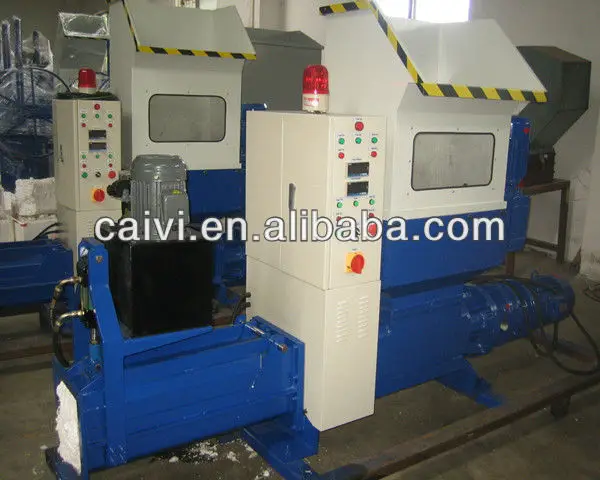

EPS Foam Cold Recycling Machine





EPS Foam Cold Recycling Machine
