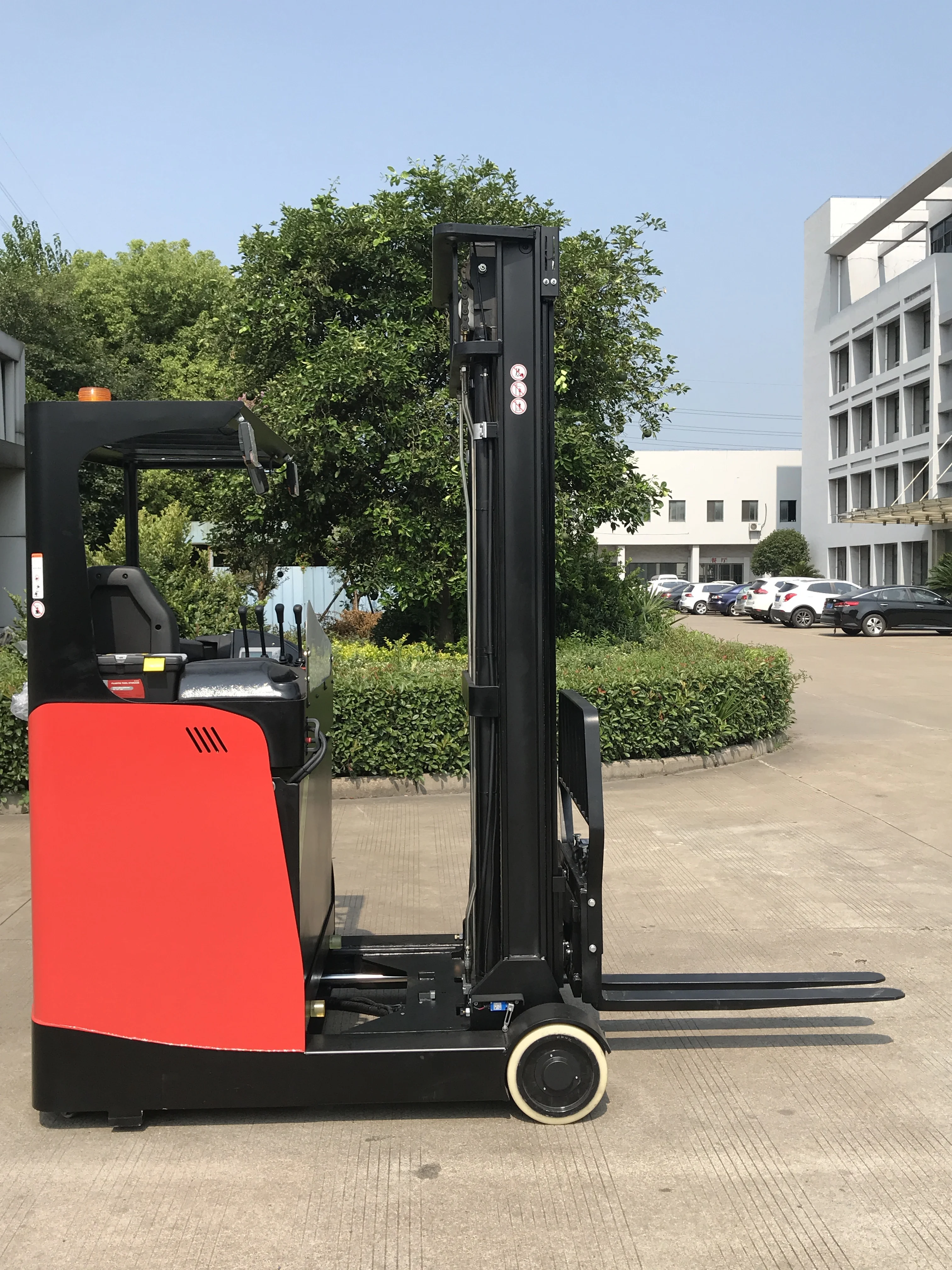

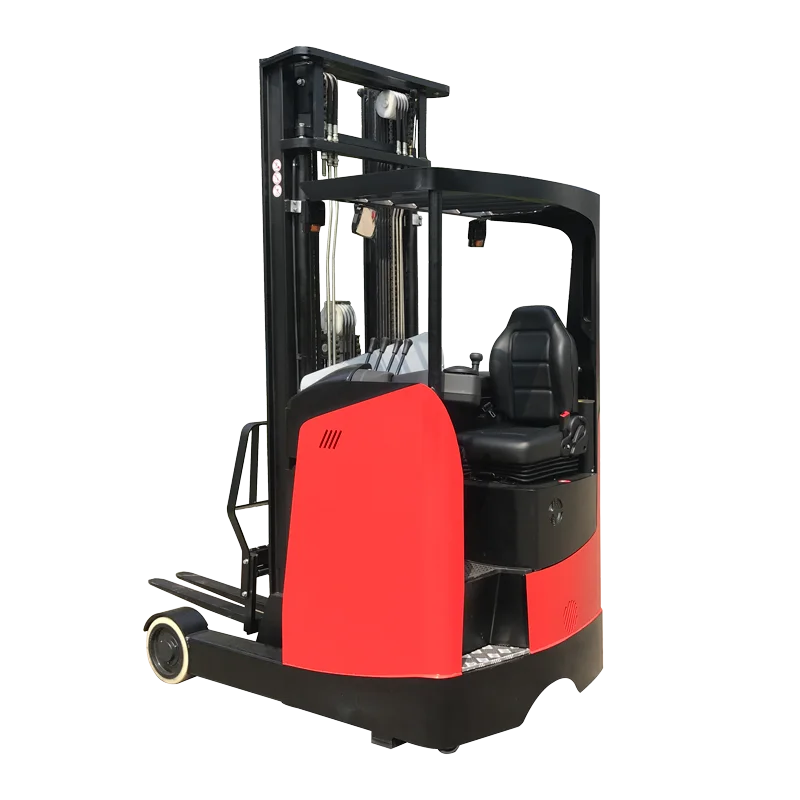

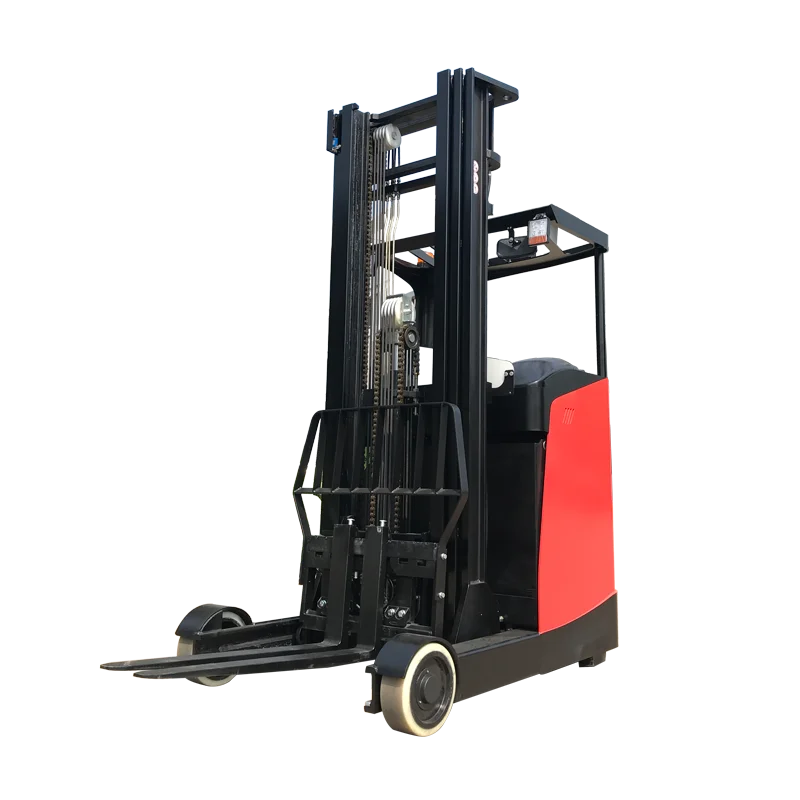

Best selling products in europe full electric stacker lift stacker battery powered forklift fast charging

Product Overview

Description











Main Configuration as follows :

Full AC system, With Electronic Steering, With Integrated side shifter , Battery 48V500AH (China Famous Brand) (Charger Included)

AC ZAPI controller,

Triplex 5000mm Mast, (Mast Closed Height : 2280mm, Full Free Lifting Height :1215mm with Carriage. Lifting Capacity is 1500KG while at lifting height 5000mm )

1.1	Manufacturer			JJCC
1.2	Model designation			CQD16RV	CQD20RV
1.3	Drive unit			Battery	Battery
1.4	Operator type			Rider seated	Rider seated
1.5	Load capacity	Q	kg	1600	2000
1.7	Load center	c	mm	600	600
Weights
2.1	Service weight (Incl. battery)		kg	2940	2945
Wheels, Chassis
3.1	Tyre type			PU/ PU	PU/ PU
3.5	Wheels, number front/ rear (x=drive wheels)			2/1x	2/1x
Dimensions
4.1	Mast/ fork carriage tilt, forward/ backward	α/β	°	3//6	3//6
4.2	Height, mast lowered	h1	mm	2600(3S6m)	2600(3S6m)
4.3	Free lift	h2	mm	1565(3S6m)	1565(3S6m)
4.4	Lift height	h3	mm	6000(3S6m)	6000(3S6m)
4.5	Height, mast extended	h4	mm	7065(3S6m)	7065(3S6m)
4.7	Height of overhead guard (cabin)	h6	mm	2200	2200
4.19	Overall length	l1	mm	2302	2302
4.21	Overall width	b1	mm	1270	1270
4.26	Width between straddle arms	b4	mm	917	917
4.27	Outside fork width, minimum/ maximum	b5	mm	200-770	240-770
4.28	Reach distance	l4	mm	520	520
4.33	Aisle width, 1000×1200 pallet crossways	Ast	mm	2827	2842
4.34	Aisle width, 800×1200 pallet lengthways	Ast	mm	2891	2893
4.35	Outer turning radius	Wa	mm	1705	1770
Drive
6.1	Drive motor rating S2 60 min.		kW	6.5
6.2	Lift motor rating at S3 15%		kW	11	13
6.3	Lift system			AC	AC
6.4	Battery voltage/ rated capacity (5h)		Ah/V	500/48	500/48
6.5	Battery weight (with box)		kg	925	925
Others
8.1	Type of drive control			AC ZAPI	AC ZAPI

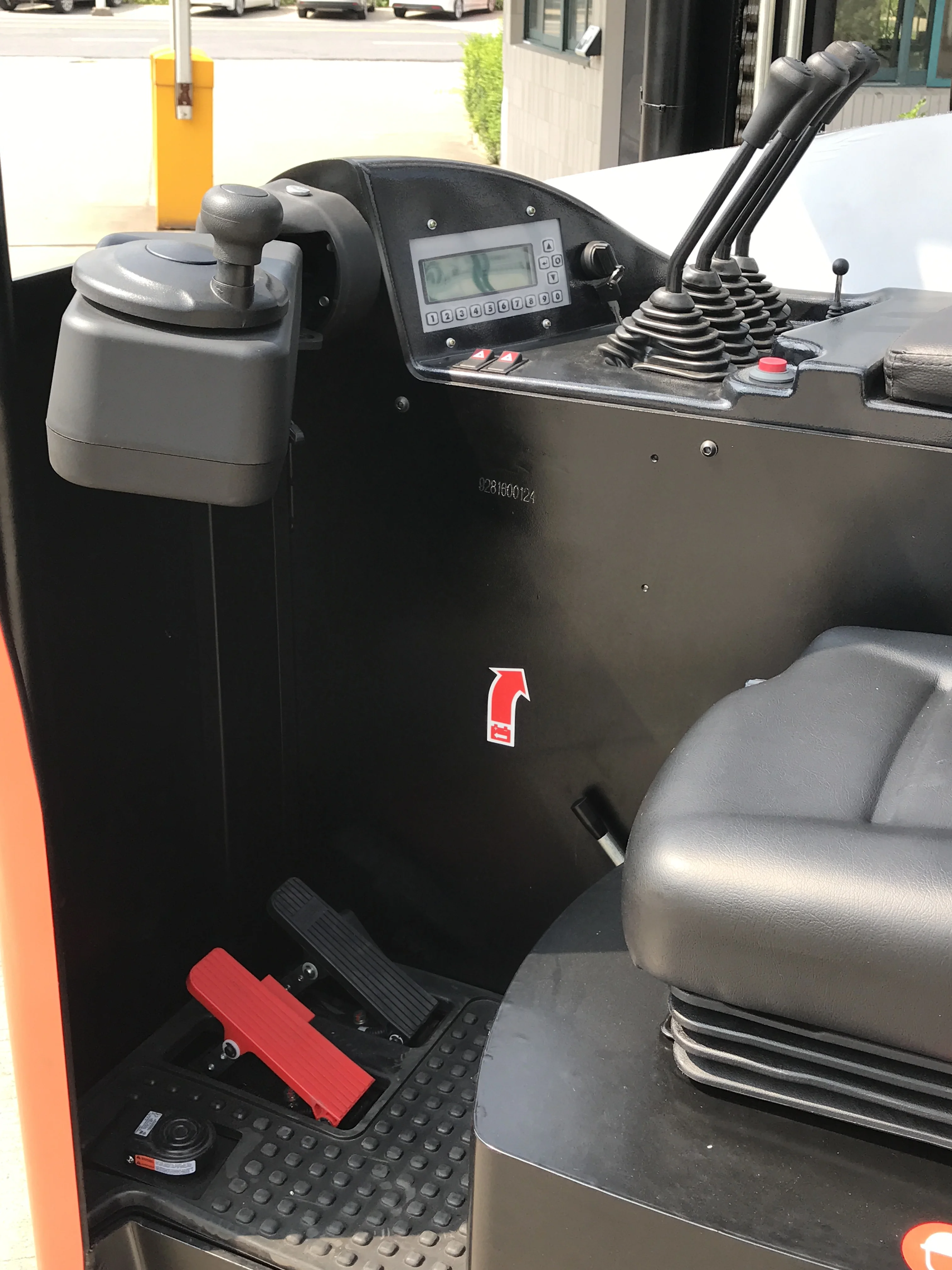

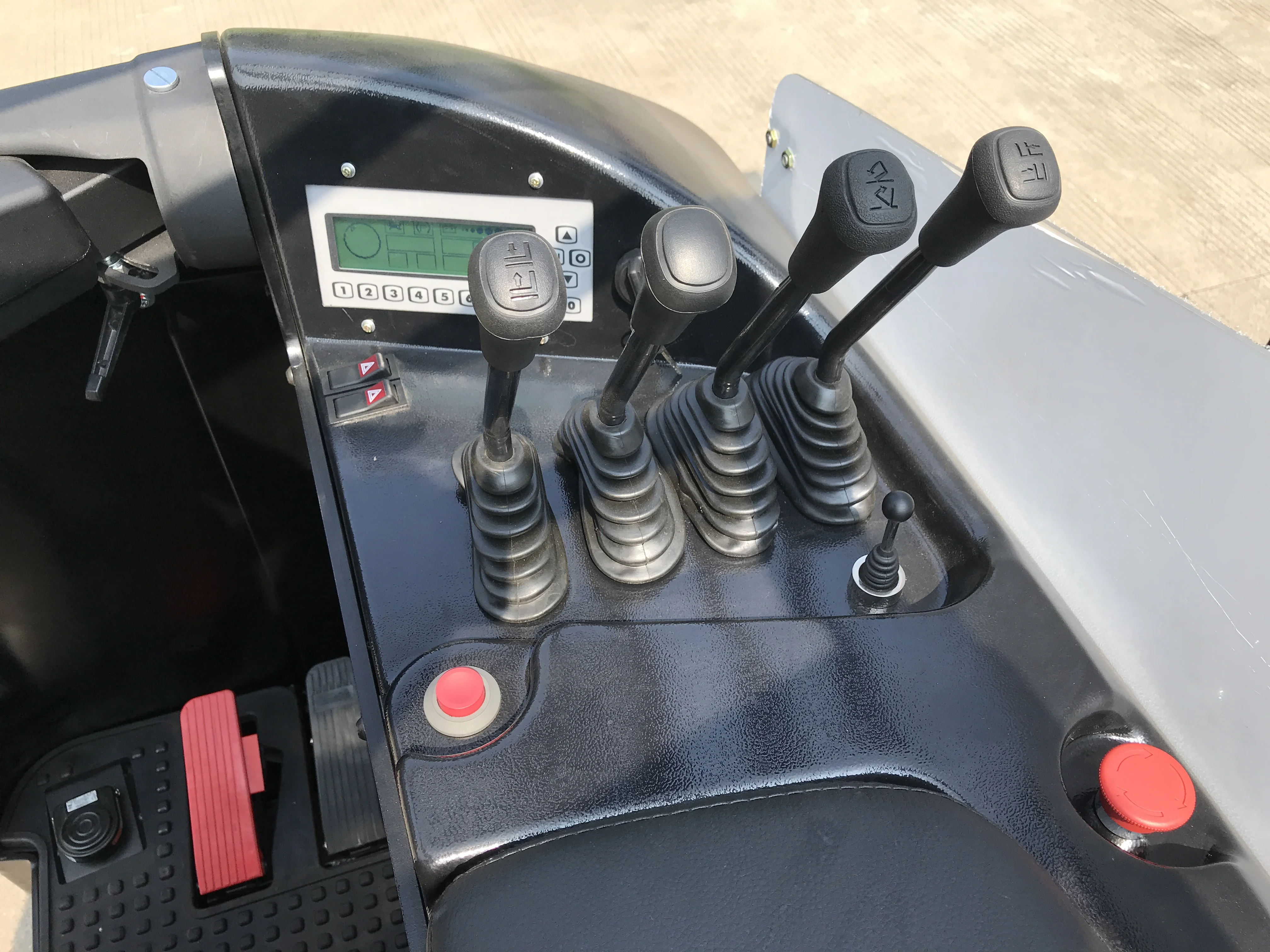

	steering			Electirc power steering














 1.What's the Certificate do you have?
JJCC workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate

2. Can you customize and design as the clients' requirement?
JJCC will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available



3. How long is the warranty of your products?
All of products are with 1 year / 2000 working  hours subject to the first



4. Can you produce the products labeled with the client's brand?
Yes, we do!
With the authorization of the brand, we can OEM for our clients



5. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery or LC at sight, or 70%balance upon BL COPY



6. Delivery date:
If clients need normal products, we will deliver the products within 25days. If clients need customerized products, the delivery date depend on the requirements.


How to choose the most suitable JJCC forklift trucks?

1. Power Type
2. Load Capacity
3. Mast Size and Height
4. Side Shifter, tyre and etc.
