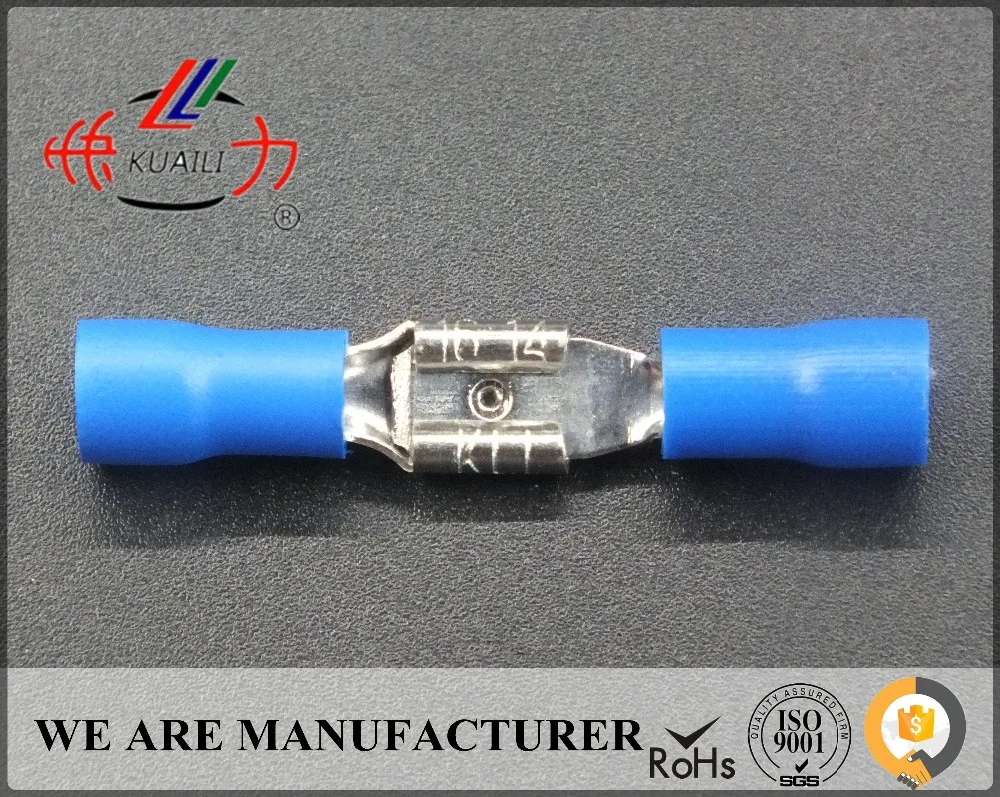

Insulated Female Terminals Disconnects Cable lug FDD
- Category: >>>
- Supplier: Yueqing Kuaili Electric Terminal Appliance Factory
Share on (60394464685):
Product Overview
Description
Insulated Female Terminals Disconnects Cable lug FDD
Insulated Female Terminals Disconnects Cable lug FDD
We are leading and professinal terminal manufacturer.
We can supply Insulated Female Disconnects, Insulated Male Disconnects, Insulated Bullet Male Connector, Bullet Female Insulated Terminal, Screw On Wire Connectors, Nylon Fully Insulated Bullet Male and Female Terminal Disconnects, Nylon Insulated Flag Female Disconnector , Non-Insulated Ring Terminal , Non-Insulated Spade Terminal , Insulated Spade Terminal , Insulated Ring Terminal , Quick Connectors connector terminal like Quick Splice Connector, Closed-End Connector, connector, cable connector, wire connector, insulated ring terminals, fork pre-insulated terminals, pin pre-insulated terminals and pipe pre-insulated terminals.
We can provide good quality and good service with competitive prices.
Packaging & Shipping
| Packaging Details: | inner polybag, middle paper box, standard outer carton |
|---|
| Delivery Detail: |
7-30 workdays |
|---|
Insulated Female Disconnects Specifications
1.Made by copper , brass
2.Insulating material: vinyl , nylon
3.Certificate:ISO9001 SGS CE CQC

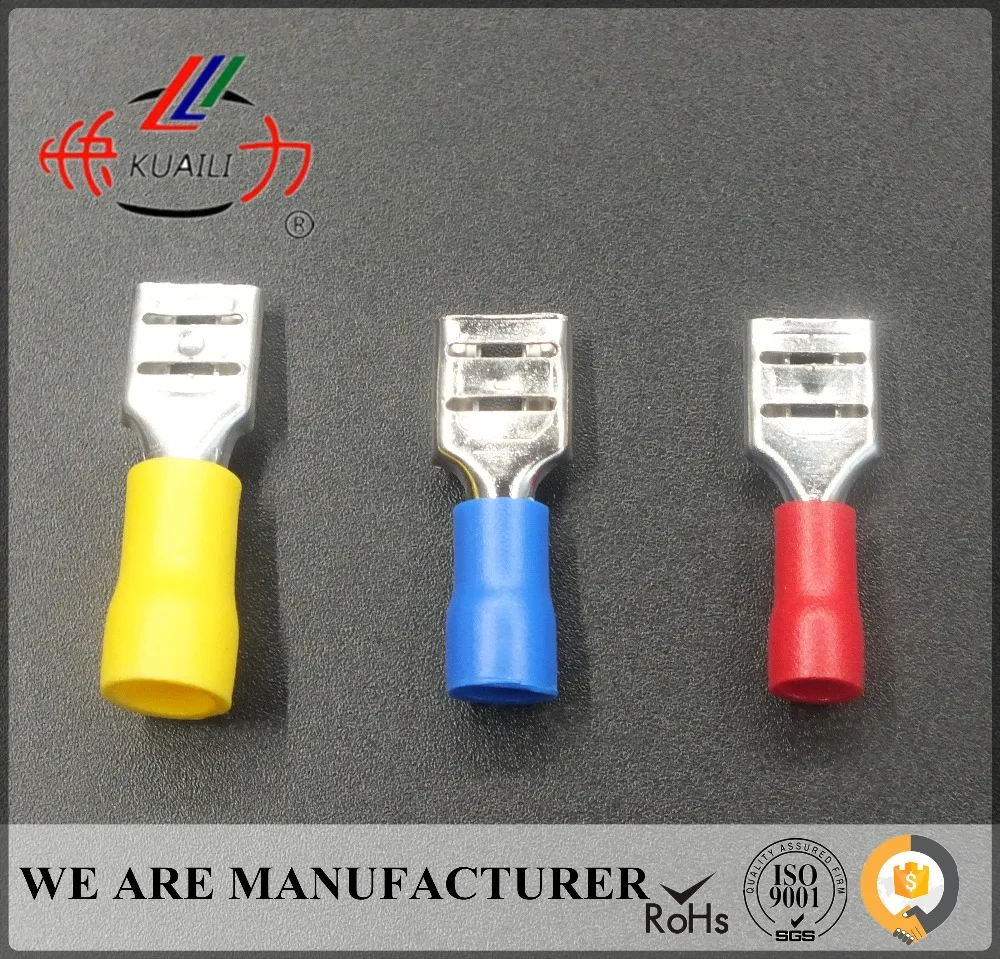

4.Color: Red Blue Yellow
5.Type: FDD
6.Thickness: 0.3mm 0.35mm 0.4mm 0.5mm
| Insulated Female Disconnects | |||||||
| Wire range: 0.5~1.5mm2 (A.W.G. 22~16) Imax=10A | |||||||
| Item No | Nema Tab | Dimension(mm) | Color | ||||
| B | dφ | Dφ | L | H | |||
| FDD1.25-110(5) | 0.5×2.8 | 3.8 | 1.7 | 3.8 | 19 | 10 | Red |
| FDD1.25-110(8) | 0.8×2.8 | 3.8 | 1.7 | 3.8 | 19 | 10 | |
| FDD1.25-187(5) | 0.5×4.75 | 5.6 | 1.7 | 3.8 | 19 | 10 | |
| FDD1.25-187(8) | 0.8×4.75 | 5.6 | 1.7 | 3.8 | 19 | 10 | |
| FDD1.25-205 | 0.5×5.2 | 6.5 | 1.7 | 3.8 | 20 | 10 | |
| FDD1.25-250 | 0.8×6.35 | 7.4 | 1.7 | 3.8 | 21 | 10 | |
| Wire range: 1.5~2.5mm2 (A.W.G. 16~14) Imax=15A | |||||||
| Item No | Nema Tab | Dimension(mm) | Color | ||||
| B | dφ | Dφ | L | H | |||
| FFDD2-110(5) | 0.5×2.8 | 3.8 | 2.3 | 4.3 | 19 | 10 | Blue |
| FDD2-110(8) | 0.8×2.8 | 3.8 | 2.3 | 4.3 | 19 | 10 | |
| FDD2-187(5) | 0.5×4.75 | 5.6 | 2.3 | 4.3 | 19 | 10 | |
| FDD2-187(8) | 0.8×4.75 | 5.6 | 2.3 | 4.3 | 19 | 10 | |
| FDD2-205 | 0.5×5.2 | 6.5 | 2.3 | 4.3 | 20 | 10 | |
| FDD2-250 | 0.8×6.35 | 7.4 | 2.3 | 4.3 | 21 | 10 | |
| FDD2-312 | 0.8×8.0 | 9 | 2.3 | 4.3 | 23 | 10 | |
| Wire range: 4~6mm2 (A.W.G. 12~10) Imax=24A | |||||||
| Item No | Nema Tab | Dimension(mm) | Color | ||||
| B | dφ | Dφ | L | H | |||
| FDD5.5-250 | 0.8×6.35 | 7.4 | 3.4 | 5.7 | 25 | 13 | Yellow |
| FDD5.5-375 | 1.2×9.4 | 10.9 | 3.4 | 5.7 | 29.6 | 13 | |
WORK SHOP SHOW
Certificate Show
How to get good price for this terminal:
1.contact the alibaba 'contact now'
2.E-mail us with the terminal you are interested in
3.We will reply to you ASAP
If you are interested in our products, we will immediately send a sample to you. We can assure you of the quality,favorable terms and credit.
We are looking forward to receiving your early inquiry,and assuring you that your requirements will have our very best and prompt attention.
transport:
Normally,the terminal you order will be sent by express when the payment is clear (Quantity is few).
Also,we can transport the goods by air or by ship.
Packing:
Our normal packing is 1000/500 pcs per bag,one bag in a box,carton
outside.
We also can pack as customers' requirement.
contact us:
If you can't find what you're looking for,or you have special request,please contact us . we will reply to you ASAP.
We are leading and professinal terminal manufacturer.
We can supply Insulated Female Disconnects, Insulated Male Disconnects, Insulated Bullet Male Connector, Bullet Female Insulated Terminal, Screw On Wire Connectors, Nylon Fully Insulated Bullet Male and Female Terminal Disconnects, Nylon Insulated Flag Female Disconnector , Non-Insulated Ring Terminal , Non-Insulated Spade Terminal , Insulated Spade Terminal , Insulated Ring Terminal , Quick Connectors connector terminal like Quick Splice Connector, Closed-End Connector, connector, cable connector, wire connector, insulated ring terminals, fork pre-insulated terminals, pin pre-insulated terminals and pipe pre-insulated terminals.
We can provide good quality and good service with competitive prices.
