Fire Security Usage FM 200 System Fire Suppression Control Panel
Product Description
General Description of FM200 Fire Extinguisher System Control Panel
The AW-GEC2159 automatic gas extinguisher control panel is a combined fire alarm control panel and extinguishing system and has 4 detection zones,any or all of which are capable of contributing to the extinguishant release decision.
The automatic extinguisher control panel is designed in accordance with European standards EN54-2 and EN54-4 Fire Detection and Fire Alarm systems - Control and Indicating Equipment and EN12094-1 Fixed firefighting systems - Components for gas extinguishing systems - Part 1: Requirements and test methods for electrical automatic control and delay devices.
Fire extinguisher control panels have an integral, mains powered battery charger and power supply designed in accordance with the requirements of EN54-4.
Specification of FM200 Fire Extinguisher System Control Panel
Automatic Fire Extinguisher Control Panel | |
Model No. | AW-GEC2159 |
ITEM | ELECTRICAL RATING |
Size | 383mm W x 295mm H x 87mm D metal enclosure |
Weight | 5kg |
Mains supply | 90 to 270VAC, 50Hz/60Hz |
Mains supply fuse | 3 Amp ( F3A L250V) |
Power supply rating | 3 Amps total including battery charge 28V +/- 2V |
Maximum ripple voltage | ≤200 millivolts |
Battery type | Two 12 Volt sealed lead acid in series. |
Battery charge voltage | 27.6VDC nominal |
Battery charge current | 0.7A maximum |
Current draw in mains fail condition | 0.095 Amps |
Current draw in second stage alarm | 0.235A |
Current draw in post discharge condition | 0.310A |
Maximum current draw from batteries | 3Amps |
NAC outputs(sounder & bell circuit) | 26 to 28V DC Fused at 500mA with electronic fuse |
Fault relay contact rating | 2A /30VDC maximum for each |
Fire relay contact rating | 2A /30VDC maximum for each |
First stage contact rating | 2A /30VDC maximum for each |
Second stage contact rating | 2A /30VDC maximum for each |
Extract contact rating | 2A /30VDC maximum for each |
Zone quiescent current | 4mA maximum |
Terminal capacity | 0.5mm2 to 2.5mm2 solid or stranded wire |
Number of detectors per zone | ≤30 PCS conventional detectors |
Number of sounders per circuit | Dependent on type and current consumption |
Detection circuit end of line | 4K7±5% 1/2 Watt resistor |
Monitored input end of line | 4K7±5% 1/2 Watt resistor |
Sounder circuit end of line | 10K±5% 1/2 Watt resistor |
Extinguishant output end of line | 10K±5% 1/2 Watt resistor |
No. of detection circuits | Four 21 to 28V DC |
No. of sounder circuits | Four 21 to 28V DC |
Extinguishant release output | 21V to 28V DC. Maximum load 2 Amp |
Extinguishant release delay time | Adjustable 0 to 75 seconds |
SIL, AL, FLT, RST inputs | Switched – min resistance 0 ohms, max 1k ohms |
Detector alarm threshold | 270 ohms to 1K ohms |
Call point alarm threshold | 150 ohms to 1K ohms |
Short circuit threshold | 0 ohms to 130 ohms |
Status unit/Ancillary board connection | Two wire RS485 connection with electronic fuse |

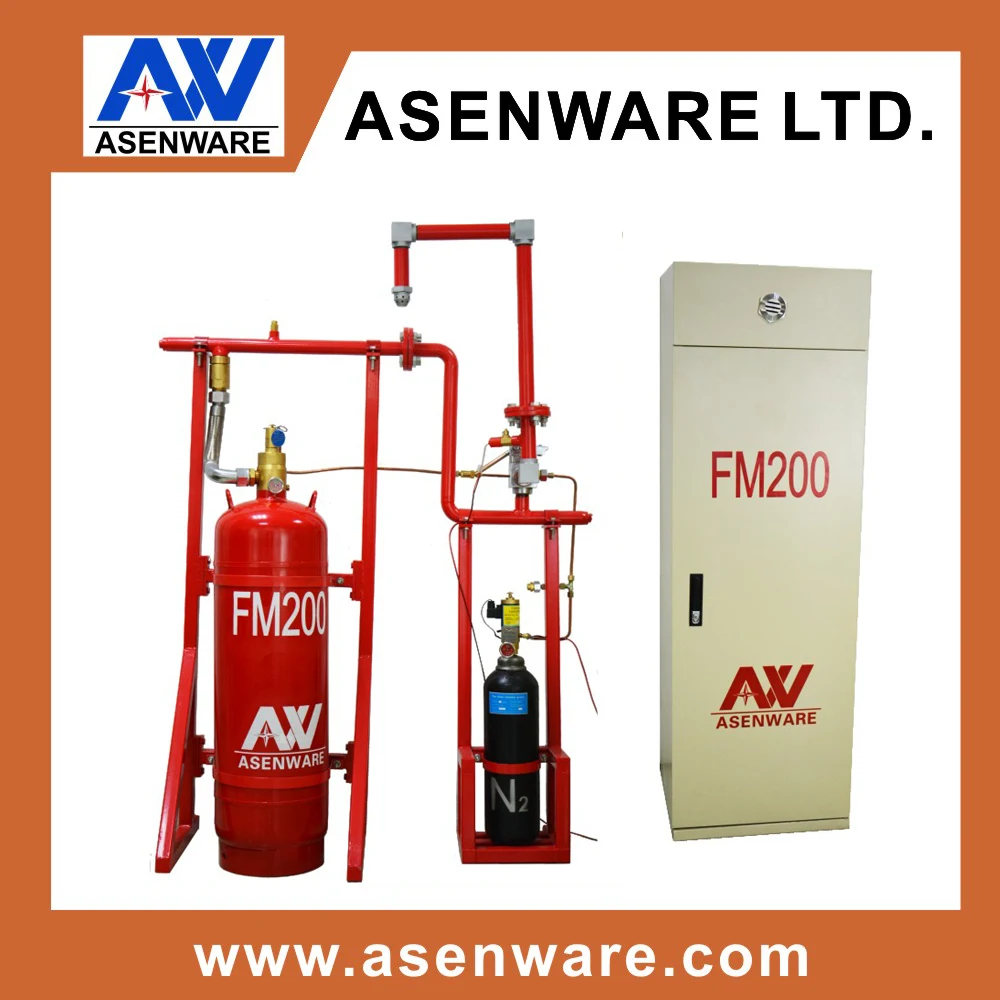

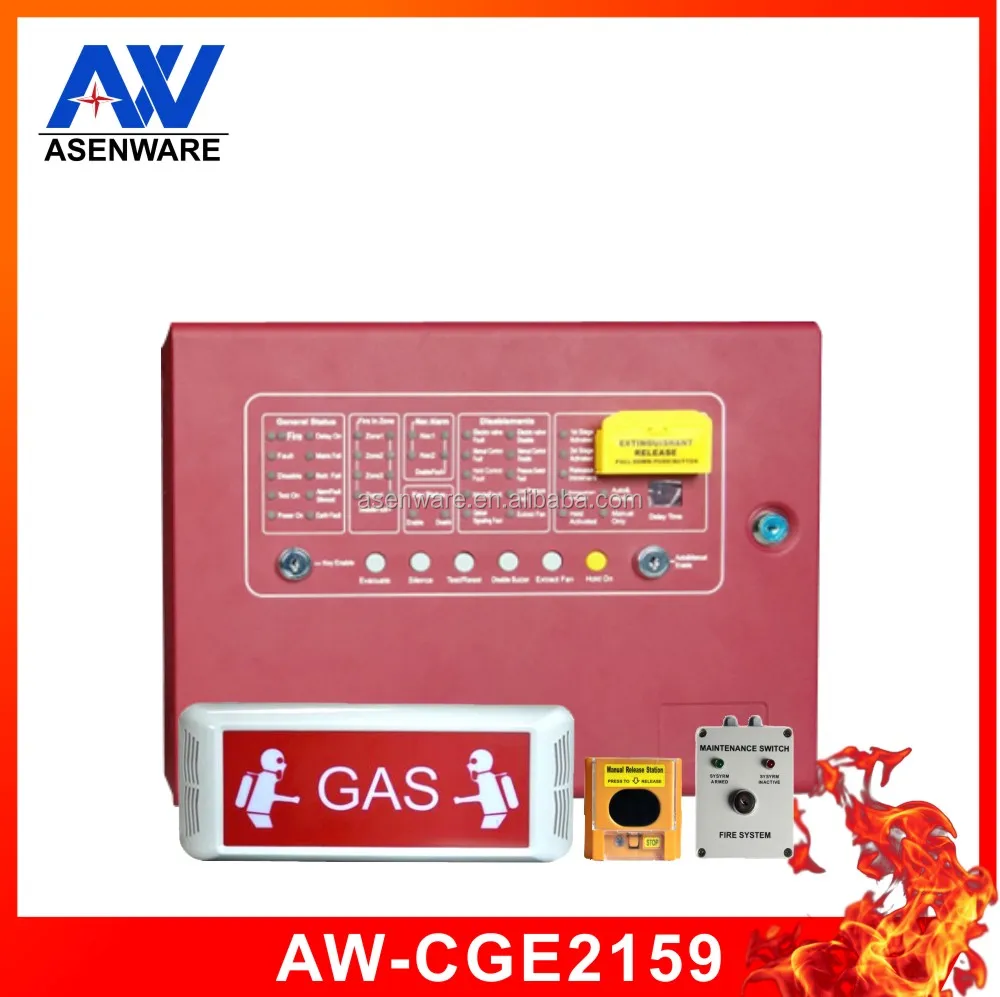

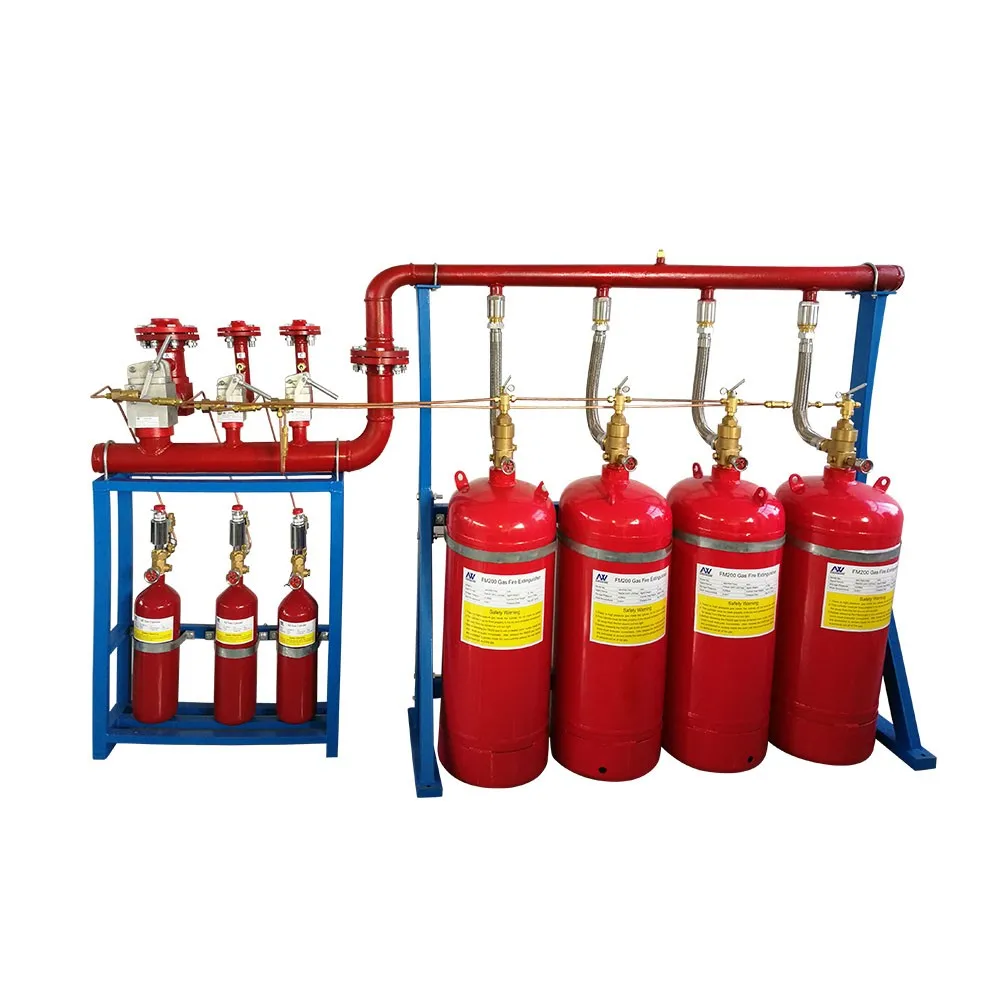

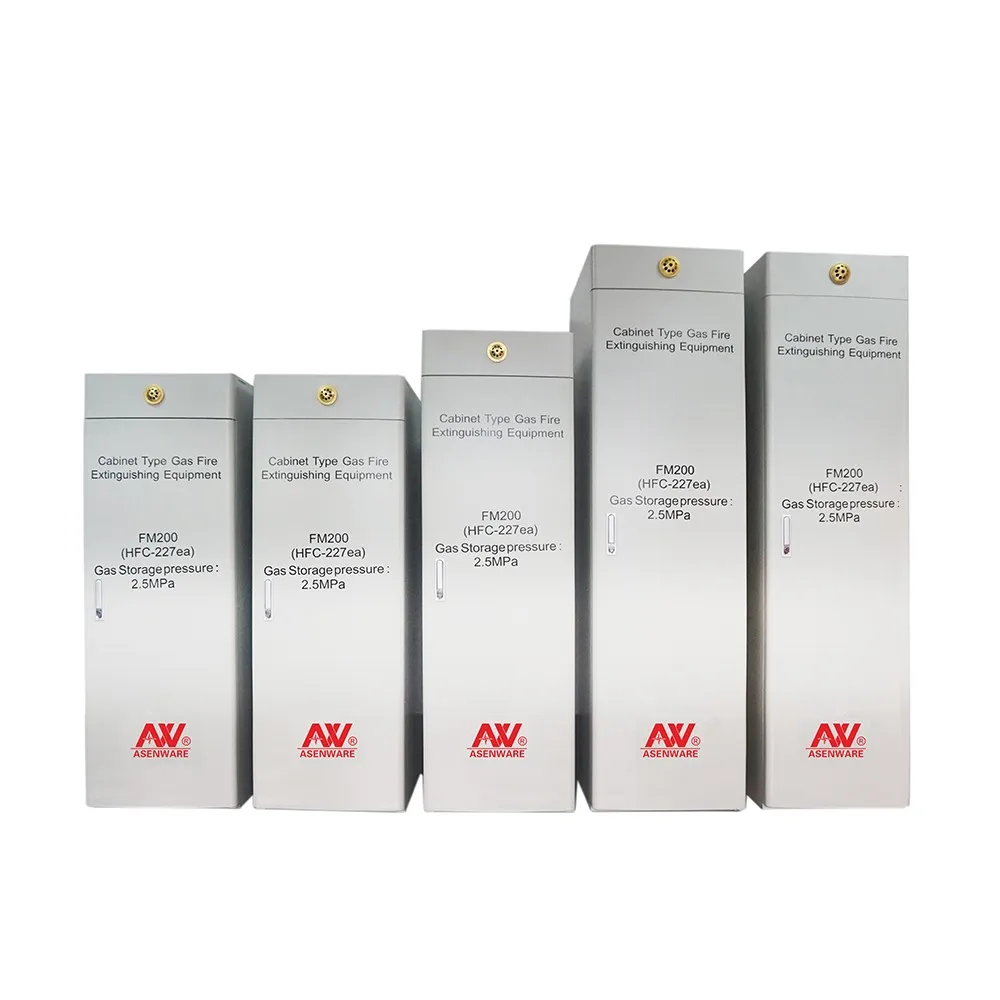

Pictures of FM200 Fire Extinguisher System Control Panel

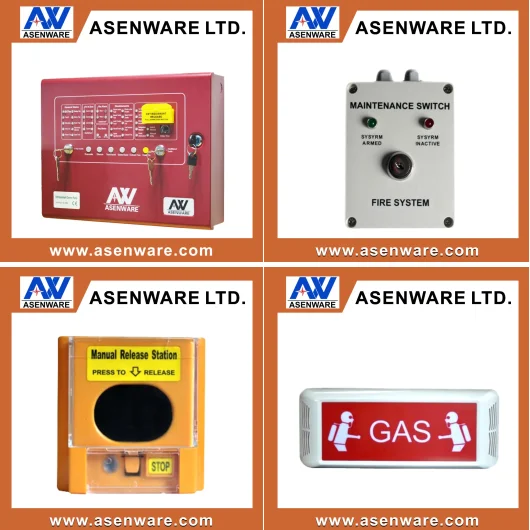

Related Products of FM200 Fire Extinguisher System Control Panel
1.AW-GEC2159:Automatic Fire Extinguisher System Control Panel
2.AW-MS2158:Maintance Switch
3.AW-MRS2158:Manual Release Station
4.AW-GRS2158:Gas Release Warning Signage
5.AW-CSD811:Conventional Photoelectric Smoke Detector
6.AW-CTD821:Conventional Heat Detector
7.AW-CSH831:Conventional Smoke and Heat Combined Detector
...
