Tempered glass free standing shower enclosure
- Category: >>>
- Supplier: Eagleridge Enterprise (hangzhou) Co. Ltd.
Share on (60395654374):
Product Overview
Description

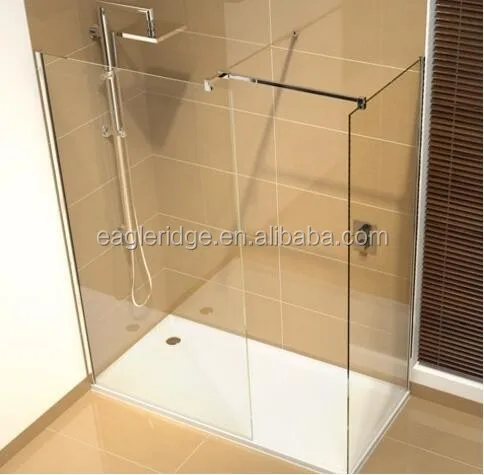

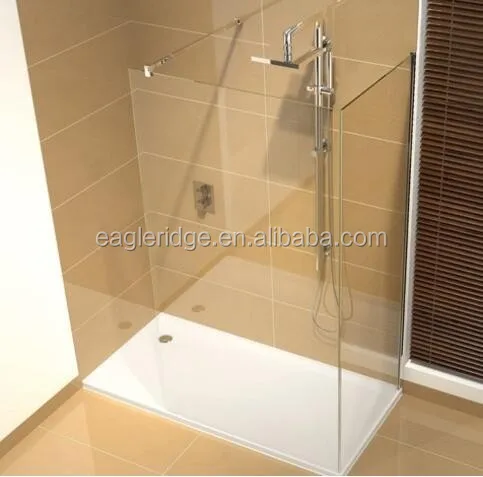

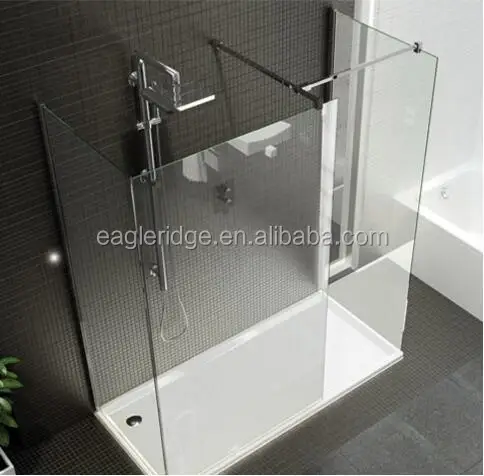

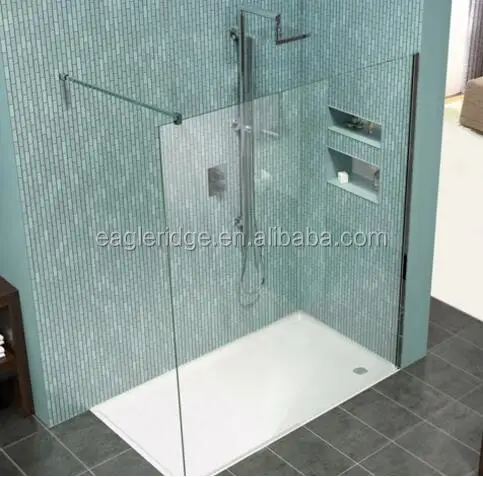

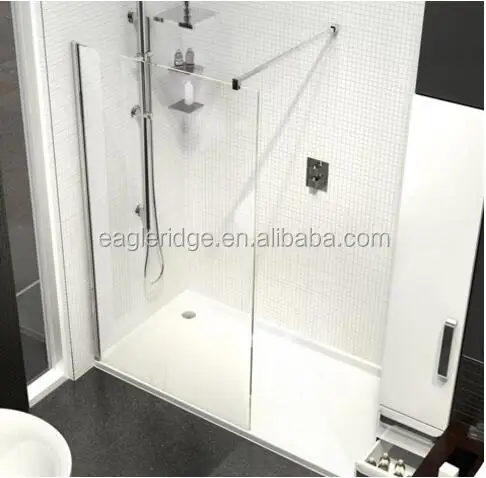

1.Product Pictures: shower enclosure
ULTIMATE Flat Panel Walk-in enclosures are 800 deep and available in either 1500 or
1700 widths. Both sizes are available as recess or corner options and can be specified as left or right hand access. Complete ease of fitting is ensured with installation made simple with its cleaner and easier silicon-free construction.
Eagleridge Flat Panel Walk-in’s have an optional deflector panel which can be fitted after installation, if required, to provide extra protection from overspray, particularly where a traditionally sited shower valve is used.
2.STANDARD BATH SCREEN FEATURES INCLUDE:
1 | Silicone-free installation |
2 | 8mm toughened safety glass with LIFESHIELD TM |
3 | Optional integrated shower tower |
4 | Dedicated shower tray |
5 | Left and Right hand access options |
6 | Recess or corner fitting |
3.Different style for your choose:
SIZE OPTIONS | STYLE | ACCRSS | WITHOUT TOWER | WITH TOWER | DIMENSION mm | WASTE POSITION | |||||
|
|
| CODE | CODE | A | B | C | D | E | F | G |
1500X 800 | RECESS | Left Hand | 5WIRLHNV15 | 5WIRLHU15 | 1505 | 800 | 520 | 932-952 | 29 | 552 | 753 |
1500X 800 | RECESS | Right Hand | 5WIRRHNV15 | 5WIRLHU15 | 1505 | 800 | 520 | 932-952 | 29 | 552 | 753 |
1500X 800 | CORNER | Left Hand | 5WICLHNV15 | 5WICLHU15 | 1505 | 800 | 500 | 932-952 | 29 | 552 | 753 |
1500X 800 | CORNER | Right Hand | 5WICRHNV15 | 5WICLHU15 | 1505 | 800 | 500 | 932-952 | 29 | 552 | 753 |
1700 x 800 | RECESS | Left Hand | 5WIRLHNV17 | 5WIRLHU17 | 1690 | 800 | 520 | 1117-1137 | 29 | 552 | 845 |
1700 x 800 | RECESS | Right Hand | 5WIRRHNV17 | 5WIRLHU17 | 1690 | 800 | 520 | 1117-1137 | 29 | 552 | 845 |
1700 x 800 | CORNER | Left Hand | 5WICLHNV17 | 5WIRLHU17 | 1690 | 800 | 500 | 1117-1137 | 29 | 552 | 845 |
1700 x 800 | CORNER | Right Hand | 5WICRHNV17 | 5WIRLHU17 | 1690 | 800 | 500 | 1117-1137 | 29 | 552 | 845 |
DEFLECTOR PANEL | 5WDEFP | 5WDEFP |
|
|
|
|
|
|
| ||
ULTIMATE Curved Walk in Plinth - 1400 | PLR158W | Supplied with moulded fascia panels to suit front and one side | |||||||||
ULTIMATE Curved Walk in Plinth - 1700 | PLR178W | Supplied with moulded fascia panels to suit front and one side | |||||||||
ENCLOSURE HEIGHT – 2036mm (including tray) | |||||||||||
OVERHEAD WATER SUPPLY - MAXIMUM CEILING HEIGHT ALLOWABLE (from top of shower tray) = 2830mm | |||||||||||

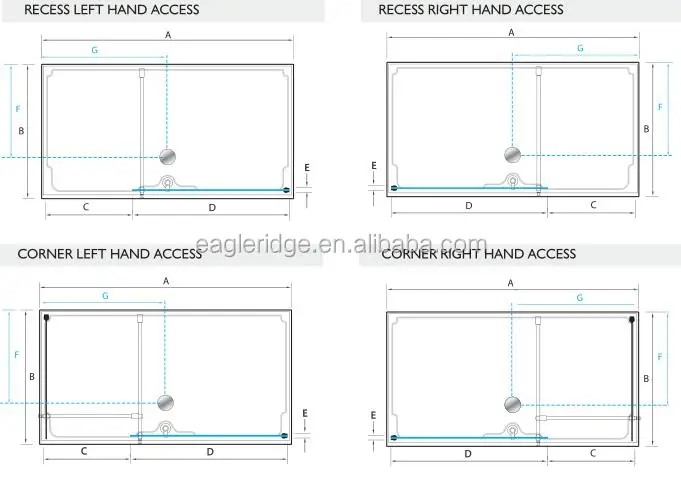

4.Products drawing:
5.More Product For You To Choose
Shower screen:
|
|
|
Bathroom Vanity:
|
|
|

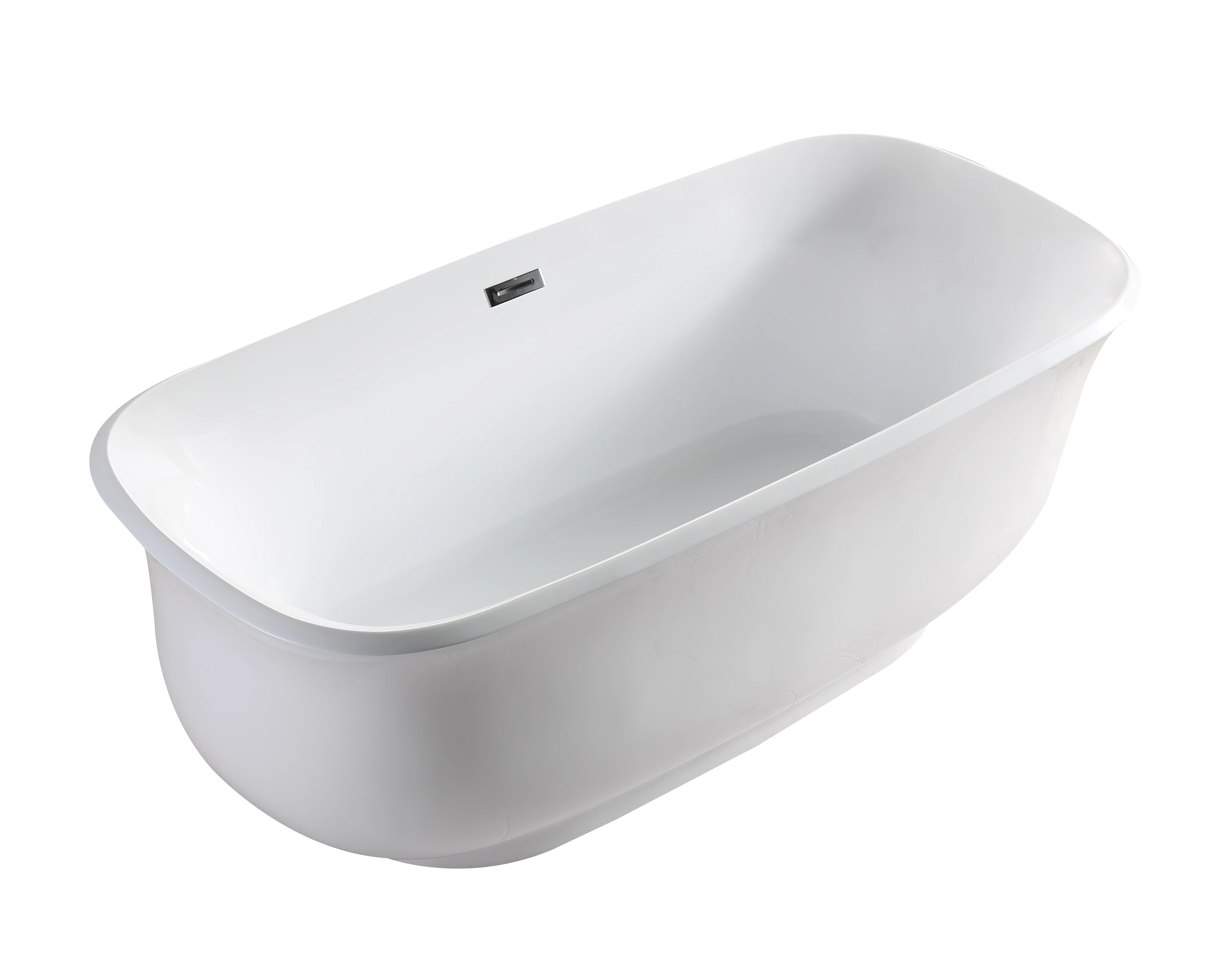

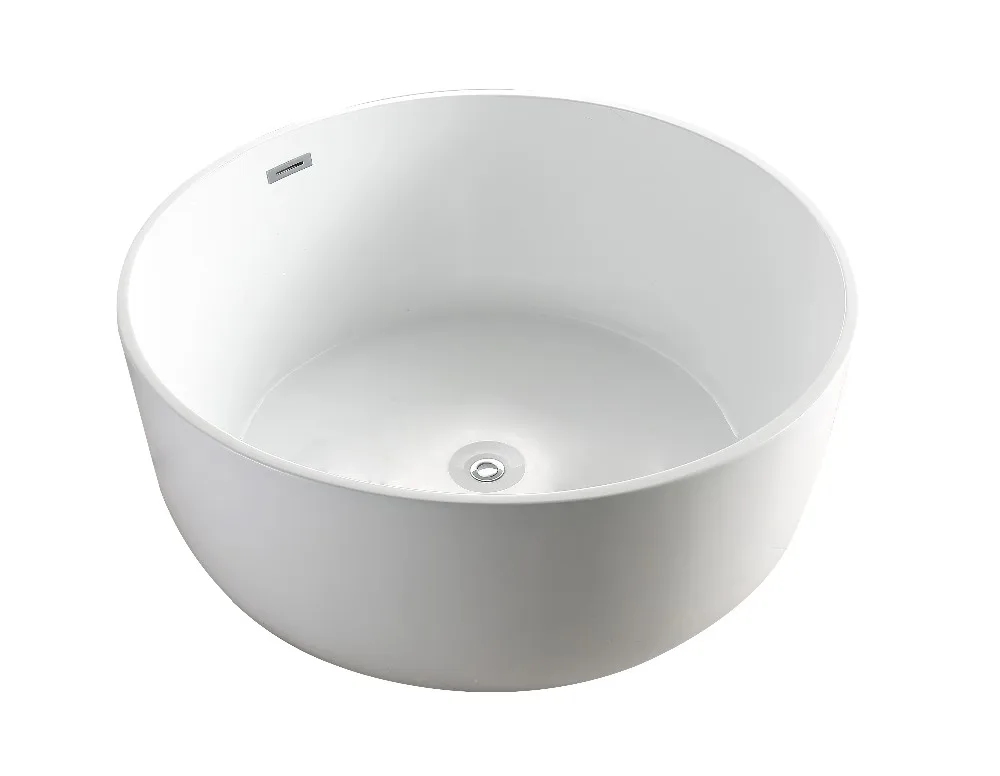

Freestanding bathtub:
|  |
|
1. Are you manufacturer or Trade Company?
We are professional factory, founded in 2004.OEM is acceptable
2. What's the order process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Customization--- We offers ultimate customization and personalized solutions.
d. Sample ---Standard sample of our factory.
e. Payment terms--- T/T 30% in advanced, balanced before shipment.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
3. What terms of payment you use?
T/T
If you have interest with our products( shower enclosure ), Please stick the “Send” below.
