DBG 203 Horizontal type Air disc brake with friction plate from

Product Overview

Description

LEESUN air disc brakes/pneumatic brakes

LEESUN DBG-203  pneumatic brakes

DBG/DBH series is mainly powered by braking oil, and can also be powered by air actuated matched hydraulic booster. It has 2 types, right (model R)and left (model L). Please indicated right or left before giving your order. The ordinary braking fluid is required (DOT3, DOT4 or above), if you are going to use mineral oil, please inform us in advance. Note: "R" model, namely does move the source to enter by right, the graphical representation is "R". "L" model, namely does move the source to enter by left. this type of brake is for horizontal installation, which can provide approximately 2 times braking powder thanthat of vertical installation. It adds the expandable shrapnel to guarantee the brake balance, in which brake disc thickness also covers from 10mm to 20mm.

 LEESUN DBG-203 pneumatic brakes Product Features:

*Dimensionally smaller units, giving a more compact machine design

*Reduction in price due to smaller design

*Lower top speeds minimized the wear of the linings

*Constant controllable torque from a stable friction lining material

*Suitable for all types of applications

*Suitable for high heat dissipation

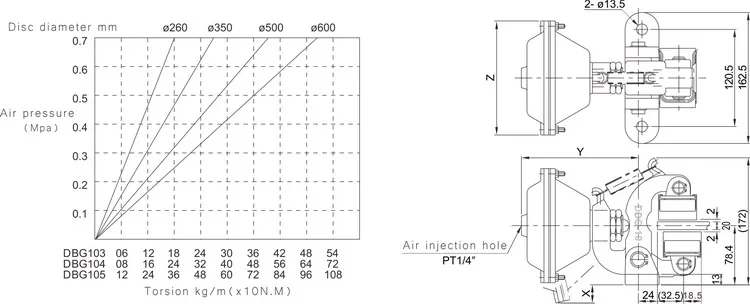

LEESUN DBG-203 pneumatic brakes Data:



LEESUN DBG-203 pneumatic brakes Specification:



pneumatic brakes Performance parameter



Model	DBG-203	DBG-10	DBG-105
Disc thicknesss (mm)	20	20	20
Disc Dia. (mm)	200↑	200↑	200↑
Max pressure (Mpa)	0.7	0.7	0.7
Compression ration	0.74	0.74	0.74
Pads clearance (mm)	7	7	7
Weight (kg)	5	5.5	6
X            mm	0	13	31
y             mm	145	145	160
Φ Z      mm	118	141	177
