Male and female thread One/ two layer braided stainless steel hose metal flex pipe

Product Overview

Description

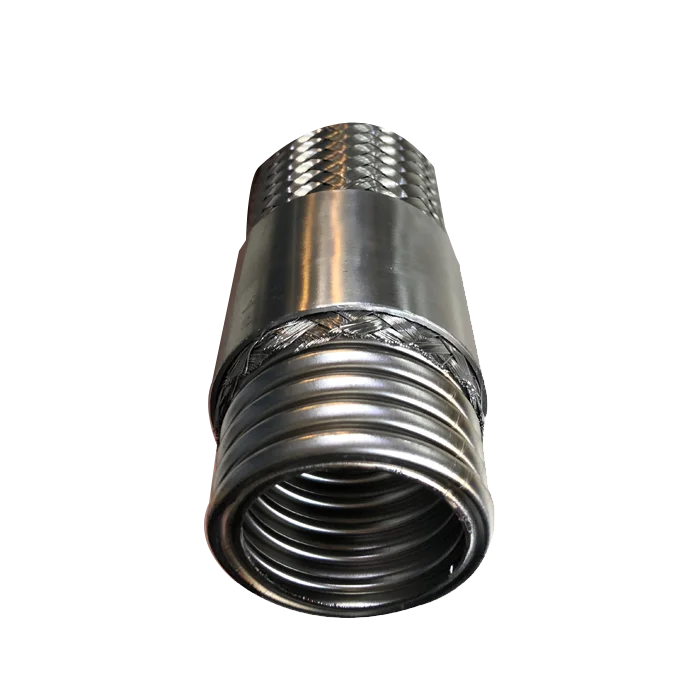

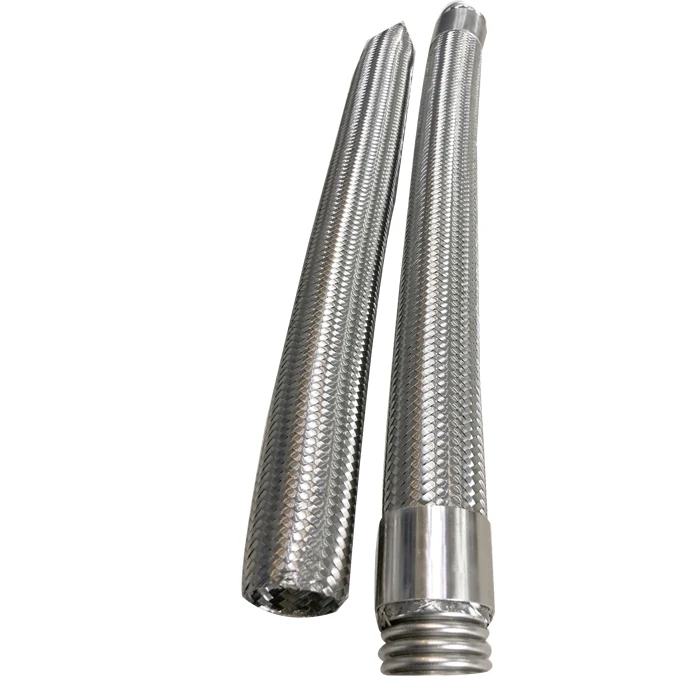

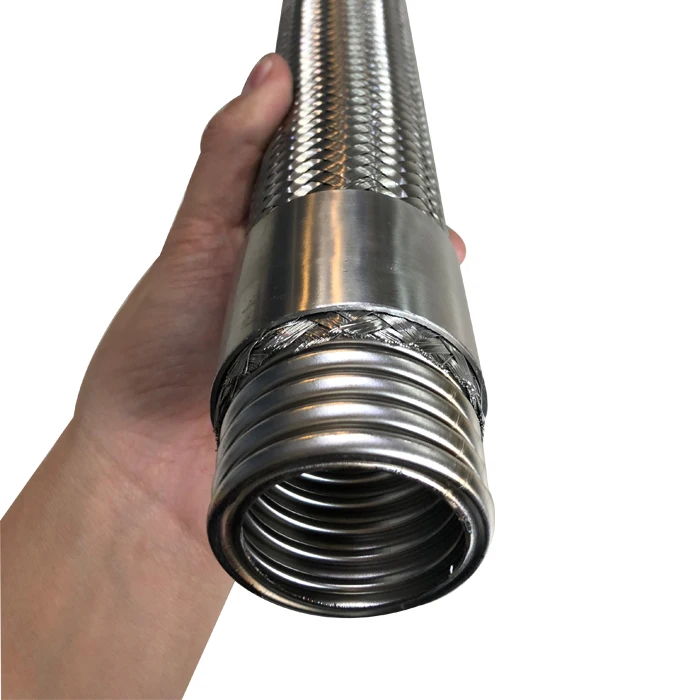

   Male and female thread One/ two layer braided stainless steel hose metal flex pipe





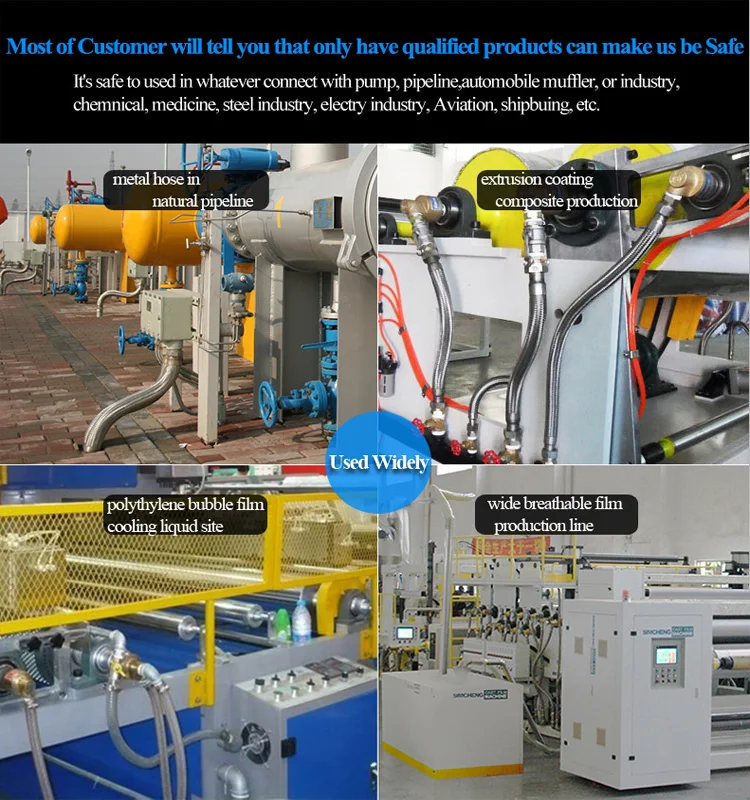

Flexible metal braided hoses and fittings can be used widely in systems like water, steam, hot oil andgas with their resistance to pressure and flexible structure.



They are utilized for conducting liquids, compensating the problems originated from installation,absorbing vibrations and expansions.



Flexible metal hoses may be strengtened by double braiding in order to increase their resistance topressure and environmental conditions. It is also possible to reinforce them by springs with different wirethicknesses or by stripwounds to lengthen their service life for more severe environmental conditions.







Material Specifications

Hose AISI 316L-304L-321 S.Steel

Braid Wire AISI 304 Stainless Steel

Connections Carbon Steel-Stainless Steel



Operating conditions
Hose material	Stainless steel 304/316
Braid Wire material	Stainless steel 304/316
Connection type	Flange /threaded/quick coupling/welding neck connection
Working pressure	6bar to 25 bar
Reinforcement Spring	-196℃ to +600℃







Construction of Flexible Metal Hose

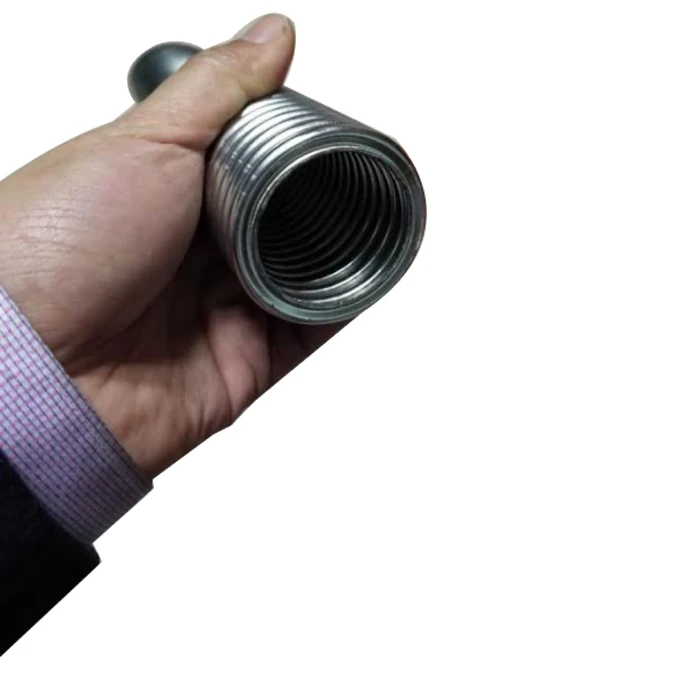

Inner Core: Corrugated Stainless Stee

• Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel
• Stainless steel tubing formed into corrugations parallel to one another
• Helical / Convoluted option available upon request



Outer Core: Braided Stainless Steel Layers



• Purchase corrugated core hose with no layers, single or double braided
• Flexible metal hose outer braid layers made from 304 stainless steel















1.Avoid torque.Do not twist the hose assembly during installation when aligning the bolt holes in a flange or in mating up pipe threads. The utilization of lap joint flanges or pipe unions will minimize this condition. It is recommended that two wrenches be used in making the union connection: one to prevent the hose from twisting and the other to tighten the coupling.



2. Prevent out-of-plane flexing in an installation.Always install the hose so that the flexing takes place in only one plane--this being the plane in which the bending occurs.



3. Avoid over bending.The repetitive bending of a hose to a radius smaller than teh radius listed in the specification tables for corrugated hose will result in early hose will result in early hose failure. Always provide sufficient length to prevent overbending and to eliminate strain on the hose.



4. Avoid careless handling of the hose assembly.Always lift or carry metal hose to prevent abrasion damage particularly to braided corrugated hose. Store metal hose assemblies away from areas where it can be subjected to spillage, corrosive fumes or sprays, weld splatter, etc.





5. Always support the piping.A piping system which utilizes metal hose to absorb movement must be properly anchored and / or guided. Always support the piping to prevent excessive weight from compressing the hose and relaxing the braid tension.

















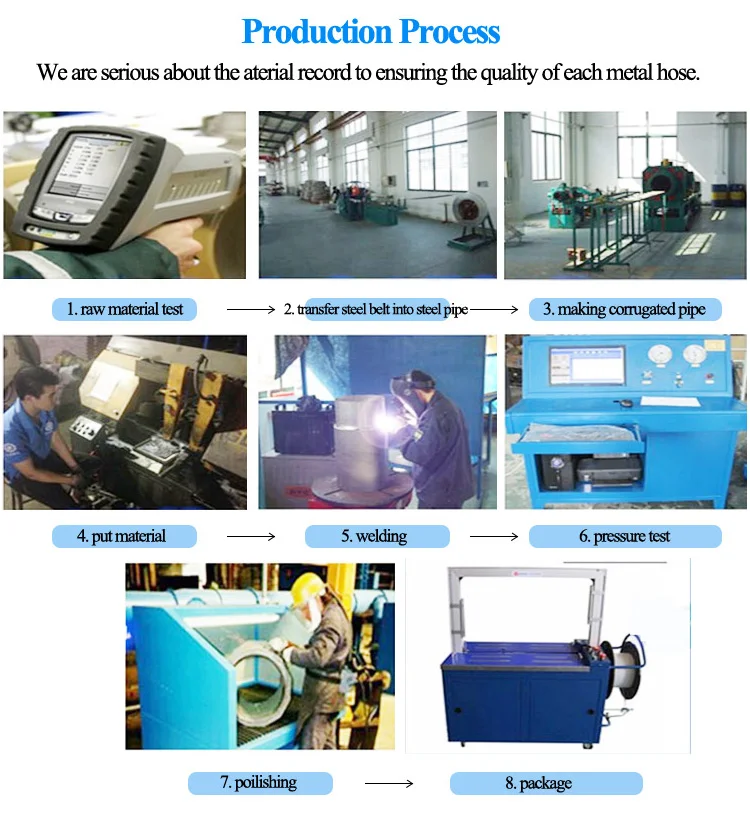

 Foshan Nanhai Hongchang Jefer Electromechanical Valve Co.,Ltd is a factory set up in 2006. We are specializing in researching,developing and manufacturing different kinds of rotary joints, flexible metal hose, rubber hose , bellow expansion joint and valve equipment in China.



     Our factory is covering over 10,000 square meters. Our R&D department consists of 3 engineers. Also, we have  experienced QC personnel to check all our products strictly before packaging . All of our products meet the national standards and have passed ISO9001 certification. We obtain trust from customers by advanced technology, excellent quality and satisfactory service. Also, we specialized in custom rotary joints tailored to meet your project requirements.



       Our mission is: Offering high-quality goods, excellent service, and reasonable price to customers; Using our product, you will get  more benefits!













Payment Terms

1. Payment: T/T, Western Union, ,PayPal; 30% deposits; 70% balance before delivery.

2. MOQ: 1pc









  HOW TO MAKE AN ORDER



To properly design a metal hose assembly for a particular application, the following Data must be determined

1. Temperature--You should provide us this information as the temperature to which the assembly is exposed a proper fit

2.Size-- The diameter of the connections in which the assembly will be installed is needed to provide

3. Media--This is important since you must be sure that the assembly's components are chemically compatible with the media going through the hose as well as the environment in which the hose is installed

4.Pressure--Identify the internal pressure to which the assembly will be exposed. This information is important to determine if the assembly is strong enough for the application

5. Identify the necessary end fittings. This is required since fittings for the assembly must be chosen to properly fit the mating connections.
