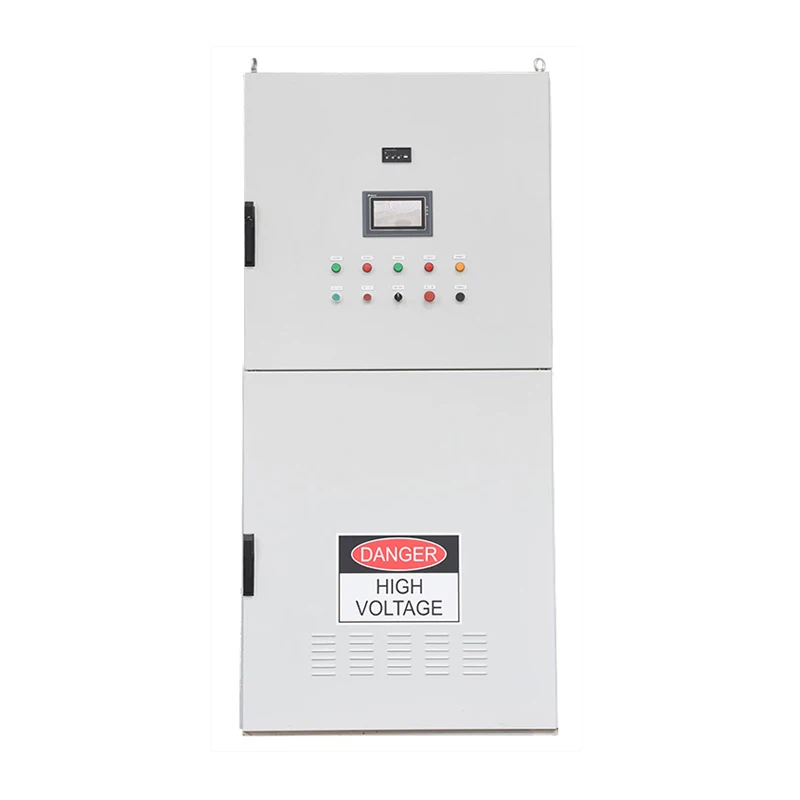

6kv medium voltage soft starter

Product Overview

Description

6kv medium voltage soft starter



	Model	current(A)	power(kw)
6KV	AMV -SV06-040A	40	315
	AMV -SV06-080A	80	630
	AMV -SV06-100A	100	900
	AMV -SV06-125A	125	1120
	AMV -SV06-160A	160	1400
	AMV -SV06-200A	200	1800
	AMV -SV06-250A	250	2240
	AMV -SV06-315A	315	2800
	AMV -SV06-400A	400	3550
	AMV -SV06-500A	500	4500
	AMV -SV06-630A	630	5600
	AMV -SV06-800A	800	7100
	AMV -SV06-990A	990	8000

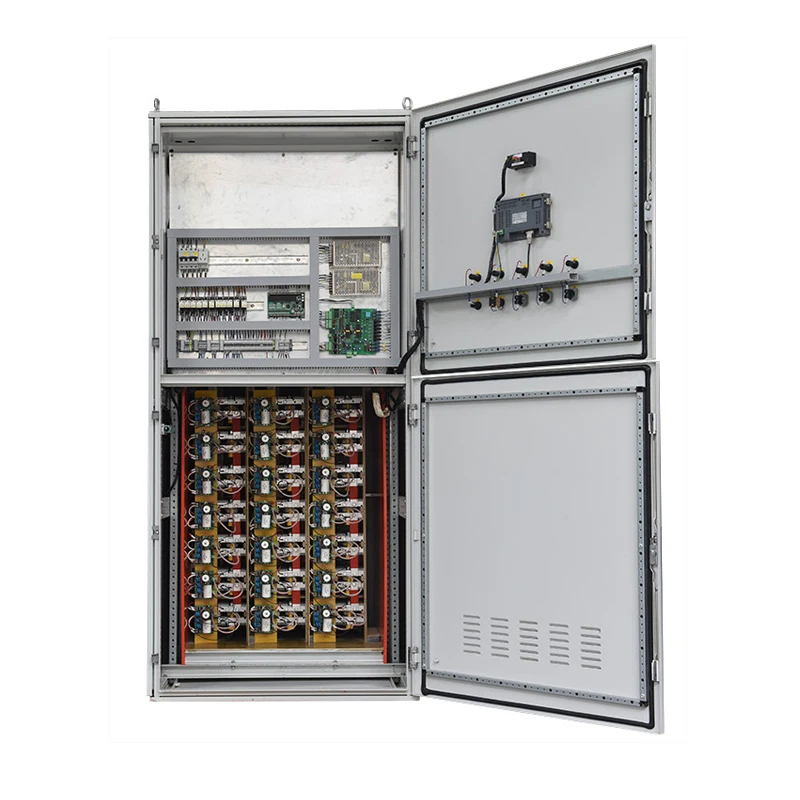

    The constitution of Soft Starter Cabinet:

      AMVS is mainly composed of MV SCRs ( silicon controlled rectifier) , vacuum contactor, signal          sampling circuit, trigger circuit, power driver circuit, main control board, optical fiber isolation        signal  cables, secondary relay control circuit,  enclosure and other parts.





• The initial voltage of starting can be set flexibly according to the actual situation and demand of the equipment.
• The lowest set point is 15% of the supply voltage, the highest is 90%.

• Thus the motor has a larger starting torque and smaller starting current which reduces the requirement of power grid capacity required by equipment operation and saves the investment of related equipment.

• It reduce the impact stress to motor itself and to the machinery which can prolong the service life of motor and the machinery.










1 We have several transport options for customer to choose: by sea/ truck/ train/ express/ air, etc.



2 We can design the job for your specs or your project



3 We provide site commissioning on demand



4 Delivery term: FOB, CIF, EXW are available.



5 Payment term: 30% prepayment, 70% before dispatching



6 Production lead time: 1-2 weeks



7 Shipping lead-time: 4-6 weeks



8 Logistics: best service forwarder with good price, long-term partner
