CODACA Lead free transformer PK0810 DIP Induction Coil electronic inductor coil 1uh 100uh
- Category: >>>
- Supplier: Shenzhen Codaca Electronic Co. Ltd.
Share on (60396660142):
Product Overview
Description
Product Description
Features:
1.Contain high-frequency cores.
2.Comparatively Large rated current.
3.Low cost with rugged reliability andperformance fixed inductor.
4.Entire winding core is encapsulated in heat shrink UL tube to provide excellent mechanic and environmental protection.
5.Lead free products,RoHS compliant.

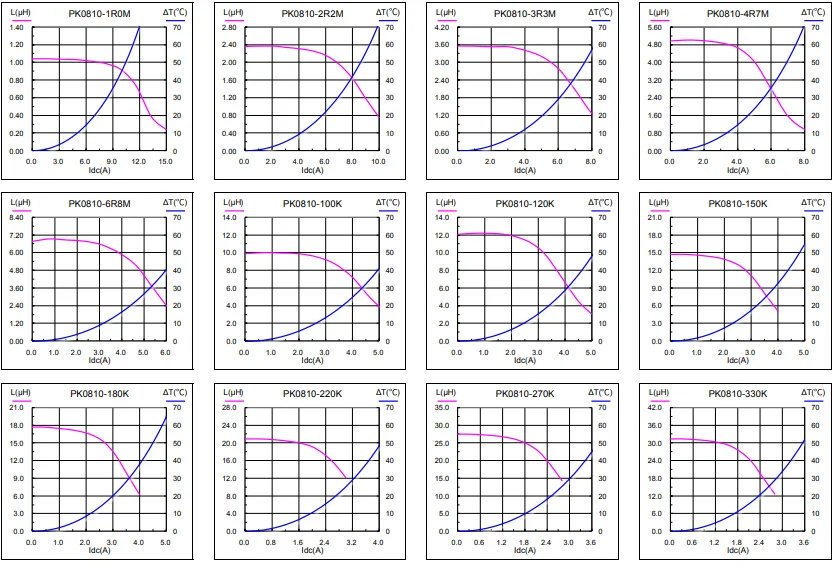

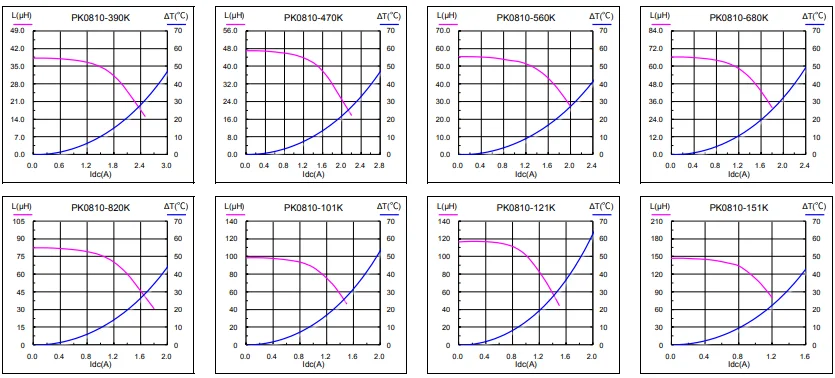

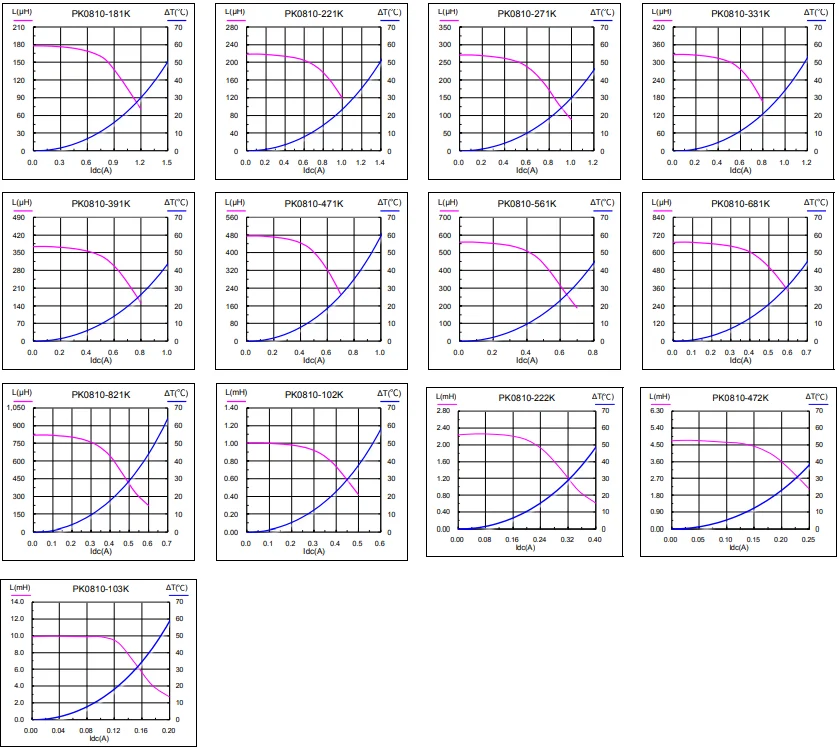

Electrical Characteristics
| Part No. | Inductance(μH) | DCR(mΩ) | Saturation Current(A) | Temperature rise current(A) | |
| Typical | Max | ||||
| PK0810-4R7M | 4.70 ±20% | 12.5 | 15 | 5 | 6.29 |
| PK0810-6R8M | 6.80 ±20% | 13.9 | 16.7 | 4.4 | 5.96 |
| PK0810-100K | 10.0 ±10% | 20.4 | 24.5 | 3.7 | 4.93 |
| PK0810-2R2M | 2.20 ±20% | 8.1 | 9.72 | 7.2 | 7.82 |
| PK0810-1R0M | 1.00 ±20% | 5.5 | 6.6 | 10.5 | 9.49 |
| PK0810-120K | 12.0 ±10% | 23.2 | 27.9 | 3.2 | 4.62 |
| PK0810-3R3M | 3.30 ±20% | 10.5 | 12.6 | 5.8 | 6.87 |
| PK0810-150K | 15.0 ±10% | 25.9 | 31.1 | 2.9 | 4.37 |
| PK0810-180K | 18.0 ±10% | 29.7 | 35.6 | 2.8 | 4.08 |
| PK0810-220K | 22.0 ±10% | 36.6 | 43.9 | 2.45 | 3.68 |
| PK0810-270K | 27.0 ±10% | 44 | 52.8 | 2.2 | 3.42 |
| PK0810-330K | 33.0 ±10% | 47.5 | 57 | 2.05 | 3.22 |
| PK0810-390K | 39.0 ±10% | 61.7 | 74 | 1.85 | 2.79 |
| PK0810-470K | 47.0 ±10% | 70.7 | 84.8 | 1.6 | 2.61 |
| PK0810-560K | 56.0 ±10% | 92 | 110 | 1.54 | 2.36 |
| PK0810-680K | 68.0 ±10% | 103 | 124 | 1.36 | 2.19 |
| PK0810-820K | 82.0 ±10% | 133 | 160 | 1.3 | 1.92 |
| PK0810-101K | 100 ±10% | 160 | 192 | 1.15 | 1.77 |
| PK0810-121K | 120 ±10% | 181 | 217 | 1.1 | 1.65 |
| PK0810-151K | 150 ±10% | 210 | 252 | 0.95 | 1.55 |
| PK0810-181K | 180 ±10% | 268 | 322 | 0.87 | 1.36 |
| PK0810-221K | 220 ±10% | 311 | 373 | 0.8 | 1.26 |
| PK0810-271K | 270 ±10% | 386 | 463 | 0.67 | 1.13 |
| PK0810-331K | 330 ±10% | 441 | 529 | 0.64 | 1.07 |
| PK0810-391K | 390 ±10% | 534 | 641 | 0.59 | 0.96 |
| PK0810-471K | 470 ±10% | 668 | 802 | 0.53 | 0.85 |
| PK0810-561K | 560 ±10% | 788 | 946 | 0.49 | 0.76 |
| PK0810-681K | 680 ±10% | 1046 | 1255 | 0.47 | 0.66 |
| PK0810-821K | 820 ±10% | 1282 | 1538 | 0.39 | 0.57 |
| PK0810-102K | 1,000 ±10% | 1596 | 1915 | 0.37 | 0.51 |
