mini lathe machine tool of CQ6230 bench lathe machine
- Category: >>>
- Supplier: Yancheng C&J Machinery Co. Ltd.
Share on (60396883839):
Product Overview
Description
Product Description
bench lathe machine tool/CQ6230 bench lathe machine/ lathe machine
1) Precision ground and supersonic frequency hardened bed ways.
2) The spindle is supported with precision roller bearing.
3) Headstock gears are made of high quality steel, ground and hardened
4) Removable gap is provided for larger diameter work
5) Easy operating gear box has various feeds and thread cutting function

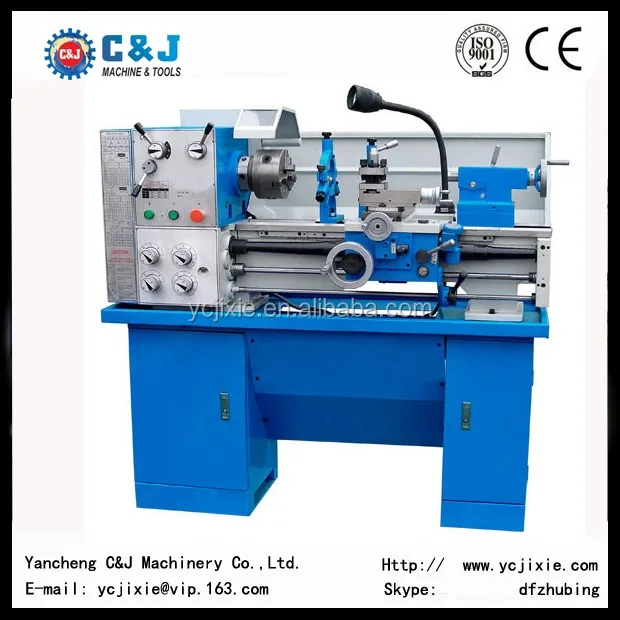

Machine Picture
bench lathe machine tool/CQ6230 bench lathe machine/ lathe machine
Main spec
bench lathe machine tool/CQ6230 bench lathe machine/ lathe machine
| Model | CQ6230A | CQ6230A-1 | CQ6230A-2 |
| Max.swing over bed | Φ310mm | ||
| Max.swing over cross slide | Φ180mm | ||
| Max. swing over gap | Φ450mm | ||
| Distance between centers | 750mm/910mm | ||
| Width of bed | 181mm | ||
| Spindle bore | Φ38mm | ||
| Taper of spindle bore | M.T.#5 | ||
| Range of spindle speeds | 65-1810(1400)rpm | ||
| Taper of tailstock | M.T.#3 | ||
| Metric threads can be cut | 0.4-7mm | ||
| Inch threads can be cut | 4-60 T.P.I. | ||
| Range of longitudinal feeds | 0.0527-1.2912mm/rev | ||
| Range of cross feeds | 0.011-0.276mm/rev | ||
| Max. travel of cross slide | 130mm | ||
| Max. travel of top slide | 75mm | ||
| Max. travel of tailstock quill | 100mm | ||
| Motor power | 1.1KW.3PH/1.5KW.1PH | ||
