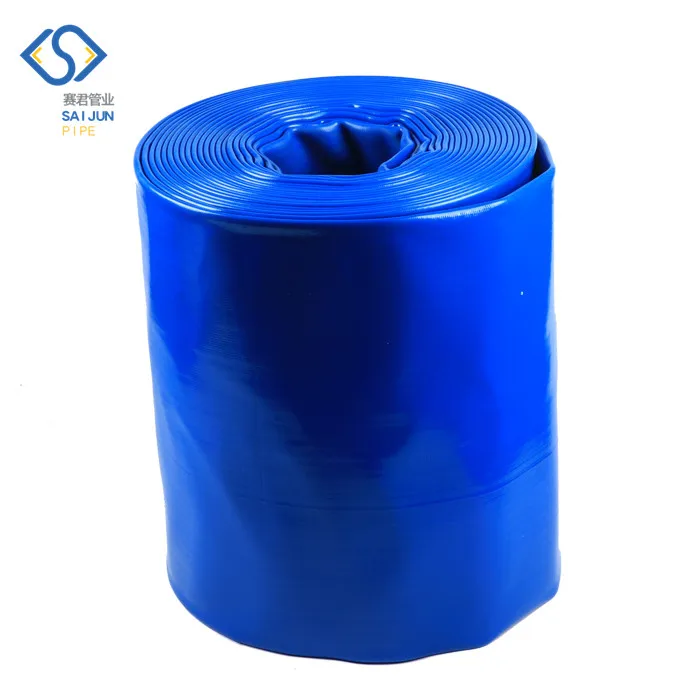

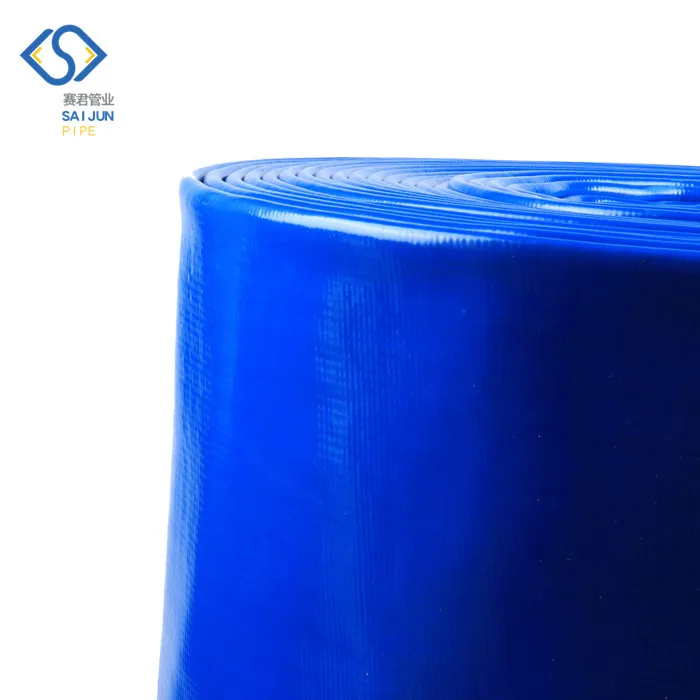

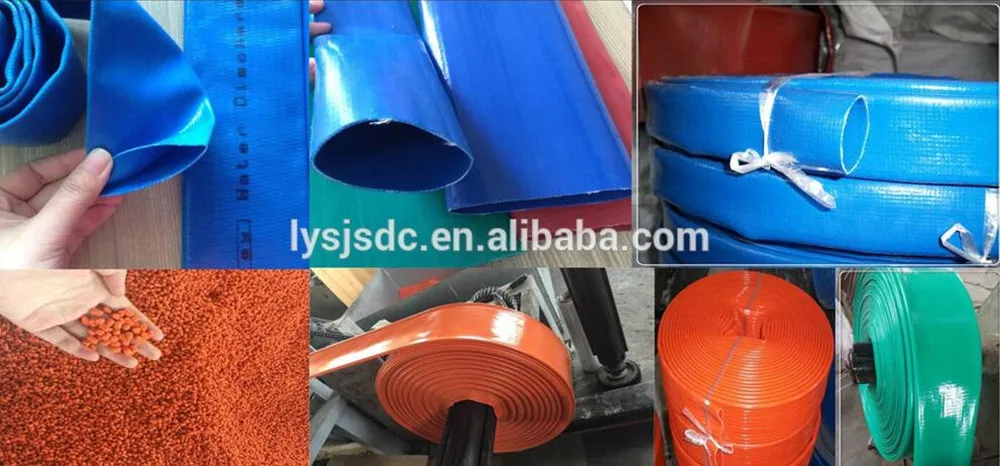

Cheap Color Flexible Large Diameter 12 inch 300 mm Lay Flat Hose
Product Description

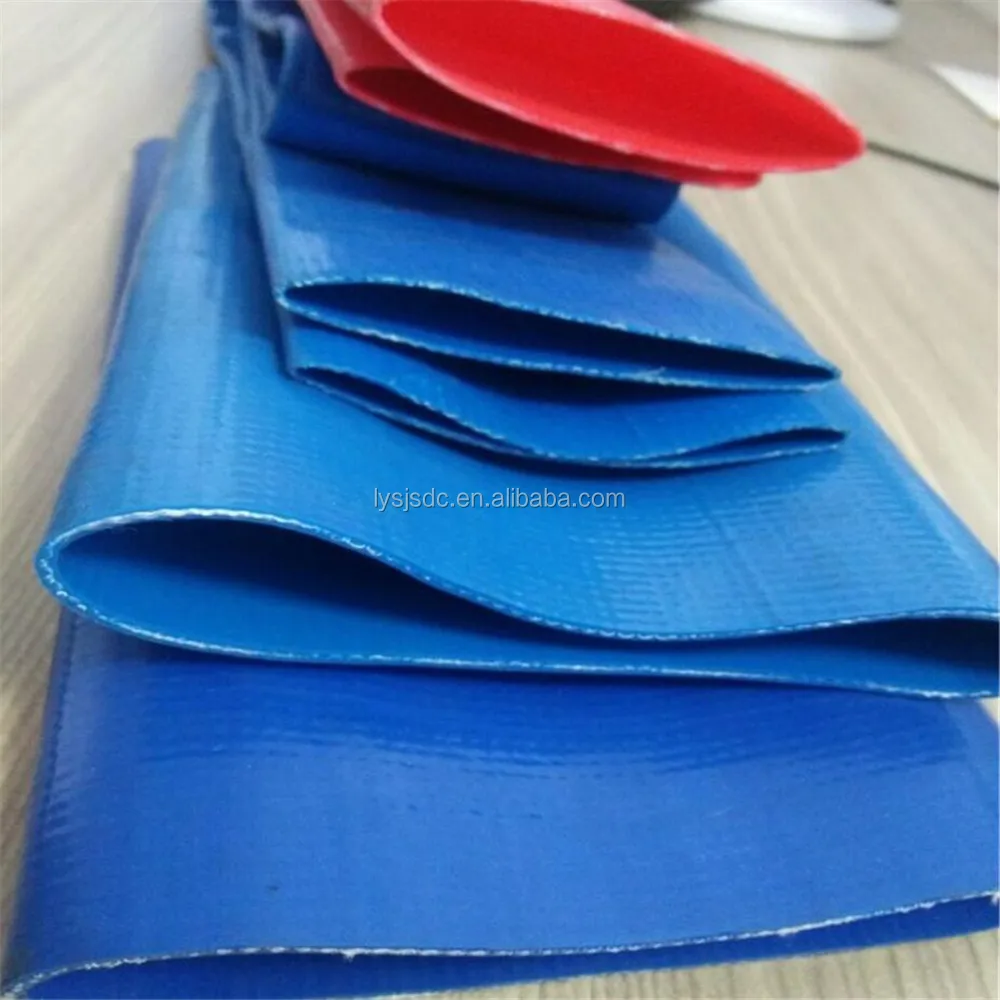

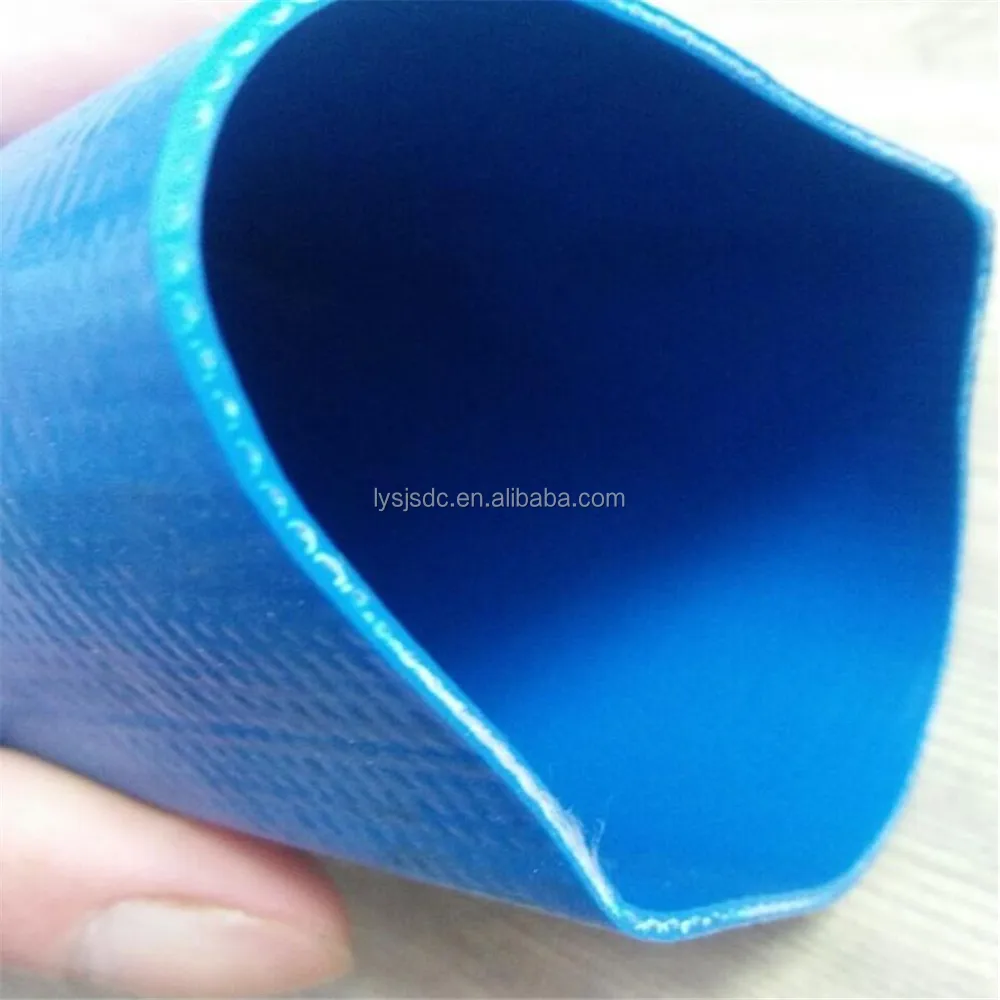

Low and Medium Pressure PVC Lay Flat Hose
This hose is designed as a standard duty hose for water discharge in Agricultural Irrigation, industrial and construction applications, and is economical and rolls up flat for easy and storage, resists kinking and twisting. 12 inch pvc water discharge hose
Tube: PVC compound
Cover:PVC compound
Reinforcement: High strength polyester yarn jacket
Temperature: -20 to +80 degree
Inch | Diameter (mm) | Thickness (mm) | W.P. (Bar) | B.P. (Bar) | Length (m/roll) |
1 | 25.4 | 1.4-2.2 | 2-10 | 6-30 |
200m max
|
1 1/2 | 38.1 | 1.4-2.2 | 2-10 | 6-30 | |
2 | 50.8 | 1.4-2.4 | 2-10 | 6-30 | |
2 1/2 | 63.5 | 1.5-2.4 | 2-10 | 6-30 | |
3 | 76.2 | 1.5-2.5 | 2-10 | 6-30 | |
4 | 102 | 1.5-2.6 | 2-10 | 6-30 | |
5 | 127 | 1.5-2.6 | 2-10 | 6-30 | |
6 | 152 | 1.6-2.8 | 2-10 | 6-30 | |
8 | 203 | 1.8-3.0 | 2-10 | 6-30 | |
10 | 254 | 2.0-3.2 | 2-10 | 6-30 | |
12 | 304 | 2.4-3.4 | 2-10 | 6-30 |

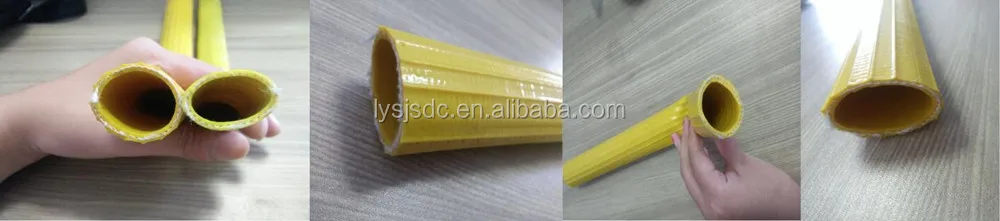

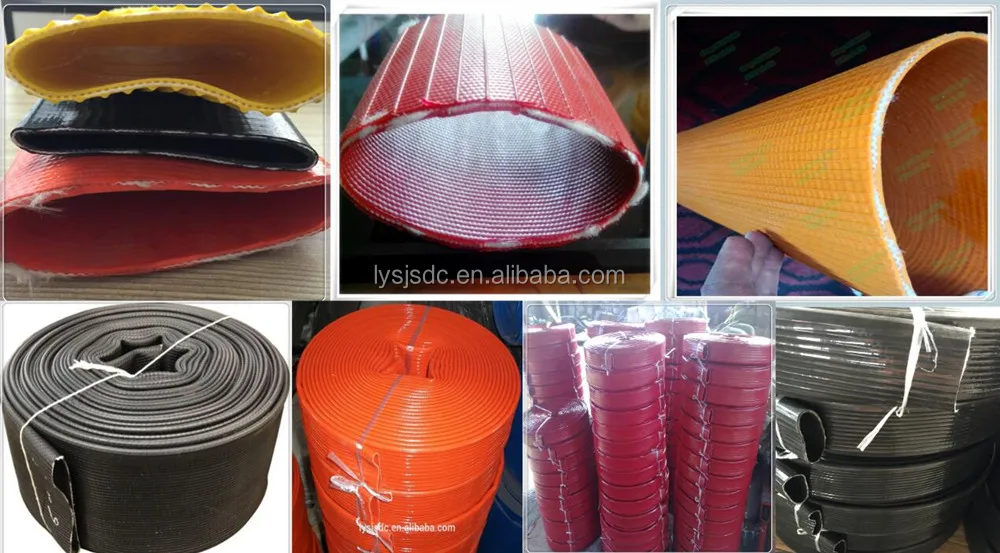

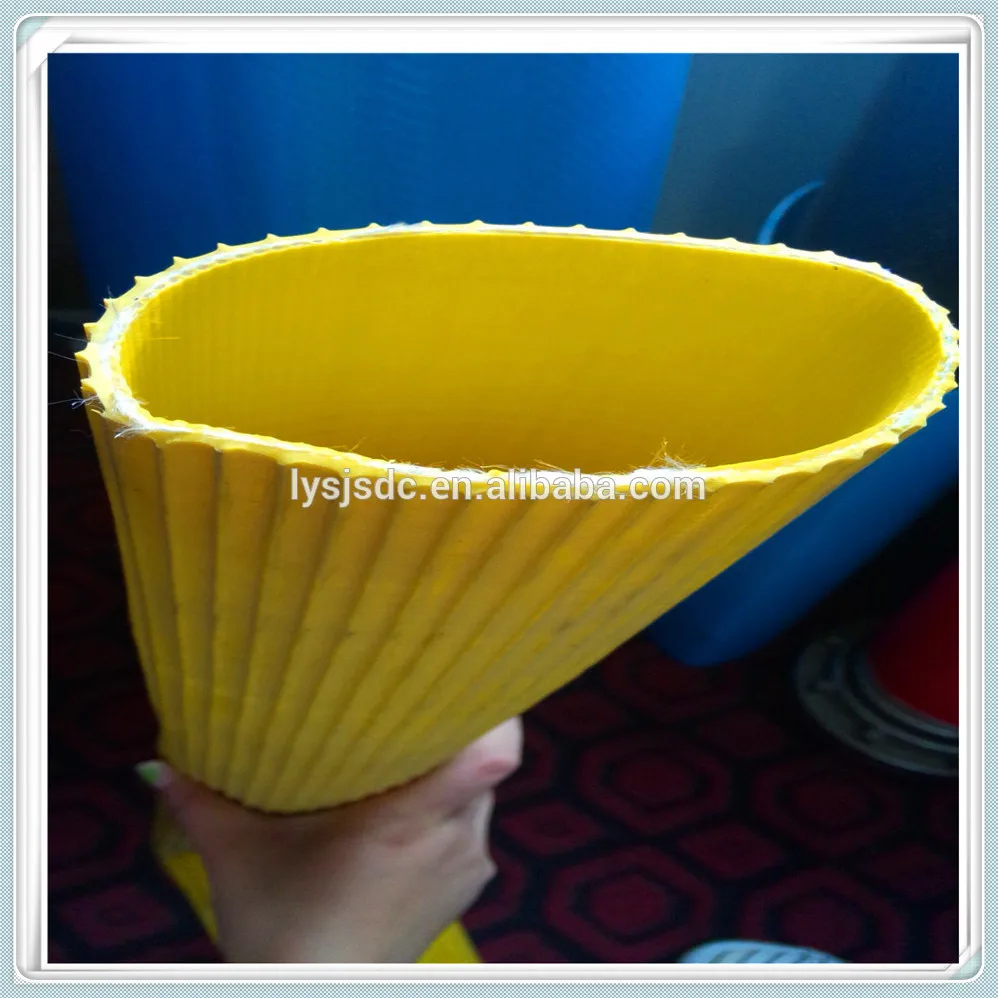

High Pressure PVC with NBR Lay Flat Hose
Construction: 4 inch pvc layflat discharge hose
The hose is made from extruded thermoplastic polyester based 70% PVC with 30% NBR. The reinforcement is made from circular woven filament polyester yarn.
The "extrusion through-the-weave" production method gives a very strong bonding
between cover and lining as well as firmly encapsulating the woven polyester.
Feature:
UV resistance, lighter and less bulky than most rubber discharge hose.
Resist abrasion and weathering, Resit kinking and stretching while in service.
More economic solutions replace NBR layflat hose and TPU layflat hose in some cases.
Application:
Suitable for use and recommended for industrial and agriculture applications in:
Dewatering and operations, Frac water transfer, Distribution of slurry and manure as
fertilizer. Fuel, oil and chemical transfer.
Inch | I.D. (mm) | Thickness (mm) | W.P. (Bar) | B.P. (Bar) | Length (m/roll) |
1 | 25.4 | 2.2-2.8 | 10-25 | 30-75 |
200m max |
2 | 38.1 | 2.2-3.0 | 10-25 | 30-75 | |
2 1/2 | 50.8 | 2.2-3.5 | 10-25 | 30-75 | |
3 | 63.5 | 2.2-3.5 | 10-25 | 30-75 | |
4 | 76.2 | 2.2-4.0 | 10-25 | 30-75 | |
5 | 102 | 2.2-4.0 | 10-25 | 30-75 | |
6 | 127 | 2.2-4.0 | 10-15 | 30-45 | |
8 | 152 | 2.2-4.0 | 10-15 | 30-45 | |
10 | 203 | 3.0-4.0 | 10 | 30 | |
12 | 254 | 3.0-4.0 | 10 | 30 |

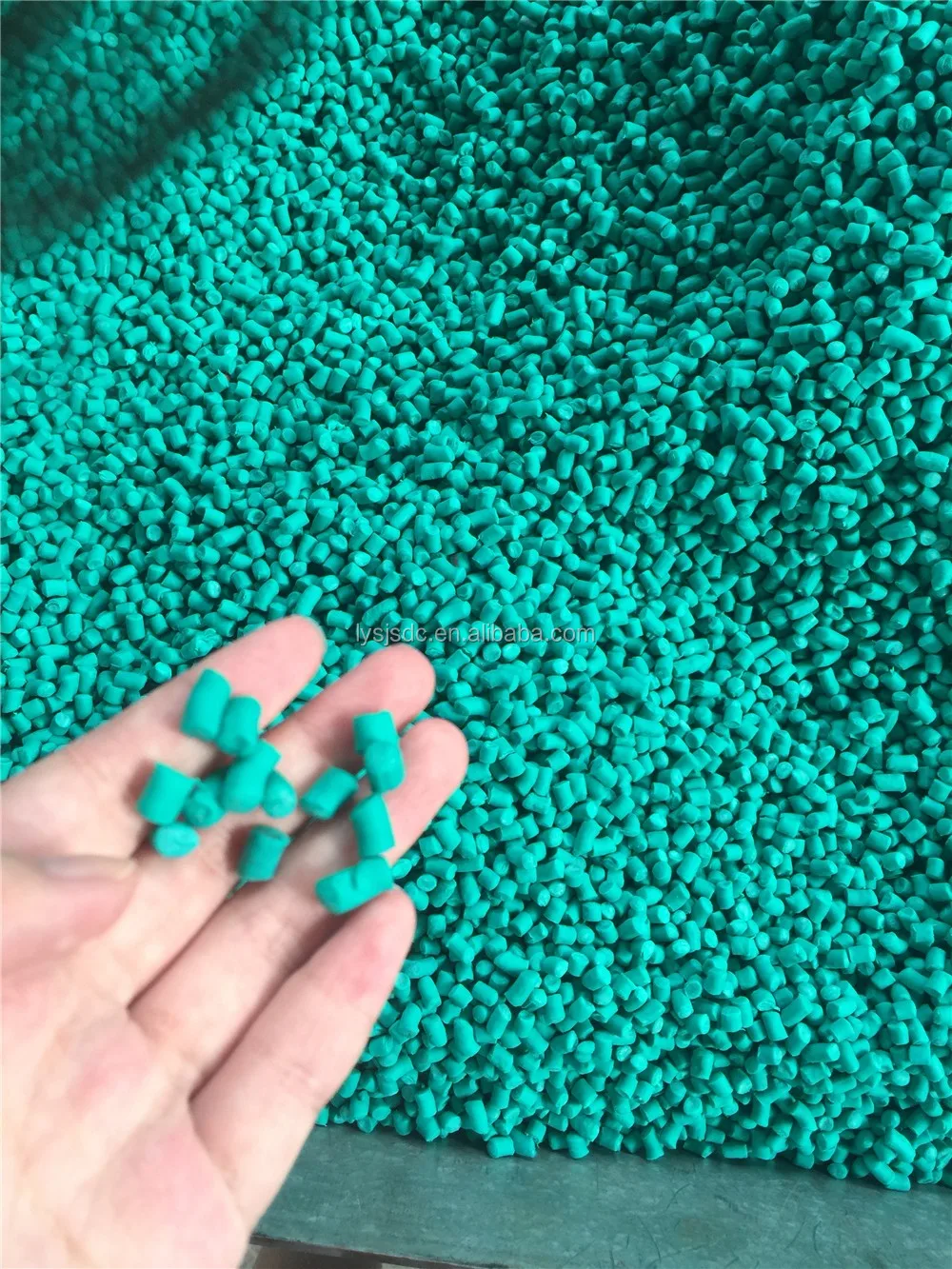

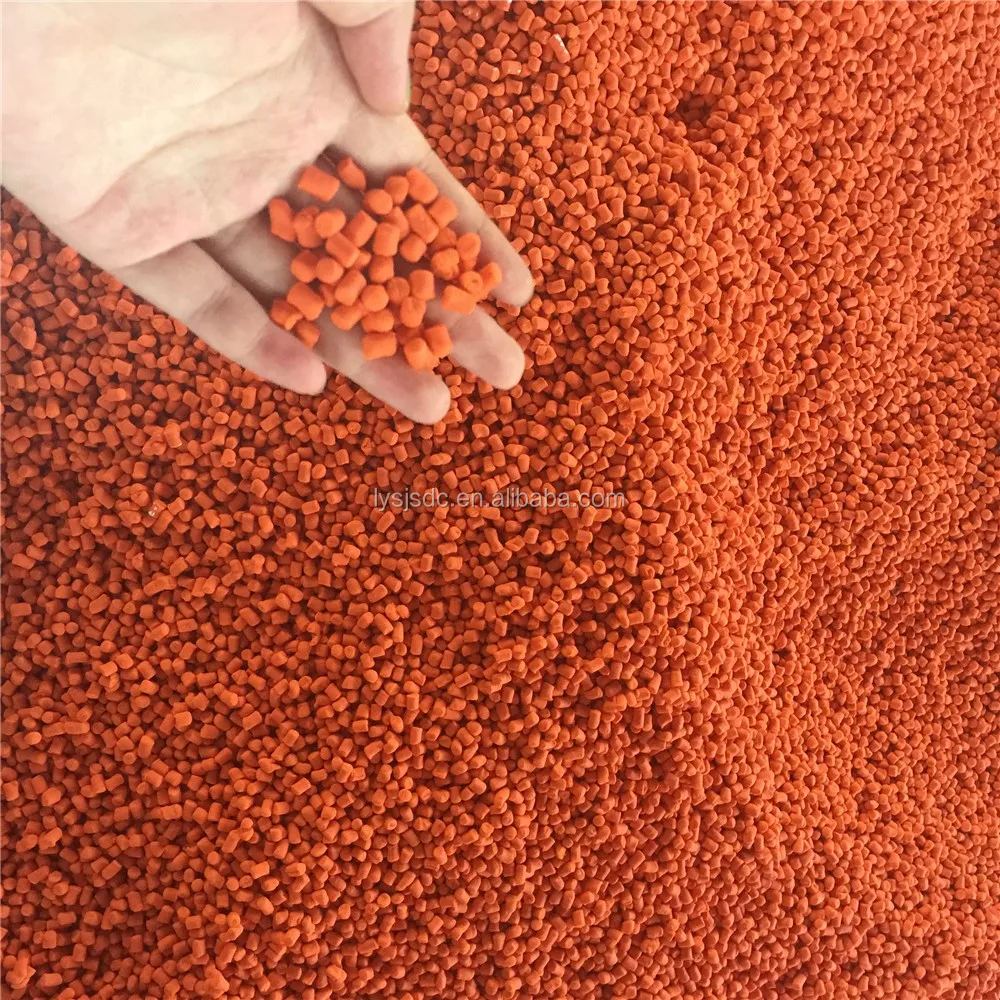

Raw material
Packaging & Shipping
Company Information
Our Services
1. Hose Specification
We can produce lay flat hose acording to your request on Inner Diameter, working pressure and length per roll.Before send you right quotation, pls kindly confirm with me.
2. About sample before order
We can supply 20-50cm free sample for your test or little longer, you just need to pay express freight or we can do freight collect.
3. MOQ
Usually our MOQ is 1000m each size, but for first cooperation we also accept little order, so any order is welcomed.
4.Shipping and delivery
We can send to you by sea/air/express according to you, ususally deliver within 7 working days after receive deposit.
5. About hose connector
we can also supply according to your request, following is our common connector:
