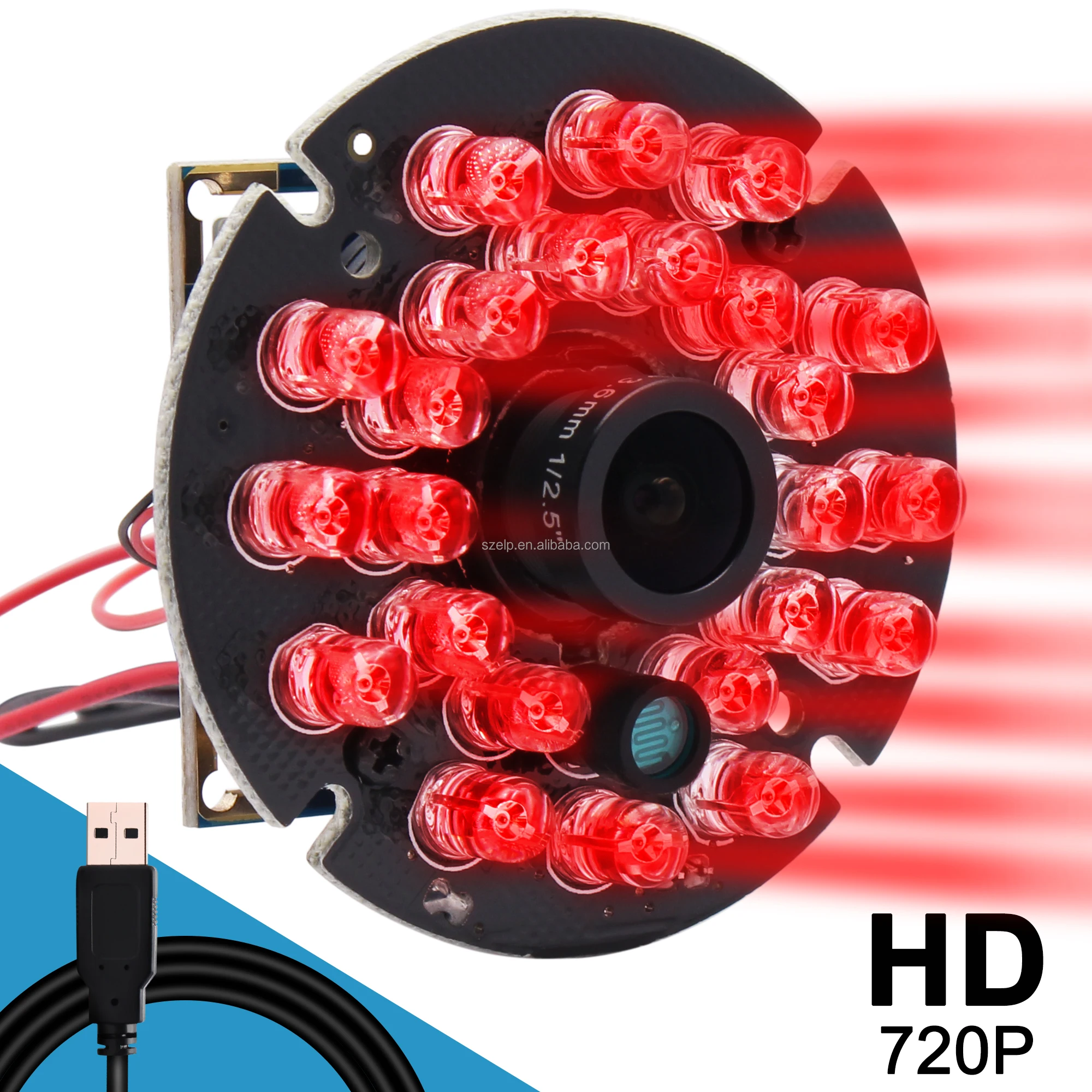

ELP HD 720P 1Megapixel IR Infrared USB Camera Module with 24PCS IR LEDs for Day and Night Vision ELP USB100W05MT RL36
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (60396955541):
Product Overview
Description
ELP HD 720P 1Megapixel IR Infrared USB Camera Module with 24PCS IR LEDs for Day and Night Vision ELP-USB100W05MT-RL36
Micro USB surveillance camera is more than a USB computer camera or a traditional CCTV surveillance Camera. It comes with a USB port and easy-operated software. Users don’t need to install any drive. Just after plug the camera into a computer USB port and run the software, user can get video and make surveillance and recording.
Features
* 1MP 720P USB 2.0 Camera module
* 1/4” NT99141 Color CMOS sensor for high quality image
* High frame rate - support 720P 30fps MJPEG video stream
* With HD 3.6mm M12 lens

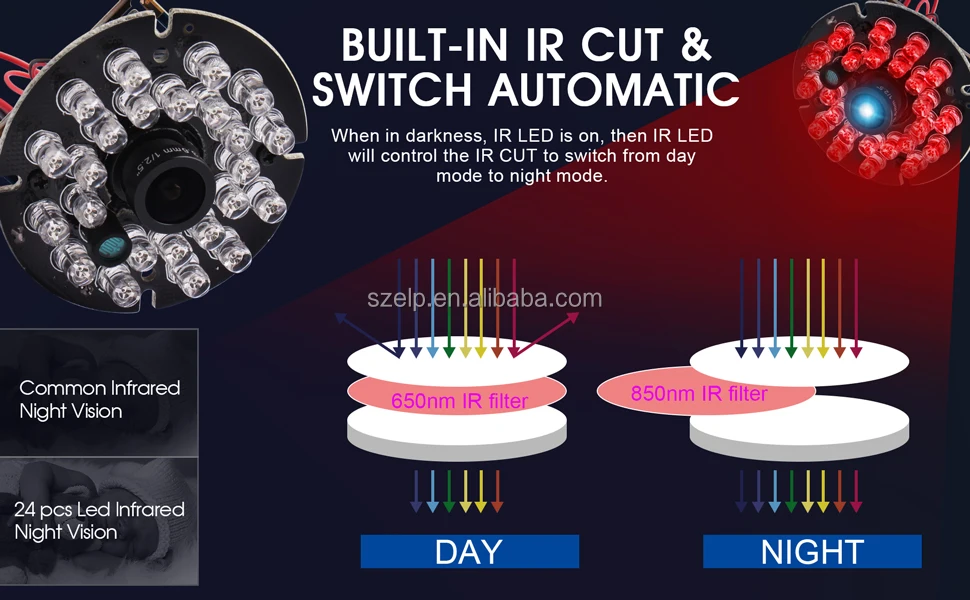

* Support IR CUT & IR LED for no color distortion image day & night
* With microphone for audio recording
* MJPEG/YUY2 dual video format optional
* Mini size 38x38/32x32mm -for embedded application
* High speed USB 2.0 plug&play port -suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
Specifications
Optional models | ELP-USB100W05MT-RL36 |
Sensor | NT99141 |
Lens size | 1/4 inch |
Pixel Size | 3.0um X 3.0um |
Image Area | 3888 µm x 2430 µm |
Max. Resolution | 1280(H)X720(V) |
Compression Format | MJPEG / YUV2(YUYV) |
Resolution & frame | 1280X720 MJPEG@ 30fps YUY2@10fps/ 960X720MJPEG@ 30fps YUY2@15fps |
S/N Ratio | 40dB |
Dynamic Range | 69dB |
Sensitivity | 3.7V/lux-sec@550nm |
Mini illumination | 0. 1lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class(UVC) |
Support OTG Protocol | USB2.0 OTG |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
Lens Parameter | Standard 3.6mm, optional 2.1/2.8/6/8/12mm lens |
Digital audio | High quality digital MIC, support single, dual channel |

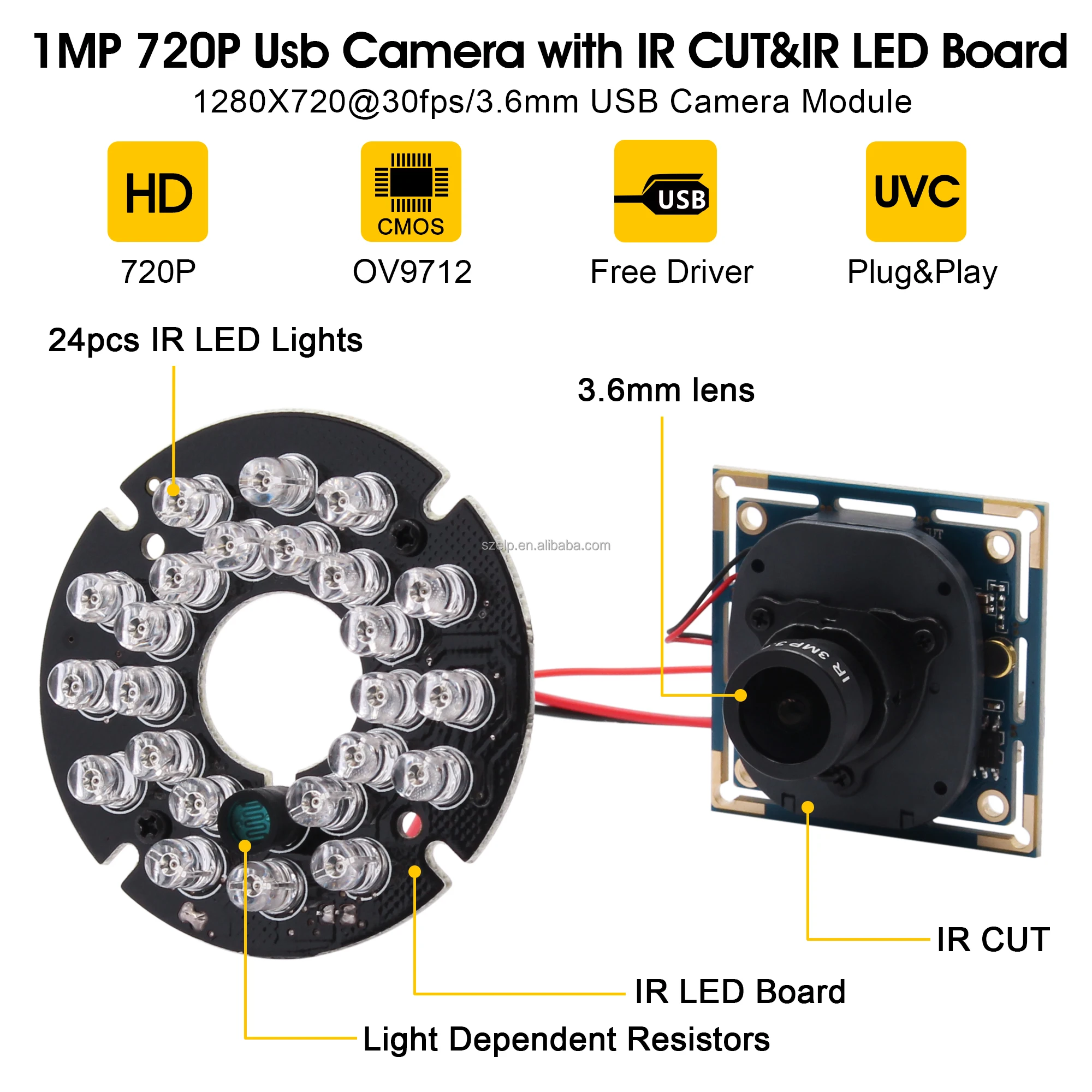

Night Vision | With IR CUT and 24pcs IR LED for day and night vision |
Power supply | USB BUS POWER 4P-2.0mm socket |
Power supply | DC5V |
Operating Voltage | 100mA~120mA |
Working current | `-10~70 °C |
Working temperature | `-20~85 °C |

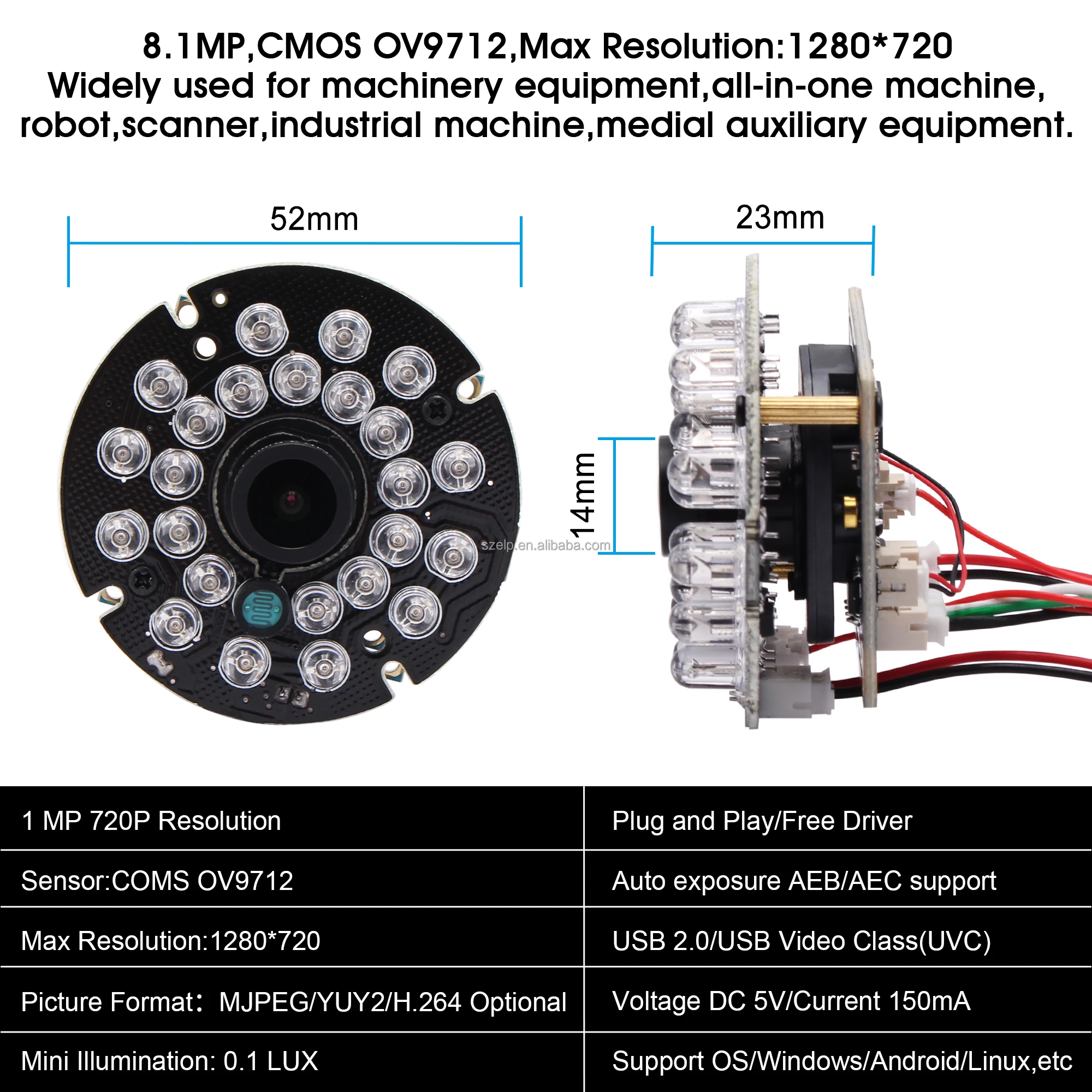

Board size /Weight | 38X38mm(Compatible 32X32mm)/ about 30g |
Cable | Standard 3M / optional 1M,2M,5M |
Operating system request | Win XP/Vista/Win7/Win8/Win10 |

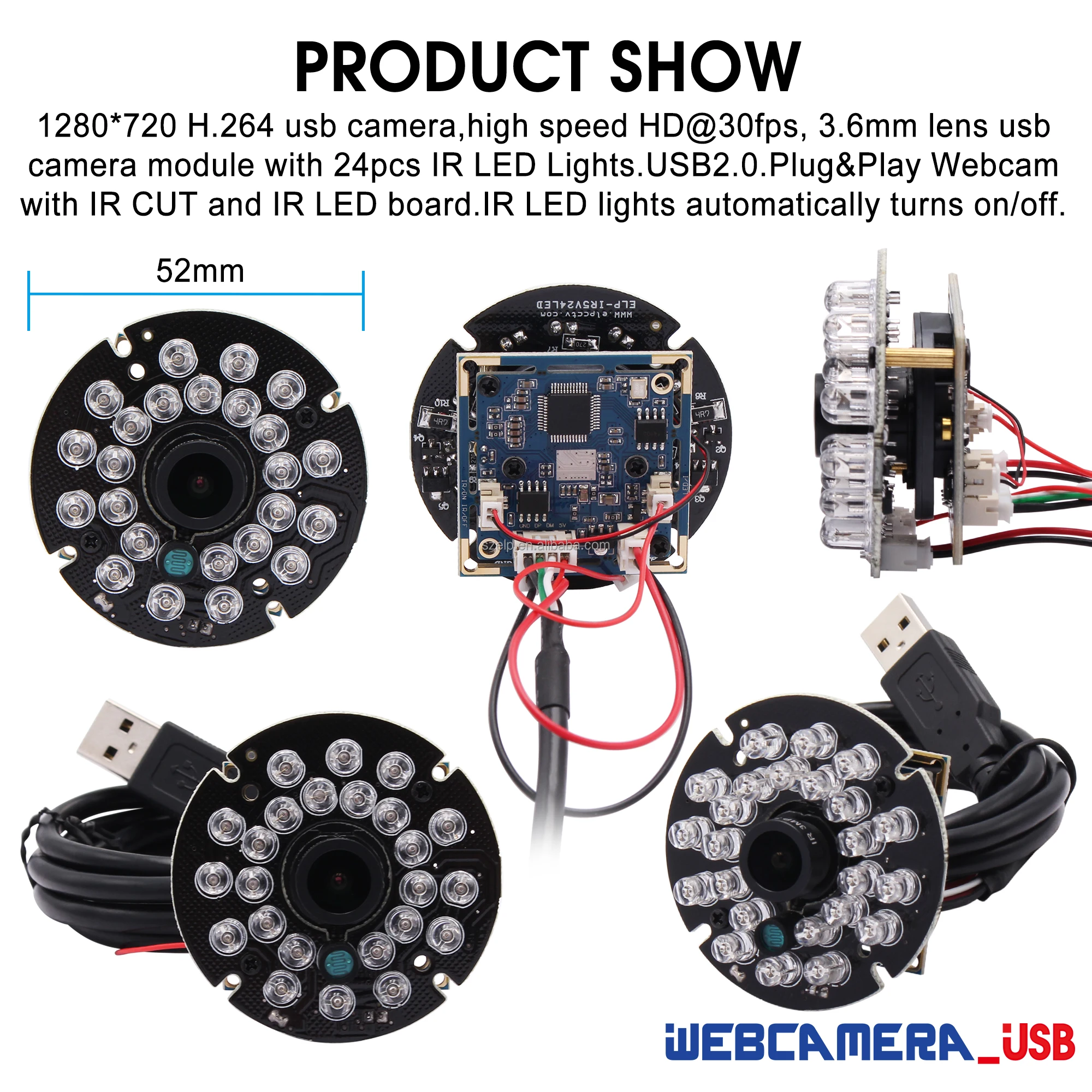

Product Display
Applications
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Related Products
Our USB Camera includes VGA 640X480,1MP,1.3MP,2MP,3MP,5MP and 8MP resolution.
Some features are showed as below. Just click and check !
Company Information
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 12 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
