Cast Iron Welding Electrodes AWS ENiFe C1

Product Overview

Description

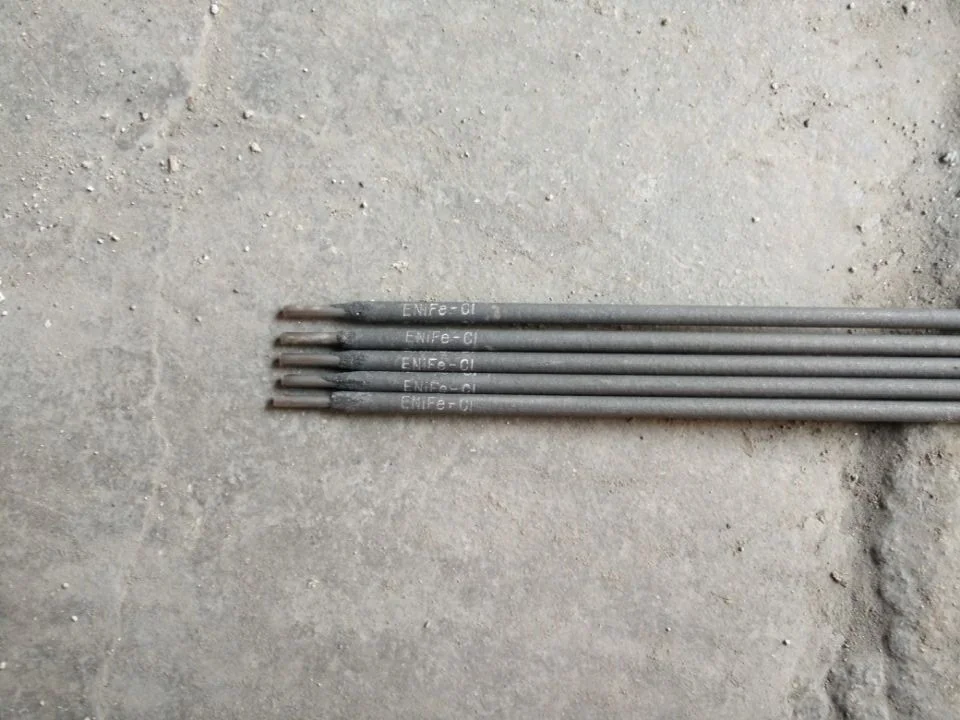

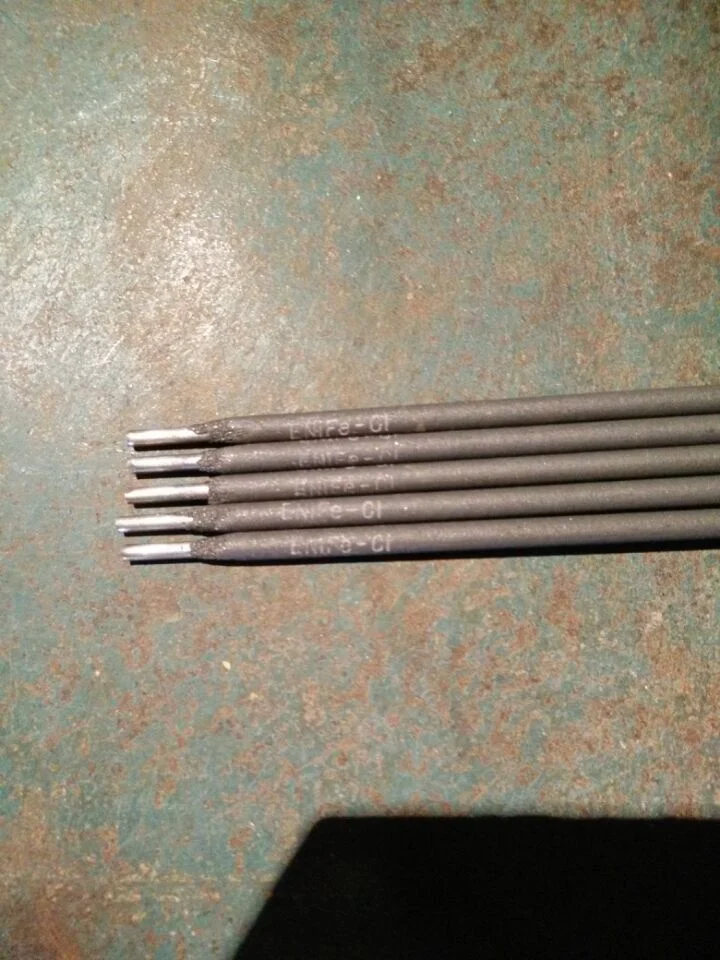

Cast Iron Welding Electrodes AWS ENiFe-C1

Cast Iron Welding Electrodes AWS ENiFe-C1 Introduction:





Introduction: Cast Iron Welding Electrodes AWS ENiFe-C1 is a kind of cast iron electrode with Ni-Fe alloy core wire and strong reducibility graphite type coating. It has some characteristics like high strength, good plasticity, low coefficient of linear expansion, etc. The crack-resistance for gray cast iron is similar with that of ENi-C1, but the crack-resistance for spheroidal graphite cast iron is higher than that of ENi-C1. It is also effective for cast iron with high phosphorus content (0.2%P). The machinability is a little worse than that of ENi-C1. Used for welding gray cast iron and spheroidal graphite cast iron under normal temperature or preheated a little (to about 200℃). AC/DC.



Cast Iron Welding Electrodes AWS ENiFe-C1 Application:



Suitable for repair welding on key high strength gray cast iron and spheroidal graphite cast iron, such as cylinders, engine bearers, gears, rollers, etc.



Cast Iron Welding Electrodes AWS ENiFe-C1 Specifications:

Chemical Composition of Deposited Metal (%)
Chemical Composition	C	Mn	Si	S	Ni	Fe	Total Quantity of Other Elements
Guarantee Value	≤2.00	≤1.80	≤2.50	≤0.030	45~60	Balance	≤1.00
