JieLong DC 600kg electric rolling door motor for roller shutter with backup battery

Product Overview

Description



   DC 600kg electric rolling door motor for roller shutter with backup battery





 JIELONG Shutter Motors Ltd estableshed in 1988, Focus on Industrial shutter door opener, Fireproof door motor, Rolling shutter door motor and their accessories. Following accumulated technical experience, management system for more than 27 years, JIELONG has become the leading manufacturer of rolling shutter door in China.





PRODUCTS FEATURES:

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

• Full function with JL-ERC series motors but more useful.


• Powerful, lower noise, long useful life.

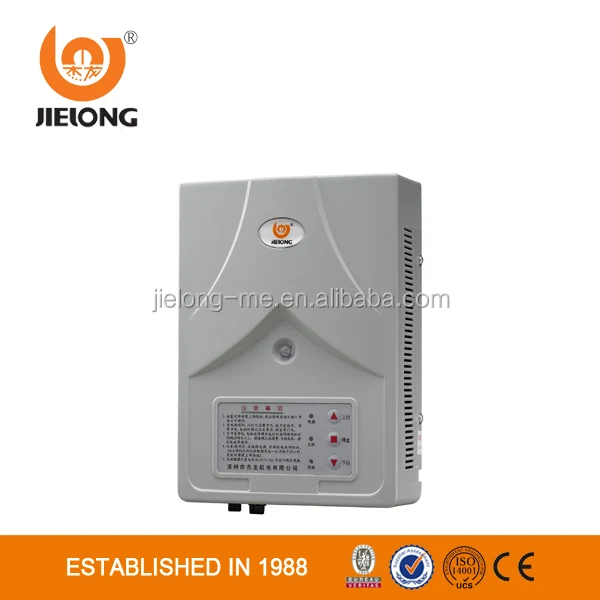

• With 12V 4.5Ah battery, when energy lost automatically display and charged.


• When the power off, it can automatically switch to battery powered for motor, the battery ensures can be working 10 times with full power.


• Control system made by microchip.


• Easy to install and maintain.









JL-ECRD motor specifications and technical parameters
Model	Rated  output  torque  (N.m)	Rated  output  speed  (r/min)	Motor   power     (W)	Rated  Voltage  (V/Hz)	Motor		Standard roll up parameter
							Drum  tube  outer  diameter  (mm)	Max  lifting  power  (kg.f)	Max lifting height
					Input Voltage (V)	Rated Current (A)			(m)
									Profile thickness
									(mm)
									15	20
ECRD-225	225	3.5	180	220/50	24	12	114	400	6	7
ECRD-412	412	3.8	300	220/50	24	15	140	600	6	7
ECRD-647	647	3	330	220/50	2	19	165	800	6	7

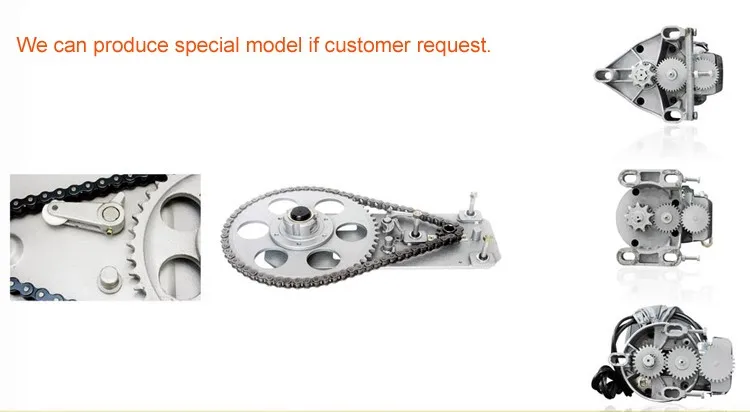

ECR MOTOR ACCESSORIES:

	bracket board, side board, 1 big sprocket wheel, 1 small sprocket wheel, 3 discs, 1 chian, 1 bearing, 1 shaft
	Within 12V 4.5ah battery; Woking 10 times with full power; Remote control with long distance; Can be connected with infrared device; Battery energy won't be damaged while the motor use AC power.
