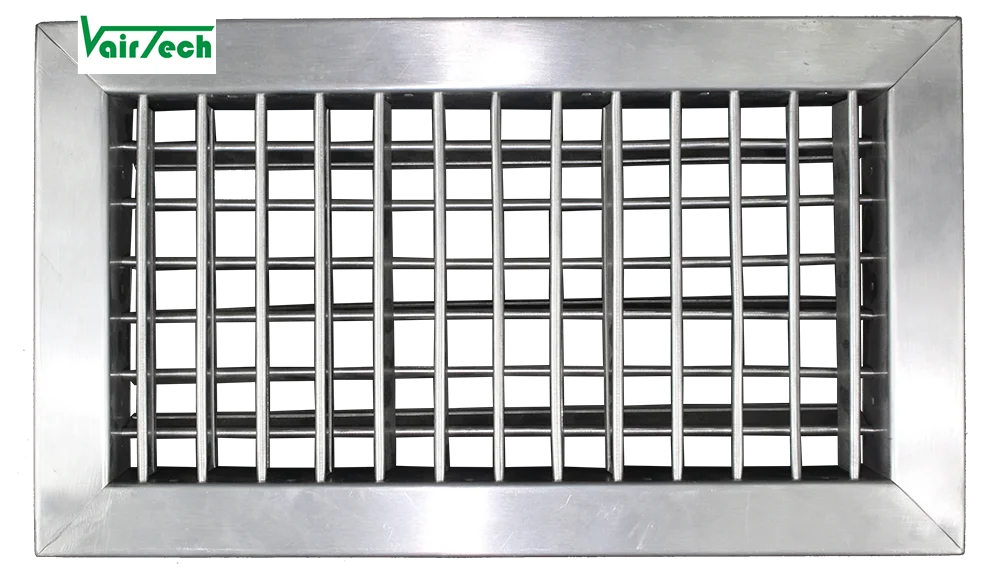

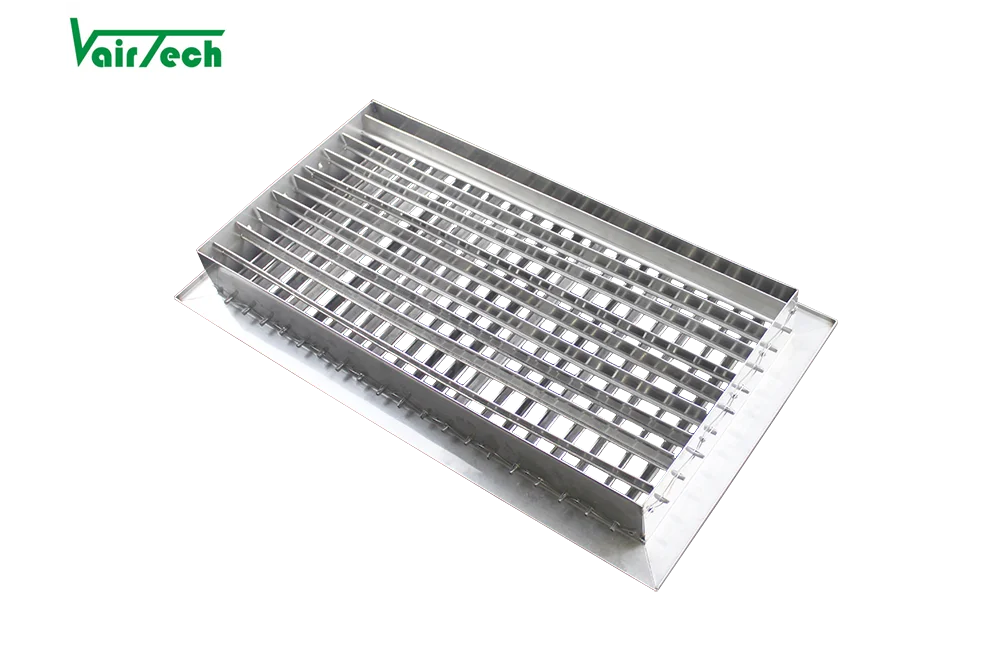

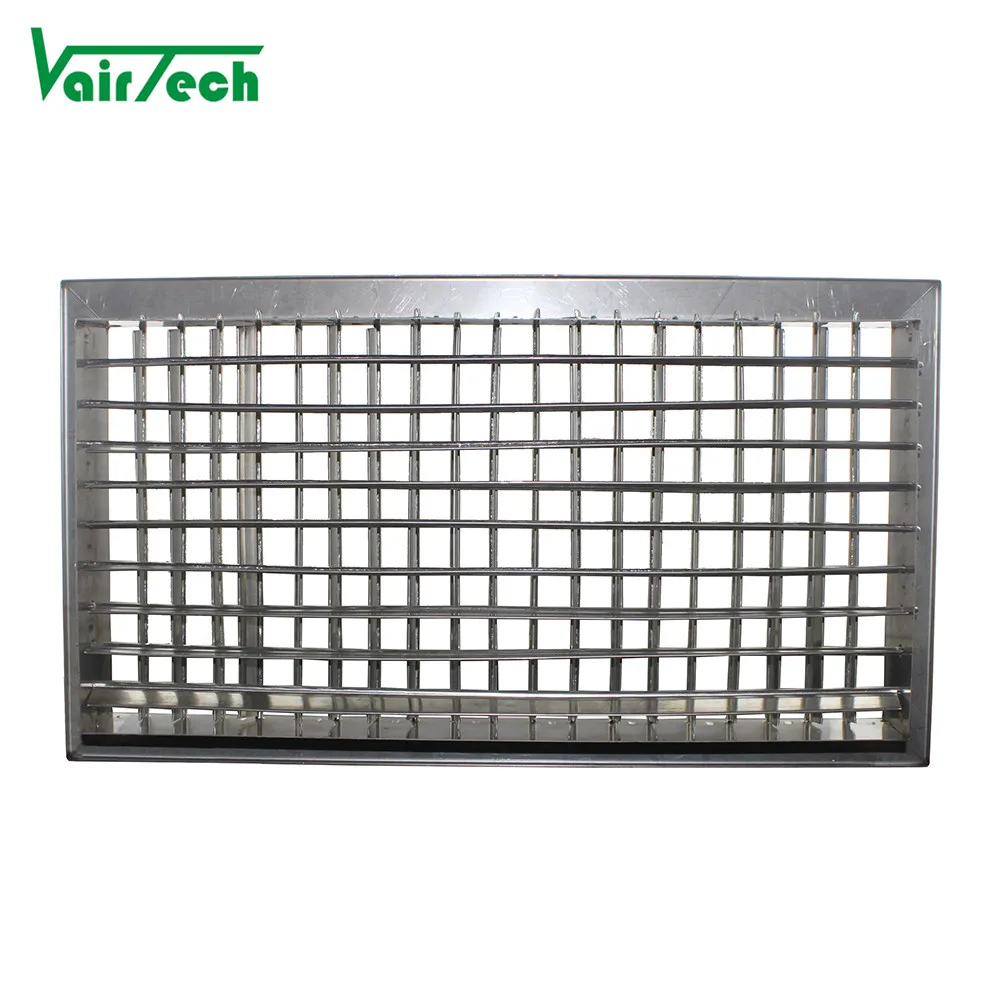

Modern Design HVAC Stainless Steel Registers and Grilles Air Louvers Vent for Air Conditioning Ventilation

Product Overview

Description

HVAC stainless steel  registers and grilles air louvers vent

 Construction:

• Frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange


• Blade: Aerofoil blades from aluminum profile


• Blade spacing: 20mm as standard



Description:

• The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.


• Grilles have two sets parrallet blades,

          DDG-SV: vertical on the front and the horizontal at the rear,

          DDG-SH: horizontal on the front and the vertical at the rear

• Blades can be adjusted mannually and individually to provide air deflection in both horizontal and vertical planes.


• Maximum affective pressure areas can be achieved when the blades are positioned at 0 degree.



Surface Finish:

• Powder coated color finish as per RAL color

          standard color: RAL9016, 9010

• Natural anodized aluminum finish

Material thickness:

• Standard 1.0mm

Surface Finish:

• Any size available


• Overall face size = Neck size + 55mm


• Standard size:





Item	Neck size	Face size
DDG-S	200x200	255x255
DDG-S	400x200	455x255
DDG-S	600x200	655x255
DDG-S	600x300	655x355
DDG-S	1000x300	1055x355
