Digital RGBW LED Strip SK6812 LED Strip 4000k 4500k

Share on (60397381057):


Price:$3.80 - $5.80

Quantity:


Product Overview

Description


Digital RGBW LED Strip SK6812 LED Strip 4000k-4500k






Product Description


1. What is better than smart RGB LEDs? Smart RGB+White LEDS! These sk6812rgbw leds now have 4 LEDs in them (Red, Green, Blue and White) for excellent lighting effects. These LED strips are fun and glowy, and you can control each LED individually.





2. This is 5v programmable RGBW led strip with a clear casing and white / black flex pcb, we also have RGBW strips of 30 led/m and 144 led/m.





3. The LED is "split", one half is the RGB you know and love, the other half is a white LED with a yellow phosphor. Unlit, it resembles an eg yolk. Lit up these are insanely bright and canbe controlled with 8-bit PWM per channel(8*4 chaneld= 32-bit color overall). Great for adding lots of colorful + white dots t your project!





4. SK6812RGBW LEDS USE 800 KHz protocol so specific timing is required. On ws2812b leds, the PWM RATE IS 400 Hz,which works well but is noticable if the LED is moving. In comparison, APA102 LEDs have a 20 KHz PWM rate, so even when moving the LED around, you won't see the pixelation, the blending is very smooth. We recommend APA102 led strips if you can use them.





5.  Pleasae note, 5v programmable RGBW led strip isn't the led strip with RGB LED + White LED or every 3pcs RGBW LEDs per copper unit.You can find the comparison between these RGBW led strips that makes you clearly.





Product features


 1.  This 5v programmable RGBW led strip noramlly is 5 meter long flexible strip of 60 individually controllable RGBW Leds, the 'W' means "white" contains Warm white , Netrual White, Cool White.


 2.  The RGBW led strip uses the SK6812RGBW chip, we have this RGBW led digital strips of  30 leds, 60 leds and 144 leds/m.


 3.  The LEDs are controlled by shift-registers built into each lamp. In order to drive the strip you need 5v, GND and Data - easy! Once the registers are loaded, you can stop sending data.


 4.  Strip can be cut into sections and still work, or, if you need something longer, they can be daisy chained with other strips to build huge displays capable of basic video frame rates

5.  These strips have a maximum voltage of 5V - anything higher will blow them up!





Comparison


 Digital RGBW LED Strip SK6812 LED Strip 4000k-4500k Example Compare between 60 leds RGBW led strip































































Product






Digital RGBW LED strip



RGBW LED strip



RGB LED + White LED strip



Operating voltage






DC5V



DC12V / 24V



DC12V



Integrated IC driverr






SK6812RGBW



TM1814



none



LEDs quantity






60 RGBW leds



60 RGBW leds



30 RGB leds + 30 White LEDs



Control model






Addressable / Digital



Every 3 pcs / 6 pcs leds



RGB changing + static white color


















Cuttable length



16.66mm



5cm / 10cm



10cm



Bare board color



White and Black



White



White



Standard length






5m/roll



5m/roll



5m/roll









Detailed Images

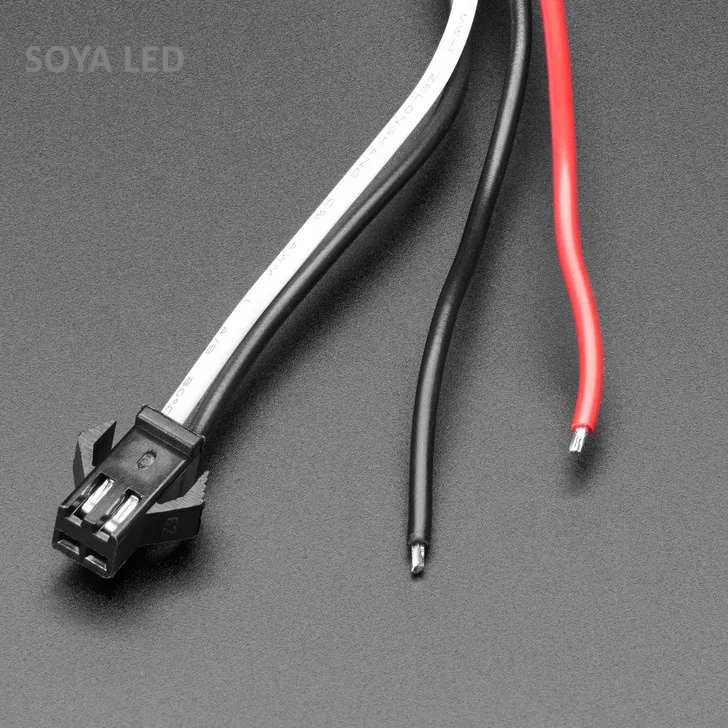

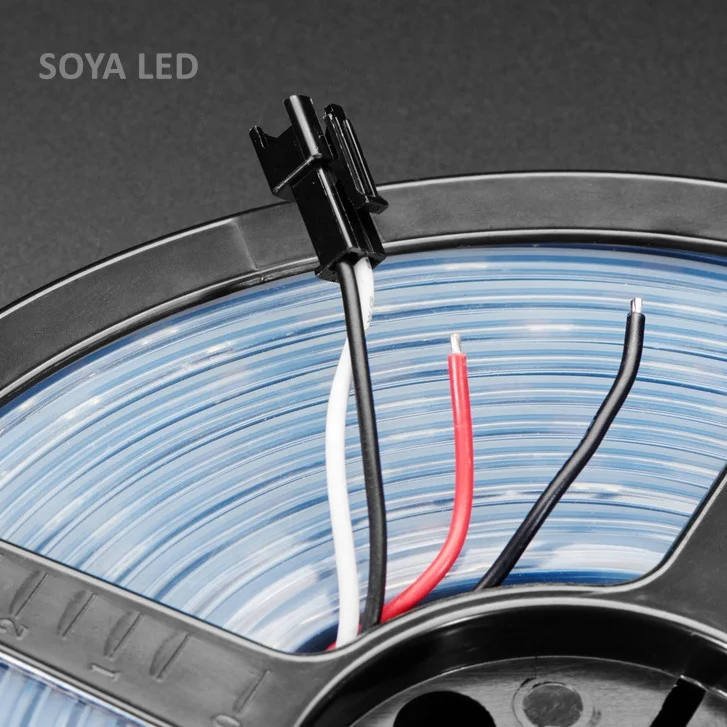

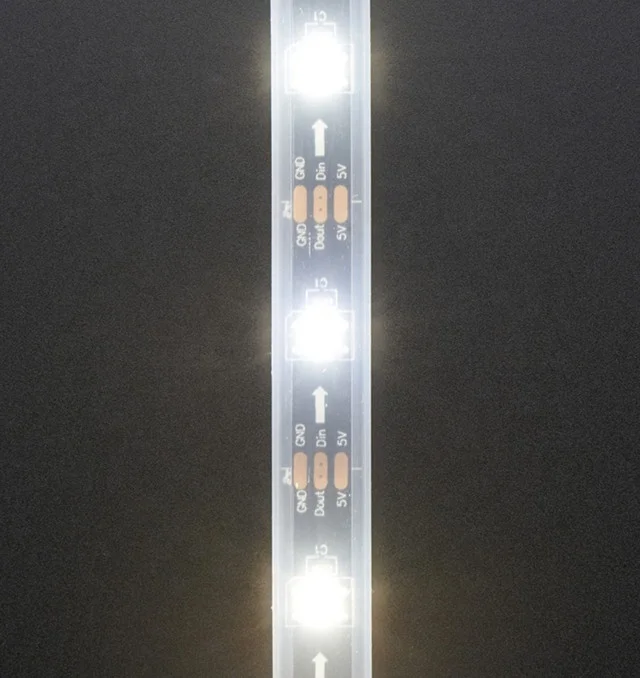

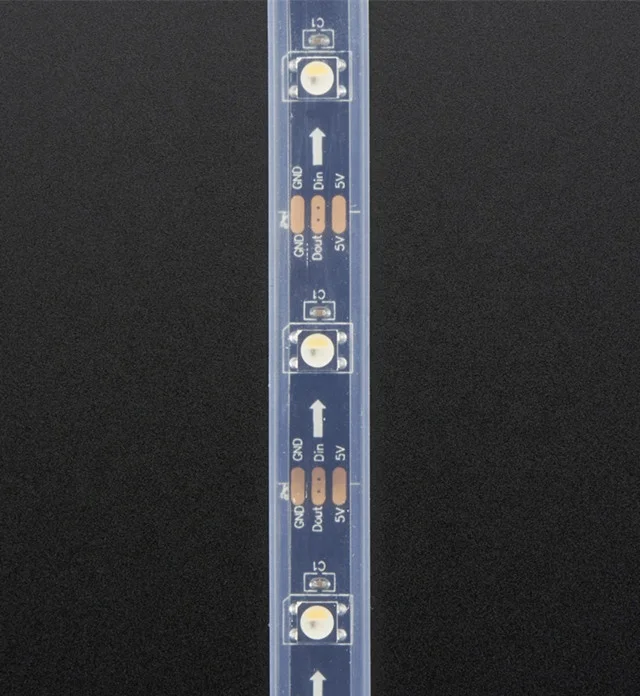

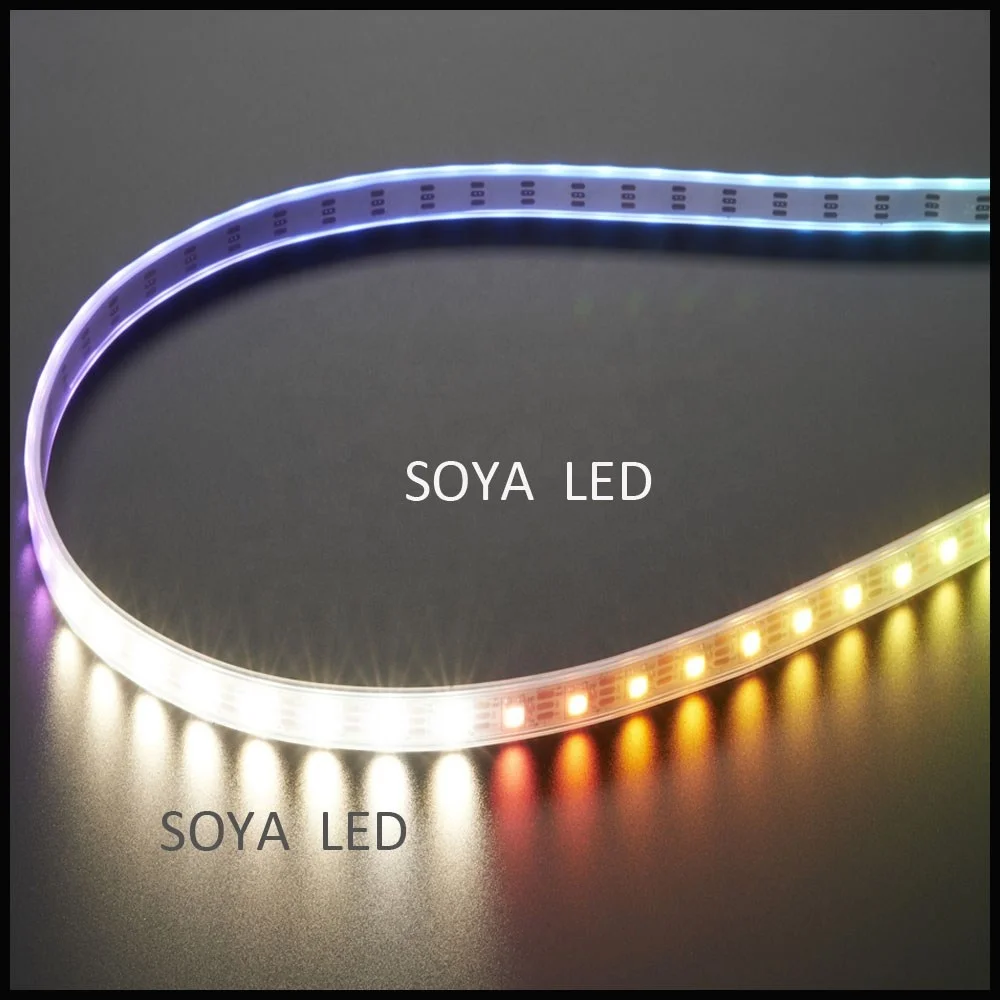

Digital RGBW LED Strip SK6812 LED Strip 4000k-4500k detailed imagesaddressable rgbw led strip.jpg


sk6812rgbw led stripsk6812 rgbw led stripsk6812 rgbw led strip 2addressable rgbw led strip 6







Trade Terms


1. Payment Terms:


T/T, Western Union, Aliexpress Escrow



2. Lead Time:


Usually we had materials in stock, regular order delivery time 1--7days after the profoma invoice paid,


OEM products:  10--15days (Customized PCB board).


3.Warranty:


2 years warranty since the data of purchase our LED products.


4. Delivery Way:


DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc
