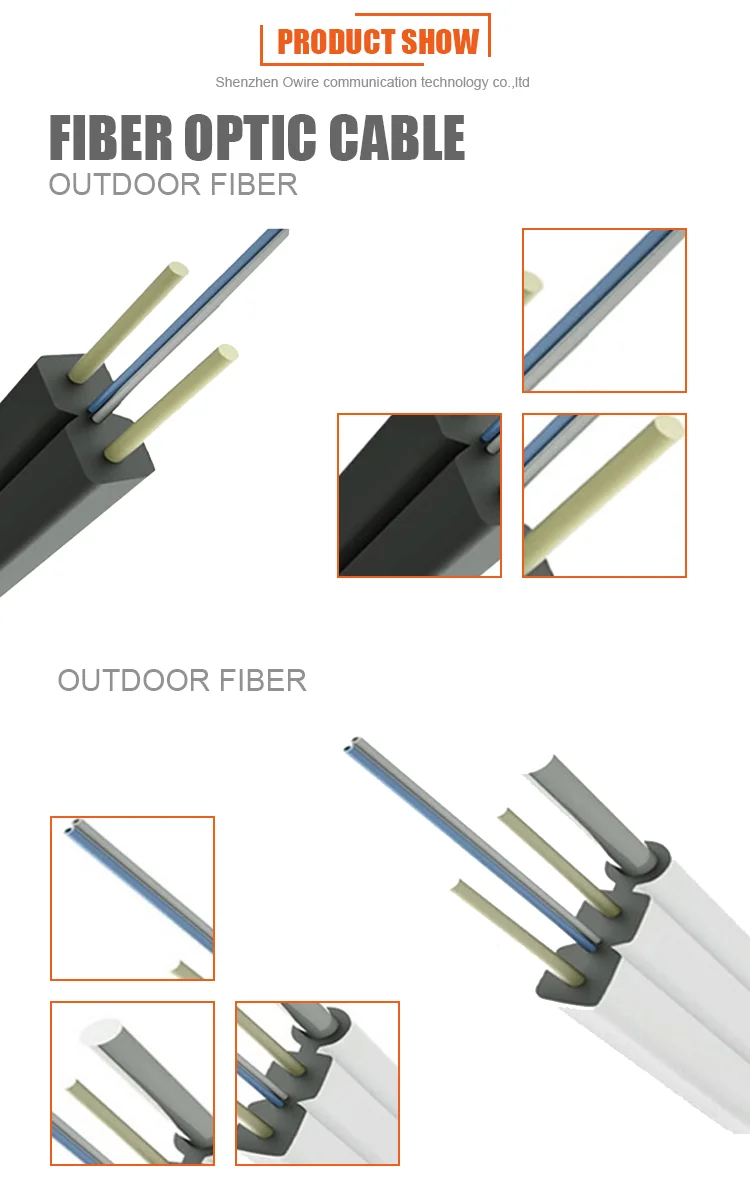

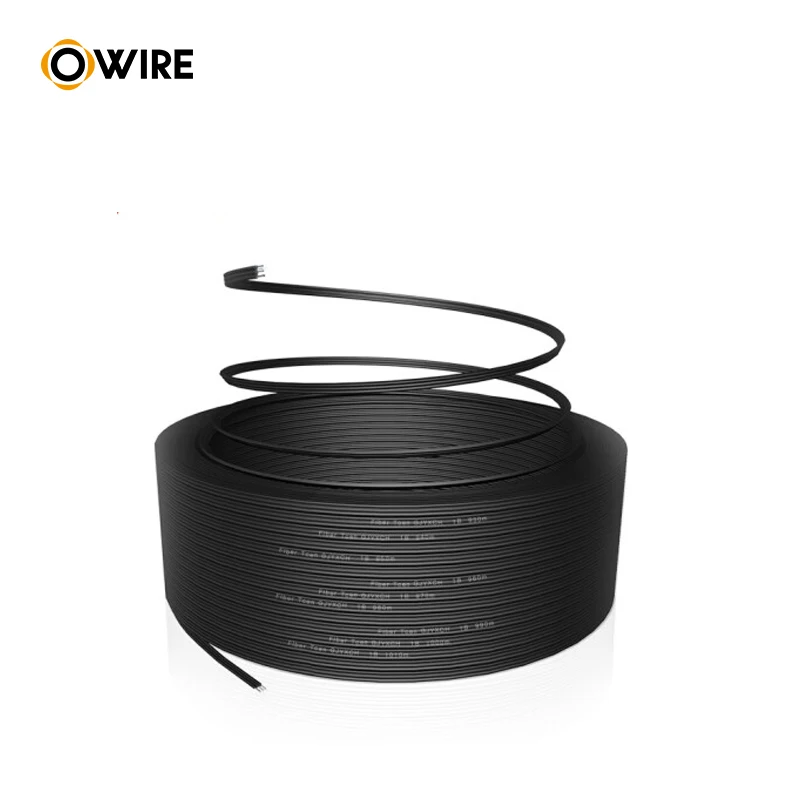

Shenzhen Factory Cheap Price Aerail Cable 2 Core FTTH Optical Fiber Cable
Characteristic
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property;
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.
Simple structure, light weight and high practicability;
Novel flute design, easily strip and splice, simplify the installation and maintenance
Geometrical Characteristics
|
Fiber Core |
1 |
2 |
4 |
6 |
|
Cable Dimension(mm) |
2.0x5.0 |
2.0x5.0 |
2.0x5.5 |
2.0x6.0 |
|
Cable Weight (kg/km) |
20 |
20 |
21 |
21 |
Mechanical Characteristics
|
Tensile strength(N) |
Long Term |
60 |
|
Short Term |
120 |
|
|
Bending Radius(CM) |
Dynamic |
35 |
|
Static |
15 |
Fiber
|
Fiber Type(core/cladding dimension) |
G.657A,G.652D |
Transmission Characteristics
|
|
SMF |
|
|
1310/1550(nm) |
|
Attenuation(db/km) |
≤0.4/0.30 |
|
Minimum Bandwidth(MHz·km) |
----------------------- |
Environmental Characteristics
|
Storage Operating Temperature |
-20℃~+60℃ |
