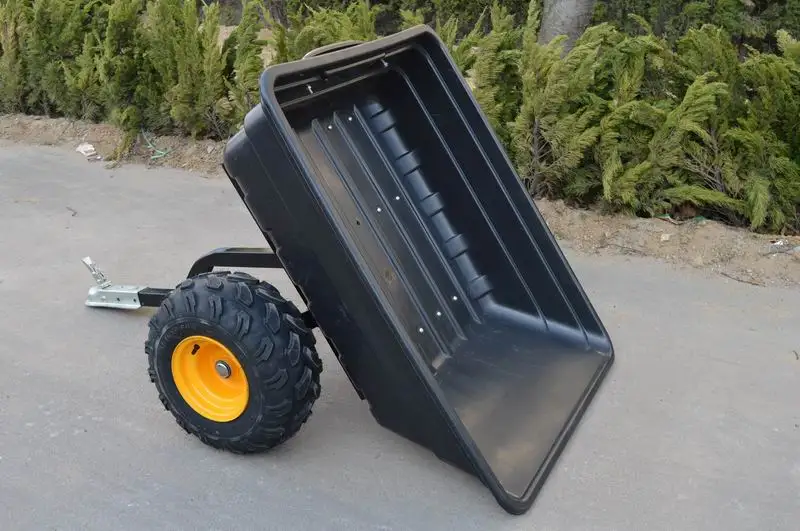

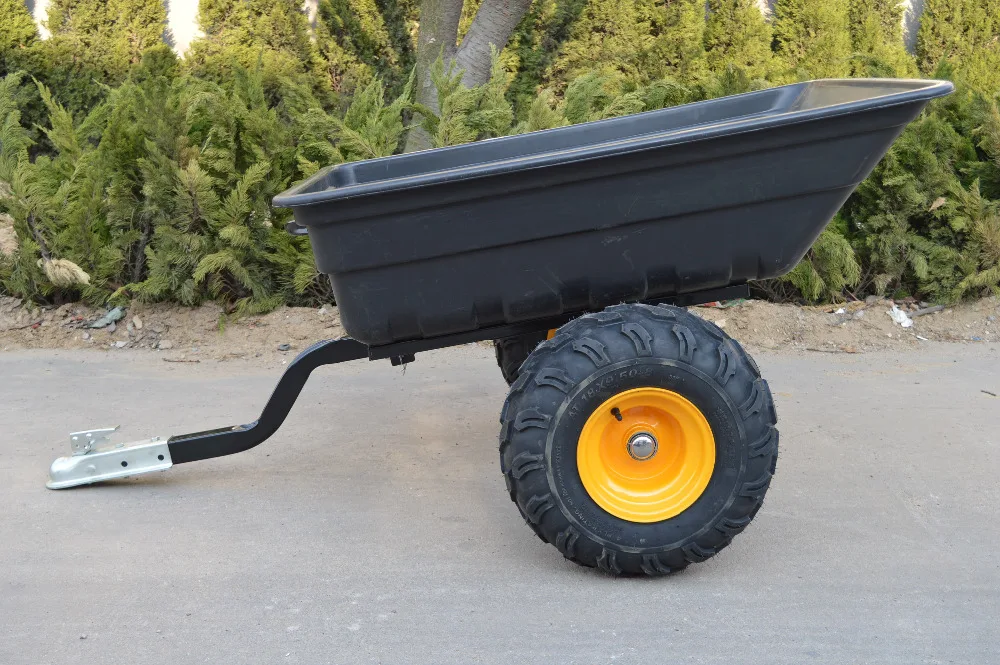

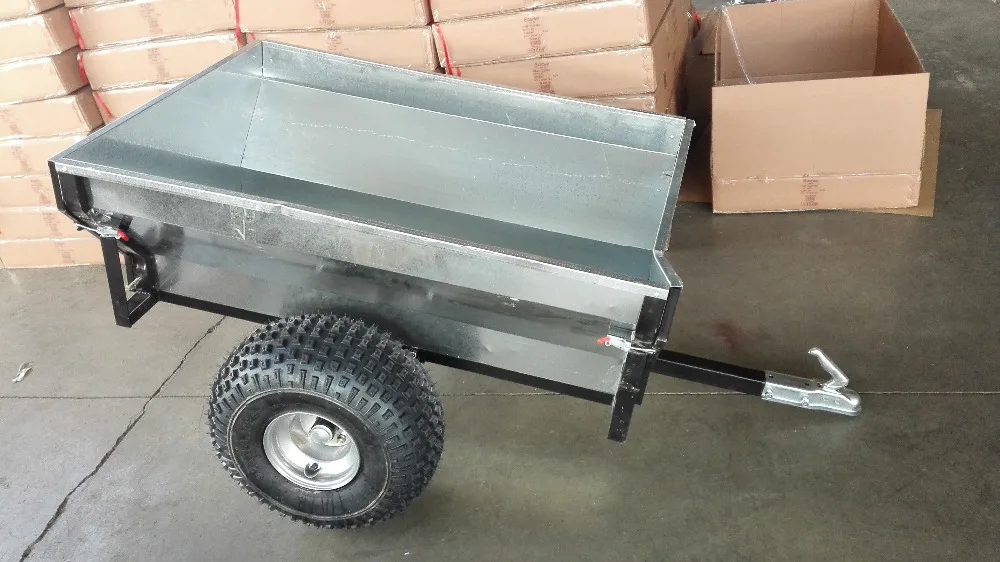

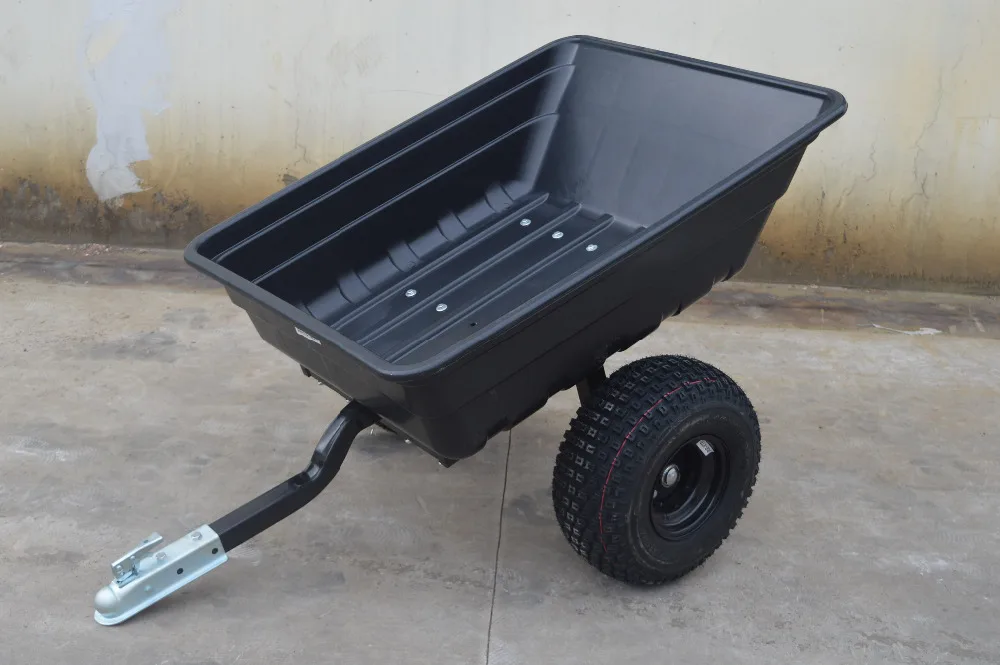

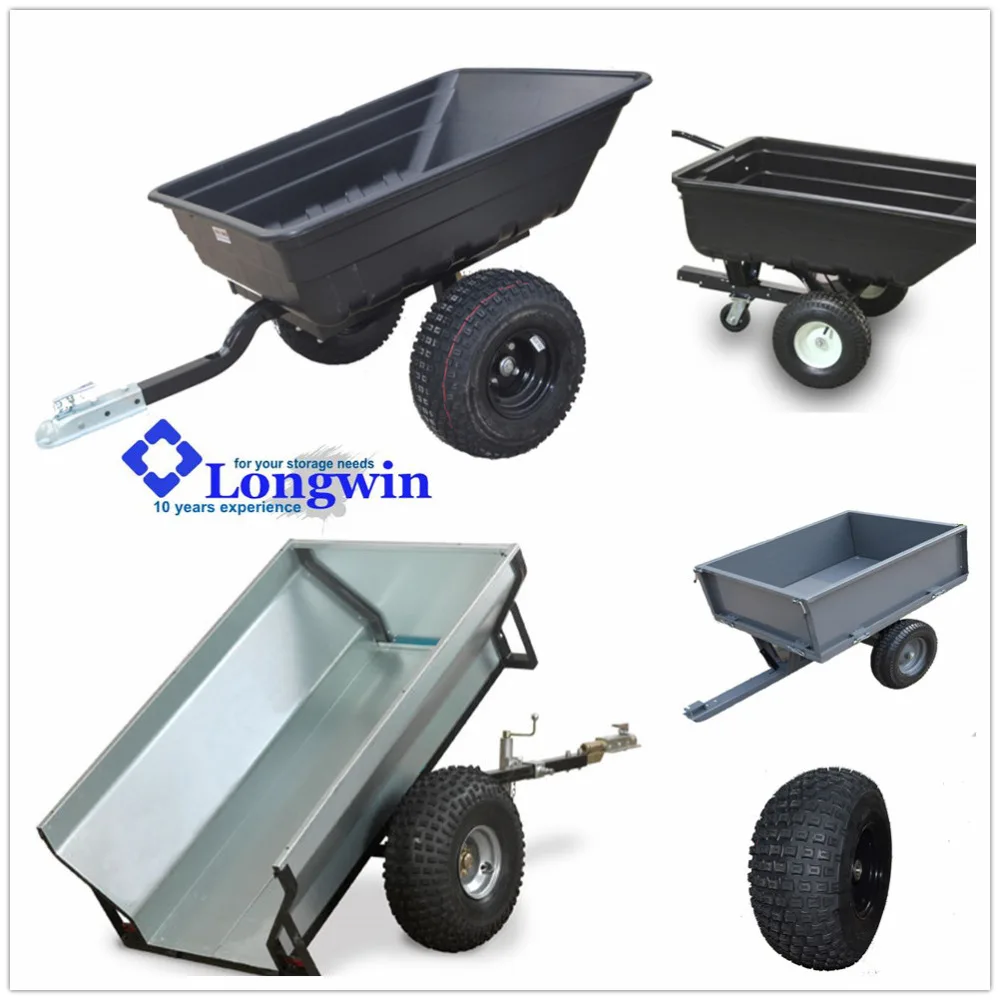

ATV trailer, farm ATV trailer, tipping log timber dump ATV trailer

1) Wall Extenders: ptional wall extenders contain lighter materials and let you pile them high. Adds 12" to the height of the Versa-Trailer's walls.

2) Winch-assisted DumpingAdopting: Many so-called "dump" trailers have such a shallow tilt to their dump action that you have to shovel them out or unload them by hand

3) Removable End Panels:  The end panels come off in seconds, without tools, for carrying log loads or for dumping.

4) Pivoting Hitch: The pivoting hitch allows your towing vehicle and the trailer to ride independently over rough terrain without putting torque on the tongue or hitch

5)Pivoting Jack Stand : Raises or lowers the tongue, for hitching to your towing vehicle, without straining your back

6)Steel Guards: Tire valves are protected from rocks, roots and stumps, so you can take the trailer into woodlots, on trails, or through meadows without worry

ATV BOX TRAILER, ATV DUMP TRAILER
Box size	Length	mm	1500
	Width	mm	1000
	Height	mm	660
Body oversize	Lenght	mm	2700
	Width	mm	1560
	Height	mm	960
Specs	Wheel	Inch	22*11-8 off road tire
	Capacity	KG	540KG
	Draw bar length	mm	800

Product Application

Haul up to 1,000 lbs. with ease with the Half-Ton Trailer. Commercial-grade construction and heavy-duty materials make this trailer ideal for firewood, yard waste, lumber, and much more. Easily remove the end panels in seconds for dumping or carrying long loads such as branches or logs. Optional side wall extenders contain lighter materials and allow you to pile them high while they remain secured. Steep 35 degree dump angle ensures minimal effort to deposit any load in your desired location. No more shoveling!

Detailed Images



Pivoting Hitch

The pivoting hitch allows your towing vehicle and the trailer to ride independently over rough terrain without putting torque on the tongue or hitch.



Pivoting Jack Stand

Raises or lowers the tongue, for hitching to your towing vehicle, without straining your back.



Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

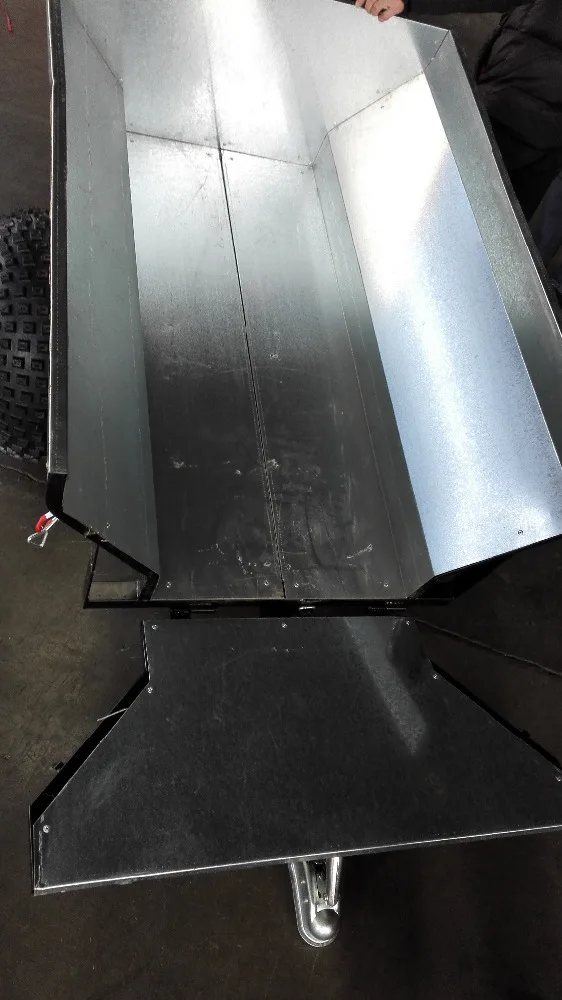

Easy removed back door

The back door easy removed to drop

Axle.

22*11-8 off road tire with Axle.

Packing & Delivery

Packaging
Size	130 (L) * 940 (W) * 300 (D)CM
Weight	49KG
Packaging Details	plastic ATV trailer frame in bulk or whole trailer in a strong box

Packaging
Size	160 (L) * 110 (W) * 600 (D)CM
Weight	150KG
Packaging Details	Box trailer in Pallet 26pcs/ 20'GP 54pcs/40'GP
