stainless steel pipe clamp union
- Category: >>>
- Supplier: Shanghai Kaiquan Machine Valve Co. Ltd.
Share on (60398364321):
Product Overview
Description
stainless steel pipe clamp union
sanitary stainless steel pipe clamp ferrule
Pipe fittings clamp ferrule sanitary stainless steel clamp
Pipe fittings clamp ferrule sanitary stainless steel clamp
sanitary stainless steel clamp and ferrule Pipe fittings

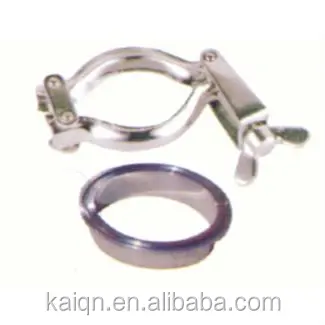

Clamp, clamp and ferrule set

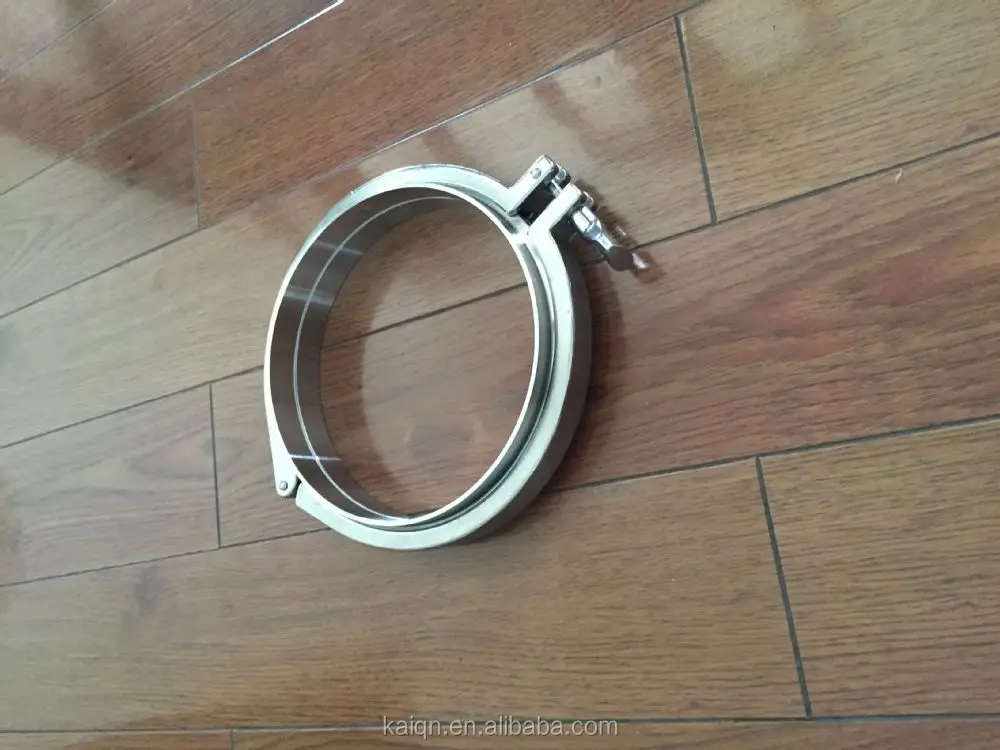

Stainless steel pipe clamp
Product Description
sanitary stainless steel pipe clamp ferrule
sanitary stainless steel clamp and ferrule Pipe fittings
Stainless steel clamp
1). Size: 1/2”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”,3”,4”,6'',8'',10''
2). Ferrule Material: SS304 SS316L
3). Length: General 12.7/21.5/28.6mm 14WMP/14MMP/14AMP etc.
4).Connection: General be used together with Clamp
5). Design Standard: 3A,SMS,BPE,DIN ect sanitary
6). Surface treatment: Lathe car light OR Upon Request
7). Application:Chemical,Dairy,Beer ect sanitary industrial.
| Full Name | stainless steel clamp |
| Size | 1"-6" DN10-150 |
| Thickness | 1.5-4MM |
| Working pressure | 2-10 Bar |
| Working Temperature | -10~120 Degree |
| Polish | Mirror polish,dull/matte polish,sub-light,240 girt,400 grit |
| Connection | Welded, calmp, male, with union |
| Standard | 3A,DIN,IDF/ISO,SMS etc. |
| Packing | Shrink wrapped-carton-pallet or in seaworthy wooden cased |
| Shipping mode | By sea,by air,by express |
| Delivery time | Depends on quantities you need |
| Application | dairy,food,beer,beverage,pharmacy,cosmetic and so on |
| Special Design | we can produce according to your drawings |
| Sample Policy | buyer bear the air fee, but this fee will be reduced from order |

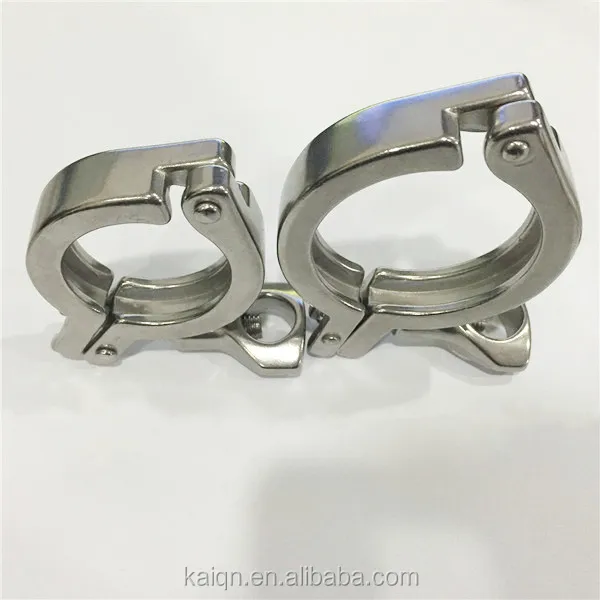

Sanitary stainless steel Clamp

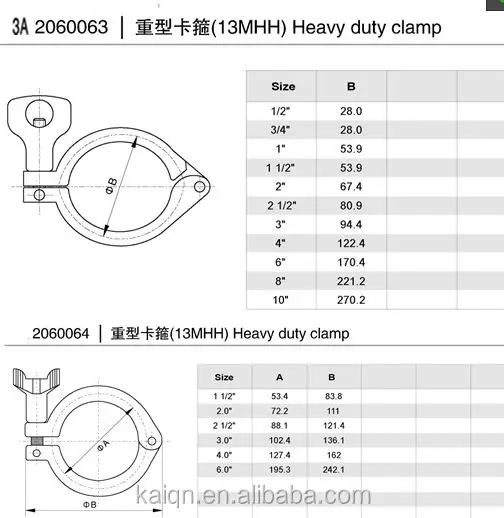

- TriClamp size is determined by the B, Not by the A.
TriClamp size | Ferrule O.D "B" in photo above | Pipe I.D "A" in photo above |
| 1" | 25.4mm/34mm/50.5mm | 12.7mm |
| 1" | 25.4mm/34mm/50.5mm | 19mm |
| 2" | 34mm/50.5mm | 25mm |
| 2" | 50.5mm | 32mm/38mm |
| 2.5" | 64mm | 45mm/51mm |
| 3" | 77.5mm | 57mm/63mm |
| 3.5" | 91mm | 76mm |
| 4" | 106mm | 89mm |
| 4.5" | 119mm | 102mm |
A triClamp connection consists of two ferrules Jointed by a clamp with a gasket.
