Product Overview

Description



Product Description

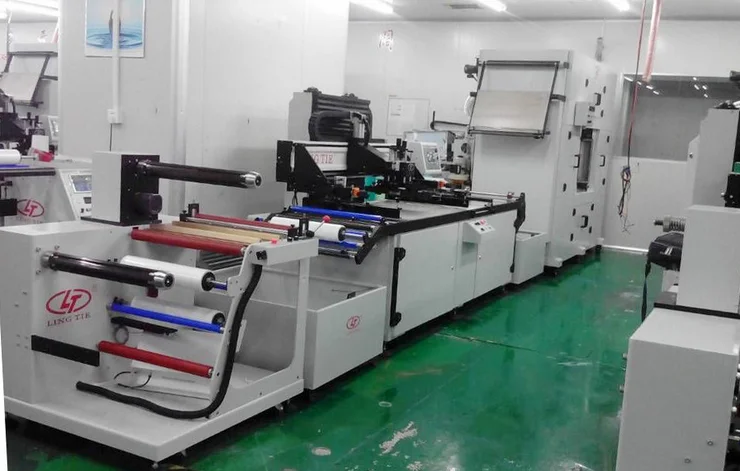

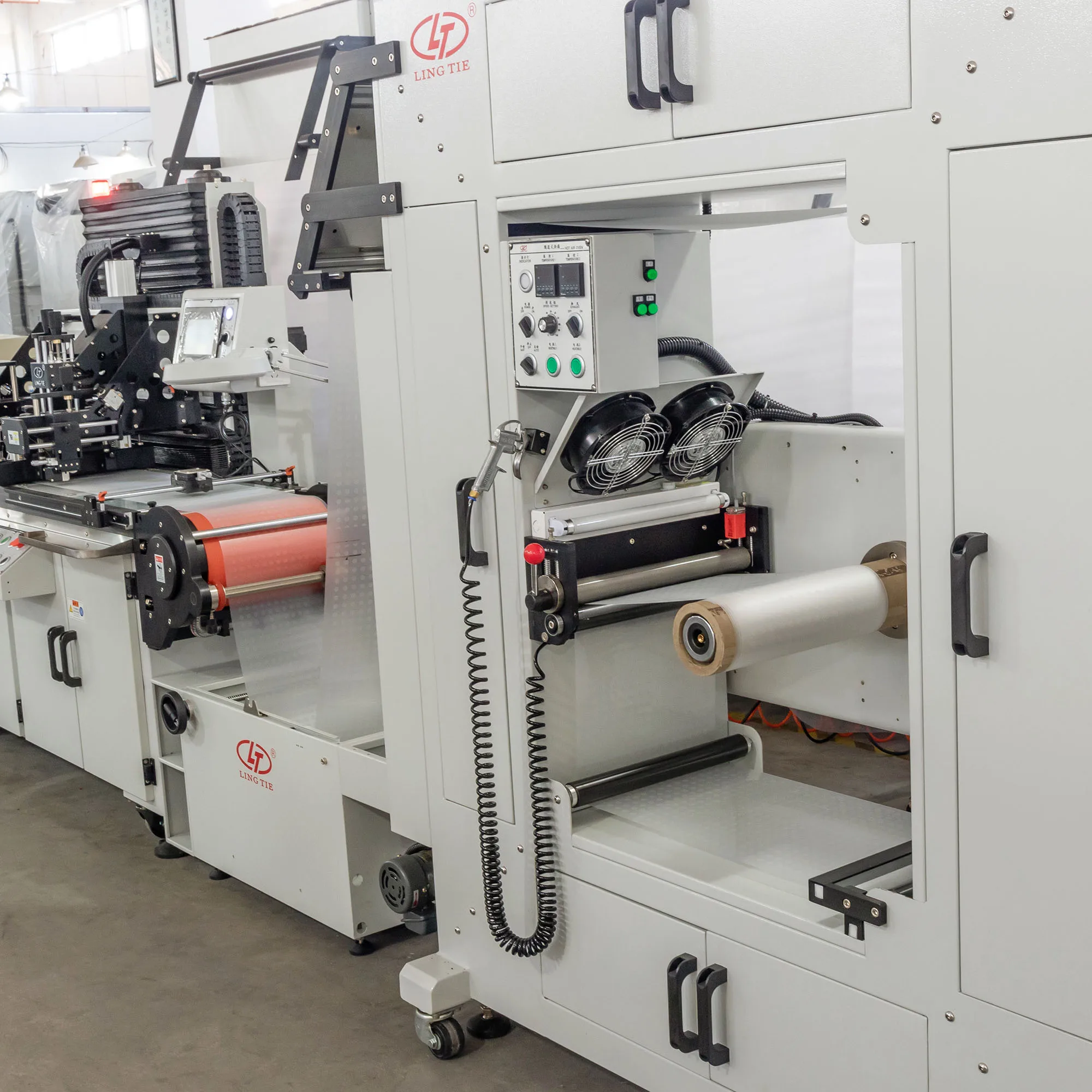

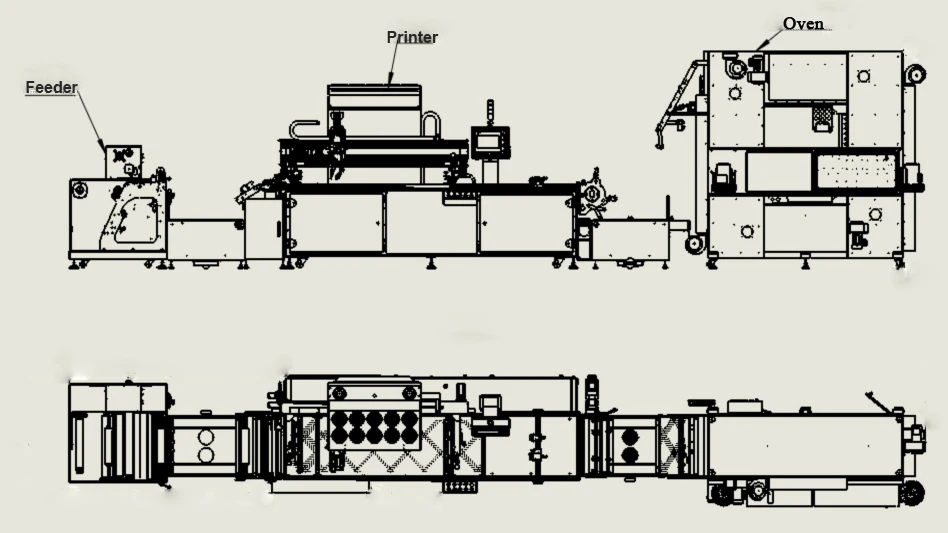

The IMD Printing Machine is composed of an automatic feeding machine, an automatic printing machine and an oven.


Model
LTA-5570
Max. Printing Size
550*700mm
Printing Speed
0-2500 t/h
Max. Screen Frame Size
850*1100mm
Max. Substrate Width
570mm
Registration Accuracy
±0.05mm
Air Source
0.4-0.6mpa
Power
220V, 3KW, 15A
Printing Material Thickness
0.05-0.5mm
Weight
1800kg
Machine Size
L2950*W1160*H1650mm


1) The body of the whole machine adopts electrostatic spraying - baking paint, solvent resistance, do not drop paint.
2) The machine adopts modular design, reserved functions, convenient for future upgrade and installation functions.


3) The tension of the machine adopts the back suction design to avoid scratching the surface of the printed material.
4) All the sliding parts are made of precision linear slide rail with high precision and long service life.



5) Application: PET, PC, PVC, PP, Stickers, Smart label and other kinds of plastic film material in roll.


Introduction of the Three Components

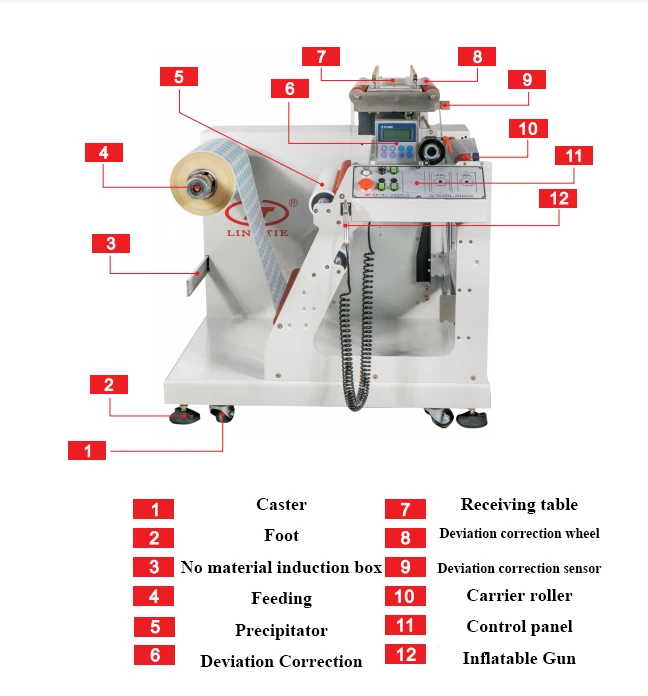

Automatic Feeder
1. Equipped with photoelectric sensor, the sensitivity of induction is high, can sense any material, automatic control of feeding.
2. Equipped with no material sensor, the machine will automatically stop when there is no material.
Optional functions:
1) Electromagnetic tension control

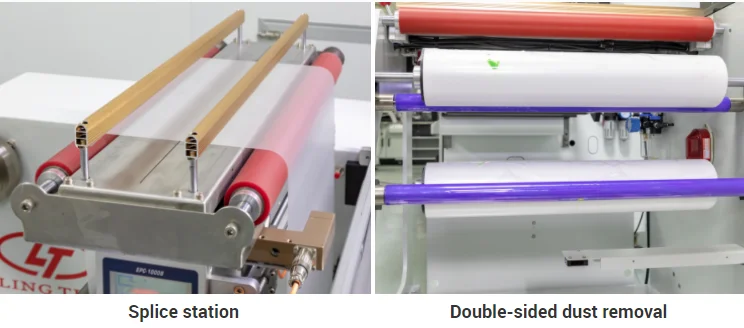

2) Double-sided dust removal

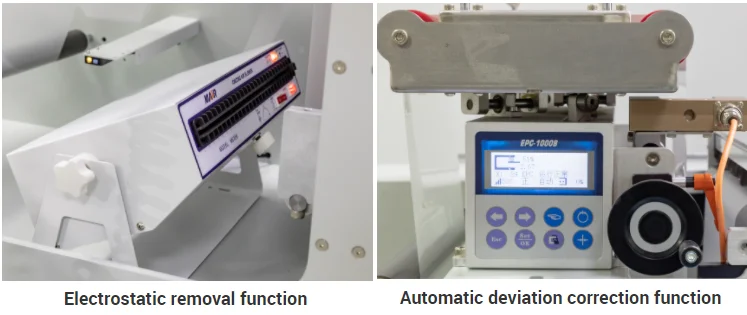

3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device






Technical Parameters
Name
Automatic feeding machine



Model
LTC-480B
LTC-600B
LTC-700B
LTC-900B
Max.Wed Width
490mm
610mm
710mm
910mm
Power
0.3kw



Tension
≤0.1N



Weight
300kg
320kg
350kg
400kg
Machine Size
L1100*W1000*H1200mm
L1100*W1080*H1200mm
L1100*W1220*H1200mm
L1750*W1250*H1260mm

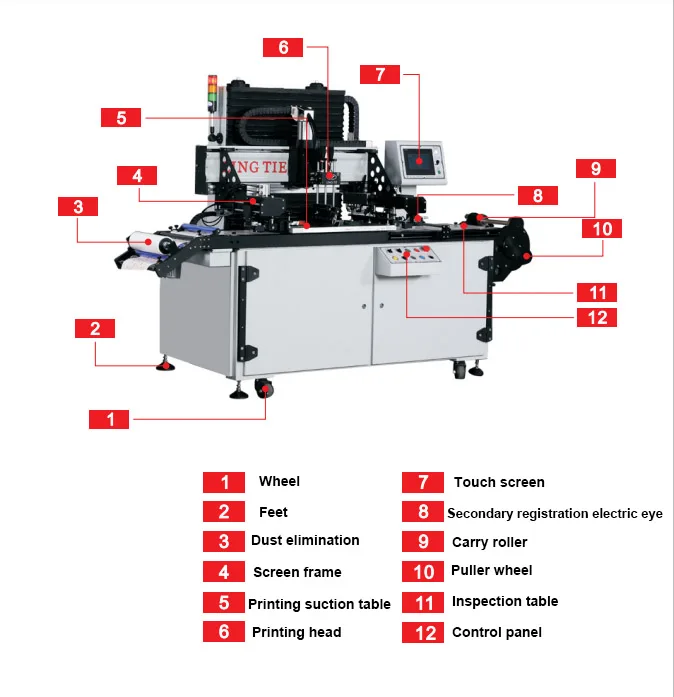

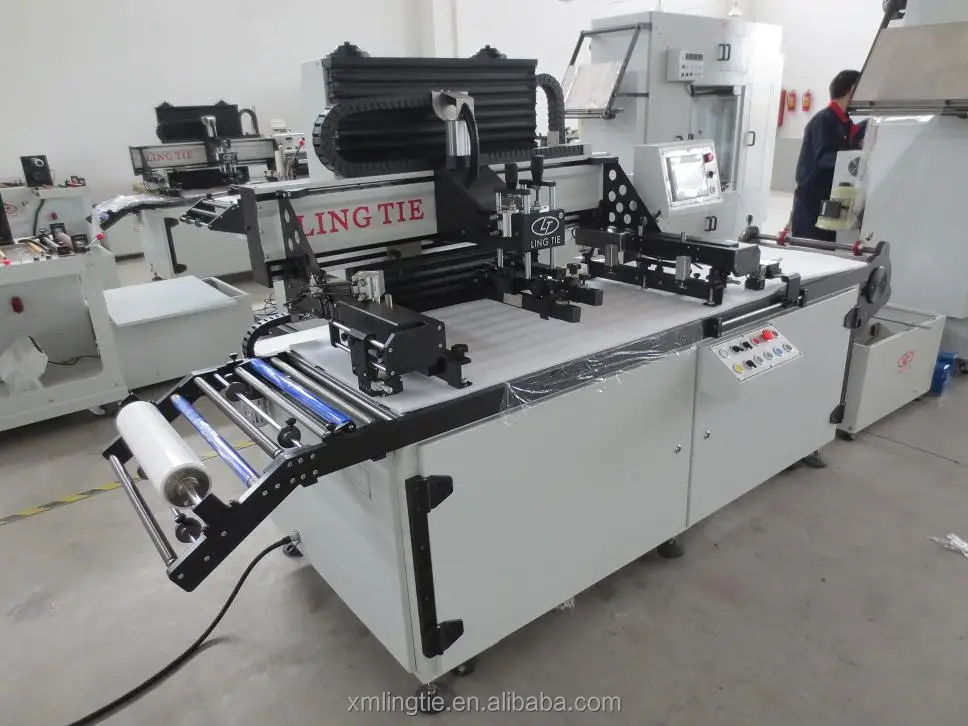

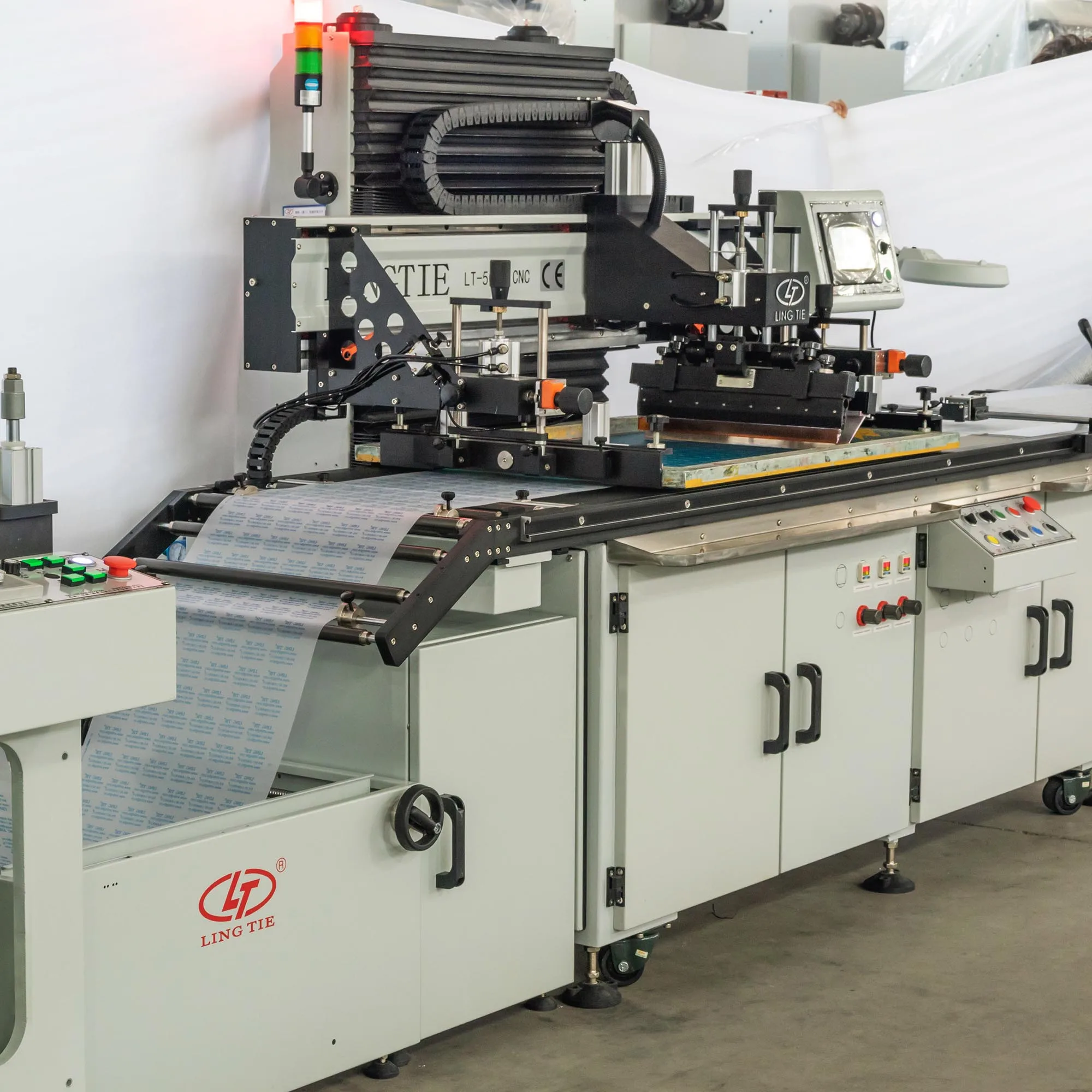

Automatic Printer
1. The printing seat adopts 4-column precise linear guide rail, with high repeatable positioning accuracy, strong stability and durability.
2. With off-screen function, printing a large area of background color and printing glue, to prevent the sticky screen.
3. With anti-drip ink function, prevent color difference between ink with ink, to achieve high quality printing.

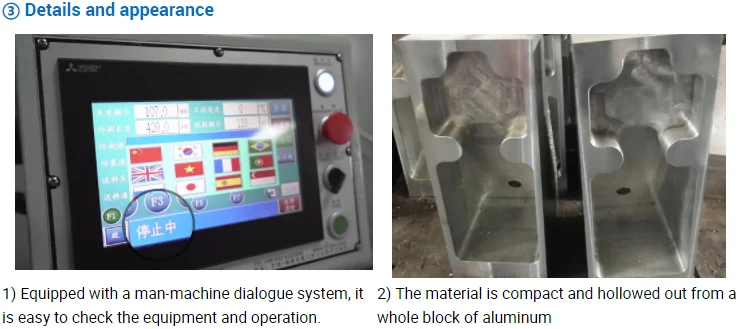

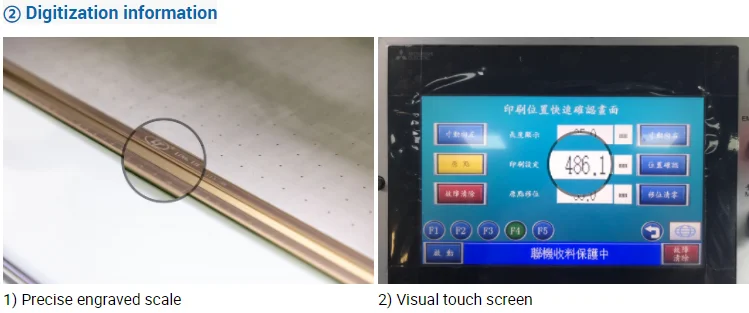

4. Equiped with a man-machine system.
Optional functions:

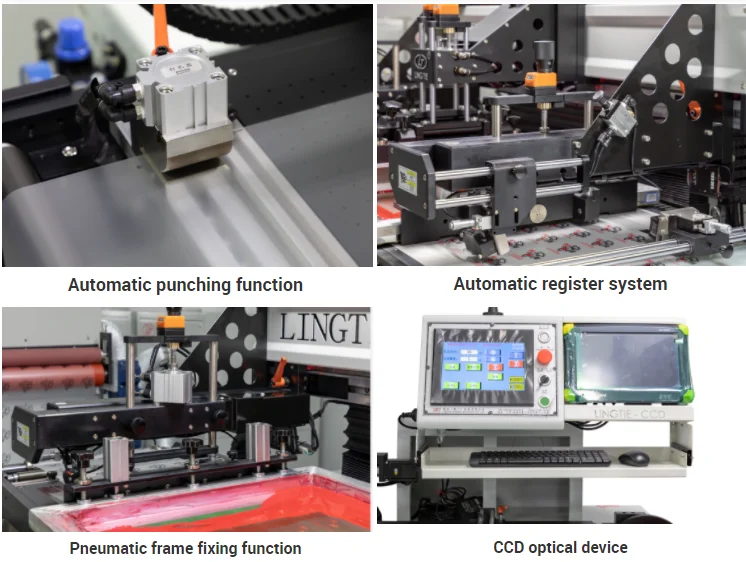

1) Automatic punching function
2) automatic registration function
3) dust elimination roller
4) pneumatic frame fixing function
5) CCD optical device




Technical Parameters




Name
Automatic Roll to Roll Screen Printing Machine



Model
LTA-3040
LTA-4050
LTA-5070
LTA-6080
Print Area
330*450mm
430*550mm
530*750mm
630*850mm
Print Speed
0-6000t/h
0-6000t/h
0-2500t/h
0-2500t/h
Screen Frame Area
600*800mm
700*900mm
800*1100mm
900*1200mm
Max. Paper Width
320mm
420mm
520mm
620mm
Inspection Table Max. Size
400*400mm
500*500mm
600*600mm
700*800mm
Air Source
0.4-0.6mpa
Power
1P 220V 3KW/3P 380V 3KW(Customizable)
Printing Material Thickness
0.02-0.5mm
Weight
1200kg
1500kg
1700kg
2000kg
Machine Size
L2560*W980*H1865mm
L2620*W1100*H1865mm
L2950*W1160*H1865mm
L3150*W1260*H1865mm

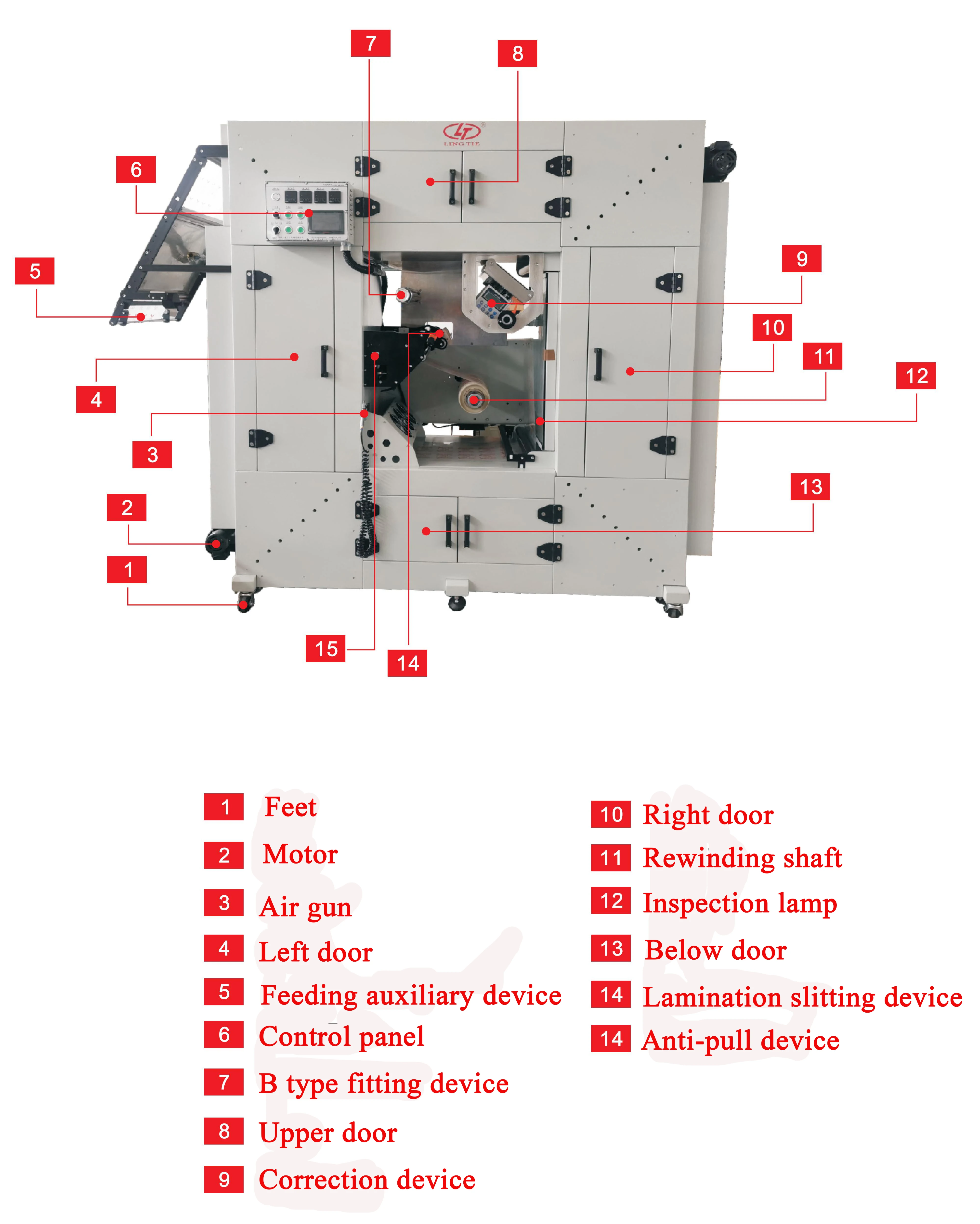

Oven
1. Adopts uniform speed function to ensure that the material stays in the oven at any position for the same time and rewinding speed.
2. Oven with 4 sides, 4 sides heating, air circulation more smooth.
3. The suction tension can be arbitrarily stepless adjustment, convenient to control the material tension, to ensure that the printing material does not stretch deformation.
Optional functions:
1) Uniform speed device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device




Technical Parameters
Name
Hot air dryer



Model
LTB-350
LTB-460
LTB-600
LTB-800
Material quality
Baogang-45#steel plate



Power
14kw
14kw
22kw
22kw
temperature
Room temperature-140℃



Insulation layer thickness
50mm
50mm
50mm
100mm

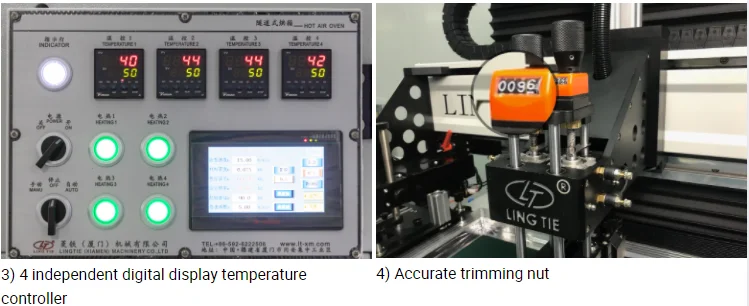

Temperaturer controller
2pcs
2pcs
4pcs
4pcs
Weight
400kg
500kg
600kg
700kg
Machine Size
L1970*W780*H1810mm
L1970*W900*H1810mm
L2830*W1060*H2150mm
L3000*W1260*H2260mm


Optional Plug








Our Services & Strength

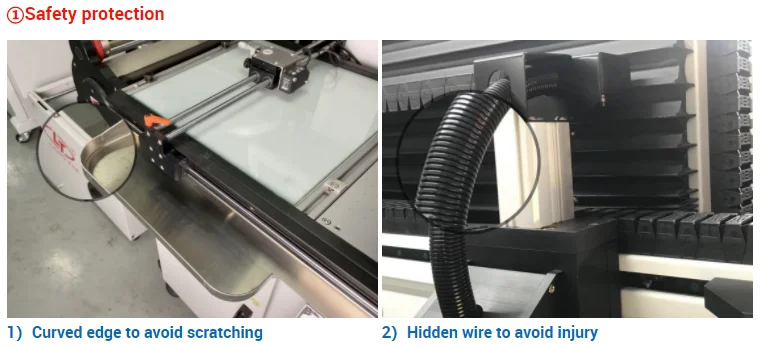

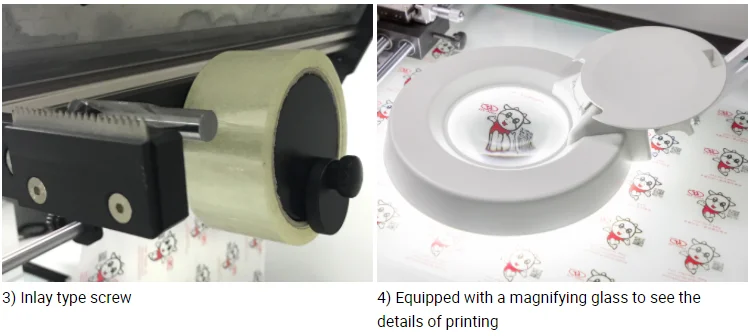

Humanization Design














Best Selling

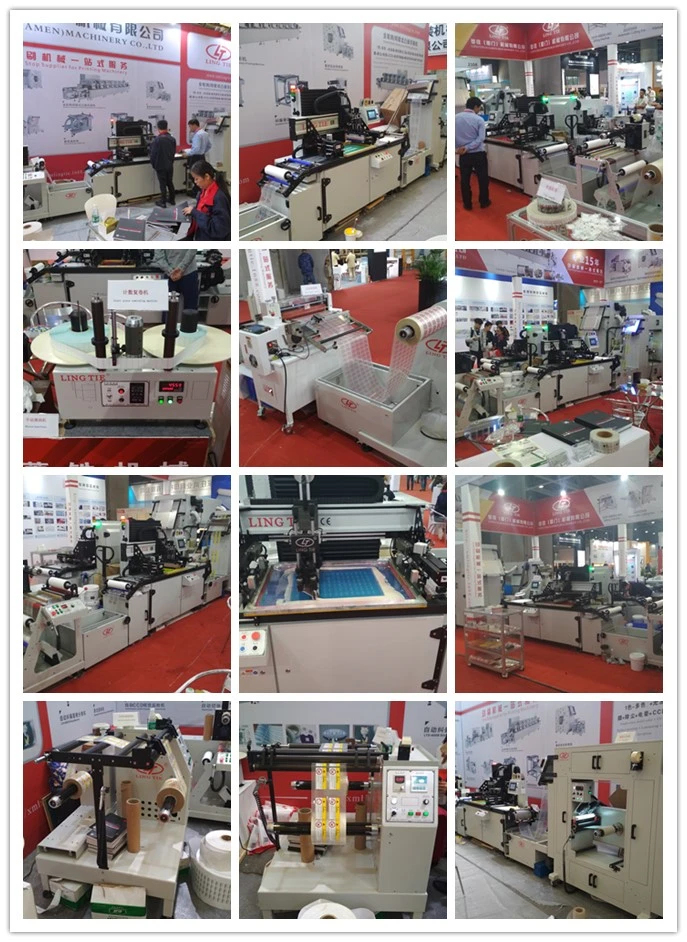

Exihibition ＆ Client Factory
