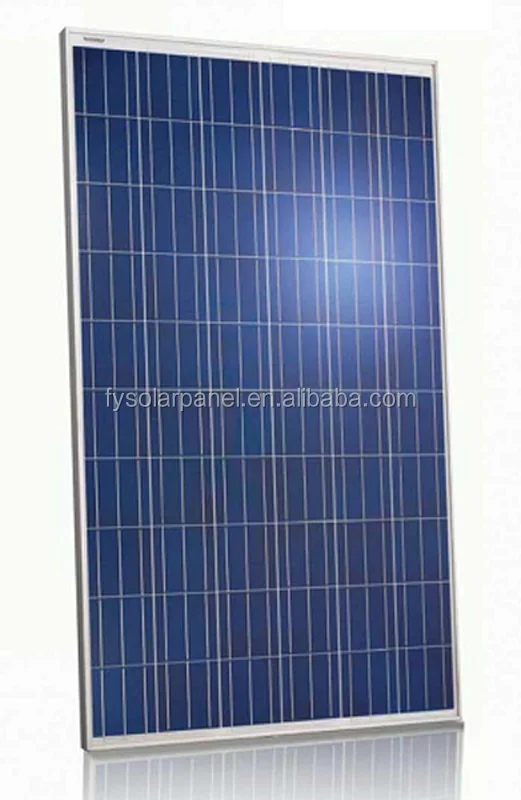

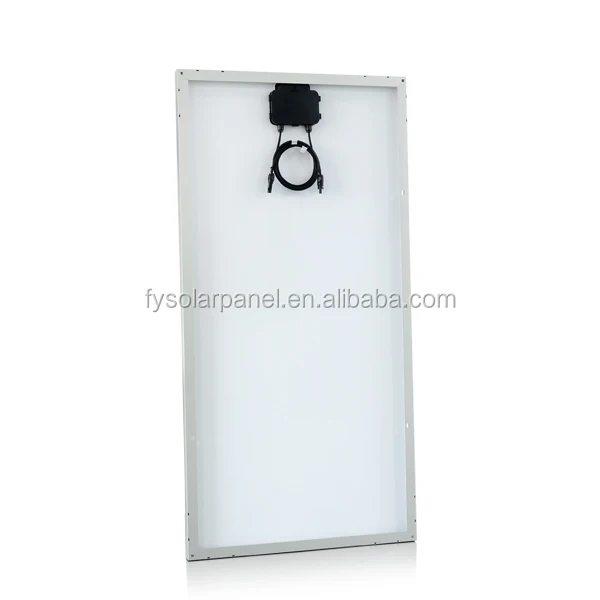

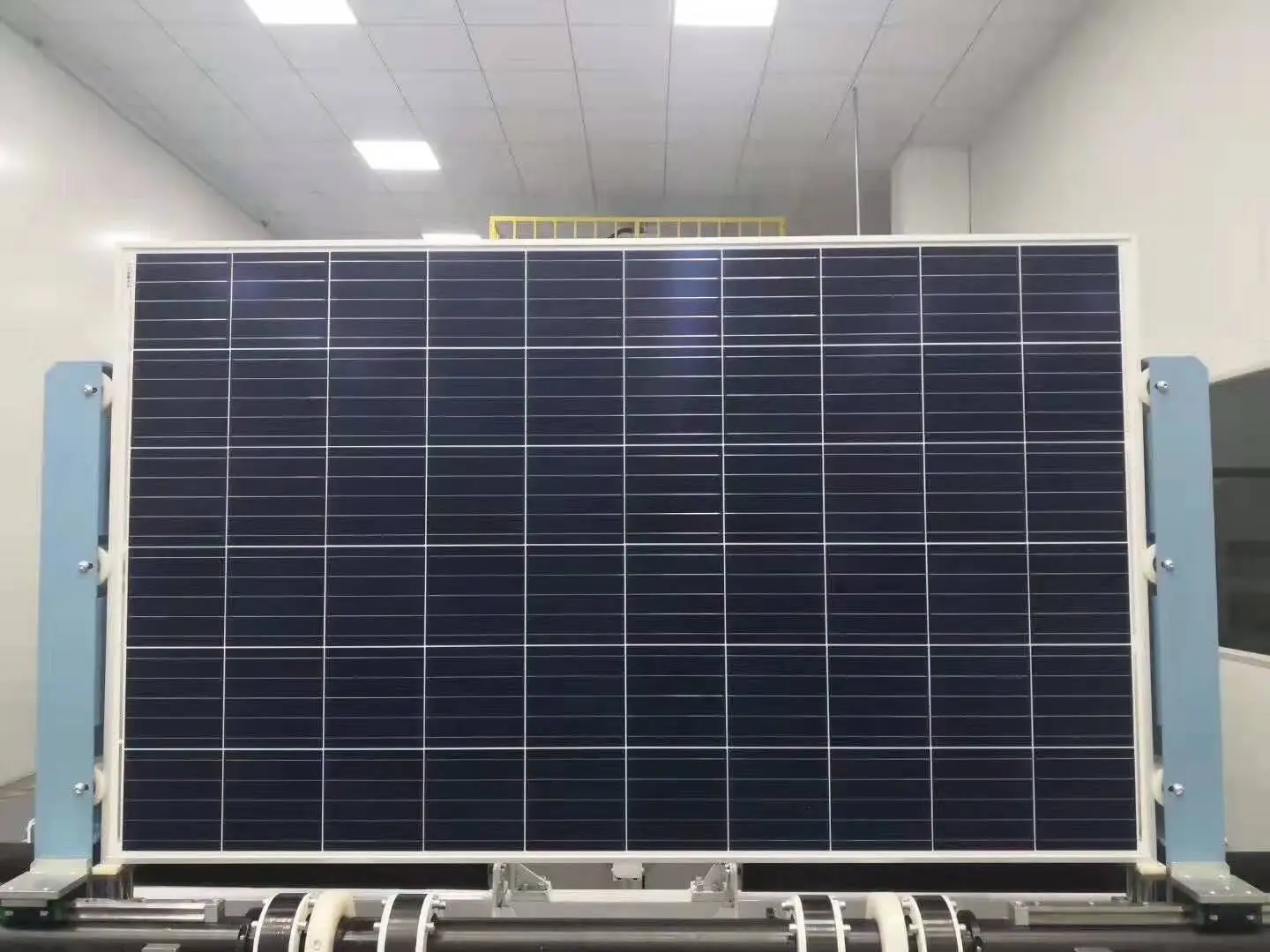

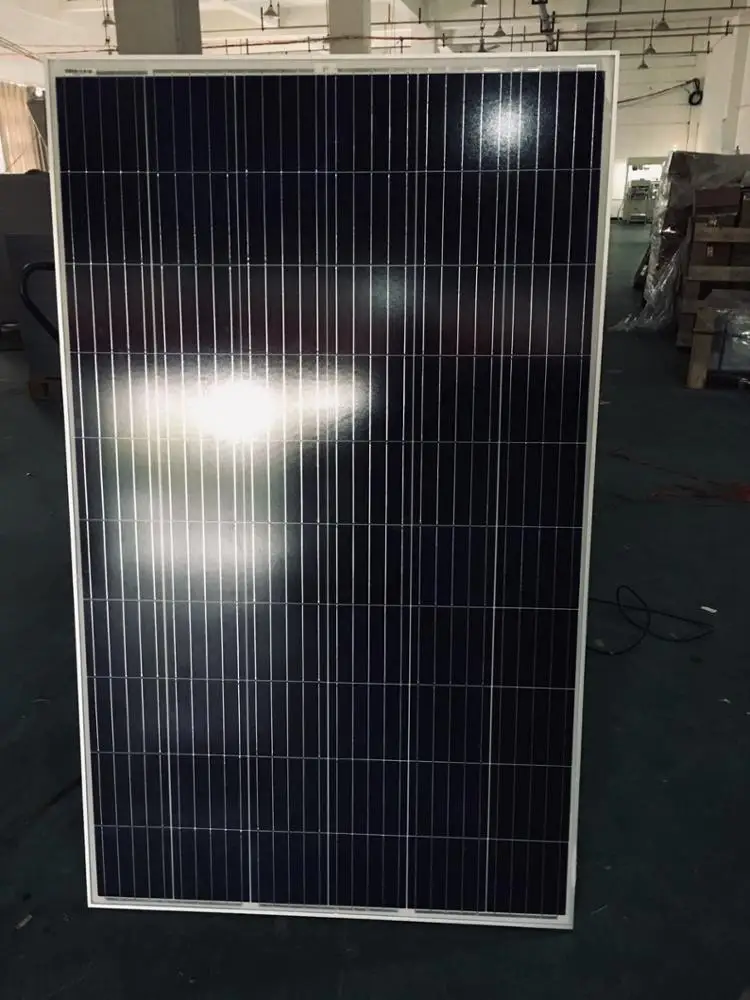

poly 60 cells 250w photovoltaic PV solar panel modules on roof tile for home
- Category: >>>
- Supplier: Jiaxing Botao Trading Co. Ltd.
Share on (60398859495):
Product Overview
Description
 |  |  |  |
| Specifications | |||||
| Module | FY-60-270P | FY-60-275P | FY-60-280P | FY-60-285P | FY-60-290P |
| Rated Maximum power at STC | 270 | 275 | 280 | 285 | 290 |
| Open Crircuit Voltage(VOC/V) | 38.04 | 38.15 | 38.16 | 38.45 | 39.08 |
| Maximum Power Voltage(Vmp/V) | 31.70 | 31.79 | 31.61 | 32.03 | 32.26 |
| Short Circuit Current(Isc/A) | 9.21 | 9.32 | 9.32 | 9.56 | 9.45 |
| Maximum Power Current(Imp/A) | 8.52 | 8.66 | 8.86 | 8.90 | 8.99 |
| Module Efficiency(%) | 16.59 | 16.90 | 17.11 | 17.51 | 18.02 |
| Power Tolerance | 0~ +3% | ||||
| standard Test Conditions(STC) | Irradiance 1000w/m2,Cell Temperature 25℃,AM=1.5 | ||||
| Operating Temperature(℃) | -40℃~ 85℃ | ||||
| Max.Series Voltage | 1000VDC(IEC) | ||||
| Max.Series Fuse Rating | 15A | ||||
| Power Tolerance | ±3%/0~+3(Based on cudtomer requirements and contract terms | ||||
| Temperature Coefficients of Pmax | -0.39%/℃ | ||||
| Temperature Coefficients of Voc | -0.30%/℃ | ||||
| Temperature Coefficients of Isc | -0.050%/℃ | ||||
| Nominal Operating Cell Temperature(NOCT) | 45±2℃ | ||||
 |  |  |  |
