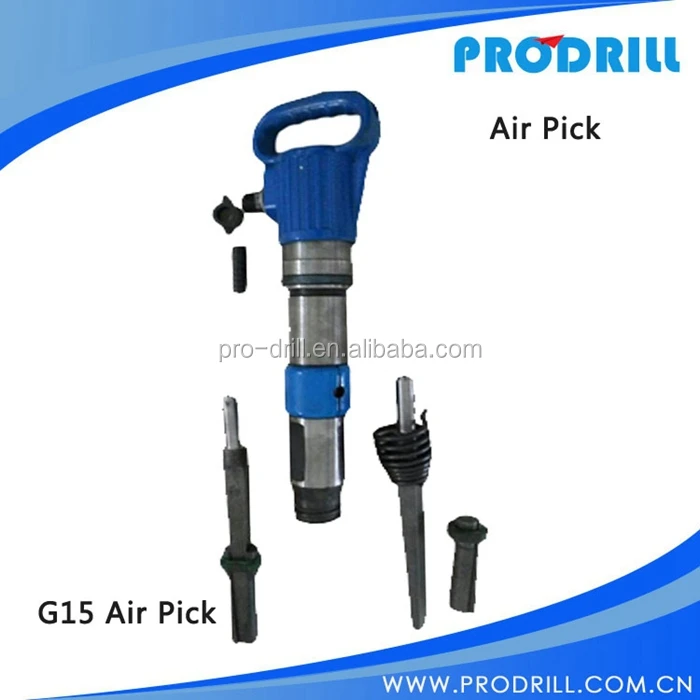

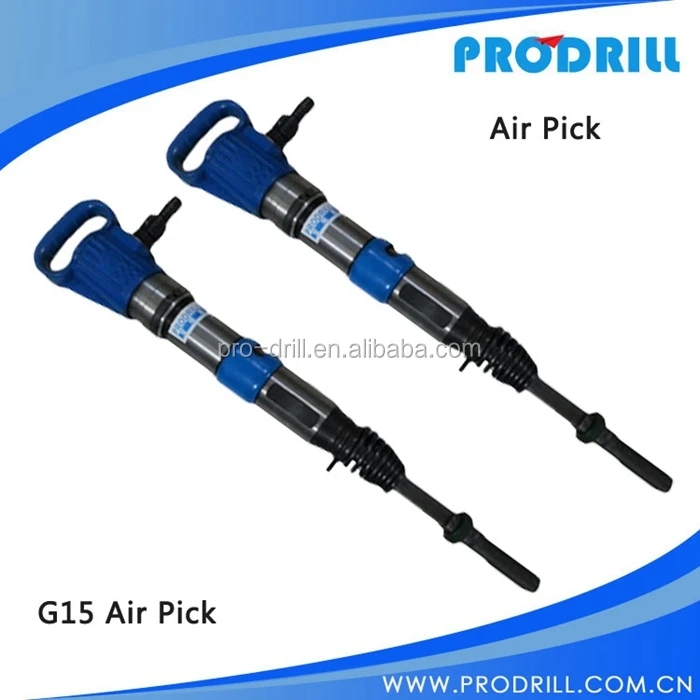

G15 Pneumatic hammer for Quarrying like ire breaker ,concrete
- Category: >>>
- Supplier: Beijing Pro Drill Equipment Co. Ltd.
Share on (60398910364):
Product Overview
Description
Product Description
| General introduction: |
G7,G10, G15 hand-held pneumatic air pick, hand pneumatic splitter, hand pneumatic hammer, or pneumatic breakers, the air tool, is applicable for stone, concrete and frozen soil crushing in coal mines, construction sites etc.
G7,G10, G15 The pneumatic pick is suitable for drilling in mine, crushing incompetent bed, concrete and clay, destroying hard or frozen stratum and other athletics occasion which need impact.
G7,G10, G15 Air Pick extensively apply in municipal works for broking off old road and original concrete foundation, and in minerals works for adopting coal, digging drain, mining soft rock, etc.
It is widely used to break old pavement, destroy concrete foundation in installing equipment of industrial and mining enterprises, smash solid and frozen earth in construction process of civil engineering and underground structure, and truncate coal bed and smash soft mineral.
Type | G7 | G10 | G15 |
Weight | 7.2 (Kg) | 10.9Kg | 12.5Kg |
Length | 456 (mm) | 575 (mm) | 600 (mm) |
Cylinder dia | φ35 (mm) | φ38 (mm) | φ42 (mm) |
Rammar stroke | 120 (mm) | 155 (mm) | 160 (mm) |
Rammar weigh | 0.6 (Kg) | 0.9 (Kg) | (Kg) |
Working pressure | 0.4~0.5 (Mpa) | 0.4~0.5 (Mpa) | 0.5-0.63 (Mpa) |
Impact energy | ≥30 (J) | ≥43 (J) | ≥55 (J) |
Impact frequency | ≥21.6 (Hz) | ≥18 (Hz) | ≥16 (Hz) |
Air consumption | ≤20 (L/s) | ≤20 (L/s) | ≤26.5 (L/s) |
Air pipe inner dia | φ19 (mm) | φ16 (mm) | φ16 (mm) |
| Images |
Process of products
More Products
DTH Hammer >> DTH BIT>> Thread Button Bits>>
ODEX Eccentric Casing >> Symmetrix Overburden Drilling System>> RC Bits>>
Applications
Packaging & Shipping
FAQ
Terms & Conditions of Ordering:
1 .Payment Terms:
T/T (Telegraphic Transfer) or Western Union
2. Delivery Term:
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Transportation:
Sample order: we suggest Courier express or by air
Bulk order: we suggest by air or by sea.
4. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded) through skype( simonhu6) and WhatsApp/Wechat: + 86 139 1110 7654
C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.
