Twintex TP250 5S True Rated 0 to 250V 5A Digital Dual LED Display Switch Mode Regulated 200V DC Power Supply

Product Overview

Description

Twintex TP250-5S True Rated 0 to 250V 5A Digital Dual LED Display Switch Mode Regulated 200V DC Power Supply



Function
The TP-S series are high power output DC power supply with output range up to 5000W. The TP-S series can be made according to customer request, with output voltage up to 600V and output current up to 200A. Over Voltage Protection, Over Current Protection, Over Temperature Protection and Over Load Protection keep the TP-S series and their load safe from unexpected conditions. High Accuracy, high stability and low ripple & noise make the TP-S series an ideal solution for various industrial applications.



Features
Max. output power ranging from 150W to 5000W
Max. output voltage 600V, Max. output current 200A
Applying advanced PWM control technology
Compact design and light weight (3~10kg)
Constant voltage and constant current operations
Auto CV/CC switch
Coarse and Fine control for voltage and current
Over voltage, over current, over temperature and over power protections
Adjustable OVP range, OCP fixed 105% of Max. current range
Intelligent temperature control cooling fan
Customized specifications and functions acceptable





Output capacity	150W~5kW
Working mode	PWM
Output
Output voltage	DC 0~100% full range adjustable
Output current	DC 0~100% full range adjustable
O.V.P. range	DC 1~100% rated output
O.C.P. range	DC fixed 105% max. output
Line regulation	CV≤0.2% +2 digits
	CC≤0.5% +2 digits
Load regulation	≤0.5% +2 digits
Ripple & Noise	≤1% rms full scale
Display
Voltmeter	4 digits LED display
Ammeter	4 digits LED display
Voltage resolution	0.000-9.999V; 00.00-99.99V; 000.0-999.9V
Current resolution	0.000-9.999A; 00.00-99.99A; 000.0-999.9A
Accuracy	±(1% FS+1 digit)
Optional functions
Display meter	4 1/2 digits LED display (Max. display 19999)
Output terminal	On front panel; or on rear panel; or on both front and rear panels
Output ON/OFF	Front panel switch
	Terminal block or Wires on rear panel for remote control
General
Protection	Over voltage, over current, over temperature and over load protections
Operating environment	0℃~40℃, <80%RH
Storage environment	-10℃~70℃, <80%RH
Power source	AC110V/220V±10%, 50/60Hz
Input module	Power socket or terminal block

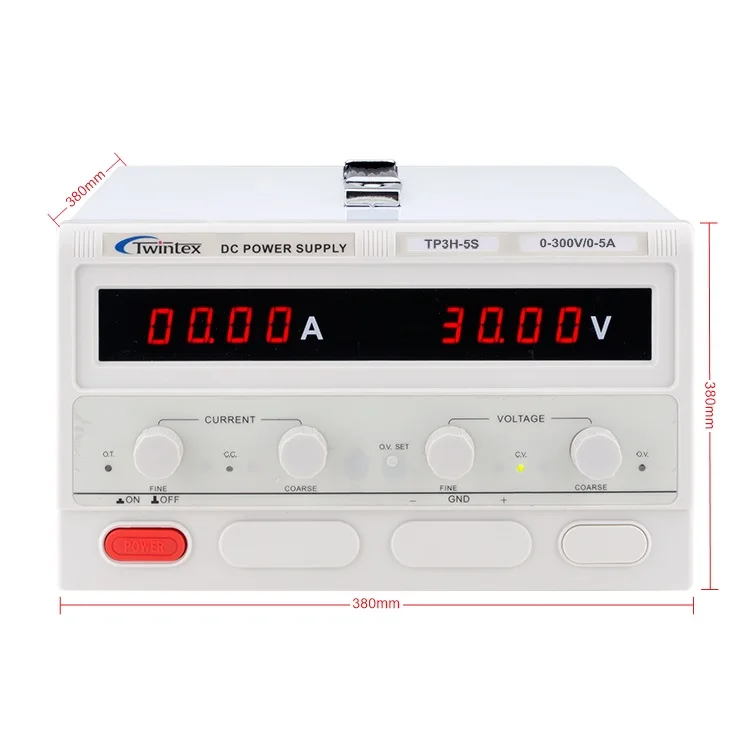

Dimension (WxHxD)	200x150x285mm (M chassis, 150W~1250W)
	260x160x380mm (L chassis, 1300W~3000W)
	260x160x440mm (XL chassis, 3000W~5000W)
