FWQ series slitting machine mainly use for slitting with Polyester film,Cellophane,paper and Aluminum foil and other packing materials.

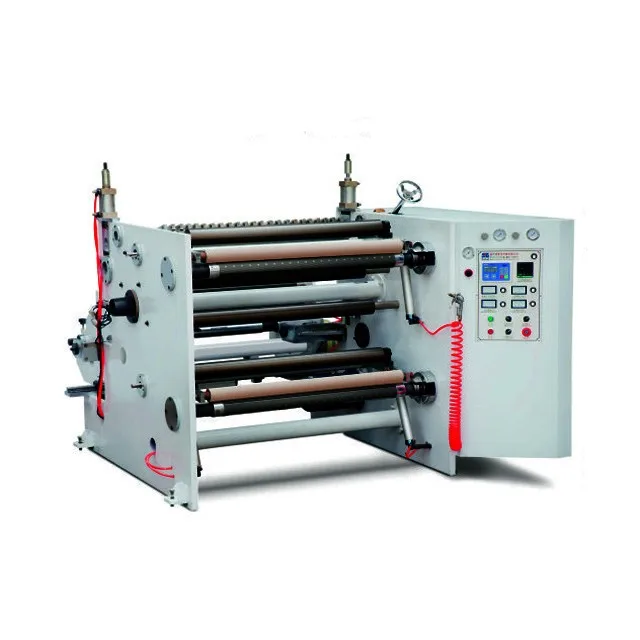

SPECIFICATIONS FOR FWQ-1300 SLITTING REWINDING MACHINE
Unwinding unit
Max.unwinding width
1300mm
Max.unwinding diameter
600mm(Or customized)
Unwinding shaft diameter
3inches(Or customized)
Rewinding unit
Max.rewinding width
1300mm
Unwinding shaft diameter
500mm(Or customized)
Rewinding shaft diameter
3 inch
Main components
10KG magnetic powder brake
1 PCS
3KW Motor
1 PCS
2.2KW converter
1 PCS
Main Features
1.Air shaft central unwinding ,tension control is good. 2.Photoelectric auto-web guide,high slitting precision,lower waste 3.Unwing tension controlled by per independent magnetic powder brake 4.Independent eletric cabinet ,micro-computer centralized control,rewinding length counting, and auto-stop.
Certifications
Detailed Images
Machine Parts

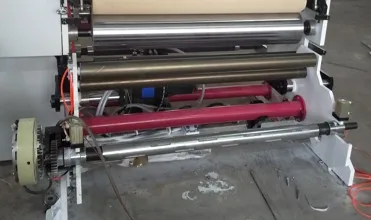

Name:Unwinding shaft Max.unwinding diameter:600mm Max.unwinding width:1300mm Air shaft for central unwinding
Main Parts

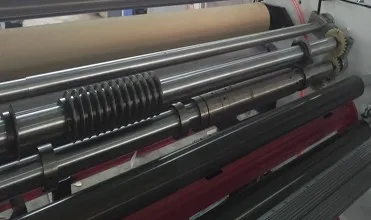

Name:Slitting knife Type: Circular knife Mini slitting width:35mm Devide upper and lower group air pressure knife.
Machine Parts

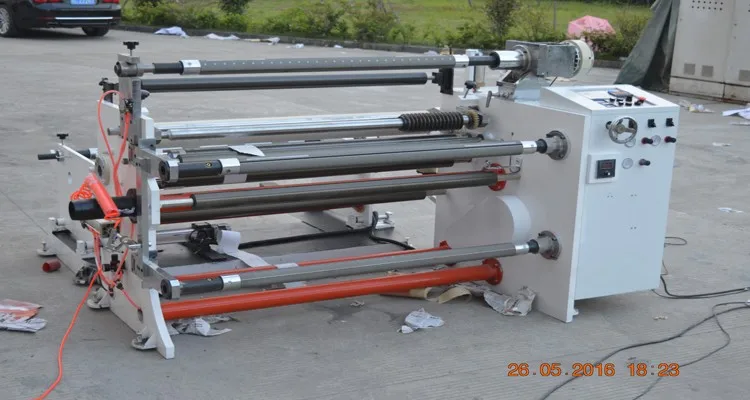

Name: Rewinding shaft Max.rewinding diameter:500mm Max.rewinding width:1300mm Double air shaft for rewinding position with press roller
Main Parts

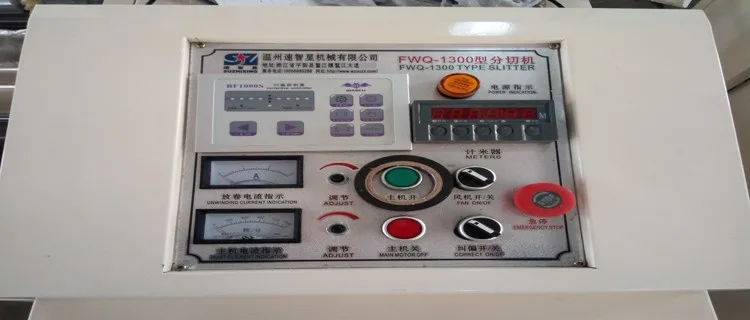

Name:Man-machie interface Original:China Web-guide devicce display,tension display,emergency stop,speedometer etc.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.3 T
Packaging Details

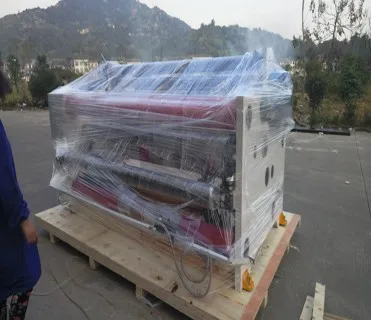

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
