NY 808 Hot Ink Roll Expiry Date Stamp Coding Machine For Packaging Machine
- Category: Coding Machines >>>
- Supplier: Fujian Nan Yun Packing Machinery Co. Ltd.
Share on (60399296557):
Product Overview
Description
Product Description

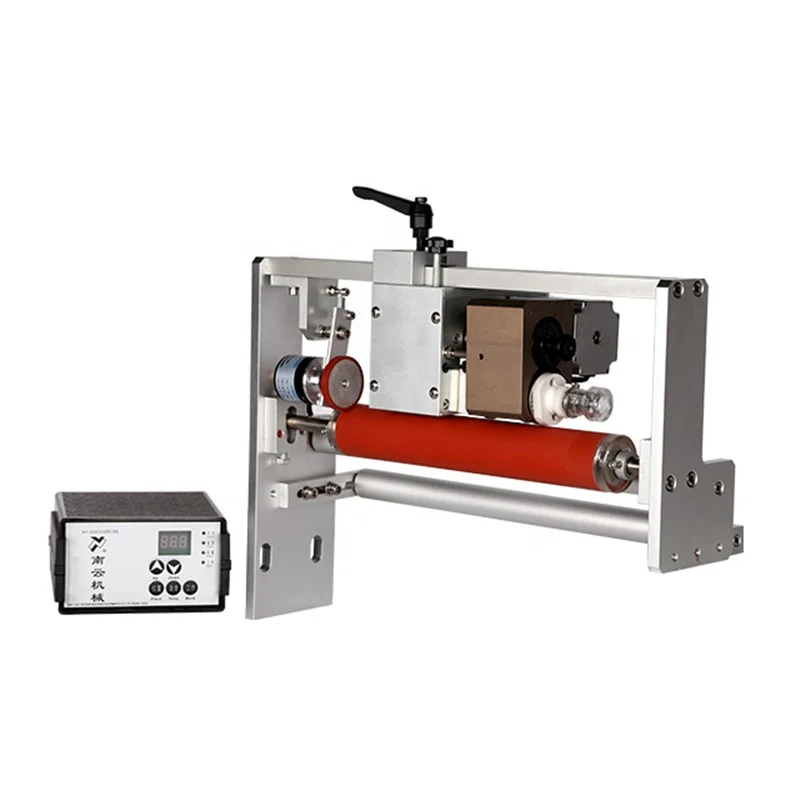

NY-808A Stepping Motor Hot Soild Ink Roller Coder for Vertical or Horizontal Continuous Packing machine
Ⅰ. Applications:
It is suitable for all kinds of vertical and horizontal continuous packing machines such as grain packing machines, biscuit bread horizontal packing machine and paper towel packing machines etc., with wide applications in food, cosmetics, medicine and other industries.
Ⅱ. Features:
1. Adopts high quality solid ink roll, legible printing with lower print costs.
2. Adopts stepper motor, steady in quality, long usage life.
3. Removable print head, simple structure of ink roll extraction device, characters and ink roll are easy to set and replace.
4. Automatically trace the packing speed and the print speed synchronous with packing machine to make sure the coherence of the printing position.
It is suitable for all kinds of vertical and horizontal continuous packing machines such as grain packing machines, biscuit bread horizontal packing machine and paper towel packing machines etc., with wide applications in food, cosmetics, medicine and other industries.
Ⅱ. Features:
1. Adopts high quality solid ink roll, legible printing with lower print costs.
2. Adopts stepper motor, steady in quality, long usage life.
3. Removable print head, simple structure of ink roll extraction device, characters and ink roll are easy to set and replace.
4. Automatically trace the packing speed and the print speed synchronous with packing machine to make sure the coherence of the printing position.
Attention: The price shown on Alibaba system has no reference value. All final quotation based on your exact products details and requirements.
Majority of our date coding machine are non-standard configurations. Difference including: mounting bracket length, brass
characters quantity, type holder design, etc.
Majority of our date coding machine are non-standard configurations. Difference including: mounting bracket length, brass
characters quantity, type holder design, etc.
Ⅲ. Technology Data:
Model | NY-808A / NY-808B |
Driver | Stepping Motor |
Power Supply | 220V/50Hz |
Power | 220W |
Print Speed | 0-400 times/min |
Print Lines | T-type (Axial) up to 13lines, max18characters per line |
R-type (Radial) up to 8lines, max11characters per line | |
Pouch Length | ≥33mm (4-up printer) |
≥66mm (2-up printer) | |
Font Size | T-type 2mm*3.4mm, 3.0*3.4mm, 2.5mm*7.0mm |
R-type 3.4mm*3.4mm | |
Consumable | Hot Ink Roller ¢36*15mm; ¢36*32mm; ¢36*40mm; |
Size (LXWXH) | 560mm*195mm*240mm |
Weight | 9kgs |
All are applicable to horizontal and vertical continuous packing machines such as vertical continuous granule packing machines, flow biscuit packing machine and wet-paper packing machines etc to do flow continuous coding.
1. NY-805 friction coder get working signal through electric magnet movement. After using for one or two years, the electric magnet will be perished and should change.
2. In comparing with NY-805, our NY-808A adopt stepper motor as driver, it is steadier in quality and has longer usage life
reaching 8 years even more. This model sells best and gets good feedback from domestic and abroad market.
3. NY-818 is pneumatic system date coder using hot stampingribbon instead of ink roll, it is more clear print result, print
head is intermittent working, but we specially design such print rolls and structures as buffer mechanism for continuous
packing machine requirement.
reaching 8 years even more. This model sells best and gets good feedback from domestic and abroad market.
3. NY-818 is pneumatic system date coder using hot stampingribbon instead of ink roll, it is more clear print result, print
head is intermittent working, but we specially design such print rolls and structures as buffer mechanism for continuous
packing machine requirement.
Date Coding Machines Installed for Packing Machine
Hot Solid Fast Dry Ink Roller for Batch Date Coding Machine to Print MFG EXP LOT Date Number.
Introduction:
Hot Ink Roller is specialized foam roll loaded with a variety of hot melt inks, which is used to print production dates, expiry dates, batch numbers, and other related information on all kinds of package substrates for the food, cosmetic, pharmaceutical, automotive and the other industries. It is a specific consumable working with many different date coders & marking printers, with excellent characteristics, they are able to produce at high speed with instant dry, good adhesion and highly legible printing.
φ36mm*12mm; φ36mm*16mm; φ36mm*32mm; φ36mm*36mm;
φ36mm*40mm; φ40mm*40mm; φ48mm*55mm; φ48mm*60mm;
φ36mm*40mm; φ40mm*40mm; φ48mm*55mm; φ48mm*60mm;
Print Result
Related Models You May Interest. Click it to Enter into Product Link:
NY-808A Stepping Motor Ink Roll Coder
NY-805 Friction Ink Roll Coder
NY-818 Pneumatic Ribbon Coder For HFFS
NY-803 High Speed Pneumatic Ribbon Coder Head
NY-802 Electric Ribbon Coder
NY-815 Electric Ink Roll Coder
NY-803A Pneumatic Ribbon Coder
NY-803B Pneumatic Ribbon Coder
All Kinds of Type Holders and Brass Characters Available
What products you can find at NanYun Factory?
We are professional manufacturer of labeling machine, date coding machine, laser marking machine and related products since 2004 in China. Now have over 130 employees, covering an area of 46,609 square meters, annual production capability is 16,500 sets of machines.
NanYun company elected as National High & New Technology Enterprise, honored as province famous brand, gained more than 20 domestic patents and passed the CE, ISO 9001 certification, NY brand machine sell well across the country and also exported to America, Spain, Australia, Italy, India and 30 other countries and regions.
NY products include date coding machine, thermal transfer printer, laser marking machine, ink jet printer, labeling machine, hole punching machine, bottle unscrambler, cover impressing machine, bottle seaming machine, capping machine, carton sealing machine, metal detector, weight checker, automation line, hot ink roll, hot stamp foil, brass characters, widely used in many fields of foodstuffs, pharmaceuticals, beverages, cosmetics, household paper and so on.
NanYun company elected as National High & New Technology Enterprise, honored as province famous brand, gained more than 20 domestic patents and passed the CE, ISO 9001 certification, NY brand machine sell well across the country and also exported to America, Spain, Australia, Italy, India and 30 other countries and regions.
NY products include date coding machine, thermal transfer printer, laser marking machine, ink jet printer, labeling machine, hole punching machine, bottle unscrambler, cover impressing machine, bottle seaming machine, capping machine, carton sealing machine, metal detector, weight checker, automation line, hot ink roll, hot stamp foil, brass characters, widely used in many fields of foodstuffs, pharmaceuticals, beverages, cosmetics, household paper and so on.
