Motorbike Tyre Tread Extrusion Cooling Line

Product Overview

Description

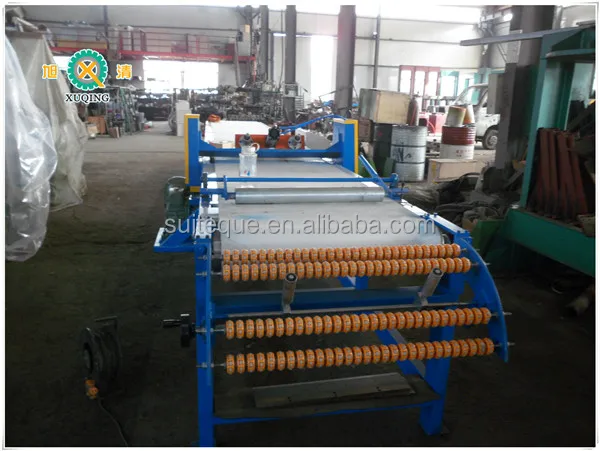

         Tire Tread Cooling Line/     Tyre Tread Extrusion Cooling Line

Application

         This cooling device produce tire tread via extrusion method (or calendar method).

The productin line uses spray and immersion cooling method so as to ensure adequate cooling,fully meet the motorcycle tire tread production process,improve production efficiency and reduce labor intensity.



Structure features

This cooling device consist of the following components:





1.Take-off devices: conveyor belt,slope and so on.



2.Cooling device:three-layer cooling tank.



3.Lenth cut device:rodless cylinder and disc cutter.



Designing and compounding special specification products according



to the customers' requirements

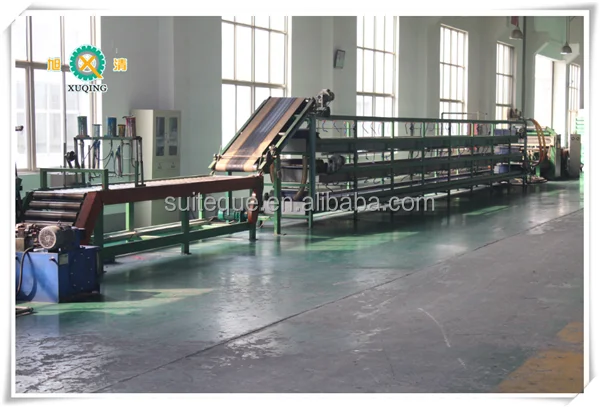

Tire Tread Cooling Line /     Tyre Tread Extrusion Cooling Line
Technical parameters



Line speed	5-25 m/min
Production roll width	650 mm
Extraction height	900 mm
Pick-up temperature	≤40°c
Maximum thickness of the tread cutting	20 mm
Cutting angle adjustment range	35°±5°(Adjustable)
Maimum cutting width	450 mm
Length tolerance of the cutting component less than	±3
Cutting frequency	10-15 cuts/min
Air pressure	0.6-0.8 Mpa
Total motor power	23.3 kw
Cooling water consumption	50-60m³/h
Dimension (L*W*H)	28000x2000x2800 mm
Weight	20000 kg

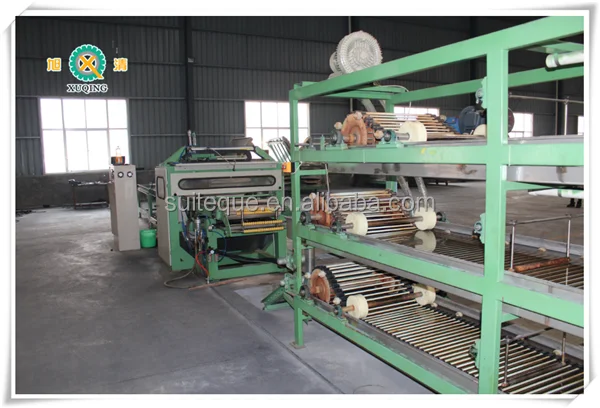

Tire Tread Cooling Line /    Tyre Tread Extrusion Cooling Line
Packing and Transport







Service after sales



1. One year quality guarantee and long-term technical support.



2. We can train your workers for free. If you need, we can install and assemble the machine in your workshop. And you should pay for the necessary costs, according to the international trade.



Welcome to visit our factory and we'll show you the best machine and service!







About our company



 Qingdao Suiteque Machinery Co.,Ltd is located in the west coast of Qingdao city. It is a professional enterprise that committed to the production and development of full-automatic complete sets of inner tube and tire equipment of motorcycles,bicycles,electric cars series.



Our products have been sold to  Southeast and Middle Asia, the Middle East, South Africa and North America.
